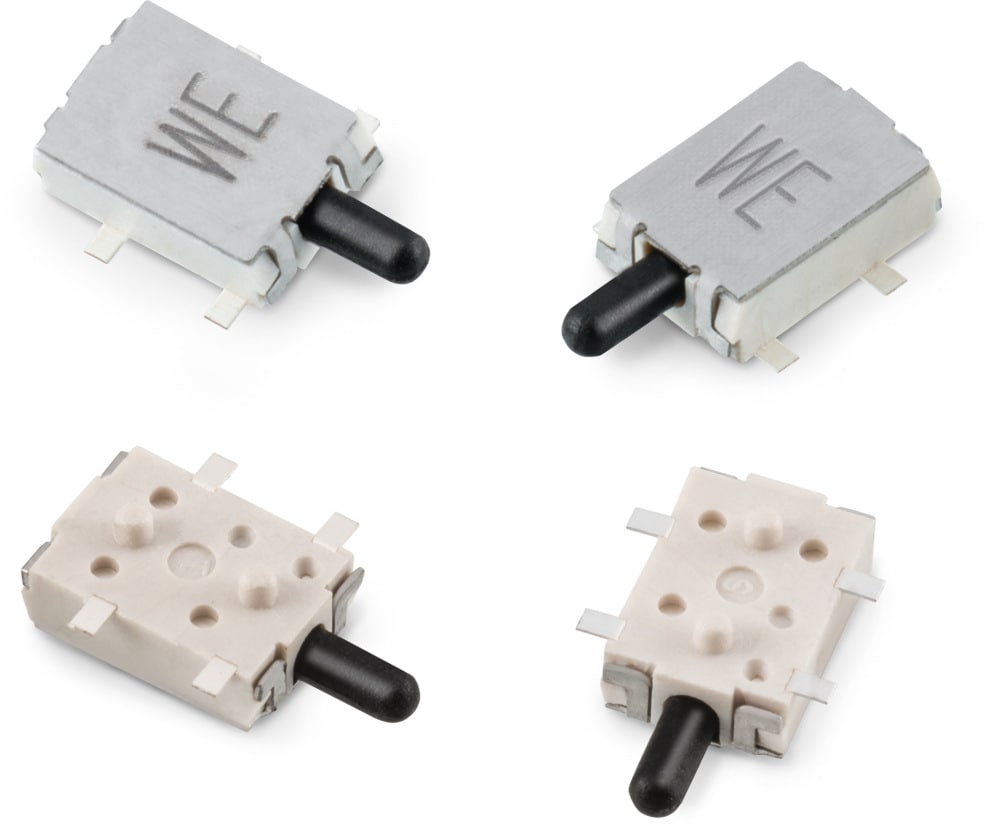

WS-DESU SMT Detector Switch Side Push 5.7 x 4.0 mm

Material Properties
Actuator Material	PA46
Actuator Flammability Rating	UL94 HB
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Terminal Material	Copper Alloy
Terminal Plating	Silver

Electrical Properties
Contact Resistance Initial	500 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	100000 Cycles
Schematic	SPST-NC; SPST-NO

General Information
Operating Temperature	-40 °C up to +85 °C

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

	Order Code	Datasheet	Downloads	Status	Operation Force (g)	Schematic	Design Kit	Samples
	461011442105	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DESU (rev22a).IntLib \| 93 KB CDS Cadence_WS-DESU (rev18a).zip \| 1.3 MB EAG Eagle_WS-DESU (rev20a).lbr \| 20.5 KB CAD files ZIP 3D 3D_461011442105 (rev1).pdf \| 580.6 KB IGS Download_IGS_461011442105 (rev1).igs \| 1.5 MB STP Download_STP_461011442105 (rev1).stp \| 753.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	SPST-NO	499001
	461031442105	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DESU (rev22a).IntLib \| 93 KB CDS Cadence_WS-DESU (rev18a).zip \| 1.3 MB EAG Eagle_WS-DESU (rev20a).lbr \| 20.5 KB CAD files ZIP 3D 3D_461031442105 (rev1).pdf \| 580.6 KB IGS Download_IGS_461031442105 (rev1).igs \| 1.5 MB STP Download_STP_461031442105 (rev1).stp \| 753.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	SPST-NC	499001

	Order Code	Datasheet
	461011442105	SPEC
	461031442105	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Operation Force (g)	Schematic	Design Kit	Samples
