Design Kit WE-XHMA SMD xtreme high current molded inductor automotive

NEW

Order Code 7843933

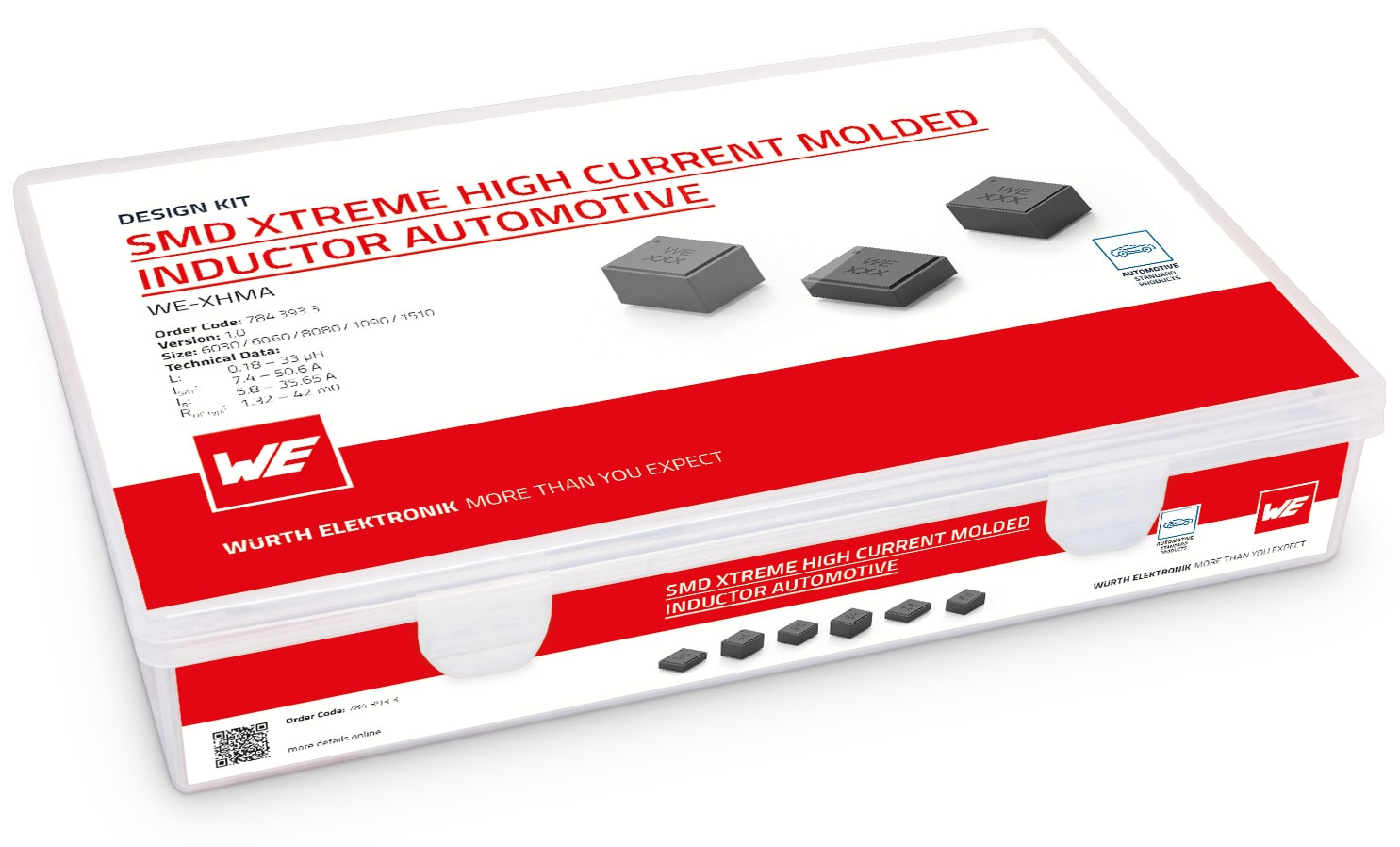

Design Kit WE-XHMA SMD xtreme high current molded inductor automotive
Download inlay

Characteristics

  • 5 sizes, 33 components
  • Flat wire coil for low copper losses
  • High saturation current
  • Magnetically shielded
  • Operating temperature: -40°C up to +125°C
  • AEC-Q200
  • Automotive approved

Products

Filter article data
Filter by
Delete all
 show  articles in 0 product lines
 articles in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
Product series
L(µH)
IRP,40K(A)
ISAT,30%(A)
fres(MHz)
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
784393440018
SPECWE-XHMA SMD Power Inductor, 0.18 µH, 35.65 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance0.18 µH
Performance Rated Current35.65 A
Saturation Current @ 30%50.6 A
Self Resonant Frequency169 MHz
–Check availability
784393440033
SPECWE-XHMA SMD Power Inductor, 0.33 µH, 27.35 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance0.33 µH
Performance Rated Current27.35 A
Saturation Current @ 30%42.9 A
Self Resonant Frequency113 MHz
–Check availability
784393440056
SPECWE-XHMA SMD Power Inductor, 0.56 µH, 22.75 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance0.56 µH
Performance Rated Current22.75 A
Saturation Current @ 30%30.8 A
Self Resonant Frequency77 MHz
–Check availability
78439344010
SPECWE-XHMA SMD Power Inductor, 1 µH, 15.75 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance1 µH
Performance Rated Current15.75 A
Saturation Current @ 30%24.95 A
Self Resonant Frequency59 MHz
–Check availability
78439358010
SPECWE-XHMA SMD Power Inductor, 1 µH, 30.25 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance1 µH
Performance Rated Current30.25 A
Saturation Current @ 30%38.15 A
Self Resonant Frequency53 MHz
–Check availability
78439369022
SPECWE-XHMA SMD Power Inductor, 2.2 µH, 32.05 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance2.2 µH
Performance Rated Current32.05 A
Saturation Current @ 30%32.1 A
Self Resonant Frequency28 MHz
–Check availability
78439344022
SPECWE-XHMA SMD Power Inductor, 2.2 µH, 10.85 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance2.2 µH
Performance Rated Current10.85 A
Saturation Current @ 30%16.25 A
Self Resonant Frequency37 MHz
–Check availability
78439358022
SPECWE-XHMA SMD Power Inductor, 2.2 µH, 21.85 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance2.2 µH
Performance Rated Current21.85 A
Saturation Current @ 30%26.45 A
Self Resonant Frequency33 MHz
–Check availability
78439369033
SPECWE-XHMA SMD Power Inductor, 3.3 µH, 24.95 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance3.3 µH
Performance Rated Current24.95 A
Saturation Current @ 30%34 A
Self Resonant Frequency23 MHz
–Check availability
78439344033
SPECWE-XHMA SMD Power Inductor, 3.3 µH, 7.65 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance3.3 µH
Performance Rated Current7.65 A
Saturation Current @ 30%14.5 A
Self Resonant Frequency31 MHz
–Check availability
78439369047
SPECWE-XHMA SMD Power Inductor, 4.7 µH, 20 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance4.7 µH
Performance Rated Current20 A
Saturation Current @ 30%28.05 A
Self Resonant Frequency21 MHz
–Check availability
78439370047
SPECWE-XHMA SMD Power Inductor, 4.7 µH, 29.37 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance4.7 µH
Performance Rated Current29.37 A
Saturation Current @ 30%47.4 A
Self Resonant Frequency16 MHz
–Check availability
78439344047
SPECWE-XHMA SMD Power Inductor, 4.7 µH, 5.8 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance4.7 µH
Performance Rated Current5.8 A
Saturation Current @ 30%10.5 A
Self Resonant Frequency28 MHz
–Check availability
78439346047
SPECWE-XHMA SMD Power Inductor, 4.7 µH, 9.6 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance4.7 µH
Performance Rated Current9.6 A
Saturation Current @ 30%13 A
Self Resonant Frequency28 MHz
–Check availability
78439358047
SPECWE-XHMA SMD Power Inductor, 4.7 µH, 13.35 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance4.7 µH
Performance Rated Current13.35 A
Saturation Current @ 30%16.65 A
Self Resonant Frequency22 MHz
–Check availability
78439369056
SPECWE-XHMA SMD Power Inductor, 5.6 µH, 18.15 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance5.6 µH
Performance Rated Current18.15 A
Saturation Current @ 30%24.45 A
Self Resonant Frequency18 MHz
–Check availability
78439346056
SPECWE-XHMA SMD Power Inductor, 5.6 µH, 8.9 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance5.6 µH
Performance Rated Current8.9 A
Saturation Current @ 30%12.1 A
Self Resonant Frequency25 MHz
–Check availability
78439370068
SPECWE-XHMA SMD Power Inductor, 6.8 µH, 25.3 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance6.8 µH
Performance Rated Current25.3 A
Saturation Current @ 30%40.05 A
Self Resonant Frequency14 MHz
–Check availability
78439346068
SPECWE-XHMA SMD Power Inductor, 6.8 µH, 8.1 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance6.8 µH
Performance Rated Current8.1 A
Saturation Current @ 30%11.3 A
Self Resonant Frequency22 MHz
–Check availability
78439358068
SPECWE-XHMA SMD Power Inductor, 6.8 µH, 10.55 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance6.8 µH
Performance Rated Current10.55 A
Saturation Current @ 30%17.6 A
Self Resonant Frequency22 MHz
–Check availability
78439369082
SPECWE-XHMA SMD Power Inductor, 8.2 µH, 13.4 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance8.2 µH
Performance Rated Current13.4 A
Saturation Current @ 30%20.45 A
Self Resonant Frequency16 MHz
–Check availability
78439370082
SPECWE-XHMA SMD Power Inductor, 8.2 µH, 21.35 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance8.2 µH
Performance Rated Current21.35 A
Saturation Current @ 30%36.4 A
Self Resonant Frequency11 MHz
–Check availability
78439346082
SPECWE-XHMA SMD Power Inductor, 8.2 µH, 6.95 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance8.2 µH
Performance Rated Current6.95 A
Saturation Current @ 30%9.3 A
Self Resonant Frequency19 MHz
–Check availability
78439369100
SPECWE-XHMA SMD Power Inductor, 10 µH, 12.7 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance10 µH
Performance Rated Current12.7 A
Saturation Current @ 30%20.3 A
Self Resonant Frequency14 MHz
–Check availability
78439370100
SPECWE-XHMA SMD Power Inductor, 10 µH, 19.6 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance10 µH
Performance Rated Current19.6 A
Saturation Current @ 30%31.2 A
Self Resonant Frequency9 MHz
–Check availability
78439346100
SPECWE-XHMA SMD Power Inductor, 10 µH, 6.4 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance10 µH
Performance Rated Current6.4 A
Saturation Current @ 30%9.7 A
Self Resonant Frequency18 MHz
–Check availability
78439358100
SPECWE-XHMA SMD Power Inductor, 10 µH, 8.5 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance10 µH
Performance Rated Current8.5 A
Saturation Current @ 30%13.5 A
Self Resonant Frequency17 MHz
–Check availability
78439369150
SPECWE-XHMA SMD Power Inductor, 15 µH, 10.75 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance15 µH
Performance Rated Current10.75 A
Saturation Current @ 30%16.95 A
Self Resonant Frequency11 MHz
–Check availability
78439370150
SPECWE-XHMA SMD Power Inductor, 15 µH, 14.7 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance15 µH
Performance Rated Current14.7 A
Saturation Current @ 30%26.1 A
Self Resonant Frequency8 MHz
–Check availability
78439346150
SPECWE-XHMA SMD Power Inductor, 15 µH, 4.9 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance15 µH
Performance Rated Current4.9 A
Saturation Current @ 30%7.4 A
Self Resonant Frequency14 MHz
–Check availability
78439358150
SPECWE-XHMA SMD Power Inductor, 15 µH, 7.25 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance15 µH
Performance Rated Current7.25 A
Saturation Current @ 30%10.7 A
Self Resonant Frequency12 MHz
–Check availability
78439370220
SPECWE-XHMA SMD Power Inductor, 22 µH, 13.35 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance22 µH
Performance Rated Current13.35 A
Saturation Current @ 30%22.35 A
Self Resonant Frequency7 MHz
–Check availability
78439370330
SPECWE-XHMA SMD Power Inductor, 33 µH, 10.8 A

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-XHMA SMD Power Inductor
Inductance33 µH
Performance Rated Current10.8 A
Saturation Current @ 30%18.15 A
Self Resonant Frequency5 MHz
–Check availability
