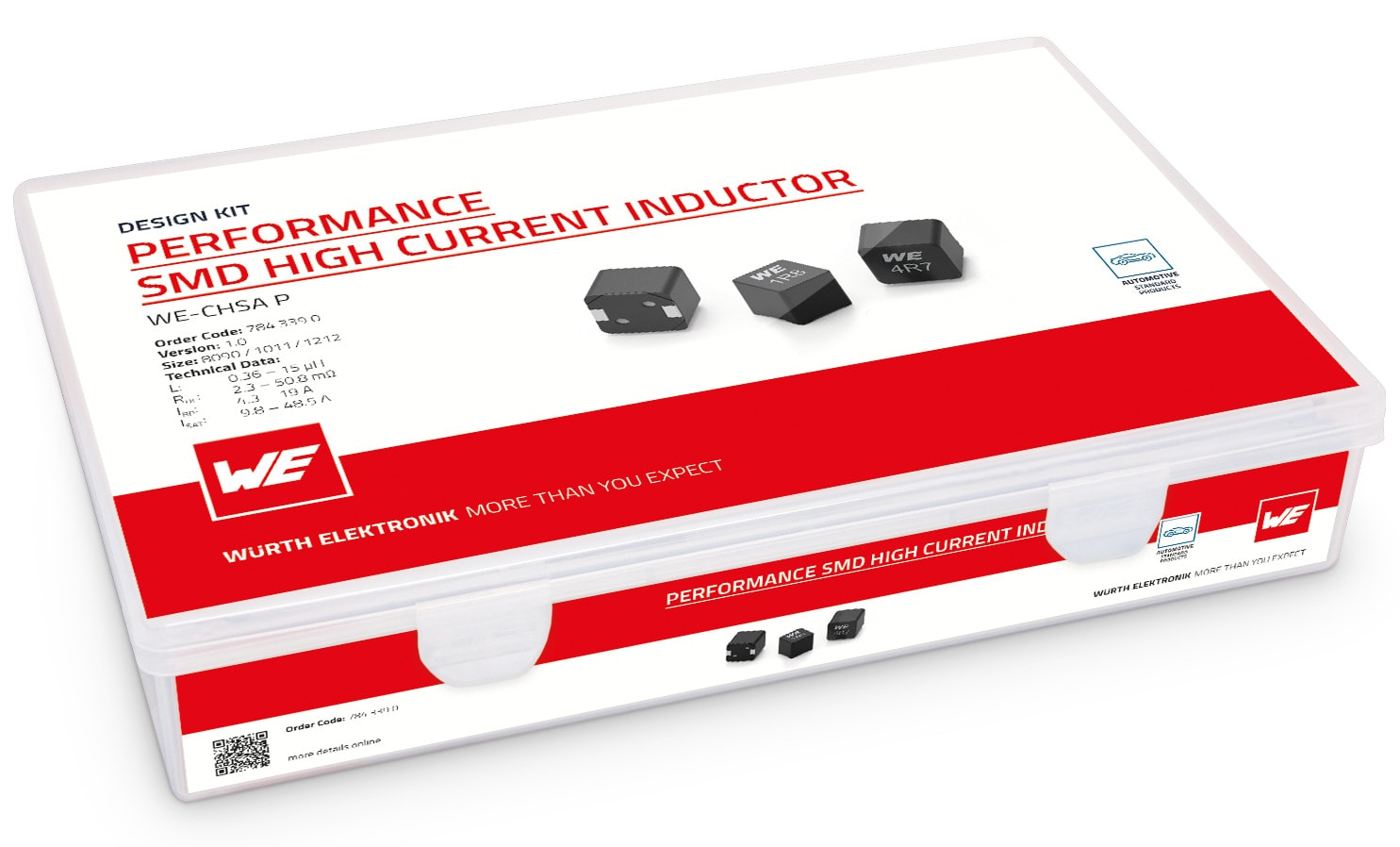

Design Kit WE-CHSA P Performance SMD High Current Inductor

NEW

Order Code 7843390

Design Kit WE-CHSA P Performance SMD High Current Inductor
Download inlay

Characteristics

  • 3 sizes, 22 components
  • Automotive approved

Products

Filter article data
Filter by
Delete all
 show  articles in 0 product lines
 articles in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
Product series
L(µH)
IR(A)
ISAT(A)
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
78433490036
SPECWE-CHSA Performance SMT High Current Inductor, 0.36 µH, 19 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance0.36 µH
Rated Current19 A
Saturation Current48.5 A
–Check availability
78433490056
SPECWE-CHSA Performance SMT High Current Inductor, 0.56 µH, 15.6 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance0.56 µH
Rated Current15.6 A
Saturation Current40.5 A
–Check availability
78433490075
SPECWE-CHSA Performance SMT High Current Inductor, 0.75 µH, 12.8 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance0.75 µH
Rated Current12.8 A
Saturation Current34.5 A
–Check availability
78433390150
SPECWE-CHSA Performance SMT High Current Inductor, 1.5 µH, 16 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance1.5 µH
Rated Current16 A
Saturation Current37.4 A
–Check availability
78433490160
SPECWE-CHSA Performance SMT High Current Inductor, 1.6 µH, 8.4 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance1.6 µH
Rated Current8.4 A
Saturation Current22.3 A
–Check availability
78433290200
SPECWE-CHSA Performance SMT High Current Inductor, 2 µH, 16.2 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance2 µH
Rated Current16.2 A
Saturation Current29 A
–Check availability
78433490240
SPECWE-CHSA Performance SMT High Current Inductor, 2.4 µH, 6.8 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance2.4 µH
Rated Current6.8 A
Saturation Current18.4 A
–Check availability
78433390240
SPECWE-CHSA Performance SMT High Current Inductor, 2.4 µH, 13.8 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance2.4 µH
Rated Current13.8 A
Saturation Current28.7 A
–Check availability
78433290240
SPECWE-CHSA Performance SMT High Current Inductor, 2.4 µH, 13.8 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance2.4 µH
Rated Current13.8 A
Saturation Current24.8 A
–Check availability
78433390300
SPECWE-CHSA Performance SMT High Current Inductor, 3 µH, 11.2 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance3 µH
Rated Current11.2 A
Saturation Current26.2 A
–Check availability
78433290360
SPECWE-CHSA Performance SMT High Current Inductor, 3.6 µH, 12.2 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance3.6 µH
Rated Current12.2 A
Saturation Current20.6 A
–Check availability
78433490390
SPECWE-CHSA Performance SMT High Current Inductor, 3.9 µH, 5 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance3.9 µH
Rated Current5 A
Saturation Current14.6 A
–Check availability
78433390430
SPECWE-CHSA Performance SMT High Current Inductor, 4.3 µH, 9.2 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance4.3 µH
Rated Current9.2 A
Saturation Current20.6 A
–Check availability
78433290510
SPECWE-CHSA Performance SMT High Current Inductor, 5.1 µH, 9.8 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance5.1 µH
Rated Current9.8 A
Saturation Current17 A
–Check availability
78433390620
SPECWE-CHSA Performance SMT High Current Inductor, 6.2 µH, 7.2 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance6.2 µH
Rated Current7.2 A
Saturation Current18 A
–Check availability
78433290620
SPECWE-CHSA Performance SMT High Current Inductor, 6.2 µH, 8.8 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance6.2 µH
Rated Current8.8 A
Saturation Current16 A
–Check availability
78433290750
SPECWE-CHSA Performance SMT High Current Inductor, 7.5 µH, 7.8 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance7.5 µH
Rated Current7.8 A
Saturation Current14.6 A
–Check availability
78433390820
SPECWE-CHSA Performance SMT High Current Inductor, 8.2 µH, 6.7 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance8.2 µH
Rated Current6.7 A
Saturation Current15.6 A
–Check availability
78433290820
SPECWE-CHSA Performance SMT High Current Inductor, 8.2 µH, 7.1 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance8.2 µH
Rated Current7.1 A
Saturation Current13.7 A
–Check availability
78433391000
SPECWE-CHSA Performance SMT High Current Inductor, 10 µH, 5.6 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance10 µH
Rated Current5.6 A
Saturation Current14.4 A
–Check availability
78433391500
SPECWE-CHSA Performance SMT High Current Inductor, 15 µH, 4.3 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance15 µH
Rated Current4.3 A
Saturation Current11.3 A
–Check availability
78433291500
SPECWE-CHSA Performance SMT High Current Inductor, 15 µH, 5.4 A
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance15 µH
Rated Current5.4 A
Saturation Current9.8 A
–Check availability
