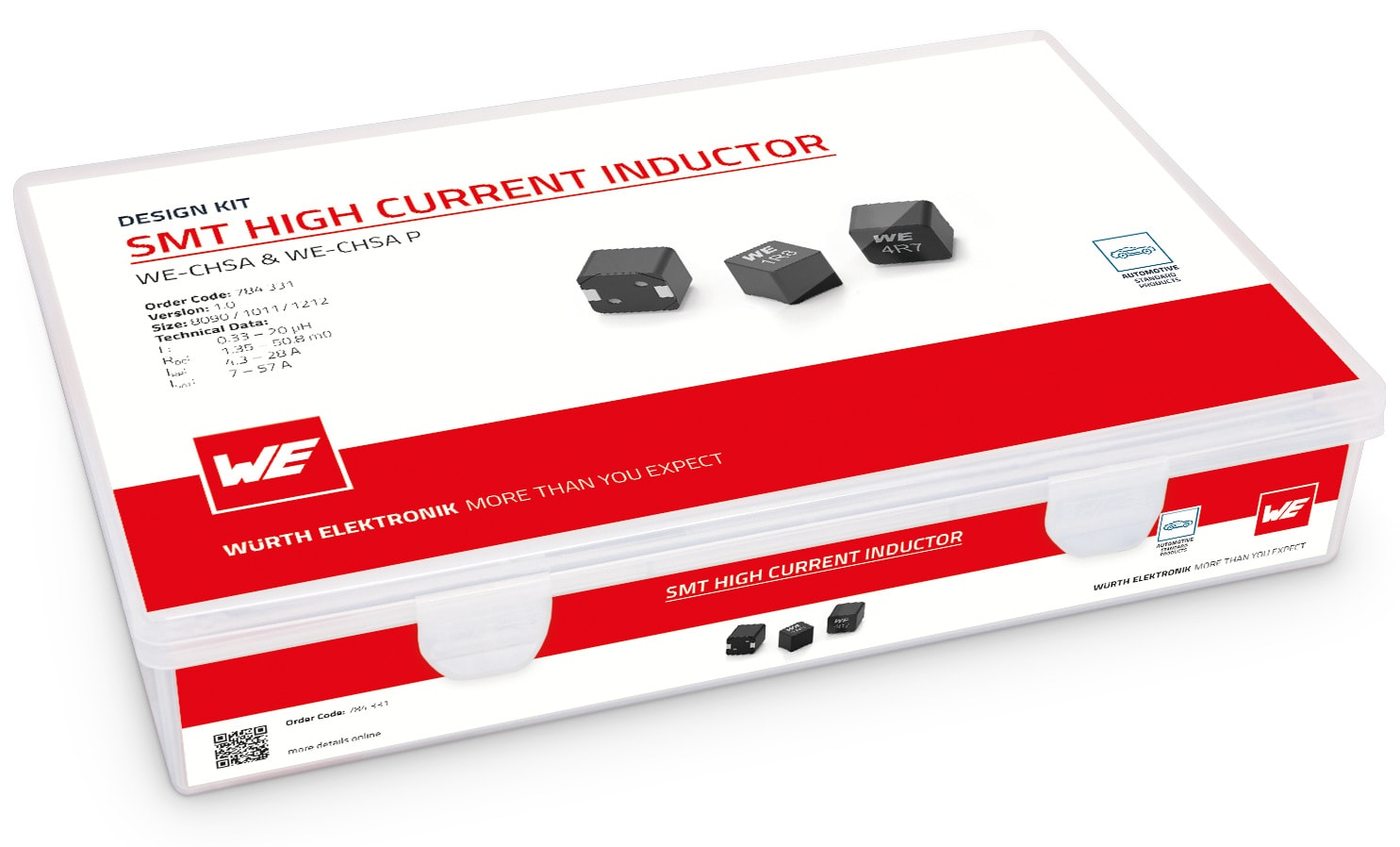

Design Kit WE-CHSA & WE-CHSA P SMT High Current Inductor

NEW

Order Code 784331

Design Kit WE-CHSA & WE-CHSA P SMT High Current Inductor
Download inlay

Characteristics

  • 2 sizes, 35 components
  • Automotive approved

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
Product series
L(µH)
IR(A)
ISAT(A)
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
7843330033
SPECWE-CHSA SMT High Current Inductor, 0.33 µH, 26 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance0.33 µH
Rated Current26 A
Saturation Current54.5 A
–Check availability
7843340033
SPECWE-CHSA SMT High Current Inductor, 0.33 µH, 21 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance0.33 µH
Rated Current21 A
Saturation Current36 A
–Check availability
78433490036
SPECWE-CHSA Performance SMT High Current Inductor, 0.36 µH, 19 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance0.36 µH
Rated Current19 A
Saturation Current48.5 A
–Check availability
7843320039
SPECWE-CHSA SMT High Current Inductor, 0.39 µH, 28 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance0.39 µH
Rated Current28 A
Saturation Current57 A
–Check availability
7843340068
SPECWE-CHSA SMT High Current Inductor, 0.68 µH, 15.6 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance0.68 µH
Rated Current15.6 A
Saturation Current24.8 A
–Check availability
7843320100
SPECWE-CHSA SMT High Current Inductor, 1 µH, 22.5 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance1 µH
Rated Current22.5 A
Saturation Current33.7 A
–Check availability
7843330100
SPECWE-CHSA SMT High Current Inductor, 1 µH, 20.3 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance1 µH
Rated Current20.3 A
Saturation Current34.8 A
–Check availability
78433390150
SPECWE-CHSA Performance SMT High Current Inductor, 1.5 µH, 16 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance1.5 µH
Rated Current16 A
Saturation Current37.4 A
–Check availability
78433490160
SPECWE-CHSA Performance SMT High Current Inductor, 1.6 µH, 8.4 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance1.6 µH
Rated Current8.4 A
Saturation Current22.3 A
–Check availability
7843330180
SPECWE-CHSA SMT High Current Inductor, 1.8 µH, 16 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance1.8 µH
Rated Current16 A
Saturation Current25.9 A
–Check availability
78433290200
SPECWE-CHSA Performance SMT High Current Inductor, 2 µH, 16.2 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance2 µH
Rated Current16.2 A
Saturation Current29 A
–Check availability
7843340220
SPECWE-CHSA SMT High Current Inductor, 2.2 µH, 8.4 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance2.2 µH
Rated Current8.4 A
Saturation Current14.7 A
–Check availability
78433390240
SPECWE-CHSA Performance SMT High Current Inductor, 2.4 µH, 13.8 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance2.4 µH
Rated Current13.8 A
Saturation Current28.7 A
–Check availability
78433290240
SPECWE-CHSA Performance SMT High Current Inductor, 2.4 µH, 13.8 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance2.4 µH
Rated Current13.8 A
Saturation Current24.8 A
–Check availability
7843320270
SPECWE-CHSA SMT High Current Inductor, 2.7 µH, 16.2 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance2.7 µH
Rated Current16.2 A
Saturation Current21.6 A
–Check availability
78433390300
SPECWE-CHSA Performance SMT High Current Inductor, 3 µH, 11.2 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance3 µH
Rated Current11.2 A
Saturation Current26.2 A
–Check availability
7843330330
SPECWE-CHSA SMT High Current Inductor, 3.3 µH, 13.8 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance3.3 µH
Rated Current13.8 A
Saturation Current20.5 A
–Check availability
78433290360
SPECWE-CHSA Performance SMT High Current Inductor, 3.6 µH, 12.2 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance3.6 µH
Rated Current12.2 A
Saturation Current20.6 A
–Check availability
78433490390
SPECWE-CHSA Performance SMT High Current Inductor, 3.9 µH, 5 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance3.9 µH
Rated Current5 A
Saturation Current14.6 A
–Check availability
7843320470
SPECWE-CHSA SMT High Current Inductor, 4.7 µH, 12.2 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance4.7 µH
Rated Current12.2 A
Saturation Current15.3 A
–Check availability
7843340470
SPECWE-CHSA SMT High Current Inductor, 4.7 µH, 5 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance4.7 µH
Rated Current5 A
Saturation Current9.6 A
–Check availability
78433290510
SPECWE-CHSA Performance SMT High Current Inductor, 5.1 µH, 9.8 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance5.1 µH
Rated Current9.8 A
Saturation Current17 A
–Check availability
7843330560
SPECWE-CHSA SMT High Current Inductor, 5.6 µH, 9.2 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance5.6 µH
Rated Current9.2 A
Saturation Current14.9 A
–Check availability
78433390620
SPECWE-CHSA Performance SMT High Current Inductor, 6.2 µH, 7.2 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance6.2 µH
Rated Current7.2 A
Saturation Current18 A
–Check availability
78433290620
SPECWE-CHSA Performance SMT High Current Inductor, 6.2 µH, 8.8 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance6.2 µH
Rated Current8.8 A
Saturation Current16 A
–Check availability
7843320820
SPECWE-CHSA SMT High Current Inductor, 8.2 µH, 8.8 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance8.2 µH
Rated Current8.8 A
Saturation Current12.1 A
–Check availability
78433290820
SPECWE-CHSA Performance SMT High Current Inductor, 8.2 µH, 7.1 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance8.2 µH
Rated Current7.1 A
Saturation Current13.7 A
–Check availability
7843331000
SPECWE-CHSA SMT High Current Inductor, 10 µH, 6.7 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance10 µH
Rated Current6.7 A
Saturation Current10.7 A
–Check availability
78433391000
SPECWE-CHSA Performance SMT High Current Inductor, 10 µH, 5.6 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance10 µH
Rated Current5.6 A
Saturation Current14.4 A
–Check availability
7843321200
SPECWE-CHSA SMT High Current Inductor, 12 µH, 7.1 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance12 µH
Rated Current7.1 A
Saturation Current10.3 A
–Check availability
78433391500
SPECWE-CHSA Performance SMT High Current Inductor, 15 µH, 4.3 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance15 µH
Rated Current4.3 A
Saturation Current11.3 A
–Check availability
78433291500
SPECWE-CHSA Performance SMT High Current Inductor, 15 µH, 5.4 A
Simu­lation
Availability
–
Downloads8 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA Performance SMT High Current Inductor
Inductance15 µH
Rated Current5.4 A
Saturation Current9.8 A
–Check availability
7843331800
SPECWE-CHSA SMT High Current Inductor, 18 µH, 5.1 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance18 µH
Rated Current5.1 A
Saturation Current8.5 A
–Check availability
7843332000
SPECWE-CHSA SMT High Current Inductor, 20 µH, 4.3 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance20 µH
Rated Current4.3 A
Saturation Current7 A
–Check availability
7843322000
SPECWE-CHSA SMT High Current Inductor, 20 µH, 5.4 A
Simu­lation
Availability
–
Downloads9 files

Status Activei| Production is active. Expected lifetime: >10 years.
Product seriesWE-CHSA SMT High Current Inductor
Inductance20 µH
Rated Current5.4 A
Saturation Current7 A
–Check availability
