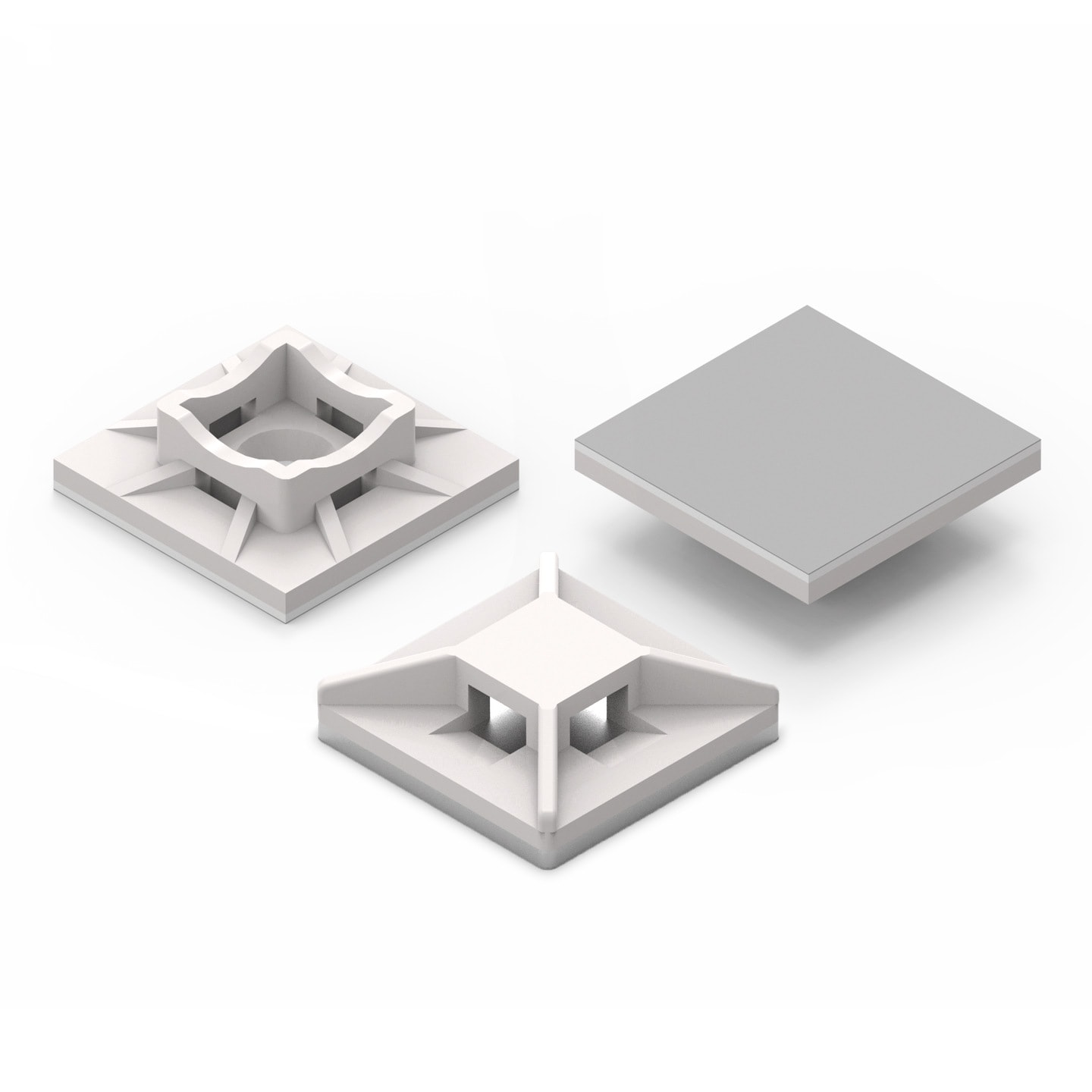

WA-CTIB Two-Way Base Self-Adhesive

Applications

Low profile sockets ease the assembly of the cable ties
Provide space savings

General Information
Operating Temperature	-30 °C up to +85 °C
Material	Nylon 66
Color	Natural
Flammability Rating	UL94 V-2

Packaging Properties
Packaging	Bag

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	L(mm)	W1(mm)	H(mm)	Design Kit	Samples
	530909100	13 mm, 3.2 mm, 4 mm	Downloads3 files CAD files ZIP 3D 3D_530909100 (rev1).pdf \| 64.2 KB IGS Downloads_IGS_530909100 (rev1).igs \| 720.7 KB STP Downloads_STEP_530909100 (rev1).stp \| 249.2 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length13 mm	Width3.2 mm	Height4 mm	Design Kit 700999
	530909000	19.1 mm, 4 mm, 4.8 mm	Downloads3 files CAD files ZIP 3D 3D_530909000 (rev1).pdf \| 46.7 KB IGS Download_IGS_530909000 (rev1).igs \| 480.9 KB STP Download_STP_530909000 (rev1).stp \| 104 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length19.1 mm	Width4 mm	Height4.8 mm	Design Kit 700999
	530909200	20 mm, 4.8 mm, 5 mm	Downloads3 files CAD files ZIP 3D 3D_530909200 (rev1).pdf \| 34.6 KB IGS Download_IGS_530909200 (rev1).igs \| 374.2 KB STP Download_STP_530909200 (rev1).stp \| 84.1 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length20 mm	Width4.8 mm	Height5 mm	Design Kit 700999
	530911000	25.4 mm, 5.1 mm, 7.9 mm	Downloads3 files CAD files ZIP 3D 3D_530911000 (rev1).pdf \| 49.8 KB IGS Downloads_IGS_530911000 (rev1).igs \| 616.2 KB STP Downloads_STEP_530911000 (rev1).stp \| 237.3 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Length25.4 mm	Width5.1 mm	Height7.9 mm	Design Kit 700999

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Assembly Technology - Plastic
