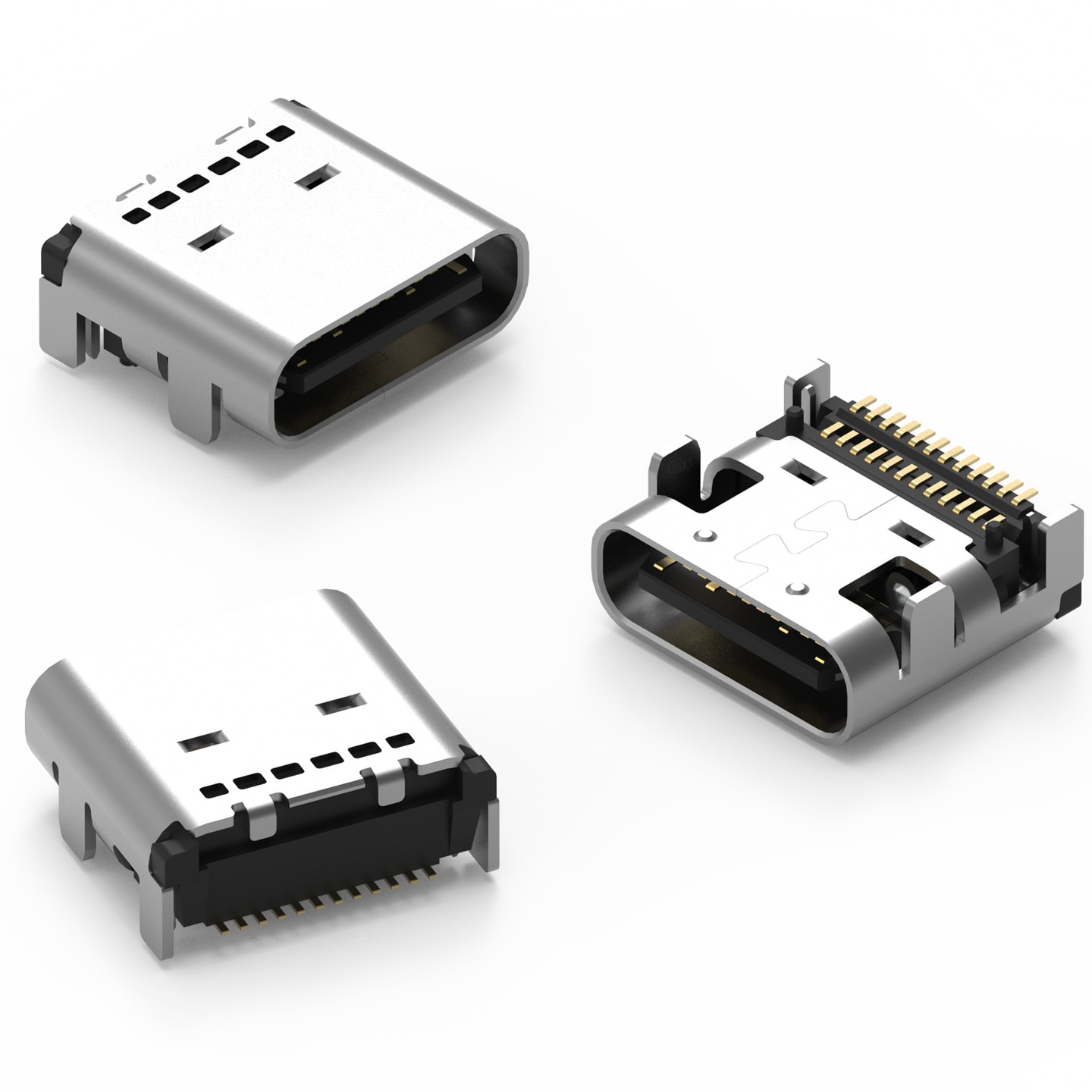

WR-COM USB 3.1 Type C Receptacle Horizontal SMT

General Information
Operating Temperature	-30 °C up to +85 °C
Durability	10 000 Mating cycles
Gender	Receptacle
Type	Horizontal

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Brass
Contact Plating	Gold over Nickel
Shielding Material	Steel
Shielding Plating	Nickel

Electrical Properties
Working Voltage	20 V (DC)
Withstanding Voltage	100 V (AC)
Contact Resistance	40 mΩ

Products

	Order Code	Datasheet	Downloads	Application	Type	Gender	Pins	Mount	Packaging	Samples
	632722200211	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-USB (rev24a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev24b).zip \| 61.5 MB EAG Eagle_WR-USB (rev24a).lbr \| 448.2 KB CAD files ZIP 3D 3D_ConUSB_632722200211 (rev1).pdf \| 461.8 KB IGS IGS_ConUSB_632722200211 (rev1).igs \| 6.5 MB STP STP_ConUSB_632722200211 (rev1).stp \| 1.4 MB Download all 6 files as zip archive ZIP	USB 3.2 Gen 1	Horizontal	Receptacle	24	SMT	Tape and Reel

	Order Code	Datasheet
	632722200211	SPEC

Samples

	Order Code	Datasheet	Downloads	Application	Type	Gender	Pins	Mount	Packaging	Samples

Use with

WR-COM USB 3.1 CAB Assemblies
