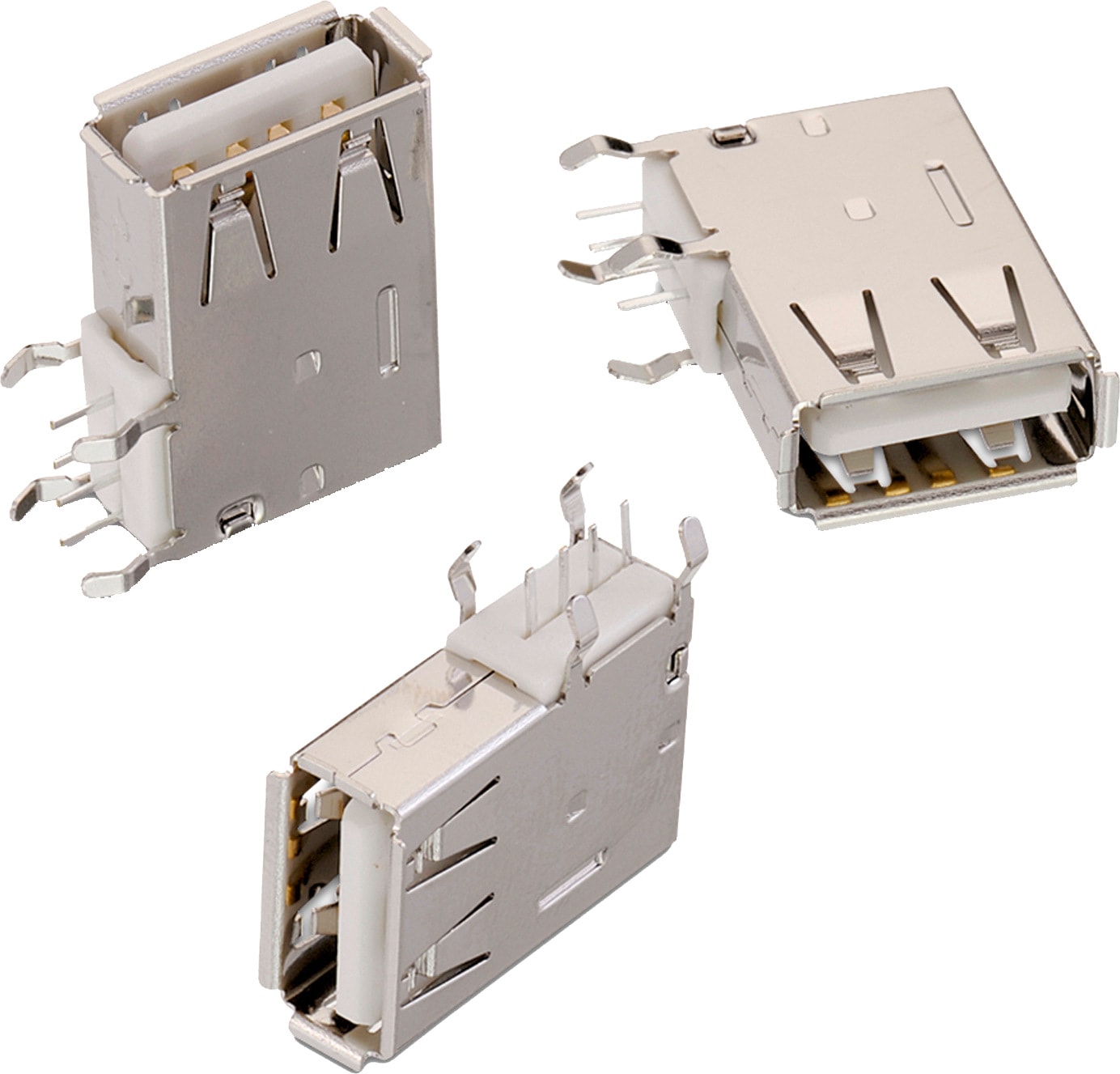

WR-COM USB 2.0 Type A Up Right

WR-COM USB 2.0 Type A Up Right
General Information
Operating Temperature-40 °C up to +105 °C
Durability1 500 Mating cycles
Connector TypeUSB
GenderReceptacle
TypeUp Right
Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorWhite
ColorWhite
Cover MaterialBrass
Cover PlatingNickel (Ni)
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Shielding MaterialBrass
Shielding PlatingNickel (Ni)
Electrical Properties
Working Voltage30 V (AC)
Withstanding Voltage750 V (AC)
Contact Resistance20 mΩ

Application Notes

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code Data­sheet Downloads StatusApplicationInterface TypeTypeGenderPins
(pcs)		MountWorking Voltage
(V (AC))		PackagingDesign Kit Samples
614004134726SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. USB 2.0 Type A Up Right Receptacle 4 THT 30 Tray614001
Order Code Data­sheet
614004134726SPEC
Samples
Order Code Data­sheet Downloads StatusApplicationInterface TypeTypeGenderPins
(pcs)		MountWorking Voltage
(V (AC))		PackagingDesign Kit Samples

Mates with

WR-COM USB 2.0 Plug Type A SMT w. Clip

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Communication Connectors
