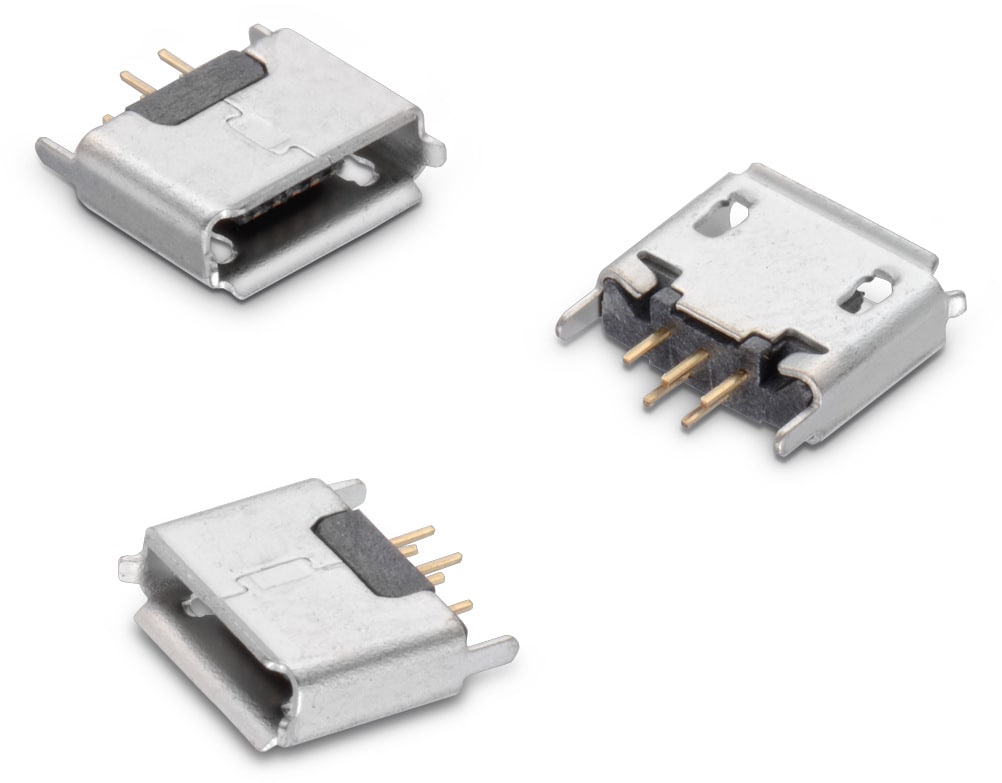

WR-COM Micro USB 2.0 Type AB Vertical 5 Contacts

General Information
Operating Temperature	-40 °C up to +85 °C
Compliance	RoHS
Durability	10 000 Mating cycles
Quality Class	10 000 Mating cycles
Connector Type	Micro USB
Gender	Receptacle
Type	Vertical

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped
Shielding Material	Stainless Steel
Shielding Plating	Matte Tin

Electrical Properties
I_R	1.8 A
Working Voltage	30 V (AC)
Withstanding Voltage	100 V (AC)
Contact Resistance	30 mΩ

Application Notes

ANE014 USB 2.0 with REDFIT IDC SKEDD Connector
PDF

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

	Order Code	Datasheet	Downloads	Status	Application	Interface Type	Type	Gender	Pins (pcs)	Mount	I_R (A)	Working Voltage (V (AC))	Packaging	Design Kit	Samples
	614105150621	SPEC	7 files EDA models: Components ZIP ALT 614105150621 (rev16d).IntLib \| 9.9 MB ALT Altium_WR-USB (rev24e).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev25b).zip \| 61.6 MB EAG Eagle_WR-USB (rev25a).lbr \| 449.7 KB CAD files ZIP 3D 614105150621_1 (rev1).pdf \| 154.2 KB IGS 614105150621 (rev1).igs \| 2.2 MB STP 614105150621 (rev1).stp \| 885.3 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Micro USB 2.0	Type AB	Vertical	Receptacle	5	THT	1.8	30	Tape and Reel	612690 614001
