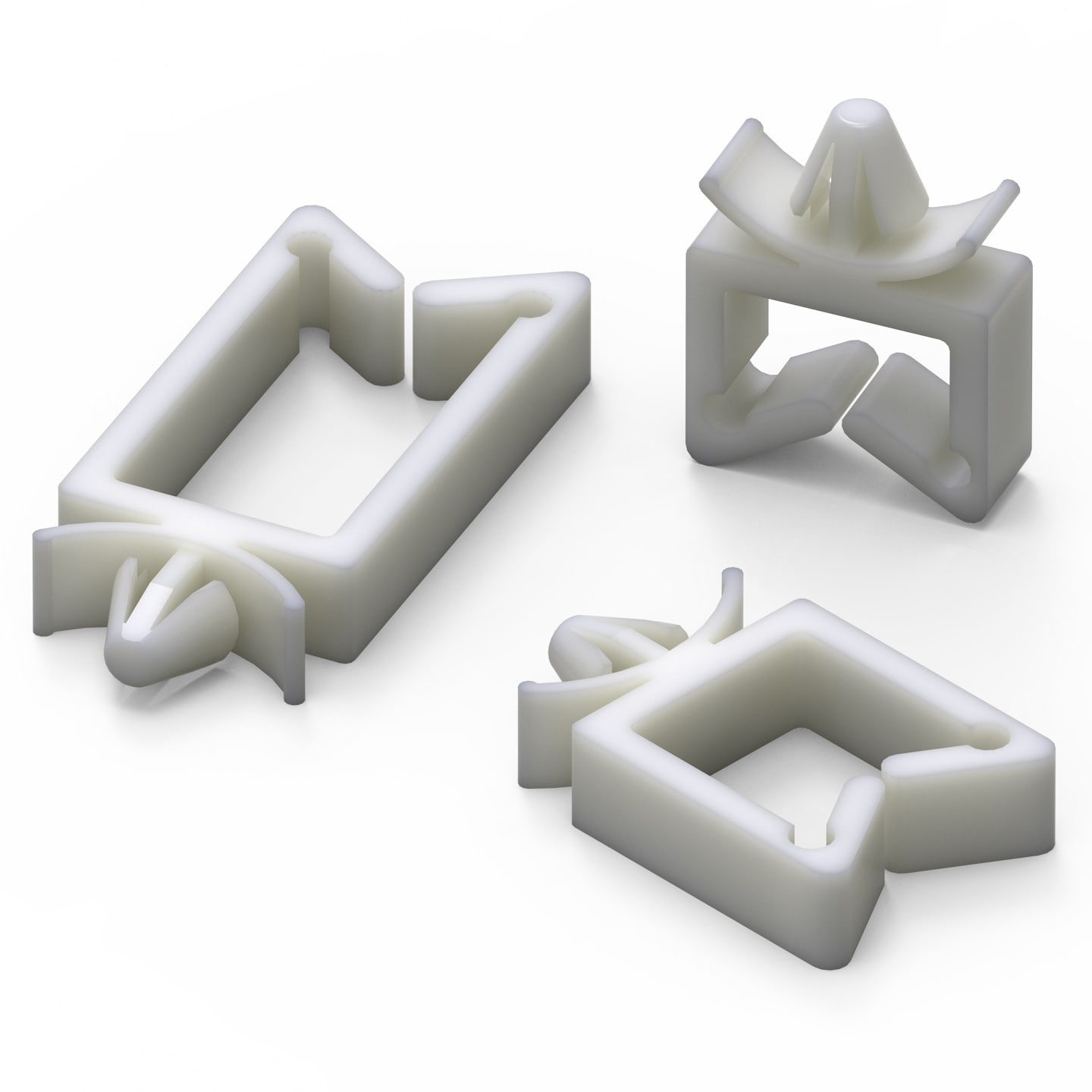

Snap-In Cable Holder with flexible Clamp Straps WA-CHSN

Applications

To fix just snap into a drilling hole with a diameter of 4.8 to 5.0 mm
Easy to insert and remove the cables

General Information
Operating Temperature	-30 °C up to +85 °C
Material	PA66
Color	Natural
f	4.8-5 mm
Flammability Rating	UL94 V-2

Packaging Properties
Packaging	Bag

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	H(mm)	f	Panel Thickness	Design Kit	Board	Samples
	521412000	12 mm, 4.8-5 mm, -	Downloads3 files CAD files ZIP 3D 3D_521412000 (rev1).pdf \| 56.4 KB IGS Downloads_IGS_521412000 (rev1).igs \| 563.8 KB STP Downloads_STEP_521412000 (rev1).stp \| 160.9 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height12 mm	Drilling in Panel 4.8-5 mm	Panel Thickness -	Design Kit 700999	Board –
	521414000	17 mm, 4.8-5 mm, -	Downloads3 files CAD files ZIP 3D 3D_521414000 (rev1).pdf \| 55 KB IGS Downloads_IGS_521414000 (rev1).igs \| 564.1 KB STP Downloads_STEP_521414000 (rev1).stp \| 160.9 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height17 mm	Drilling in Panel 4.8-5 mm	Panel Thickness -	Design Kit –	Board 700990
	521416000	26 mm, 4.8-5 mm, -	Downloads3 files CAD files ZIP 3D 3D_521416000 (rev1).pdf \| 52.1 KB IGS Downloads_IGS_521416000 (rev1).igs \| 564.2 KB STP Downloads_STEP_521416000 (rev1).stp \| 160.9 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height26 mm	Drilling in Panel 4.8-5 mm	Panel Thickness -	Design Kit 700999	Board –
	521418000	34 mm, 4.8-5 mm, -	Downloads3 files CAD files ZIP 3D 3D_521418000 (rev1).pdf \| 50.6 KB IGS Downloads_IGS_521418000 (rev1).igs \| 564 KB STP Downloads_STEP_521418000 (rev1).stp \| 160.9 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height34 mm	Drilling in Panel 4.8-5 mm	Panel Thickness -	Design Kit 700999	Board –

Assortments

Articles from this product series can be found in the following assortments:

Board ASSEMBLY Spacer

Design Kit Assembly Technology - Plastic
