WR-BHD 2.54 mm Male Box Header High Temperature | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-BHD Box Header Pitch2.54 mm GenderMale PCB side Product seriesWR-BHD 2.54 mm Male Box Header High Temperature

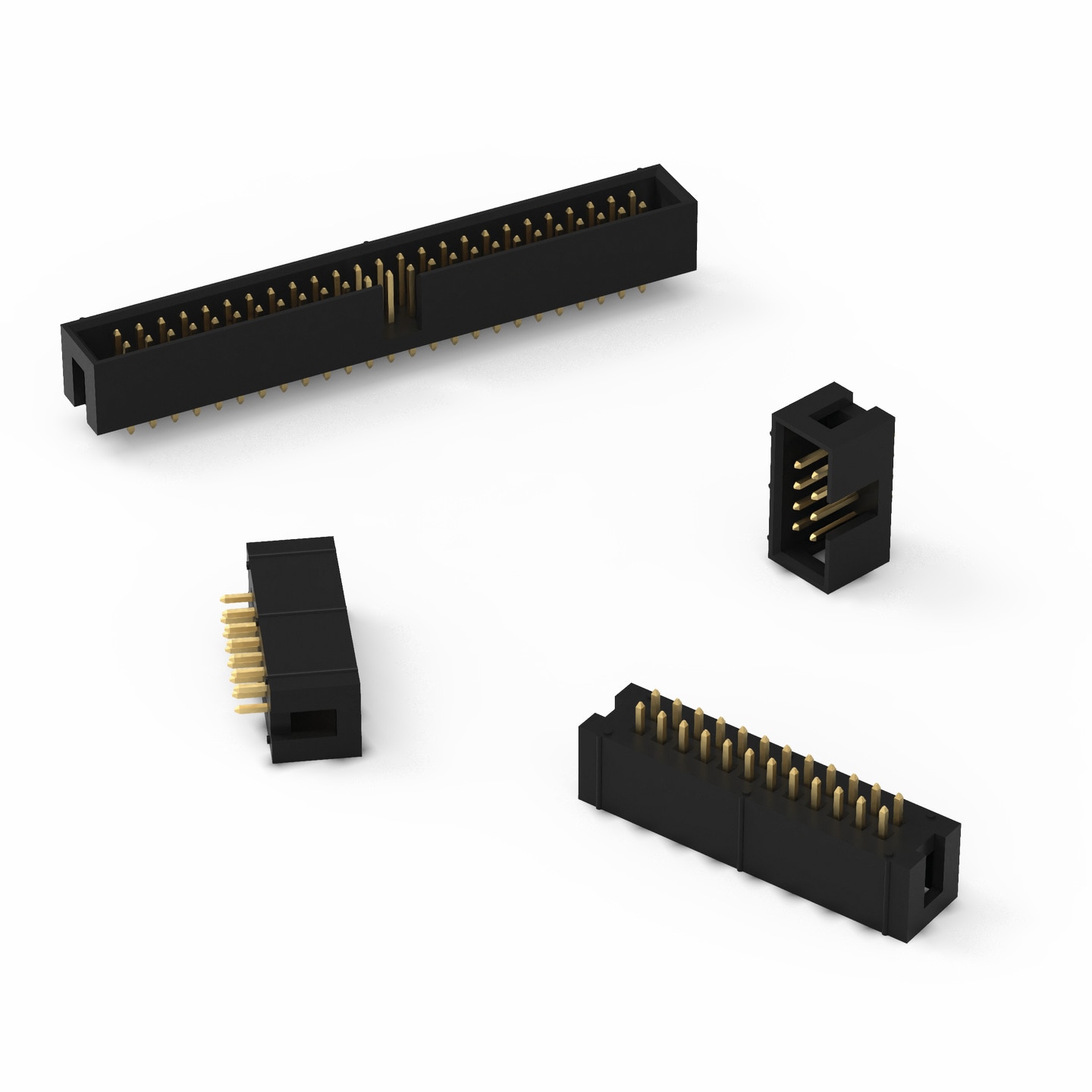

WR-BHD 2.54 mm Male Box Header High Temperature. Operating temperature -40 °C up to 105 °C. Dielectric strength 500 V (AC)

Material Properties
Insulator Material	PA6T
Insulator Flammability Rating	UL94 V-0
Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +125 °C
Compliance	RoHS
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2.54 mm
Gender	Male

Packaging Properties
Packaging	Tray

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Version	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
	612006235121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev24a).lbr \| 2.5 MB CAD files ZIP 3D 612006235121_1 (rev1).pdf \| 58.4 KB IGS 612006235121 (rev1).igs \| 626.7 KB STP 612006235121 (rev1).stp \| 233.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2.54	Low Profile	Male	Straight	THT	15.2	3	250	20	max.	Tray	612001
	612008235121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev24a).lbr \| 2.5 MB CAD files ZIP 3D 612008235121_1 (rev1).pdf \| 61.6 KB IGS 612008235121 (rev1).igs \| 716.3 KB STP 612008235121 (rev1).stp \| 269.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2.54	Low Profile	Male	Straight	THT	17.78	3	250	20	max.	Tray	–
	612010235121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev24a).lbr \| 2.5 MB CAD files ZIP 3D 612010235121_1 (rev1).pdf \| 67.5 KB IGS 612010235121 (rev1).igs \| 806 KB STP 612010235121 (rev1).stp \| 304.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	Low Profile	Male	Straight	THT	20.3	3	250	20	max.	Tray	612001
	612014235121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev24a).lbr \| 2.5 MB CAD files ZIP 3D 612014235121_1 (rev1).pdf \| 77.1 KB IGS 612014235121 (rev1).igs \| 986.2 KB STP 612014235121 (rev1).stp \| 375.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.54	Low Profile	Male	Straight	THT	25.38	3	250	20	max.	Tray	–
	612016235121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev24a).lbr \| 2.5 MB CAD files ZIP 3D 612016235121_1 (rev1).pdf \| 81.3 KB IGS 612016235121 (rev1).igs \| 1.1 MB STP 612016235121 (rev1).stp \| 411.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	2.54	Low Profile	Male	Straight	THT	27.92	3	250	20	max.	Tray	612001
	612020235121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev24a).lbr \| 2.5 MB CAD files ZIP 3D 612020235121_1 (rev1).pdf \| 91.1 KB IGS 612020235121 (rev1).igs \| 1.2 MB STP 612020235121 (rev1).stp \| 482.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	2.54	Low Profile	Male	Straight	THT	33	3	250	20	max.	Tray	612001
	612026235121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev24a).lbr \| 2.5 MB CAD files ZIP 3D 612026235121_1 (rev1).pdf \| 107.2 KB IGS 612026235121 (rev1).igs \| 1.5 MB STP 612026235121 (rev1).stp \| 589.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	2.54	Low Profile	Male	Straight	THT	40.62	3	250	20	max.	Tray	–
	612034235121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev24a).lbr \| 2.5 MB CAD files ZIP 3D 612034235121_1 (rev1).pdf \| 126.3 KB IGS 612034235121 (rev1).igs \| 1.9 MB STP 612034235121 (rev1).stp \| 738.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	2.54	Low Profile	Male	Straight	THT	50.8	3	250	20	max.	Tray	612001
	612040235121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev24a).lbr \| 2.5 MB CAD files ZIP 3D 612040235121_1 (rev1).pdf \| 139.7 KB IGS 612040235121 (rev1).igs \| 2.1 MB STP 612040235121 (rev1).stp \| 846.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	2.54	Low Profile	Male	Straight	THT	58.4	3	250	20	max.	Tray	–
	612050235121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev24a).lbr \| 2.5 MB CAD files ZIP 3D 612050235121_1 (rev1).pdf \| 165.7 KB IGS 612050235121 (rev1).igs \| 2.6 MB STP 612050235121 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	2.54	Low Profile	Male	Straight	THT	71.1	3	250	20	max.	Tray	–
