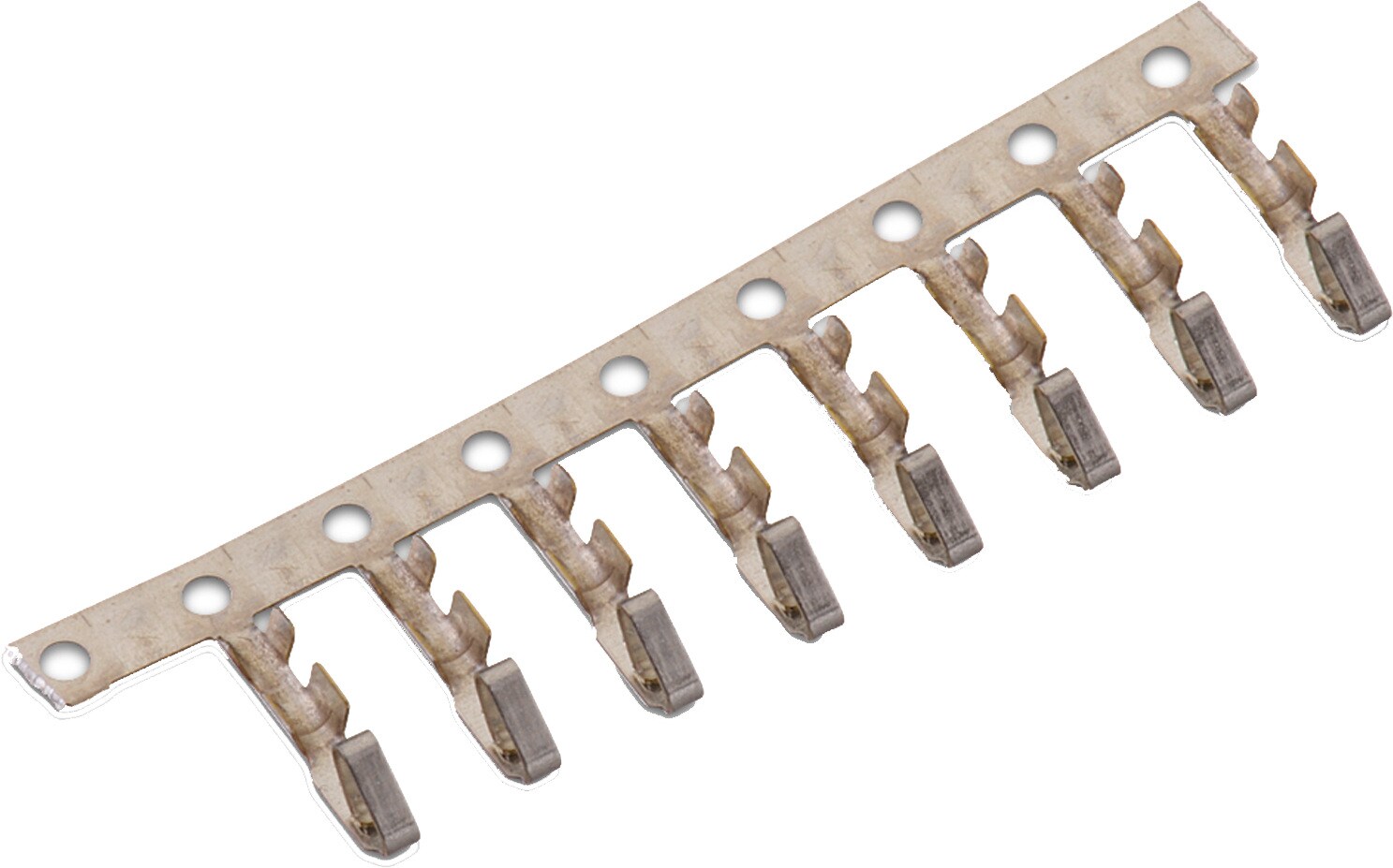

WR-WTB 2.54 mm Female Crimp Contact

Kind Properties
Pitch 2.54 mm
Gender Female
Material Properties
Contact Material Copper Alloy
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Working Voltage 250 V (AC)
Contact Resistance 20 mΩ
Wire Properties
Stranded Wire Section (AWG) 28 to 22 (AWG)
Packaging Properties
Packaging Bag; Big Reel; Small Reel
Qty. 100; 1000; 10000

Products

Order Code Data­sheet Downloads Pitch
(mm)
Gender Type IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R Stranded Wire Section (AWG) Packaging Tools Design Kit Samples
61900113722
STE 3D IGS 2.54 Female Crimp Terminal 3 250 Cable 20 max. 28 to 22 (AWG) Big Reel 600619401
61910113722
IGE STE 3D 2.54 Female Crimp Terminal 3 250 Cable 20 max. 28 to 22 (AWG) Small Reel 600619401
61900113722DEC
IGE STE 3D 2.54 Female Crimp Terminal 3 250 Cable 20 max. 28 to 22 (AWG) Bag 600003
600619228180
645001
Order Code Data­sheet
61900113722
61910113722
61900113722DEC
