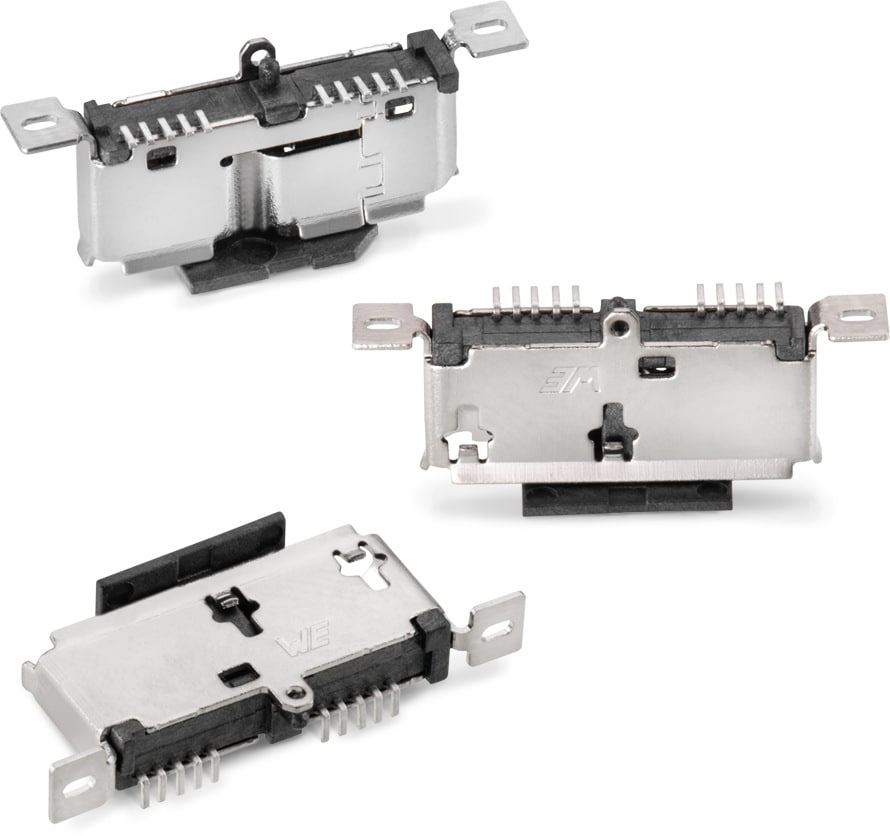

WR-COM Micro USB 3.0 Type B Vertical SMT

Kind Properties
Durability 10 000 Mating cycles
Connector Type Micro USB
Gender Receptacle
Type Vertical
Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Cover Material Stainless Steel
Cover Plating Nickel
Contact Material Brass
Contact Plating Gold over Nickel
Contact Type Stamped
General Information
Operating Temperature -30 up to +85 °C
Electrical Properties
Working Voltage 30 V (AC)
Withstanding Voltage 100 V (AC)
Contact Resistance 30 mΩ

Products

Order Code SPEC Downloads Application Interface Type Type Gender Pins Mount Working Voltage
(V (AC))
Packaging Design Kit Sample Bag Samples
692622420101
IGE STE 3D ALT EAG CAD Micro USB 3.0 Type B Vertical Receptacle 10 SMT 30 Tape and Reel with Cap 614001
829993BAG
Order Code SPEC
692622420101
Samples
Order Code SPEC Downloads Application Interface Type Type Gender Pins Mount Working Voltage
(V (AC))
Packaging Design Kit Sample Bag Samples

Assortments

Articles from this product series can be found in the following assortments:
