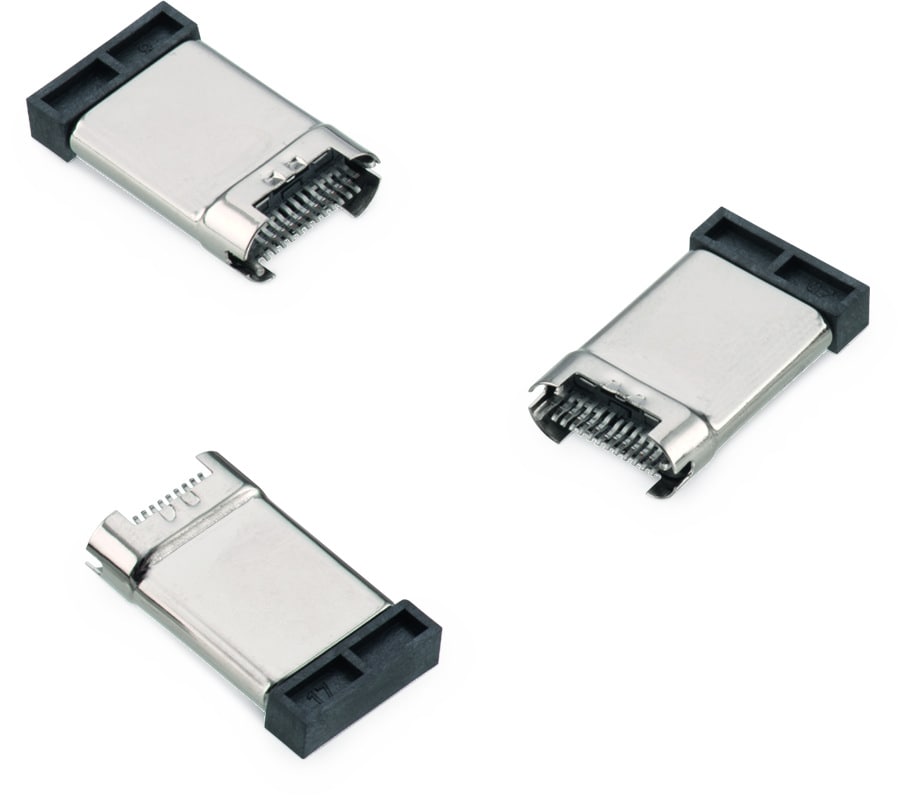

WR-COM USB 3.1 Type C Plug Horizontal 0.8 mm

Kind Properties
Durability 10 000 Mating cycles
Gender Plug
Type Horizontal
Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Contact Material Copper Alloy
Contact Plating Gold over Nickel
Contact Type Stamped
Shielding Material Stainless Steel
Shielding Plating Nickel
General Information
Operating Temperature -40 up to +85 °C
Compliance Lead free / RoHS
Electrical Properties
IR 1 5 A
Working Voltage 20 V (DC)
Withstanding Voltage 100 V (AC)
Contact Resistance 40 mΩ

USB Type-C. 24 reasons to connect with us.

Würth Elektronik offers the complete product range from connectors, components for filtering of EMI noise, ESD surge protection as well as AC/DC to DC/DC power conversion for USB 3.1. All information here.

All Information here

Products

Order Code SPEC Downloads Application Interface Type Type Gender Pins Mount IR 1
(A)
Working Voltage
(V (DC))
Packaging Samples
632712000112
IGE STE 3D ALT EAG CAD USB 3.1 Type C Horizontal Plug 24 SMT 5 20 Tray
Order Code SPEC
632712000112
