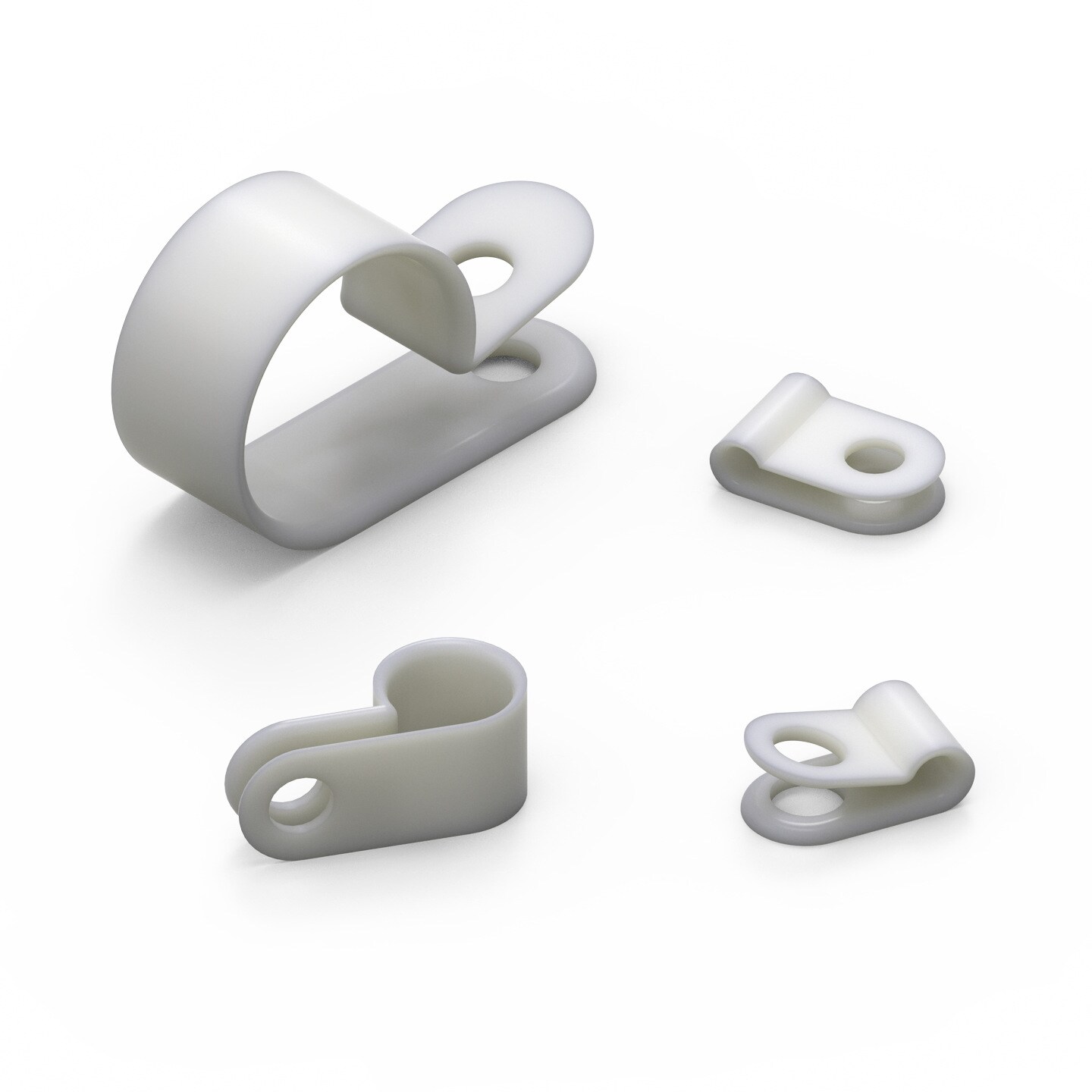

WA-CHCL Cable Clip

Applications

Rounded cable flip
Fix with snap rivet or screw
Cable damage is prevented by the rounded edges
Very rugged, although it is 70% lighter than metal

General Information
Operating Temperature	-30 °C up to +85 °C
Material	Nylon 66
Color	Natural
Flammability Rating	UL94 V-2

Packaging Properties
Packaging	Bulk

Products

	Order Code	Datasheet	Downloads	Status	L₁ (mm)	W (mm)	Ø D (mm)	Ø ID closed (mm)	Design Kit	Samples
	500912500	SPEC	3 files CAD files ZIP 3D 3D_500912500 (rev1).pdf \| 37.6 KB IGS Download_IGS_500912500 (rev1).igs \| 147.8 KB STP Download_STP_500912500 (rev1).stp \| 19.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.4	6.3	3.7	3.5	–
	500910500	SPEC	3 files CAD files ZIP 3D 3D_500910500 (rev1).pdf \| 37.2 KB IGS Downloads_IGS_50091500 (rev1).igs \| 94.3 KB STP Downloads_STEP_500910500 (rev1).stp \| 28.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	6.5	3.8	3	700999
	500911000	SPEC	3 files CAD files ZIP 3D 3D_500911000 (rev1).pdf \| 110 KB IGS Download_500911000_IGS (rev1).igs \| 197.5 KB STP Download_500911000_STEP (rev1).stp \| 24.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	9.2	5.4	3	–
	500911500	SPEC	3 files CAD files ZIP 3D 3D_500911500 (rev1).pdf \| 94.8 KB IGS Downloads_IGS_500911500 (rev1).igs \| 185.9 KB STP Downloads_STEP_500911500 (rev1).stp \| 26.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.5	9.9	4.4	3	–
	500912000	SPEC	3 files CAD files ZIP 3D 3D_500912000 (rev1).pdf \| 99.1 KB IGS Download_IGS_500912000 (rev1).igs \| 198.8 KB STP Download_STP_500912000 (rev1).stp \| 25.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.9	13.2	5.4	3	–
	500913000	SPEC	3 files CAD files ZIP 3D 3D_500913000 (rev1).pdf \| 109.1 KB IGS Download_IGS_500913000 (rev1).igs \| 195.8 KB STP Download_STP_500913000 (rev1).stp \| 24.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10.2	10	5.4	4.5	700999
	500913500	SPEC	3 files CAD files ZIP 3D 3D_500913500 (rev1).pdf \| 108.8 KB IGS Download_IGS_500913500 (rev1).igs \| 198.5 KB STP Download_STP_500913500 (rev1).stp \| 25.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10.2	9.3	5	6.2	–
	500914000	SPEC	3 files CAD files ZIP 3D 3D_500914000 (rev1).pdf \| 91 KB IGS Download_IGS_500914000 (rev1).igs \| 166 KB STP Download_STP_500914000 (rev1).stp \| 23.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10.5	9.5	5	7.6	–
	500914500	SPEC	3 files CAD files ZIP 3D 3D_500914500 (rev1).pdf \| 100.1 KB IGS Download_IGS_500914500 (rev1).igs \| 189.4 KB STP Download_STP_500914500 (rev1).stp \| 26.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	9.5	3.2	8.3	–
	500915000	SPEC	3 files CAD files ZIP 3D 3D_500915000 (rev1).pdf \| 94.6 KB IGS Download_IGS_500915000 (rev1).igs \| 166.2 KB STP Download_STP_500915000 (rev1).stp \| 23.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12.4	9.5	4.8	9	700999
	500915500	SPEC	3 files CAD files ZIP 3D 3D_500915500 (rev1).pdf \| 108.3 KB IGS Download_IGS_500915500 (rev1).igs \| 199.3 KB STP Download_STP_500915500 (rev1).stp \| 25 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	13.2	12.3	5.4	9	–
	500916000	SPEC	3 files CAD files ZIP 3D 3D_500916000 (rev1).pdf \| 36.9 KB IGS Download_IGS_500916000 (rev1).igs \| 139.8 KB STP Download_STP_500916000 (rev1).stp \| 19.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14.8	12.5	4.9	11.5	–
	500916500	SPEC	3 files CAD files ZIP 3D 3D_500916500 (rev1).pdf \| 104.3 KB IGS Download_IGS_500916500 (rev1).igs \| 200.1 KB STP Download_STP_500916500 (rev1).stp \| 25 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	12.9	5.4	12.8	–
	500917000	SPEC	3 files CAD files ZIP 3D 3D_500917000 (rev1).pdf \| 111 KB IGS Download_IGS_500917000 (rev1).igs \| 200 KB STP Download_STEP_500917000 (rev1).stp \| 25.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	17.1	12.9	4.8	15.5	700999
	500917500	SPEC	3 files CAD files ZIP 3D 3D_500917500 (rev1).pdf \| 94 KB IGS Download_IGS_500917500 (rev1).igs \| 199.8 KB STP Download_STEP_500917500 (rev1).stp \| 25 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20.2	12.9	5.4	17	–
	500918000	SPEC	3 files CAD files ZIP 3D 3D_500918000 (rev1).pdf \| 101.8 KB IGS Download_IGS_500918000 (rev1).igs \| 198.7 KB STP Download_STEP_500918000 (rev1).stp \| 24.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	21.2	12.9	5.4	20	–
	500918500	SPEC	3 files CAD files ZIP 3D 3D_500918500 (rev1).pdf \| 111.2 KB IGS Download_500918500_IGS (rev1).igs \| 214.6 KB STP Download_STEP_500918500 (rev1).stp \| 26.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	23.5	12.9	5.4	24	–
