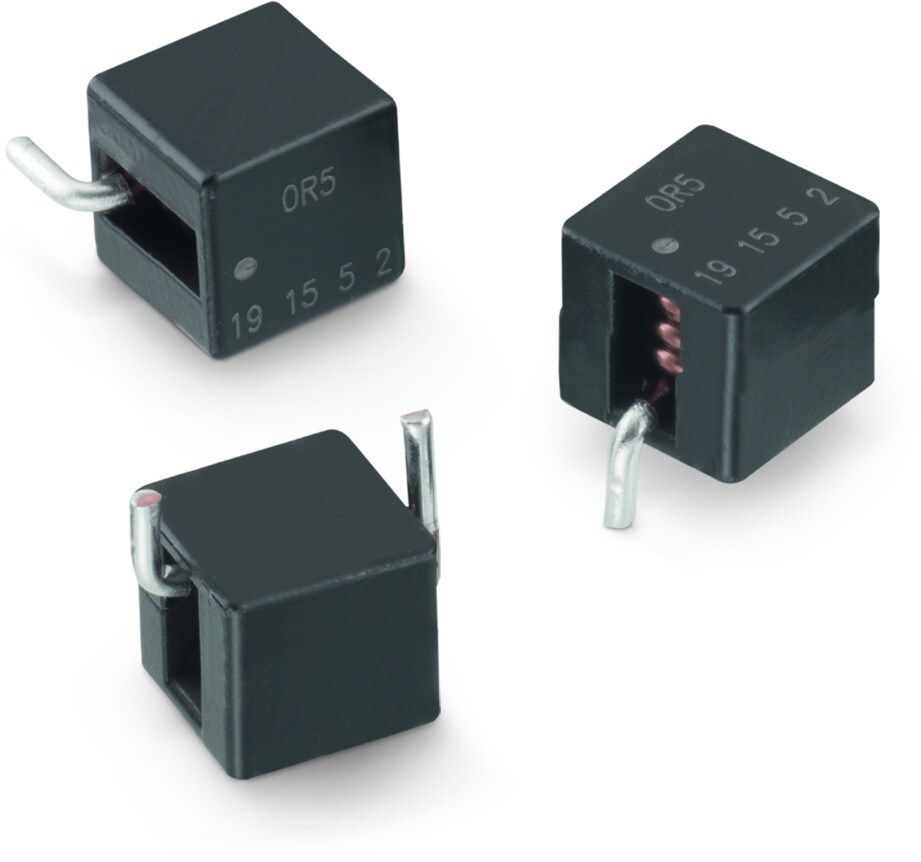

WE-HCIT THT High Current Inductor

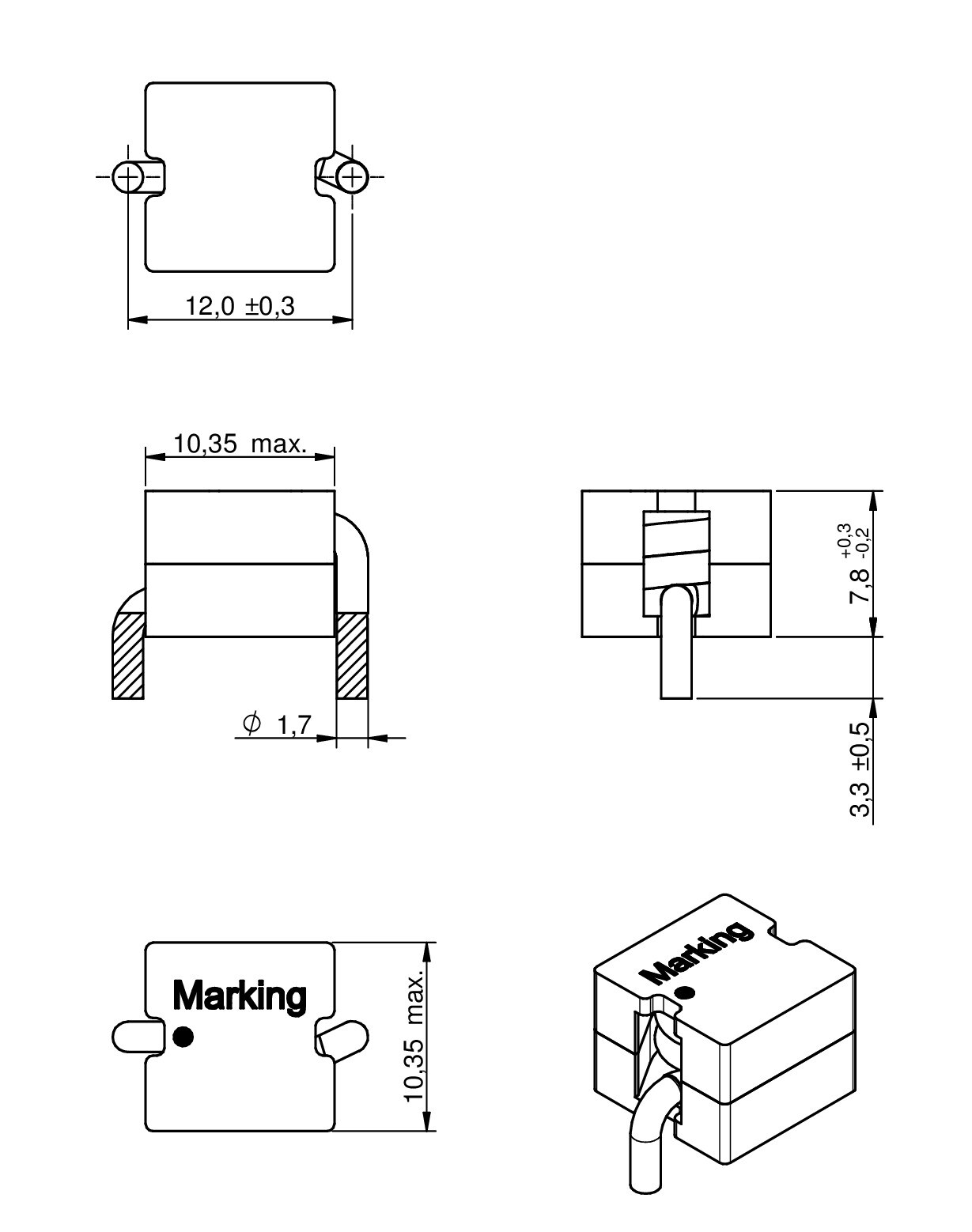

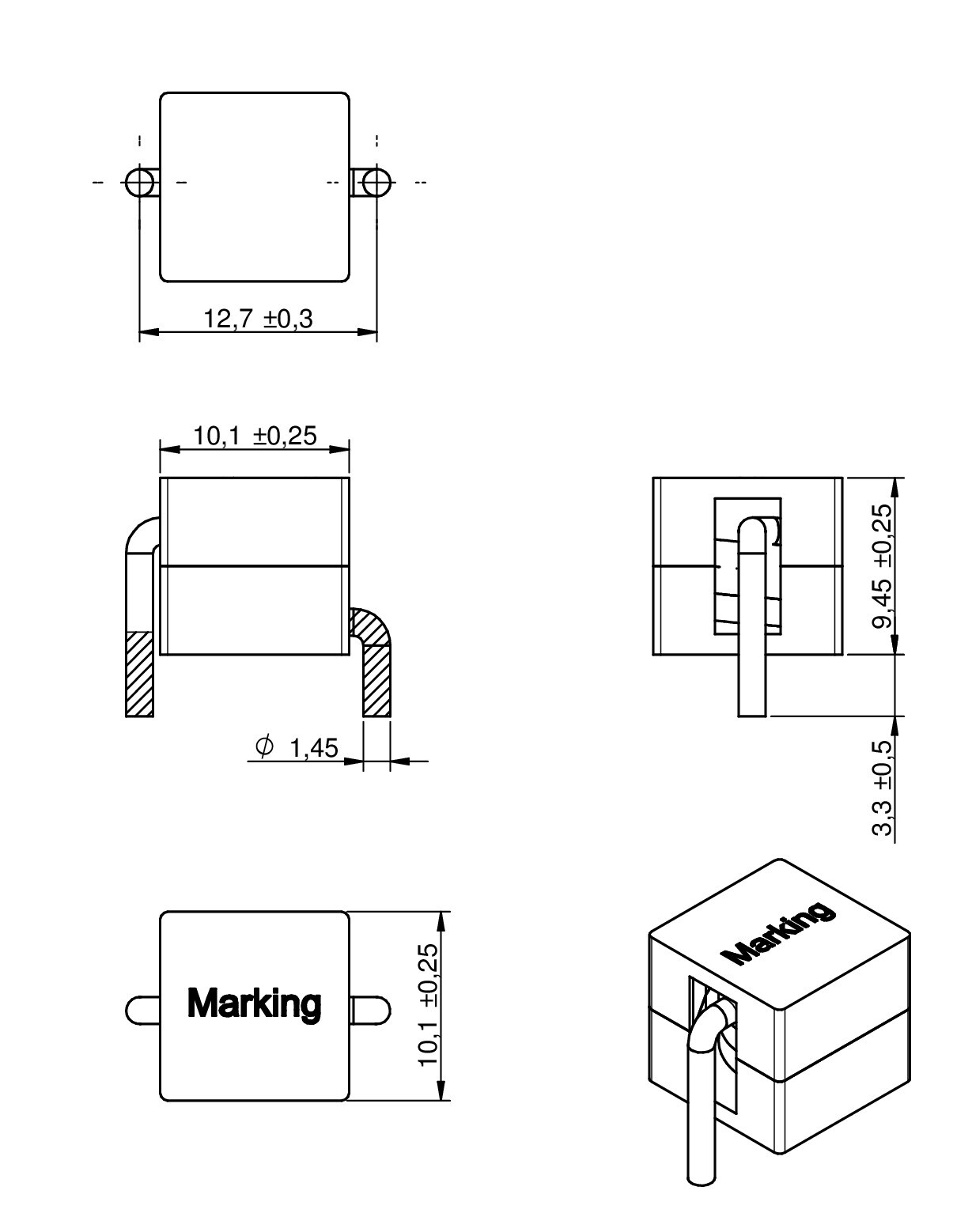

Size	Dimensions	L (mm)	W (mm)	H (mm)
1010		10.1	10.1	9.7
1008		10.1	10.1	8.1

Datasheet

SPEC
Seriesdatasheet_WE-HCIT_V1 (rev1).pdf
|
2.8 MB

LTSpice files

LT
LTSpice_WE-HCIT (rev22a).zip
|
1.7 KB

Characteristics

AECQ200 Qualification
THT design for better stability against vibration
High current capability up to 28A
Very low RDC (0.44-0.88Ω)
Wide range operating temperature from -40 to +150°C -> AECQ 200 Grade 1
Soft saturation behavior
Automotive approved

Applications

DC-DC converter for infotainment/communication systems
EMI suppression for motors (Seating / Electrical mirrors / Windshield)
Power applications / Battery management systems

Products

All

1010

1008

Order Code	Datasheet	Simulation	Downloads	Status	L (µH)	I_R (A)	I_SAT (A)	R_DC (mΩ)	f_res (MHz)	Samples
78432018003	SPEC Pending PTN Due to a pending PTN the component will be discontinued shortly. Please find the PTN below. Please use the offered alternative for new designs. If you have further questions please get in contact with our sales staff. SPEC Datasheet PTN PTN document		9 files EDA models: Components ZIP ALT Altium_WE-HCIT (rev22b).IntLib \| 238.5 KB CDS Cadence_WE-HCIT (rev19a).zip \| 904.5 KB EAG Eagle_WE-HCIT (rev19a).lbr \| 17.3 KB KIC KiCad_WE-HCIT (rev25a).zip \| 1.1 MB ZUK Cadstar_WE-HCIT (rev19a).zip \| 4.6 KB CAD files ZIP IGS IGS_WE-HCIT_1008 (rev1).igs \| 1.4 MB STP STP_WE-HCIT_1008 (rev1).stp \| 498.4 KB Electric models ZIP PSP PSpice_WE-HCIT (rev22a).zip \| 2.8 KB SCS Spectre_WE-HCIT (rev24a).mod \| 1.8 KB Download all 9 files as zip archive ZIP	PTN i\| Production will be discontinued. Expected lifetime: <2 years.	0.3	28.2	27	0.44	320
78432010005	SPEC Pending PTN Due to a pending PTN the component will be discontinued shortly. Please find the PTN below. Please use the offered alternative for new designs. If you have further questions please get in contact with our sales staff. SPEC Datasheet PTN PTN document		9 files EDA models: Components ZIP ALT Altium_WE-HCIT (rev22b).IntLib \| 238.5 KB CDS Cadence_WE-HCIT (rev19a).zip \| 904.5 KB EAG Eagle_WE-HCIT (rev19a).lbr \| 17.3 KB KIC KiCad_WE-HCIT (rev25a).zip \| 1.1 MB ZUK Cadstar_WE-HCIT (rev19a).zip \| 4.6 KB CAD files ZIP IGS IGS_WE-HCIT_1010 (rev1).igs \| 1.1 MB STP STP_WE-HCIT_1010 (rev1).stp \| 473.1 KB Electric models ZIP PSP PSpice_WE-HCIT (rev22a).zip \| 2.8 KB SCS Spectre_WE-HCIT (rev24a).mod \| 1.8 KB Download all 9 files as zip archive ZIP	PTN i\| Production will be discontinued. Expected lifetime: <2 years.	0.5	25.1	25	0.88	250
