OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyWire-to-Board ConnectorsProduct sub-familyWR-WTBPitch3.96 mmProduct seriesWR-WTB 3.96 mm Male Vertical Locking Header

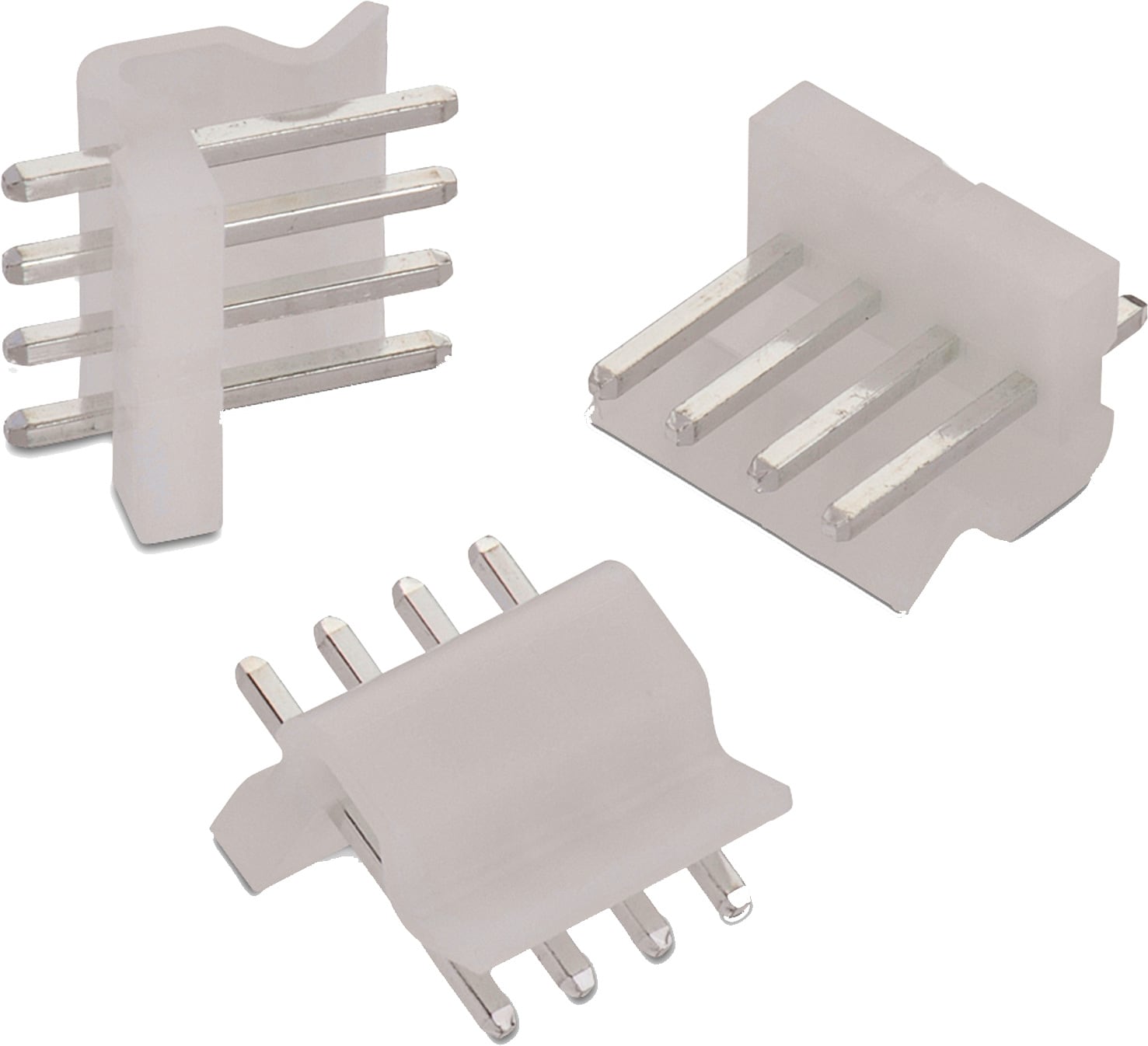

WR-WTB 3.96 mm Male Vertical Locking Header

Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-2
ColorWhite
Contact MaterialCopper Alloy
Contact PlatingTin
Contact TypeStamped
General Information
Operating Temperature-40 °C up to +105 °C
ComplianceRoHS
IR7 A
Working Voltage250 V (AC)
Withstanding Voltage1500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Pitch3.96 mm
GenderMale
TypeVertical
Certification
UL ApprovalE323964
Packaging Properties
PackagingBag

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
GenderTypeMountIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples
645002114822SPEC
6 files 2 3.96 Male Vertical THT 7 250 PCB 20 max. 7.92 Bag645001
645003114822SPEC
6 files 3 3.96 Male Vertical THT 7 250 PCB 20 max. 11.88 Bag645001
645004114822SPEC
6 files 4 3.96 Male Vertical THT 7 250 PCB 20 max. 15.84 Bag645001
645005114822SPEC
6 files 5 3.96 Male Vertical THT 7 250 PCB 20 max. 19.8 Bag645001
645006114822SPEC
6 files 6 3.96 Male Vertical THT 7 250 PCB 20 max. 23.76 Bag645001
645008114822SPEC
6 files 8 3.96 Male Vertical THT 7 250 PCB 20 max. 31.68 Bag612690
645001
645010114822SPEC
6 files 10 3.96 Male Vertical THT 7 250 PCB 20 max. 39.6 Bag645001
Order Code Data­sheet
645002114822SPEC
645003114822SPEC
645004114822SPEC
645005114822SPEC
645006114822SPEC
645008114822SPEC
645010114822SPEC
