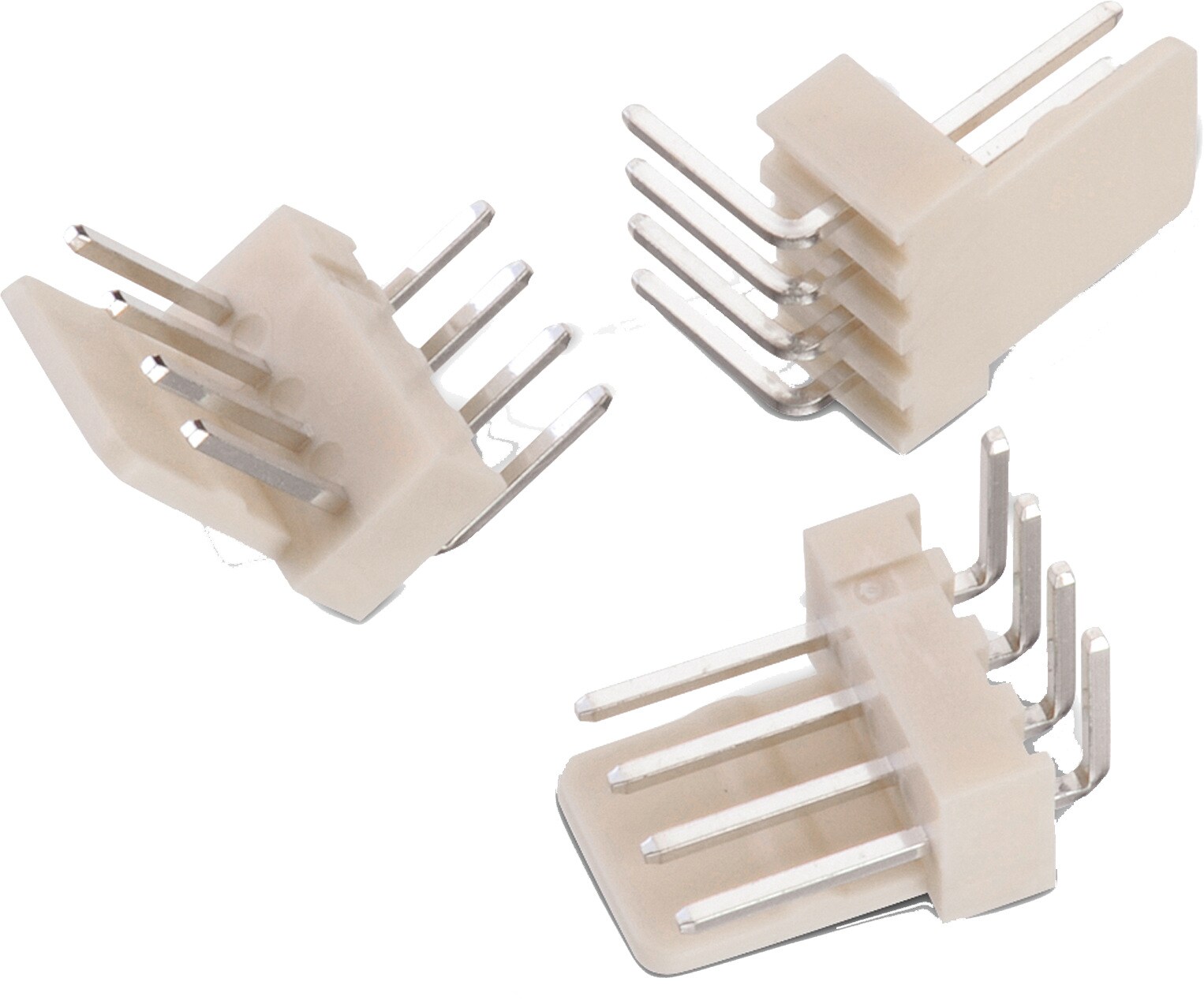

WR-WTB 2.54 mm Male Right Angled Locking Header Top Locking

Material Properties
Insulator Material	Nylon 66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Beige
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Working Voltage	250 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2.54 mm
Gender	Male
Type	Right Angled Top Locking

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples
61900219521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 61900219521_1 (rev1).pdf \| 29.8 KB IGS 61900219521 (rev1).iges \| 417.7 KB IGS 61900219521 (rev1).igs \| 417.7 KB STP 61900219521 (rev1).stp \| 172.3 KB Download all 7 files as zip archive ZIP	2	2.54	Male	Right Angled Top Locking	THT	250	PCB	20	max.	5.08	Bag	645001
61900319521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 61900319521_1 (rev1).pdf \| 35.2 KB IGS 61900319521 (rev1).iges \| 535.8 KB IGS 61900319521 (rev1).igs \| 536.1 KB STP 61900319521 (rev1).stp \| 220.6 KB Download all 7 files as zip archive ZIP	3	2.54	Male	Right Angled Top Locking	THT	250	PCB	20	max.	7.62	Bag	645001
61900419521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 61900419521_1 (rev1).pdf \| 40.6 KB IGS 61900419521 (rev1).iges \| 654.6 KB IGS 61900419521 (rev1).igs \| 654.2 KB STP 61900419521 (rev1).stp \| 268.9 KB Download all 7 files as zip archive ZIP	4	2.54	Male	Right Angled Top Locking	THT	250	PCB	20	max.	10.16	Bag	645001
61900519521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 61900519521_1 (rev1).pdf \| 46.5 KB IGS 61900519521 (rev1).iges \| 770.6 KB IGS 61900519521 (rev1).igs \| 771.2 KB STP 61900519521 (rev1).stp \| 317.1 KB Download all 7 files as zip archive ZIP	5	2.54	Male	Right Angled Top Locking	THT	250	PCB	20	max.	12.7	Bag	645001
61900619521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 61900619521_1 (rev1).pdf \| 54.1 KB IGS 61900619521 (rev1).iges \| 912.4 KB IGS 61900619521 (rev1).igs \| 911.7 KB STP 61900619521 (rev1).stp \| 374.9 KB Download all 7 files as zip archive ZIP	6	2.54	Male	Right Angled Top Locking	THT	250	PCB	20	max.	15.24	Bag	645001
61900819521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 61900819521_1 (rev1).pdf \| 65.6 KB IGS 61900819521 (rev1).iges \| 1.1 MB IGS 61900819521 (rev1).igs \| 1.1 MB STP 61900819521 (rev1).stp \| 471.7 KB Download all 7 files as zip archive ZIP	8	2.54	Male	Right Angled Top Locking	THT	250	PCB	20	max.	20.32	Bag	612690 645001
61901019521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 61901019521_1 (rev1).pdf \| 77 KB IGS 61901019521 (rev1).iges \| 1.4 MB IGS 61901019521 (rev1).igs \| 1.4 MB STP 61901019521 (rev1).stp \| 568.8 KB Download all 7 files as zip archive ZIP	10	2.54	Male	Right Angled Top Locking	THT	250	PCB	20	max.	25.4	Bag	645001

Order Code	Datasheet
61900219521	SPEC
61900319521	SPEC
61900419521	SPEC
61900519521	SPEC
61900619521	SPEC
61900819521	SPEC
61901019521	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-WTB 2.54 mm Female Terminal Housing

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
