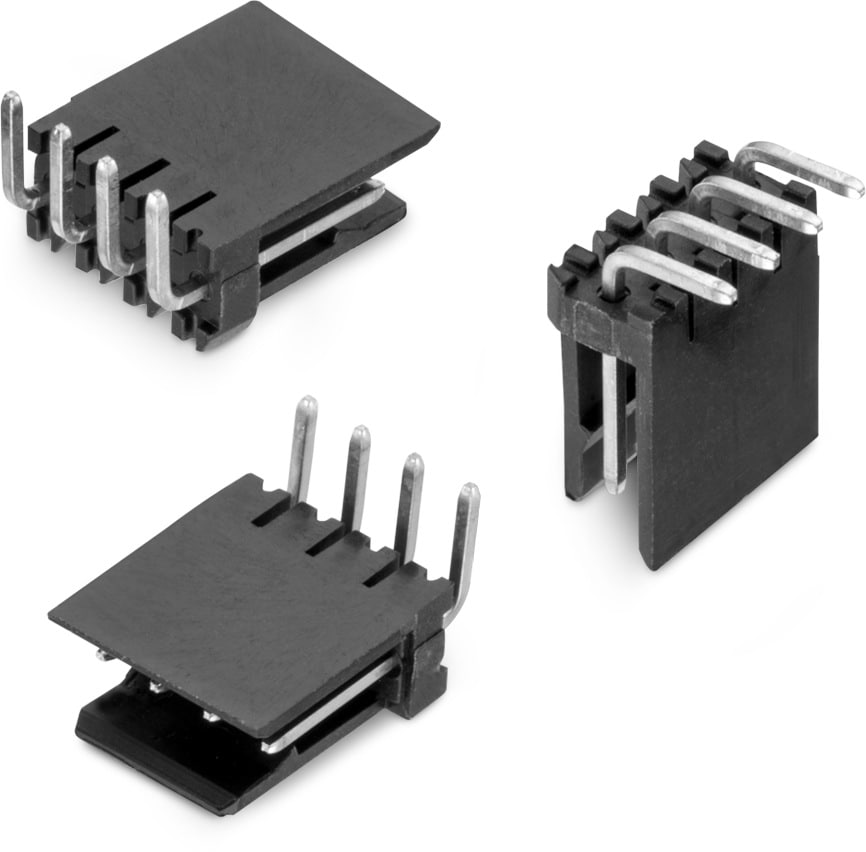

WR-WTB 2.54 mm Male Right Angled Shrouded Header

Kind Properties
Pitch2.54 mm
GenderMale
TypeRight Angled
Material Properties
Insulator MaterialPA46
Insulator Flammability RatingUL94 V-0
ColorBlack
Contact MaterialPhosphor Bronze
Contact PlatingTin
General Information
Operating Temperature-40 up to +125 °C
ComplianceRoHS
IR3 A
Working Voltage50 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
GenderTypeMountIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
Packaging Samples
66100211722SPEC
6 files 2 2.54 Male Right Angled THT 3 50 PCB 20 max. 4.78 Box
66100311722SPEC
6 files 3 2.54 Male Right Angled THT 3 50 PCB 20 max. 7.32 Box
66100411722SPEC
6 files 4 2.54 Male Right Angled THT 3 50 PCB 20 max. 9.86 Box
66100511722SPEC
6 files 5 2.54 Male Right Angled THT 3 50 PCB 20 max. 12.4 Box
66100811722SPEC
6 files 8 2.54 Male Right Angled THT 3 50 PCB 20 max. 20.02 Box
66101011722SPEC
6 files 10 2.54 Male Right Angled THT 3 50 PCB 20 max. 25.1 Box
