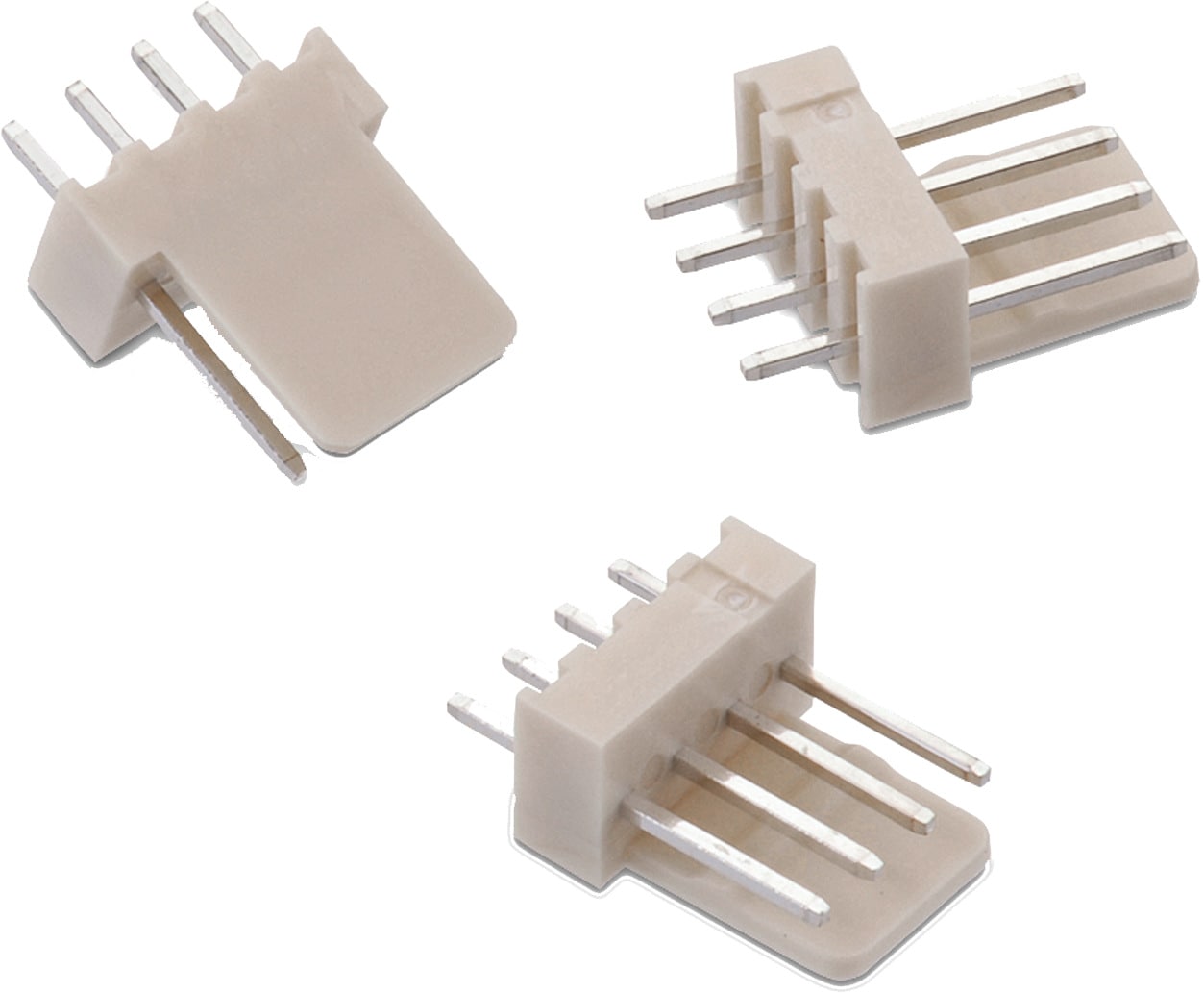

WR-WTB 2.54 mm Male Locking Header

Kind Properties
Pitch 2.54 mm
Gender Male
Material Properties
Insulator Material Nylon 66
Insulator Flammability Rating UL94 V-0
Insulator Color Beige
Contact Material Copper Alloy
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Working Voltage 250 V (AC)
Withstanding Voltage 1000 V (AC)
Contact Resistance 20 mΩ
RISO 1000 MΩ
Certification
UL Approval E323964
Packaging Properties
Packaging Bag

Products

Order Code SPEC Downloads Pins Pitch
(mm)
Gender Type Mount Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples
61900211121
IGE STE 3D ALT EAG CAD 2 2.54 Male Vertical THT 250 PCB 20 max. 5.08 Bag 645001
61900311121
IGE STE 3D ALT EAG CAD 3 2.54 Male Vertical THT 250 PCB 20 max. 7.62 Bag 645001
61900411121
IGE STE 3D ALT EAG CAD 4 2.54 Male Vertical THT 250 PCB 20 max. 10.16 Bag 645001
61900511121
IGE STE 3D ALT EAG CAD 5 2.54 Male Vertical THT 250 PCB 20 max. 12.7 Bag 645001
61900611121
IGE STE 3D ALT EAG CAD 6 2.54 Male Vertical THT 250 PCB 20 max. 15.24 Bag 645001
61900711121
IGE STE 3D ALT EAG CAD 7 2.54 Male Vertical THT 250 PCB 20 max. 17.78 Bag 645001
61900811121
IGE STE 3D ALT EAG CAD 8 2.54 Male Vertical THT 250 PCB 20 max. 20.32 Bag 645001
61901011121
IGE STE 3D ALT EAG CAD 10 2.54 Male Vertical THT 250 PCB 20 max. 25.4 Bag 645001
Order Code SPEC
61900211121
61900311121
61900411121
61900511121
61900611121
61900711121
61900811121
61901011121
Samples
Order Code SPEC Downloads Pins Pitch
(mm)
Gender Type Mount Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples
