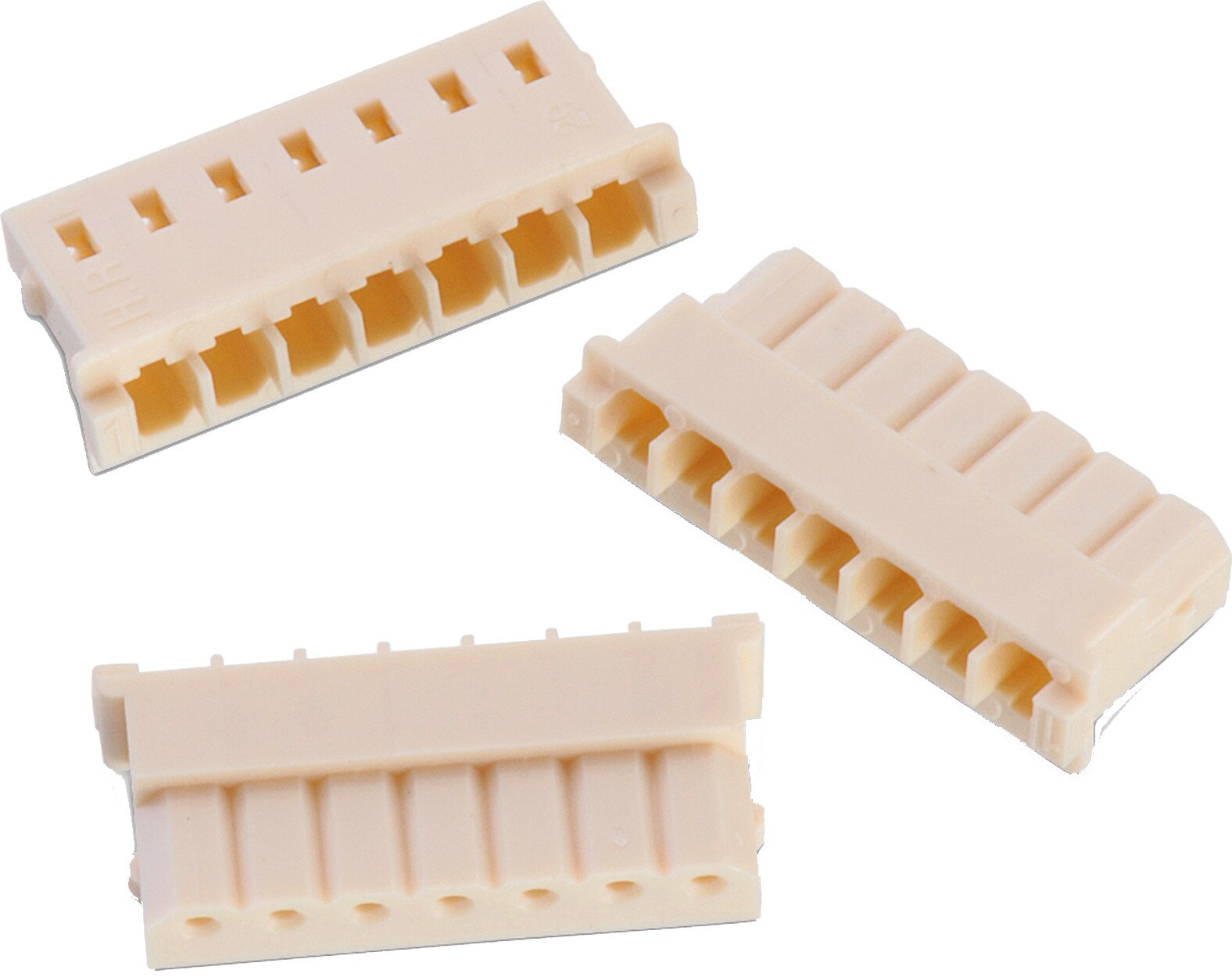

WR-WTB 2.50 mm Female Terminal Housing

Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
ColorIvory
General Information
Operating Temperature-40 °C up to +105 °C
ComplianceRoHS
Withstanding Voltage1000 V (AC)
RISO1000 MΩ
Pitch2.5 mm
GenderFemale
TypeTerminal Housing
Certification
UL ApprovalE323964
Packaging Properties
PackagingBag

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
GenderTypePCB/Cable/PanelL
(mm)
PackagingDesign Kit Samples
646002113322SPEC
3 files 2 2.5 Female Terminal Housing Cable 7.4 Bag645001
646003113322SPEC
3 files 3 2.5 Female Terminal Housing Cable 9.9 Bag645001
646004113322SPEC
3 files 4 2.5 Female Terminal Housing Cable 12.4 Bag645001
646005113322SPEC
3 files 5 2.5 Female Terminal Housing Cable 14.9 Bag645001
646007113322SPEC
3 files 7 2.5 Female Terminal Housing Cable 19.9 Bag645001
646010113322SPEC
3 files 10 2.5 Female Terminal Housing Cable 27.4 Bag612690
645001
Order Code Data­sheet
646002113322SPEC
646003113322SPEC
646004113322SPEC
646005113322SPEC
646007113322SPEC
646010113322SPEC
Samples
Order Code Data­sheet DownloadsPinsPitch
(mm)
GenderTypePCB/Cable/PanelL
(mm)
PackagingDesign Kit Samples
