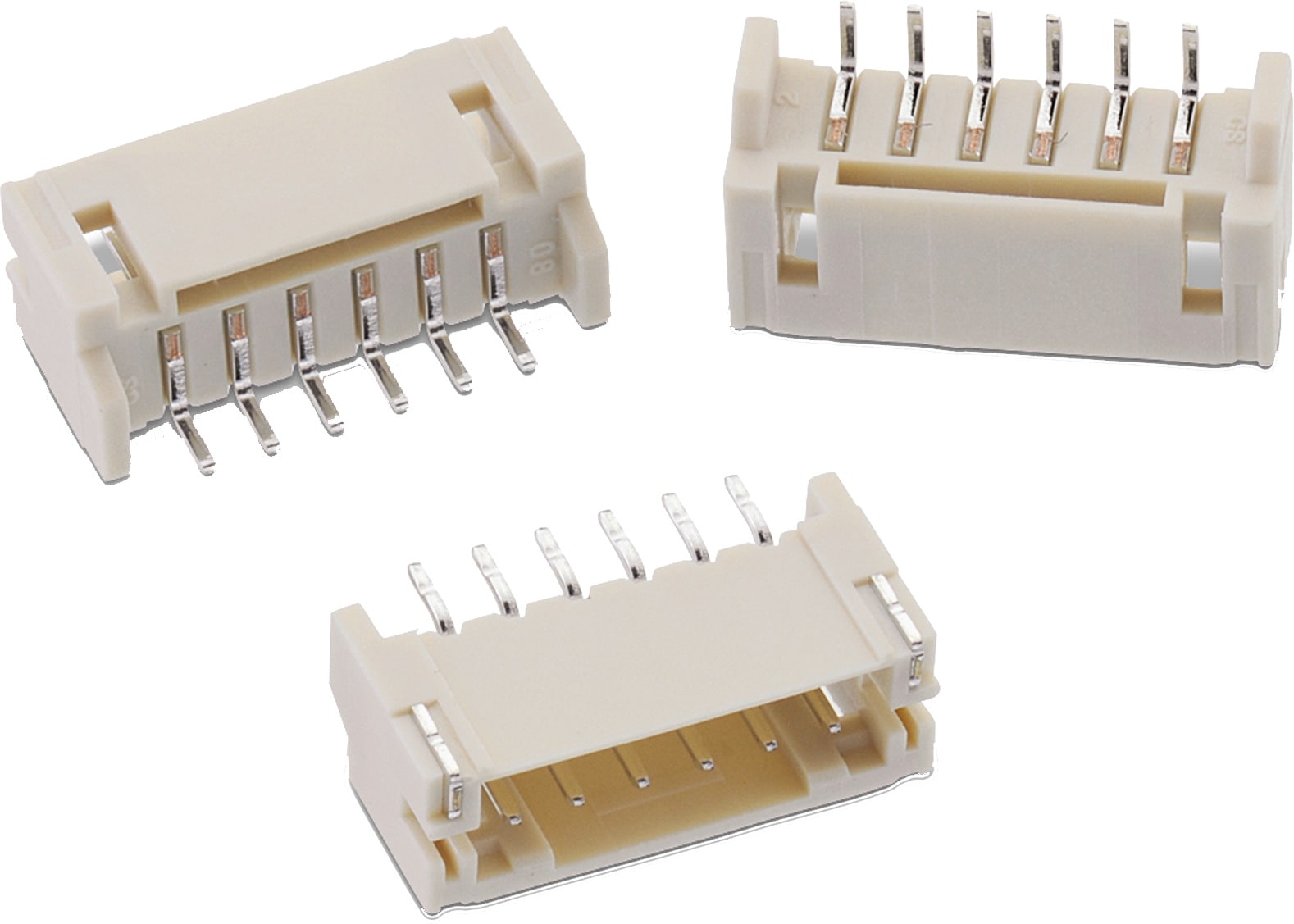

WR-WTB 2.00 mm SMT Male Horizontal Shrouded Header

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Beige
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +85 °C
Working Voltage	100 V (AC)
Withstanding Voltage	800 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2 mm
Gender	Male
Type	Horizontal

Certification
cULus Approval	E323964
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples
620102131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 620102131822_1 (rev1).pdf \| 61.2 KB IGS Download_IGES_620102131822 (rev1).iges \| 930.7 KB STP 620102131822 (rev1).stp \| 208.3 KB Download all 6 files as zip archive ZIP	2	2	Male	Horizontal	SMT	100	PCB	20	max.	8	Tape and Reel	645001
620103131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 620103131822_1 (rev1).pdf \| 64.2 KB IGS Download_IGES_620103131822 (rev1).iges \| 988.8 KB STP 620103131822 (rev1).stp \| 222.4 KB Download all 6 files as zip archive ZIP	3	2	Male	Horizontal	SMT	100	PCB	20	max.	10	Tape and Reel	645001
620104131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 620104131822_1 (rev1).pdf \| 67.3 KB IGS Download_IGES_620104131822 (rev1).iges \| 1 MB STP 620104131822 (rev1).stp \| 234.9 KB Download all 6 files as zip archive ZIP	4	2	Male	Horizontal	SMT	100	PCB	20	max.	12	Tape and Reel	645001
620105131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 620105131822_1 (rev1).pdf \| 70.8 KB IGS Download_IGES_620105131822 (rev1).iges \| 1.1 MB STP 620105131822 (rev1).stp \| 247.8 KB Download all 6 files as zip archive ZIP	5	2	Male	Horizontal	SMT	100	PCB	20	max.	14	Tape and Reel	645001
620106131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 620106131822_1 (rev1).pdf \| 75 KB IGS Download_IGES_620106131822 (rev1).iges \| 1.1 MB STP 620106131822 (rev1).stp \| 260.8 KB Download all 6 files as zip archive ZIP	6	2	Male	Horizontal	SMT	100	PCB	20	max.	16	Tape and Reel	645001
620107131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 620107131822_1 (rev1).pdf \| 78.4 KB IGS Download_IGES_620107131822 (rev1).iges \| 1.2 MB STP 620107131822 (rev1).stp \| 274.1 KB Download all 6 files as zip archive ZIP	7	2	Male	Horizontal	SMT	100	PCB	20	max.	18	Tape and Reel	645001
620108131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 620108131822_1 (rev1).pdf \| 81.7 KB IGS Download_IGES_620108131822 (rev1).iges \| 1.2 MB STP 620108131822 (rev1).stp \| 286.3 KB Download all 6 files as zip archive ZIP	8	2	Male	Horizontal	SMT	100	PCB	20	max.	20	Tape and Reel	645001
620109131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 620109131822_1 (rev1).pdf \| 85.1 KB IGS Download_IGES_620109131822 (rev1).iges \| 1.3 MB STP 620109131822 (rev1).stp \| 300.7 KB Download all 6 files as zip archive ZIP	9	2	Male	Horizontal	SMT	100	PCB	20	max.	22	Tape and Reel	645001
620110131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 620110131822_1 (rev1).pdf \| 88.2 KB IGS Download_IGES_620110131822 (rev1).iges \| 1.4 MB STP 620110131822 (rev1).stp \| 314 KB Download all 6 files as zip archive ZIP	10	2	Male	Horizontal	SMT	100	PCB	20	max.	24	Tape and Reel	612690 645001

Order Code	Datasheet
620102131822	SPEC
620103131822	SPEC
620104131822	SPEC
620105131822	SPEC
620106131822	SPEC
620107131822	SPEC
620108131822	SPEC
620109131822	SPEC
620110131822	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-WTB 2.00 mm Female Terminal Housing

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
