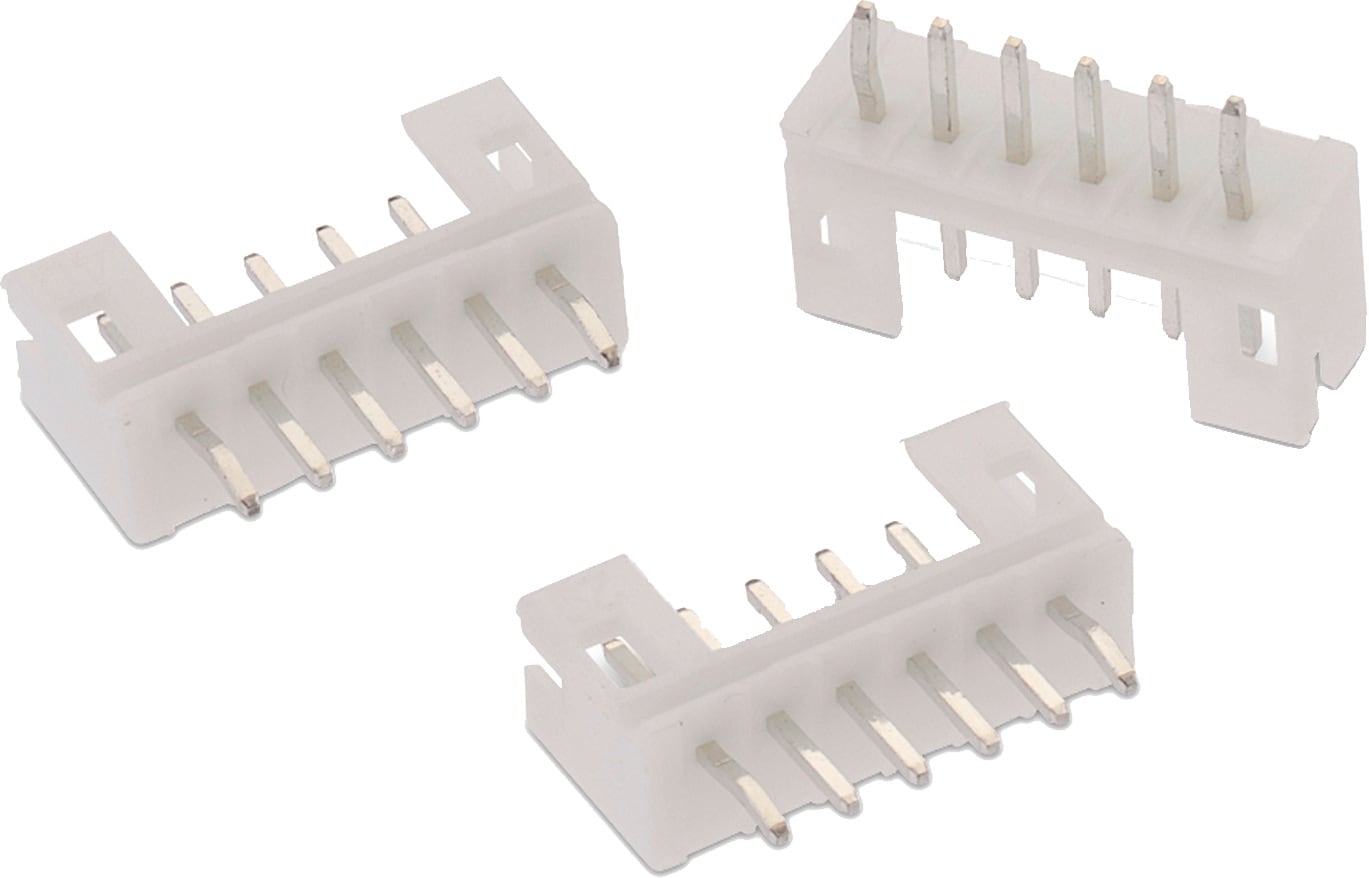

WR-WTB 2.00 mm Male Vertical Shrouded Header

Kind Properties
Pitch 2 mm
Gender Male
Material Properties
Insulator Material PA46
Insulator Flammability Rating UL94 V-0
Color Beige; White
Contact Material Copper Alloy
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -25 up to +85 °C
Compliance RoHS
Working Voltage 125 V (AC)
Withstanding Voltage 800 V (AC)
Contact Resistance 20 mΩ
RISO 1000 MΩ
Certification
UL Approval E323964
Packaging Properties
Packaging Bag

Products

Order Code Data­sheet Downloads Pins Pitch
(mm)
Gender Type Mount IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples
62000211622
IGE STE 3D ALT EAG CAD 2 2 Male Vertical THT 2 125 PCB 20 max. 6 Bag 645001
62000311622
IGE STE 3D ALT EAG CAD 3 2 Male Vertical THT 2 125 PCB 20 max. 8 Bag 645001
62000411622
IGE STE 3D ALT EAG CAD 4 2 Male Vertical THT 2 125 PCB 20 max. 10 Bag 645001
62000511622
IGE STE 3D ALT EAG CAD 5 2 Male Vertical THT 2 125 PCB 20 max. 12 Bag 645001
62000611622
IGE STE 3D ALT EAG CAD 6 2 Male Vertical THT 2 125 PCB 20 max. 14 Bag 645001
62000711622
IGE STE 3D ALT EAG CAD 7 2 Male Vertical THT 2 125 PCB 20 max. 16 Bag 645001
62000811622
IGE STE 3D ALT EAG CAD 8 2 Male Vertical THT 2 125 PCB 20 max. 18 Bag 645001
62000911622
IGE STE 3D ALT EAG CAD 9 2 Male Vertical THT 2 125 PCB 20 max. 20 Bag 645001
62001011622
IGE STE 3D ALT EAG CAD 10 2 Male Vertical THT 2 125 PCB 20 max. 22 Bag 612690
645001
Order Code Data­sheet
62000211622
62000311622
62000411622
62000511622
62000611622
62000711622
62000811622
62000911622
62001011622
Samples
Order Code Data­sheet Downloads Pins Pitch
(mm)
Gender Type Mount IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
