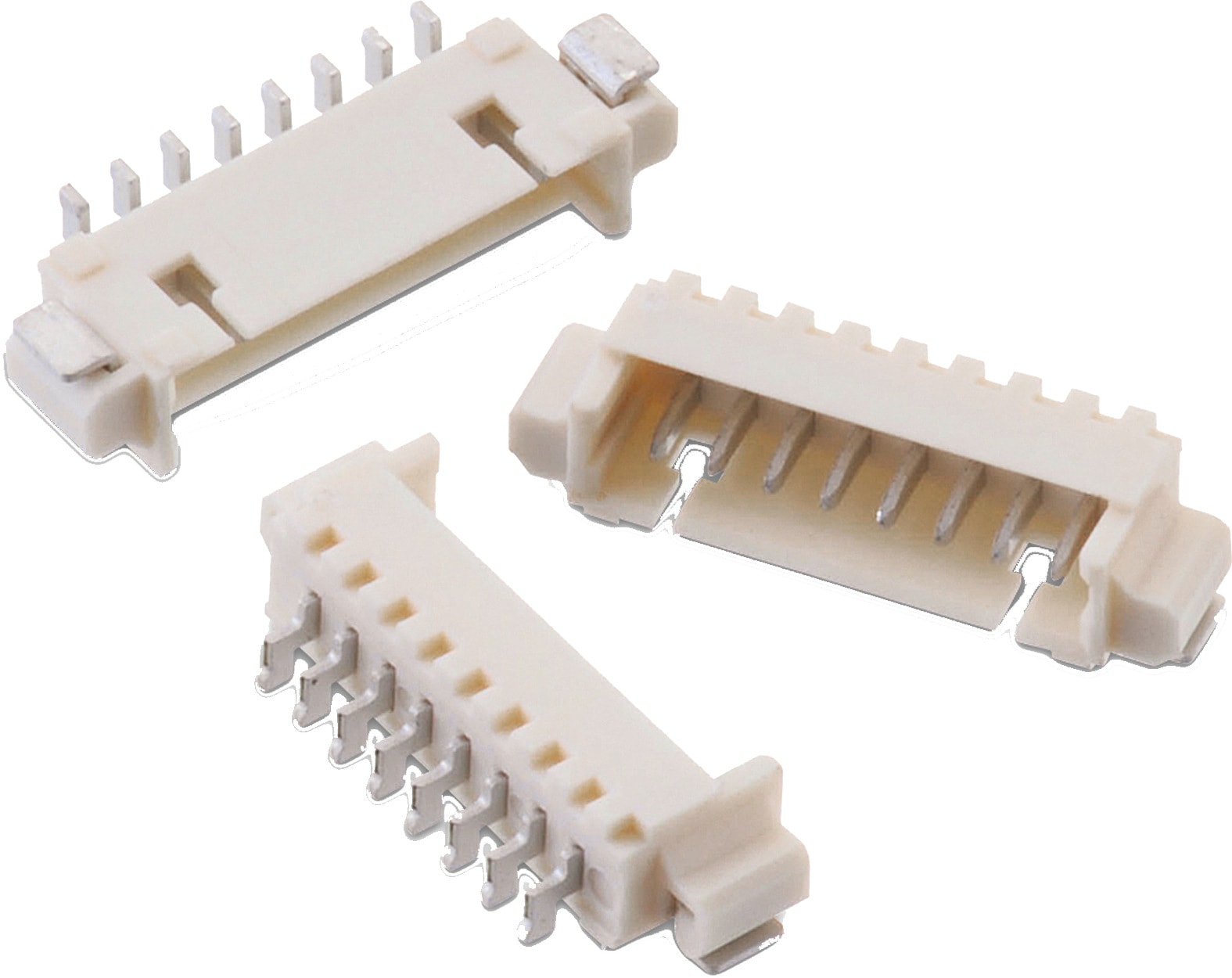

WR-WTB 1.25 mm SMT Male Horizontal Shrouded Header

Kind Properties
Pitch 1.25 mm
Gender Male
Material Properties
Insulator Material PA46
Insulator Flammability Rating UL94 V-0
Color Ivory
Contact Material Copper Alloy
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -40 up to +85 °C
Compliance RoHS
Working Voltage 125 V (AC)
Withstanding Voltage 250 V (AC)
Contact Resistance 20 mΩ
RISO 100 MΩ
Certification
UL Approval E323964
Packaging Properties
Packaging Tape and Reel

Products

Order Code Data­sheet Downloads Pins Pitch
(mm)
Gender Type Mount IR 1
(A)
Working Voltage
(V (AC))
PCB/Cable/Panel Contact Resistance
(mΩ)
Tol. R L
(mm)
Packaging Design Kit Samples
653102131822
STE 3D ALT EAG IGS CAD 2 1.25 Male Horizontal SMT 1 125 PCB 20 max. 7.25 Tape and Reel 645001
653103131822
STE 3D ALT EAG IGS CAD 3 1.25 Male Horizontal SMT 1 125 PCB 20 max. 8.5 Tape and Reel 645001
653104131822
STE 3D ALT EAG IGS CAD 4 1.25 Male Horizontal SMT 1 125 PCB 20 max. 9.75 Tape and Reel 645001
653105131822
STE 3D ALT EAG IGS CAD 5 1.25 Male Horizontal SMT 1 125 PCB 20 max. 11 Tape and Reel 645001
653106131822
STE 3D ALT EAG IGS CAD 6 1.25 Male Horizontal SMT 1 125 PCB 20 max. 12.25 Tape and Reel 645001
653107131822
STE 3D ALT EAG IGS CAD 7 1.25 Male Horizontal SMT 1 125 PCB 20 max. 13.5 Tape and Reel 645001
653108131822
STE 3D ALT EAG IGS CAD 8 1.25 Male Horizontal SMT 1 125 PCB 20 max. 14.75 Tape and Reel 645001
653109131822
STE 3D ALT EAG IGS CAD 9 1.25 Male Horizontal SMT 1 125 PCB 20 max. 16 Tape and Reel 645001
653110131822
STE 3D ALT EAG IGS CAD 10 1.25 Male Horizontal SMT 1 125 PCB 20 max. 17.25 Tape and Reel 612690
645001
653111131822
STE 3D ALT EAG IGS CAD 11 1.25 Male Horizontal SMT 1 125 PCB 20 max. 18.5 Tape and Reel 645001
653112131822
STE 3D ALT EAG IGS CAD 12 1.25 Male Horizontal SMT 1 125 PCB 20 max. 19.75 Tape and Reel 645001
653113131822
STE 3D ALT EAG IGS CAD 13 1.25 Male Horizontal SMT 1 125 PCB 20 max. 21 Tape and Reel 645001
653114131822
STE 3D ALT EAG IGS CAD 14 1.25 Male Horizontal SMT 1 125 PCB 20 max. 22.25 Tape and Reel 645001
653115131822
STE 3D ALT EAG IGS CAD 15 1.25 Male Horizontal SMT 1 125 PCB 20 max. 23.5 Tape and Reel 645001
