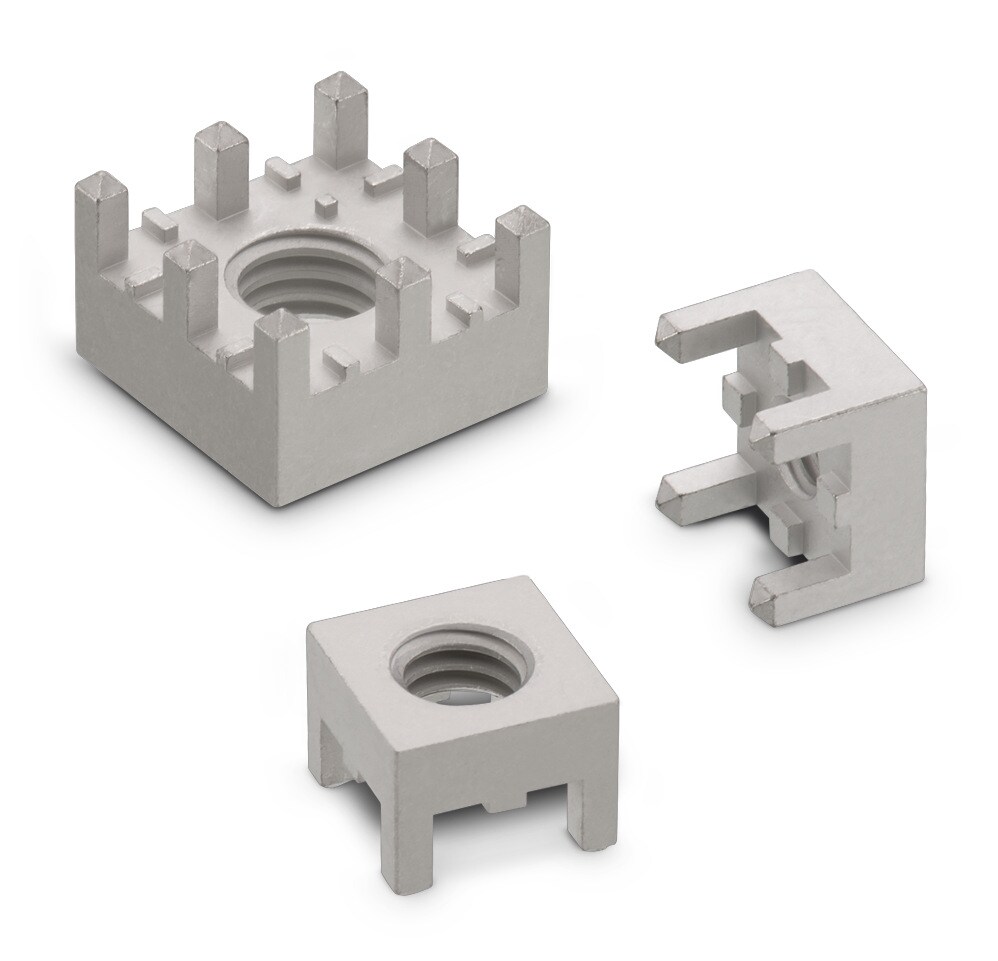

WP-THRBU REDCUBE THR with internal through-hole thread

Applications

Solderable high current Wire-to-Board connections with a focus on automated assembly
Beneficial power supply in multi layer applications
Robust, mechanical high current connections

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Brass
Surface	Tin

Packaging Properties
Packaging	Bulk; Tape and Reel

Application Notes

REDCUBE SMD Terminals Design Guide
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	W(mm)	H(mm)	T_i	T_l(mm)	Pins	Design Kit	SamplesAvailability & Sample
74650073	SPEC7 mm, 3 mm, M3	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB KIC KiCad_WP-THRBU (rev26b).zip \| 403 KB CAD files ZIP 3D 74650073_3D (rev1).pdf \| 289.7 KB IGS 74650073 (rev1).igs \| 619.8 KB STP 74650073 (rev1).stp \| 165.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width7 mm	Height3 mm	Inner ThreadM3	Thread Length2.5 mm	Pins4	Design Kit 746701	–Check availability
74650073R	SPEC7 mm, 3 mm, M3	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB KIC KiCad_WP-THRBU (rev26b).zip \| 403 KB CAD files ZIP 3D 74650073_3D (rev1).pdf \| 289.7 KB IGS 74650073 (rev1).igs \| 619.8 KB STP 74650073 (rev1).stp \| 165.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width7 mm	Height3 mm	Inner ThreadM3	Thread Length2.5 mm	Pins4	Design Kit –	–Check availability
74650074	SPEC7 mm, 3 mm, M4	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB KIC KiCad_WP-THRBU (rev26b).zip \| 403 KB CAD files ZIP 3D 74650074_3D (rev1).pdf \| 158.4 KB IGS 74650074 (rev1).igs \| 469.8 KB STP 74650074 (rev1).stp \| 112.8 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width7 mm	Height3 mm	Inner ThreadM4	Thread Length2.5 mm	Pins4	Design Kit –	–Check availability
74650074R	SPEC7 mm, 3 mm, M4	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB KIC KiCad_WP-THRBU (rev26b).zip \| 403 KB CAD files ZIP 3D 74650074_3D (rev1).pdf \| 158.4 KB IGS 74650074 (rev1).igs \| 469.8 KB STP 74650074 (rev1).stp \| 112.8 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width7 mm	Height3 mm	Inner ThreadM4	Thread Length2.5 mm	Pins4	Design Kit –	–Check availability
74650094	SPEC10 mm, 3.5 mm, M4	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB KIC KiCad_WP-THRBU (rev26b).zip \| 403 KB CAD files ZIP 3D 74650094_3D (rev1).pdf \| 250.3 KB IGS 74650094 (rev1).igs \| 1002.2 KB STP 74650094 (rev1).stp \| 378.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width10 mm	Height3.5 mm	Inner ThreadM4	Thread Length3 mm	Pins8	Design Kit 746701	–Check availability
74650094R	SPEC10 mm, 3.5 mm, M4	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB KIC KiCad_WP-THRBU (rev26b).zip \| 403 KB CAD files ZIP 3D 74650094_3D (rev1).pdf \| 250.3 KB IGS 74650094 (rev1).igs \| 1002.2 KB STP 74650094 (rev1).stp \| 378.6 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width10 mm	Height3.5 mm	Inner ThreadM4	Thread Length3 mm	Pins8	Design Kit –	–Check availability
74655095	SPEC10 mm, 4 mm, M5	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB KIC KiCad_WP-THRBU (rev26b).zip \| 403 KB CAD files ZIP 3D 74655095_3D (rev1).pdf \| 329.1 KB IGS 74655095 (rev1).igs \| 1.3 MB STP 74655095 (rev1).stp \| 637 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width10 mm	Height4 mm	Inner ThreadM5	Thread Length3.5 mm	Pins8	Design Kit –	–Check availability
74655095R	SPEC10 mm, 4 mm, M5	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-THRBU (rev22a).IntLib \| 261.5 KB CDS Cadence_WP-THRBU (rev19a).zip \| 1.5 MB EAG Eagle_WP-THRBU (rev19a).lbr \| 47.6 KB KIC KiCad_WP-THRBU (rev26b).zip \| 403 KB CAD files ZIP 3D 74655095_3D (rev1).pdf \| 329.1 KB IGS 74655095 (rev1).igs \| 1.3 MB STP 74655095 (rev1).stp \| 637 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Width10 mm	Height4 mm	Inner ThreadM5	Thread Length3.5 mm	Pins8	Design Kit –	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–

Redcube Terminals THR

REDCUBE THR have a special design for best soldering results. Milling from solid material the torques are significant better comparedto stamped contacts. REDCUBE THR have the highest ampacity of fully automatically processed high-current components.

Learn more PDF
