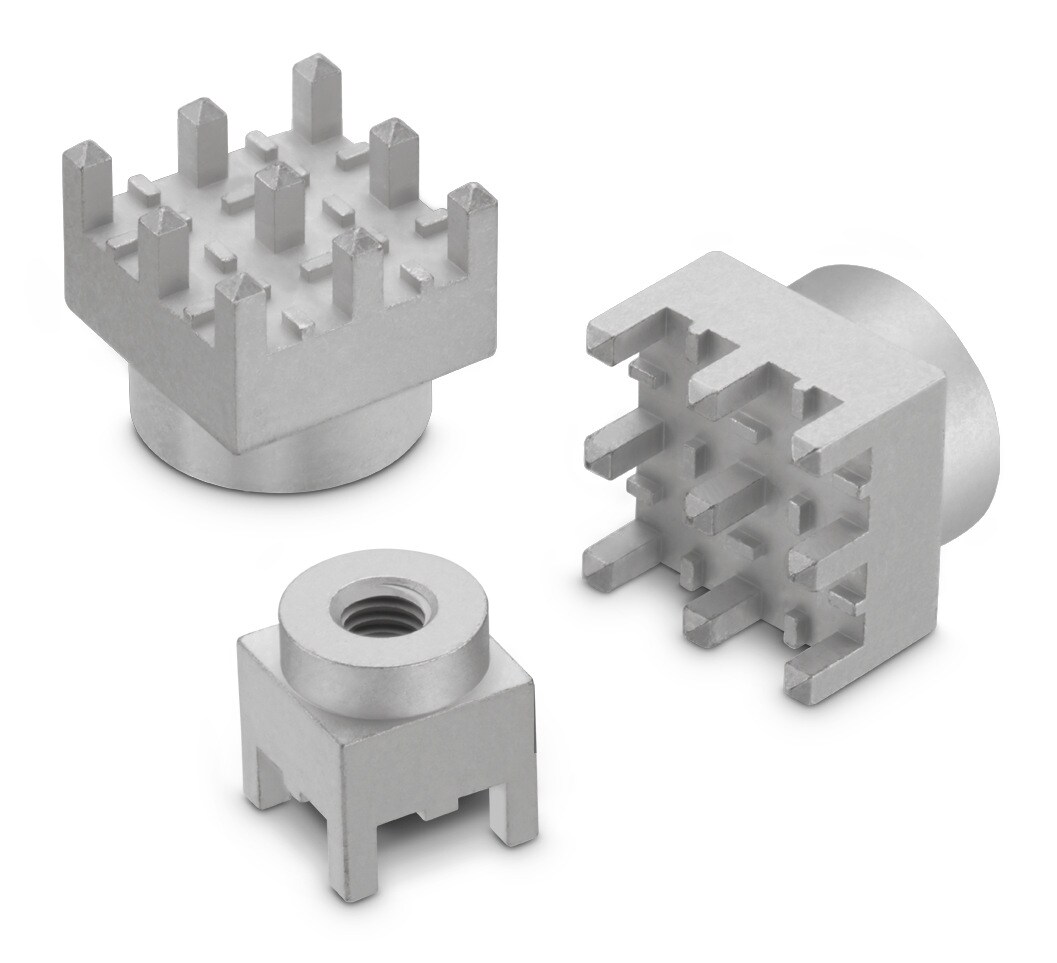

REDCUBE THR with internal blind-hole thread WP-THRBU

Applications

  • Solderable high current Wire-to-Board connections with a focus on automated assembly
  • Beneficial power supply in multi layer applications
  • Robust mechanical high current connections
Properties
Material Brass
Surface Tin
IR 1 50 A; 85 A
Qty. 400; 450
General Information
Operating Temperature -55 up to +150 °C
Packaging Properties
Packaging Bulk; Tape and Reel

4power!

REDCUBE Terminals are the most reliable high-power contact on PCB level. Low contact resistance guarantees minimum self-heating.

Product video, applications and more

Products

Order Code SPEC Downloads W
(mm)
H
(mm)
IR 1
(A)
Ti Tl
(mm)
Pins Design Kit Samples
74650173
STE 3D ALT EAG IGS CAD 7 6 50 M3 3.5 4
74650173R
STE 3D ALT EAG IGS CAD 7 6 50 M3 3.5 4
74650174
STE 3D ALT EAG IGS CAD 7 6.5 50 M4 4 4
74650174R
STE 3D ALT EAG IGS CAD 7 6.5 50 M4 4 4
74650194
STE 3D ALT EAG IGS CAD 10 7 85 M4 4 9
74650194R
STE 3D ALT EAG IGS CAD 10 7 85 M4 4 9
74650195
STE 3D ALT EAG IGS CAD 10 7 85 M5 4 9 746701
74650195R
STE 3D ALT EAG IGS CAD 10 7 85 M5 4 9
Order Code SPEC
74650173
74650173R
74650174
74650174R
74650194
74650194R
74650195
74650195R
Samples
Order Code SPEC Downloads W
(mm)
H
(mm)
IR 1
(A)
Ti Tl
(mm)
Pins Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
