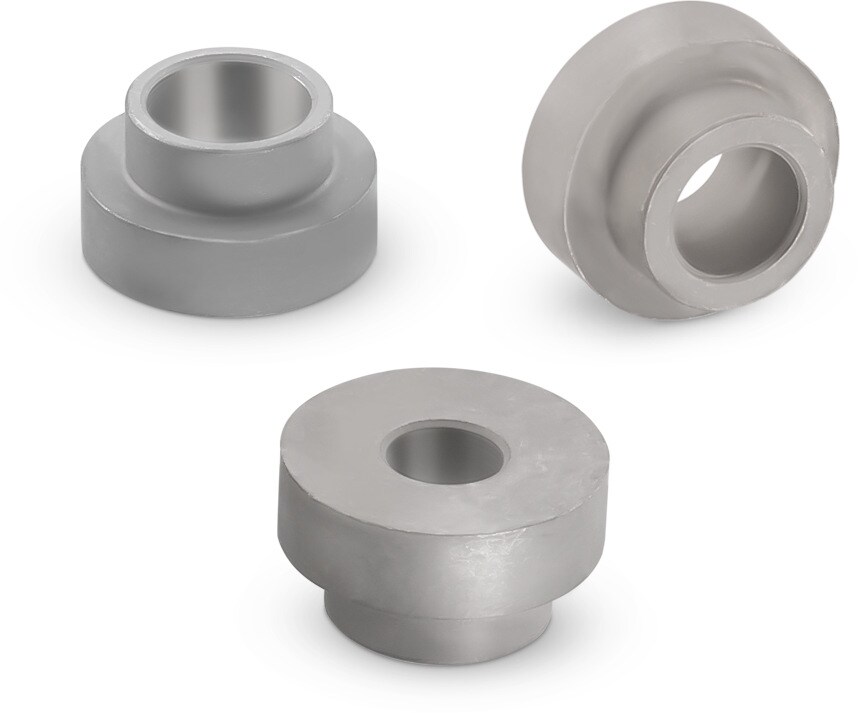

WP-SMRT REDCUBE SMT Reverse with internal through-hole

Applications

Solderable high current Wire-to-Board & Board-to-Board connections with a focus on automated assembly
IMS boards or one layer applications

General Information
Material	Brass
Surface	Tin
Operating Temperature	-55 °C up to +150 °C

Electrical Properties
I_R	85 A

Packaging Properties
Packaging	Bulk; Tape and Reel

Application Notes

REDCUBE SMD Terminals Design Guide
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	H(mm)	H₁(mm)	Ø ID(mm)	I_R(A)	T_l(mm)	Ø OD(mm)	SamplesAvailability & Sample
746600135	SPEC3 mm, 5.6 mm, 3.5 mm	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-SMRT (rev25a).IntLib \| 58.5 KB CDS Cadence_WP-SMRT (rev25a).zip \| 379.5 KB EAG Eagle_WP-SMRT (rev20b).lbr \| 156.2 KB KIC KiCad_WP-SMRT (rev26b).zip \| 95.6 KB CAD files ZIP 3D 3D_746600135 (rev1).pdf \| 30.9 KB IGS 746600135 (rev1).igs \| 55.8 KB STP Download_STEP_746600135 (rev1).stp \| 7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3 mm	Height5.6 mm	Inner Diameter3.5 mm	Rated Current85 A	Thread Length5.6 mm	Outer Diameter10 mm	–Check availability
746600145	SPEC3 mm, 5.6 mm, 4.5 mm	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-SMRT (rev25a).IntLib \| 58.5 KB CDS Cadence_WP-SMRT (rev25a).zip \| 379.5 KB EAG Eagle_WP-SMRT (rev20b).lbr \| 156.2 KB KIC KiCad_WP-SMRT (rev26b).zip \| 95.6 KB CAD files ZIP 3D 3D_746600145 (rev1).pdf \| 31.4 KB IGS Download_IGS_746600145 (rev1).igs \| 55.8 KB STP Download_STEP_746600145 (rev1).stp \| 7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3 mm	Height5.6 mm	Inner Diameter4.5 mm	Rated Current85 A	Thread Length5.6 mm	Outer Diameter10 mm	–Check availability
746600155	SPEC3 mm, 5.6 mm, 5.5 mm	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-SMRT (rev25a).IntLib \| 58.5 KB CDS Cadence_WP-SMRT (rev25a).zip \| 379.5 KB EAG Eagle_WP-SMRT (rev20b).lbr \| 156.2 KB KIC KiCad_WP-SMRT (rev26b).zip \| 95.6 KB CAD files ZIP 3D 3D_746600155 (rev1).pdf \| 32.3 KB IGS Download_IGS_746600155 (rev1).igs \| 56 KB STP Download_STEP_746600155 (rev1).stp \| 7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3 mm	Height5.6 mm	Inner Diameter5.5 mm	Rated Current85 A	Thread Length5.6 mm	Outer Diameter10 mm	–Check availability
746600135R	SPEC3 mm, 5.6 mm, 3.5 mm	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-SMRT (rev25a).IntLib \| 58.5 KB CDS Cadence_WP-SMRT (rev25a).zip \| 379.5 KB EAG Eagle_WP-SMRT (rev20b).lbr \| 156.2 KB KIC KiCad_WP-SMRT (rev26b).zip \| 95.6 KB CAD files ZIP 3D 3D_746600135 (rev1).pdf \| 30.9 KB IGS Download_IGS_746600135 (rev1).igs STP Download_STEP_746600135 (rev1).stp \| 7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3 mm	Height5.6 mm	Inner Diameter3.5 mm	Rated Current85 A	Thread Length5.6 mm	Outer Diameter10 mm	–Check availability
746600145R	SPEC3 mm, 5.6 mm, 4.5 mm	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-SMRT (rev25a).IntLib \| 58.5 KB CDS Cadence_WP-SMRT (rev25a).zip \| 379.5 KB EAG Eagle_WP-SMRT (rev20b).lbr \| 156.2 KB KIC KiCad_WP-SMRT (rev26b).zip \| 95.6 KB CAD files ZIP 3D 3D_746600145 (rev1).pdf \| 31.4 KB IGS Download_IGS_746600145 (rev1).igs \| 55.8 KB STP Download_STEP_746600145 (rev1).stp \| 7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3 mm	Height5.6 mm	Inner Diameter4.5 mm	Rated Current85 A	Thread Length5.6 mm	Outer Diameter10 mm	–Check availability
746600155R	SPEC3 mm, 5.6 mm, 5.5 mm	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-SMRT (rev25a).IntLib \| 58.5 KB CDS Cadence_WP-SMRT (rev25a).zip \| 379.5 KB EAG Eagle_WP-SMRT (rev20b).lbr \| 156.2 KB KIC KiCad_WP-SMRT (rev26b).zip \| 95.6 KB CAD files ZIP 3D 3D_746600155 (rev1).pdf \| 32.3 KB IGS Download_IGS_746600155 (rev1).igs \| 56 KB STP Download_STEP_746600155 (rev1).stp \| 7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3 mm	Height5.6 mm	Inner Diameter5.5 mm	Rated Current85 A	Thread Length5.6 mm	Outer Diameter10 mm	–Check availability
746600165	SPEC3 mm, 5.6 mm, 6.5 mm	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-SMRT (rev25a).IntLib \| 58.5 KB CDS Cadence_WP-SMRT (rev25a).zip \| 379.5 KB EAG Eagle_WP-SMRT (rev20b).lbr \| 156.2 KB KIC KiCad_WP-SMRT (rev26b).zip \| 95.6 KB CAD files ZIP 3D 3D_746600165 (rev1).pdf \| 32.4 KB IGS IGS_746600165 (rev1).igs \| 60.9 KB STP STP_746600165 (rev1).stp \| 7.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3 mm	Height5.6 mm	Inner Diameter6.5 mm	Rated Current85 A	Thread Length5.6 mm	Outer Diameter12 mm	–Check availability
746600165R	SPEC3 mm, 5.6 mm, 6.5 mm	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WP-SMRT (rev25a).IntLib \| 58.5 KB CDS Cadence_WP-SMRT (rev25a).zip \| 379.5 KB EAG Eagle_WP-SMRT (rev20b).lbr \| 156.2 KB KIC KiCad_WP-SMRT (rev26b).zip \| 95.6 KB CAD files ZIP 3D 3D_746600165 (rev1).pdf \| 32.4 KB IGS IGS_746600165 (rev1).igs \| 60.9 KB STP STP_746600165 (rev1).stp \| 7.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3 mm	Height5.6 mm	Inner Diameter6.5 mm	Rated Current85 A	Thread Length5.6 mm	Outer Diameter12 mm	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–

REDCUBE Terminals SMT

A large connecting area of REDCUBE SMT achieves a low contact resistance and best holding forces. The small form factor allows a high packing density without critical heat development on the PCB.

Learn more PDF
