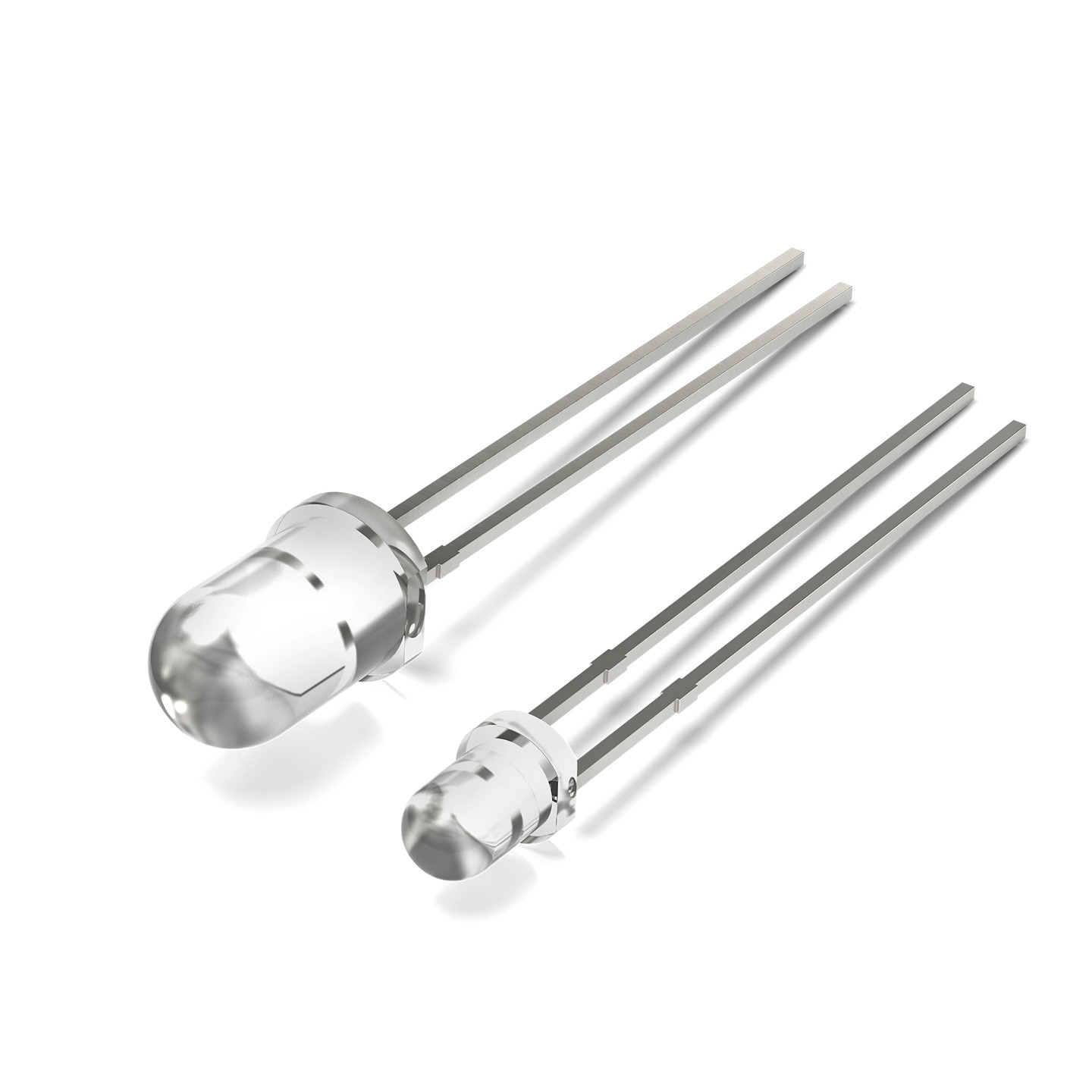

WL-TTRW Phototransistor Round Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)
THT 3 mm - without stopper		3	3.8	8.7
THT 5 mm - without stopper		5	5.8	8.7

Characteristics

Standard THT Package
Small viewing angle
High photo sensivity
Without daylight filter
Perfect match with IR LEDs

Applications

Smoke detectors
Counter and encoder
Heart rate monitoring
Cleaning robot
Touch screens

Products

All

THT 3 mm - without stopper

THT 5 mm - without stopper

Filter article data

show article in 2 product lines

article in 2 product lines

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.}(nm)	λ_min.(nm)	λ_max.(nm)	Test Condition I_CE.P	I_{CE.P typ.}(mA)	I_{CE.P min.}(mA)	Test Condition I_CEO.Dark	I_{CEO.Dark max.}(nA)	Chip Technology	2θ_{50% typ.}(°)	Samples
1540032NA3090	850 nm, 400 nm, 1100 nm	Simulation	Downloads5 files EDA models: Components ZIP ALT Altium_WL-TTRW (rev22b).IntLib \| 46 KB CDS Cadence_WL-TTRW (rev20a).zip \| 120.6 KB EAG Eagle_WL-TTRW (rev20b).lbr \| 18.5 KB CAD files ZIP IGS Downloads_IGS_1540032NA3090 (rev1).igs \| 233.4 KB STP Downloads_STEP_1540032NA3090 (rev1).stp \| 49.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]850 nm	Range of Spectral Bandwidth [min.]400 nm	Range of Spectral Bandwidth [max.]1100 nm	V_CE = 5 V Ee = 1 mW/cm² λ = 850 nm	Collector Current [typ.]15 mA	Collector Current [min.]5 mA	V_CE = 20 V Ee = 0 mW/cm²	Collector-Emitter Dark Current [max.]300 nA	Chip TechnologySi	Viewing Angle Phi 0° [typ.]30 °
1540052NA3090	850 nm, 400 nm, 1100 nm	Simulation	Downloads5 files EDA models: Components ZIP ALT Altium_WL-TTRW (rev22b).IntLib \| 46 KB CDS Cadence_WL-TTRW (rev20a).zip \| 120.6 KB EAG Eagle_WL-TTRW (rev20b).lbr \| 18.5 KB CAD files ZIP IGS Download_IGS_1540052NA3090 (rev1).igs \| 231 KB STP Download_STEP_1540052NA3090 (rev1).stp \| 49.4 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]850 nm	Range of Spectral Bandwidth [min.]400 nm	Range of Spectral Bandwidth [max.]1100 nm	V_CE = 5 V Ee = 1 mW/cm² λ = 850 nm	Collector Current [typ.]15 mA	Collector Current [min.]6 mA	V_CE = 20 V Ee = 0 mW/cm²	Collector-Emitter Dark Current [max.]300 nA	Chip TechnologySi	Viewing Angle Phi 0° [typ.]30 °
