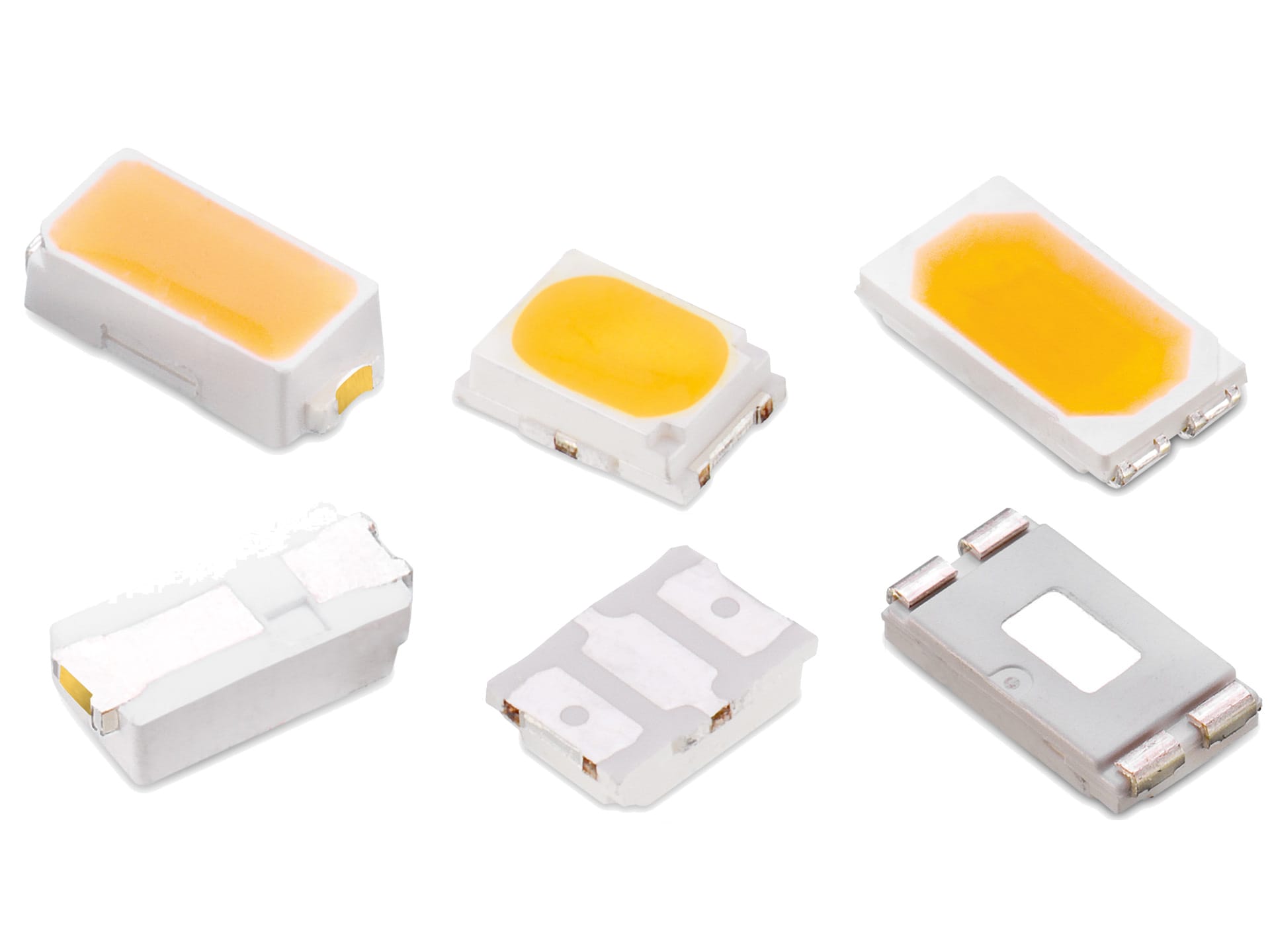

WL-SWTP SMT White Top view PLCC

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount
3014 3 1.4 - SMT

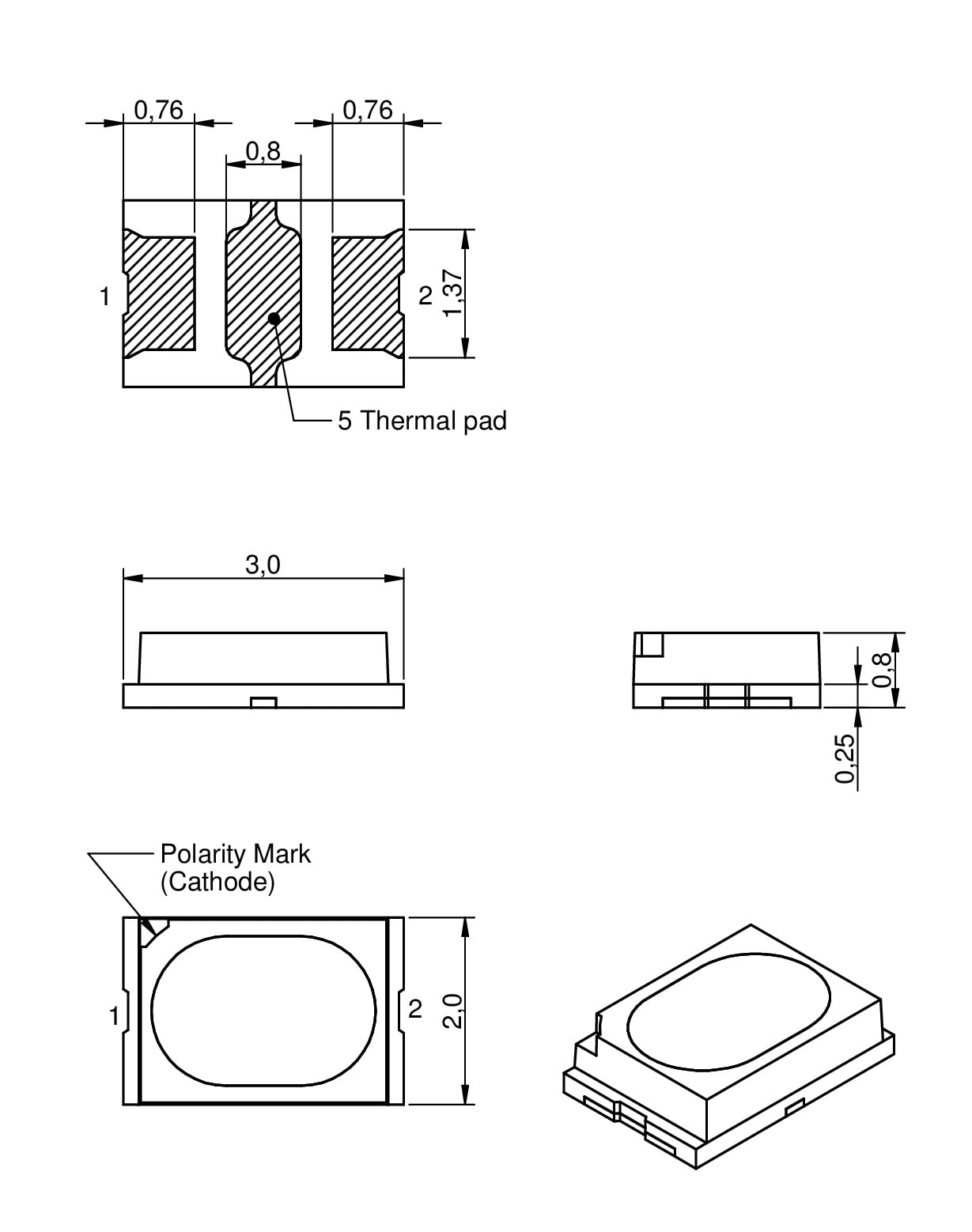

3022 3 2.1 0.8 SMT
3030 3 3 0.67 -

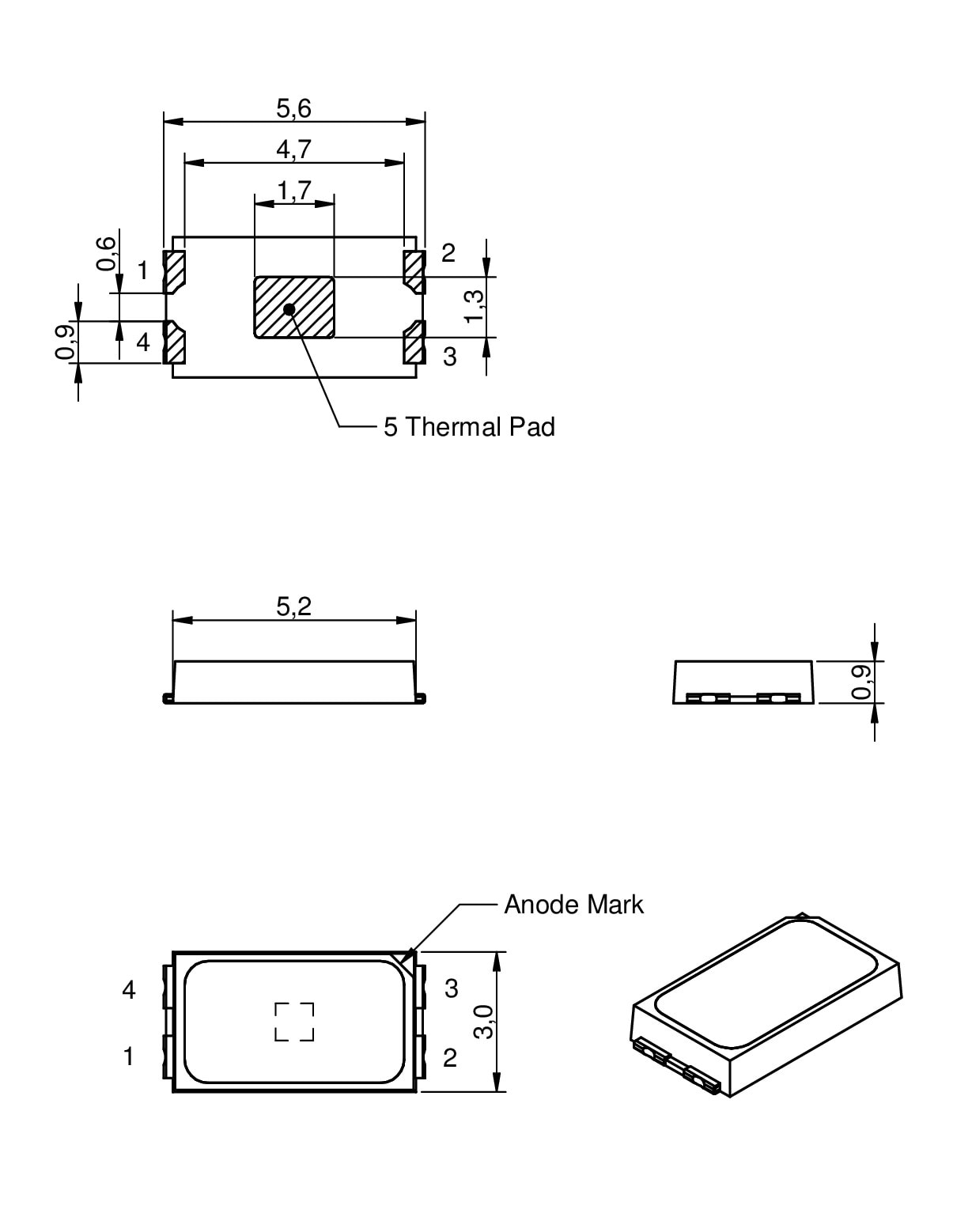

5630 - 3 - SMT

Characteristics

  • Fast switching
  • No IR radiation
  • High CRI
  • Slim and miniature size
  • Low power consumption
  • Suitable for all SMT assembly methods
  • Top view
  • Wide viewing angle
  • Various of color temperatures
  • LED junction temperature: 130°C

Applications

  • Signal lights
  • Indoor displays
  • Backlights
  • General illumination, industrial and commercial lighting systems
  • Decorative and Entertainment lighting
  • Switch lights
  • LED lighting fixtures
  • LED decoration strips
  • Indicator lights and backlighting for wireless mobile devices and consumer electronics
  • Flat backlight for LCD
  • LED backlighting and SMT type indicator lights
  • LED Module
  • Light pipe application
  • Indicator lights and backlighting for consumer and industrial applications
  • Indoor area lighting
  • Downlight
  • Outdoor and architectural lighting systems
  • High bay & Low bay
  • Display & TV Backlight
  • General lighting

Products

All
3014
3022
3030
5630
Order Code Data­sheet Simu­lation DownloadsEmitting ColorCCT max.ΦV typ.
(lm)
VF typ.
(V)
Chip Technology50% typ.
(°)
SizeDesign Kit Samples
158301260SPEC
28 files Cool White 6000.0 9 3 InGaN 120 3014158300
158302260SPEC
6 files Cool White 22 3.2 InGaN 120 3022158300
158563460SPEC
28 files Cool White 39 3 InGaN 120 5630158300
158301260ASPEC
25 files Cool White 26 2.8 AlInGaN 120 3014
158303260ASPEC
25 files Cool White 6000.0 36 2.8 AlInGaN 120 3030
158563260ASPEC
25 files Cool White 35 2.8 InGaN 120 5630
158301250SPEC
6 files Daylight 5000.0 9 3 InGaN 120 3014158300
158302250SPEC
6 files Daylight 22 3.2 InGaN 120 3022158300
158563450SPEC
6 files Daylight 5000.0 39 3 InGaN 120 5630158300
158301250ASPEC
6 files Daylight 26 2.8 AlInGaN 120 3014
158303250ASPEC
6 files Daylight 5000.0 36 2.8 AlInGaN 120 3030
158563250ASPEC
6 files Daylight 35 2.8 InGaN 120 5630
158301240SPEC
6 files Moonlight 4000.0 8.5 3 InGaN 120 3014158300
158302240SPEC
6 files Moonlight 22 3.2 InGaN 120 3022158300
158563440SPEC
28 files Moonlight 36 3 InGaN 120 5630158300
158301240ASPEC
6 files Moonlight 26 2.8 AlInGaN 120 3014
158303240ASPEC
6 files Moonlight 36 2.8 AlInGaN 120 3030
158563240ASPEC
6 files Moonlight 32 2.8 InGaN 120 5630
158301227SPEC
6 files Sunrise 2700.0 8 3 InGaN 120 3014158300
158302227SPEC
28 files Sunrise 20 3.2 InGaN 120 3022158300
158563427SPEC
28 files Sunrise 34 3 InGaN 120 5630158300
158301227ASPEC
25 files Sunrise 26 2.8 AlInGaN 120 3014
158303227ASPEC
25 files Sunrise 2700.0 34 2.8 AlInGaN 120 3030
158563227ASPEC
25 files Sunrise 32 2.8 InGaN 120 5630
158301230SPEC
6 files Warm White 3000.0 8 3 InGaN 120 3014158300
158302230SPEC
28 files Warm White 20 3.2 InGaN 120 3022158300
158563430SPEC
6 files Warm White 34 3 InGaN 120 5630158300
158301230ASPEC
6 files Warm White 26 2.8 AlInGaN 120 3014
158303230ASPEC
6 files Warm White 34 2.8 AlInGaN 120 3030
158563230ASPEC
6 files Warm White 32 2.8 InGaN 120 5630
