OverviewAll product unitsProduct unitOptoelectronic ComponentsProduct groupLEDsProduct familySignal LEDsTypeTOP LEDProduct seriesWL-SMTW SMT Mono-color TOP LED Waterclear

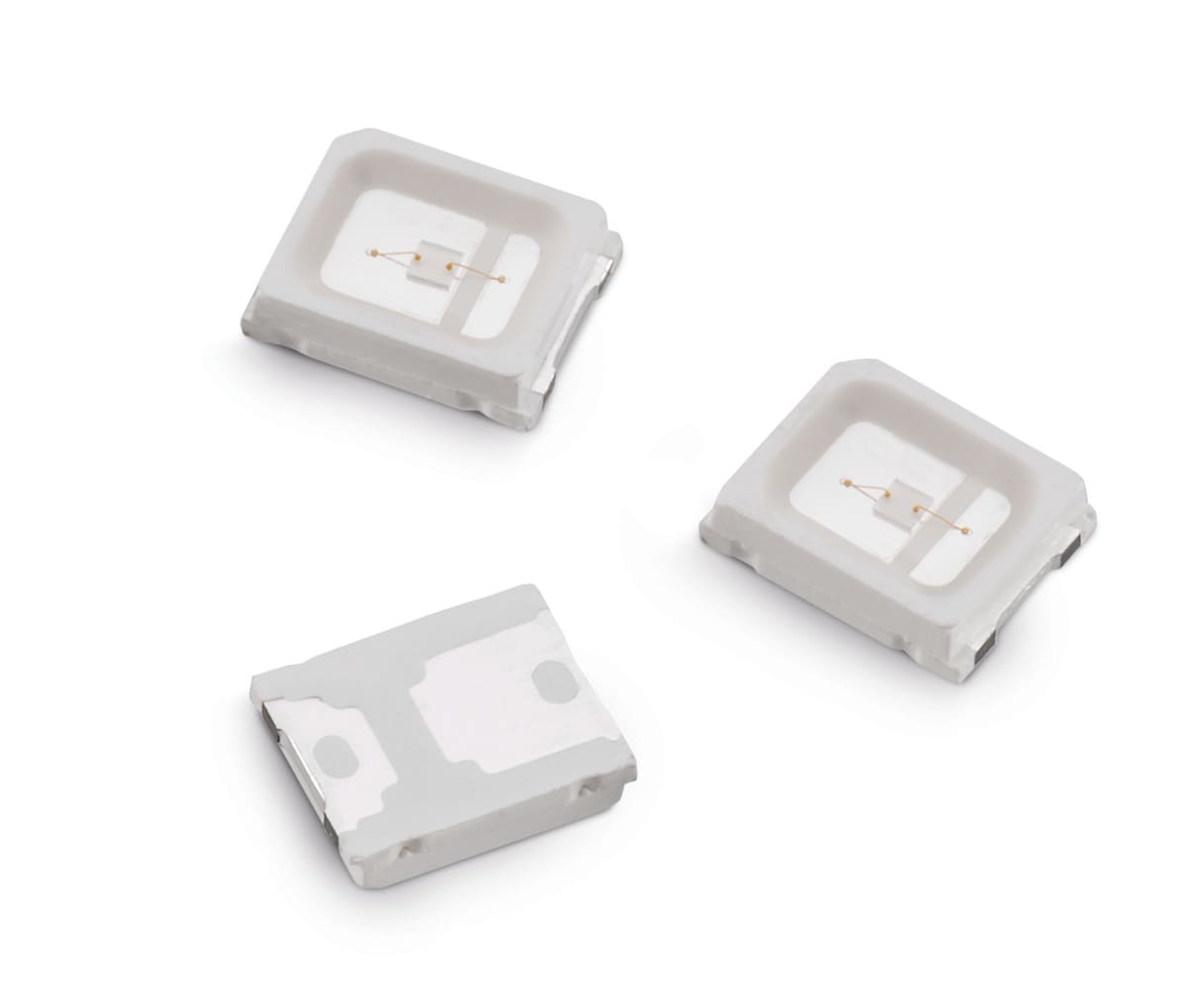

WL-SMTW SMT Mono-color TOP LED Waterclear

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount

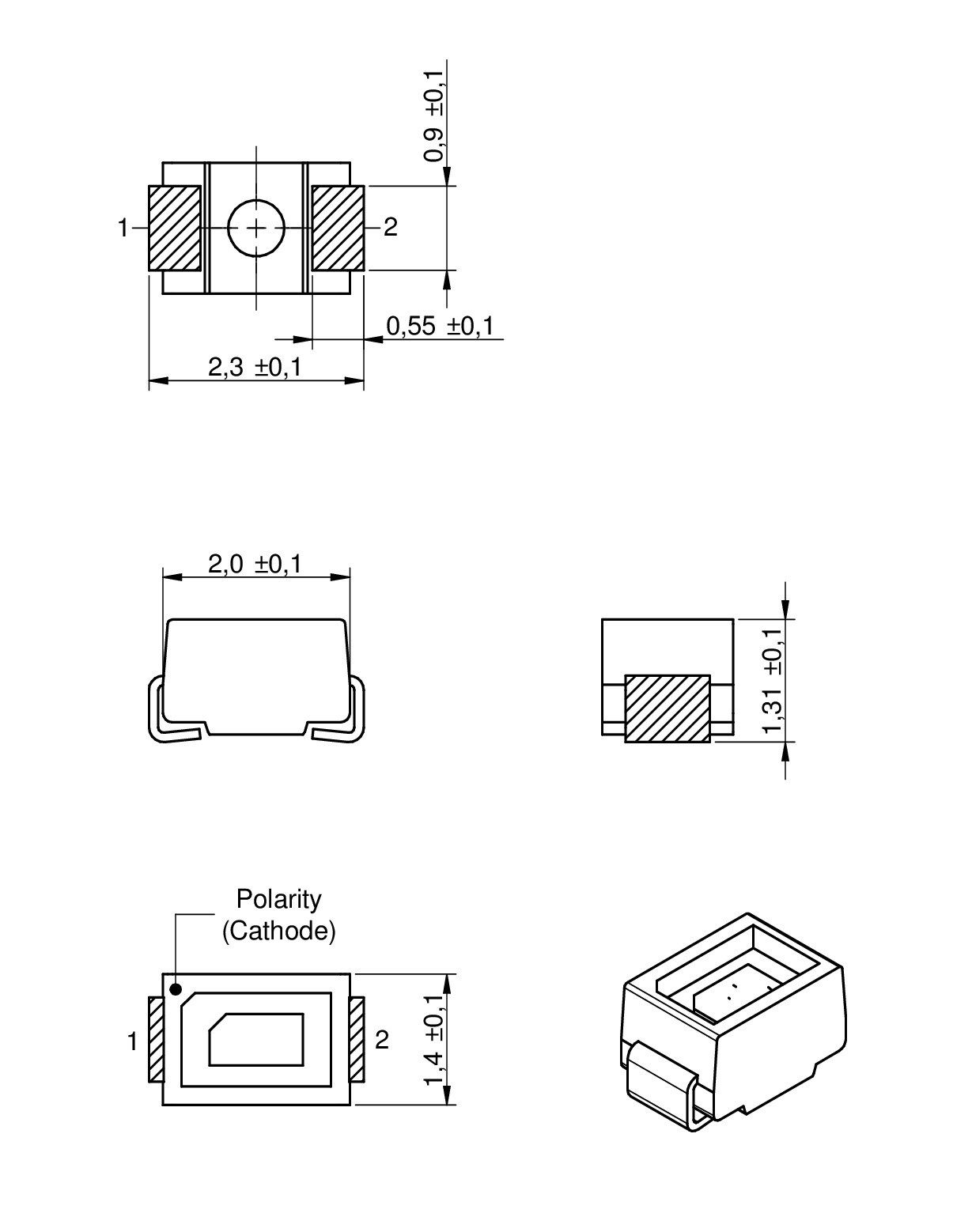

2214 2 1.4 1.31 SMT
2835 3.5 2.8 0.8 SMT
3020 3 2 1.3 SMT

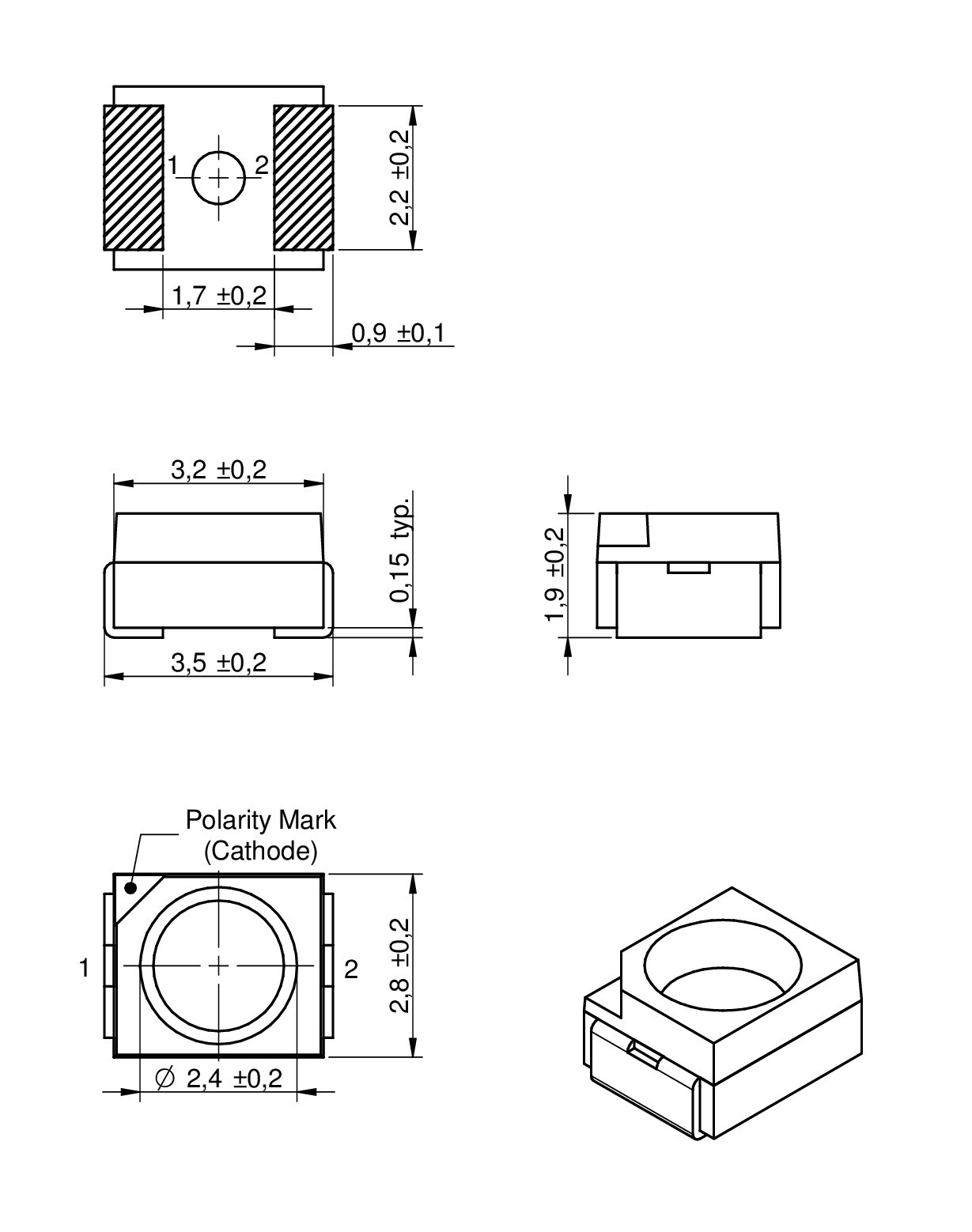

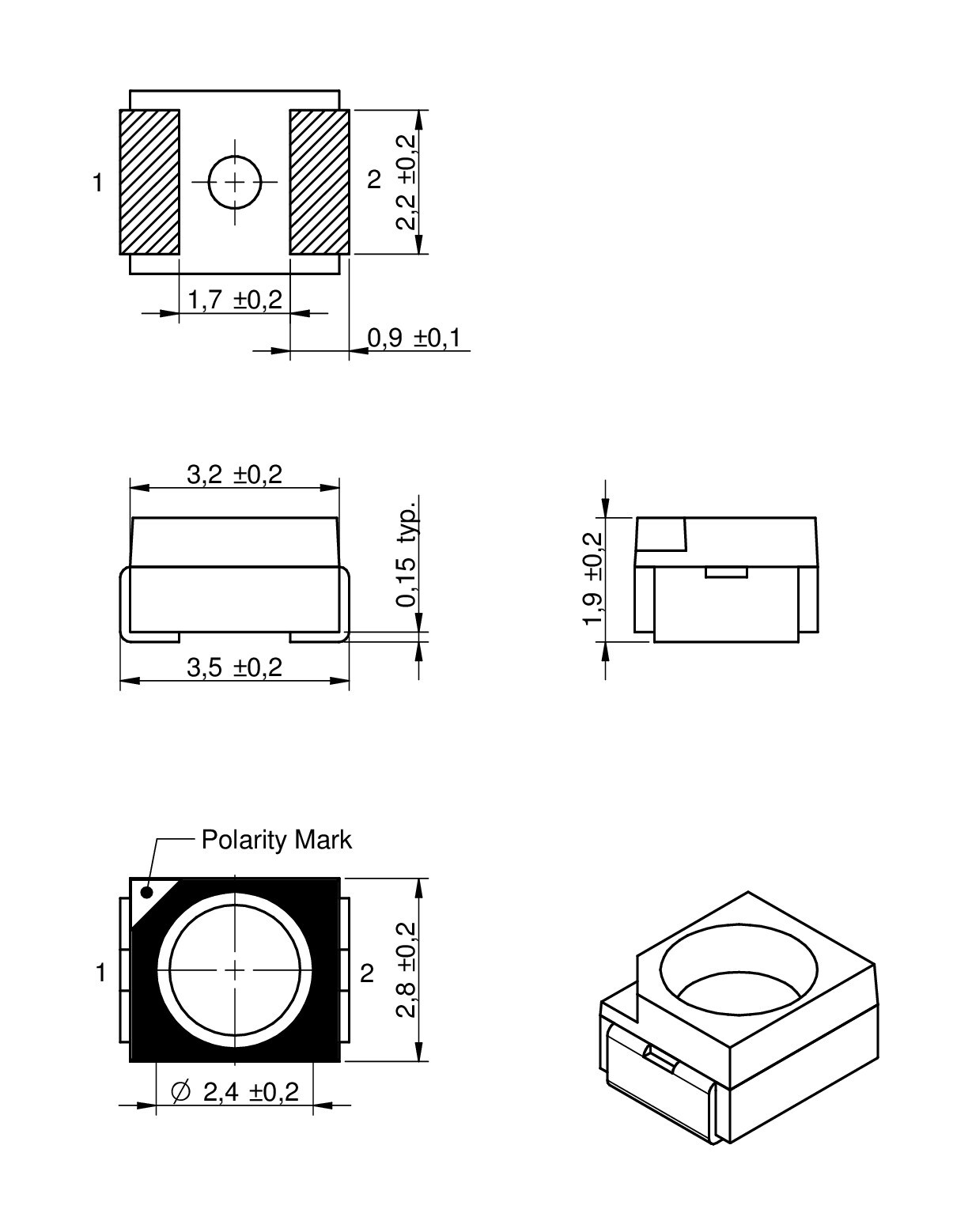

3528 3.5 2.8 1.9 SMT
3528 advance 3.5 2.8 1.9 SMT
3528 PLCC 4 3.5 2.8 1.9 SMT
5050 5.4 5 1.6 SMT

Characteristics

  • High reliability and low energy consumption
  • No UV/IR radiation
  • Flexibility in design
  • Top view
  • Compact package outline, ideal for miniature applications

Applications

  • Signage and indirect illumination
  • Flat lamp
  • Indicator and backlight in telecommunication
  • Consumer application: dash-board, telephone or A/V equipments
  • Flat backlight for LCDs, switches and symbols
  • Optical indicators
  • Indoor and outdoor displays
  • Scanner
  • Backlight in LCD, cellular phones, switches, keys, displays
  • lluminated advertising, panel
  • Lighting device: indicator, general lighting
  • Camera flash, hand carrier flash
  • Coupling into light guides

Products

All
2214
2835
3020
3528
3528 advance
3528 PLCC 4
5050
Order Code Data­sheet Simu­lation DownloadsλDom typ.
(nm)
Emitting ColorλPeak typ.
(nm)
IV typ.
(mcd)
VF typ.
(V)
Chip Technology50% typ.
(°)
DemoboardDesign Kit Samples
150224BS73100SPEC
6 files 456 Blue 452 220 3 InGaN 1209999003
150151
150141BS73113SPEC
6 files 467 Blue 463 530 3.2 InGaN 120150151
150283BS73103SPEC
25 files 467 Blue 463 3.2 InGaN 120
150141BS73100SPEC
6 files 470 Blue 465 270 3.2 InGaN 1209999003
150151
150224BS73100ASPEC
6 files 470 Blue 465 320 3.2 InGaN 120150151
150505BS73300SPEC
26 files 470 Blue 465 1000 3.3 InGaN 120
150302BS73100SPEC
6 files 470 Blue 465 280 3.2 InGaN 120
150141BS73130SPEC
6 files 470 Blue 465 1000 3.2 InGaN 120
150141BS73140SPEC
6 files 470 Blue 465 1000 3.2 InGaN 120
150141GS73130SPEC
6 files 520 Green 515 5000 3.2 InGaN 120
150141GS73140SPEC
6 files 520 Green 515 5000 3.2 InGaN 120
150141GS73113SPEC
6 files 522 Green 517 2500 3 InGaN 120150151
150283GS73103SPEC
25 files 522 Green 517 3 InGaN 120
150141GS73100SPEC
6 files 525 Green 515 1000 3.1 InGaN 1209999003
150151
150224GS73100ASPEC
6 files 525 Green 515 1500 3.1 InGaN 120150151
150505GS73300SPEC
7 files 525 Green 515 4300 3.1 InGaN 120
150302GS73100SPEC
6 files 525 Green 515 1200 3.5 InGaN 120
150224GS73100SPEC
6 files 528 Green 519 1200 3 InGaN 1209999003
150151
150141VS73100SPEC
6 files 570 Bright Green 572 90 2 AlInGaP 1209999003
150151
150224VS73100ASPEC
6 files 570 Bright Green 572 70 2 AlInGaP 120150151
150302VS73100SPEC
6 files 570 Bright Green 572 70 2 AlInGaP 120
150224YS73100SPEC
6 files 586 Yellow 589 290 2.1 AlInGaP 1209999003
150151
150141YS73100SPEC
6 files 590 Yellow 592 260 2 AlInGaP 1209999003
150151
150224YS73100ASPEC
6 files 590 Yellow 592 330 2 AlInGaP 120150151
150141YS73113SPEC
6 files 590 Yellow 592 1000 2.2 AlInGaP 120150151
150505YS73300SPEC
6 files 590 Yellow 592 2400 2 AlInGaP 120
150302YS73100SPEC
6 files 590 Yellow 592 250 2 AlInGaP 120
150283YS73103SPEC
25 files 590 Yellow 592 2.2 AlInGaP 120
150141YS73130SPEC
6 files 590 Yellow 592 2000 2.4 AlInGaP 120
150141YS73140SPEC
6 files 590 Yellow 592 2000 2.4 AlInGaP 120
150141AS73100SPEC
6 files 605 Amber 610 330 2 AlInGaP 1209999003
150151
150224AS73100SPEC
6 files 605 Amber 609 210 2 AlInGaP 1209999003
150151
150141AS73113SPEC
6 files 609 Amber 615 800 2.2 AlInGaP 120150151
150141RS73113SPEC
24 files 620 Red 629 900 2.2 AlInGaP 120150151
150283RS73103SPEC
25 files 620 Red 629 2.2 AlInGaP 120
150141RS73130SPEC
6 files 620 Red 630 3000 2.4 AlInGaP 120
150141RS73140SPEC
6 files 620 Red 630 3000 2.4 AlInGaP 120
150141RS73100SPEC
6 files 625 Red 630 300 2 AlInGaP 1209999003
150151
150224RS73100ASPEC
6 files 625 Red 630 350 2 AlInGaP 120150151
150505RS73300SPEC
25 files 625 Red 630 2300 2 AlInGaP 120
150302RS73100SPEC
6 files 625 Red 630 180 2 AlInGaP 120
150224SS73100SPEC
6 files 636 Super Red 652 130 2.1 AlInGaP 1209999003
150151
Order Code Data­sheet Simu­lation
150224BS73100SPEC
150141BS73113SPEC
150283BS73103SPEC
150141BS73100SPEC
150224BS73100ASPEC
150505BS73300SPEC
150302BS73100SPEC
150141BS73130SPEC
150141BS73140SPEC
150141GS73130SPEC
150141GS73140SPEC
150141GS73113SPEC
150283GS73103SPEC
150141GS73100SPEC
150224GS73100ASPEC
150505GS73300SPEC
150302GS73100SPEC
150224GS73100SPEC
150141VS73100SPEC
150224VS73100ASPEC
150302VS73100SPEC
150224YS73100SPEC
150141YS73100SPEC
150224YS73100ASPEC
150141YS73113SPEC
150505YS73300SPEC
150302YS73100SPEC
150283YS73103SPEC
150141YS73130SPEC
150141YS73140SPEC
150141AS73100SPEC
150224AS73100SPEC
150141AS73113SPEC
150141RS73113SPEC
150283RS73103SPEC
150141RS73130SPEC
150141RS73140SPEC
150141RS73100SPEC
150224RS73100ASPEC
150505RS73300SPEC
150302RS73100SPEC
150224SS73100SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsλDom typ.
(nm)
Emitting ColorλPeak typ.
(nm)
IV typ.
(mcd)
VF typ.
(V)
Chip Technology50% typ.
(°)
DemoboardDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
