WL-SMSW SMT Mono-color Side View Waterclear

Size	L (mm)	W (mm)	H (mm)	Mount

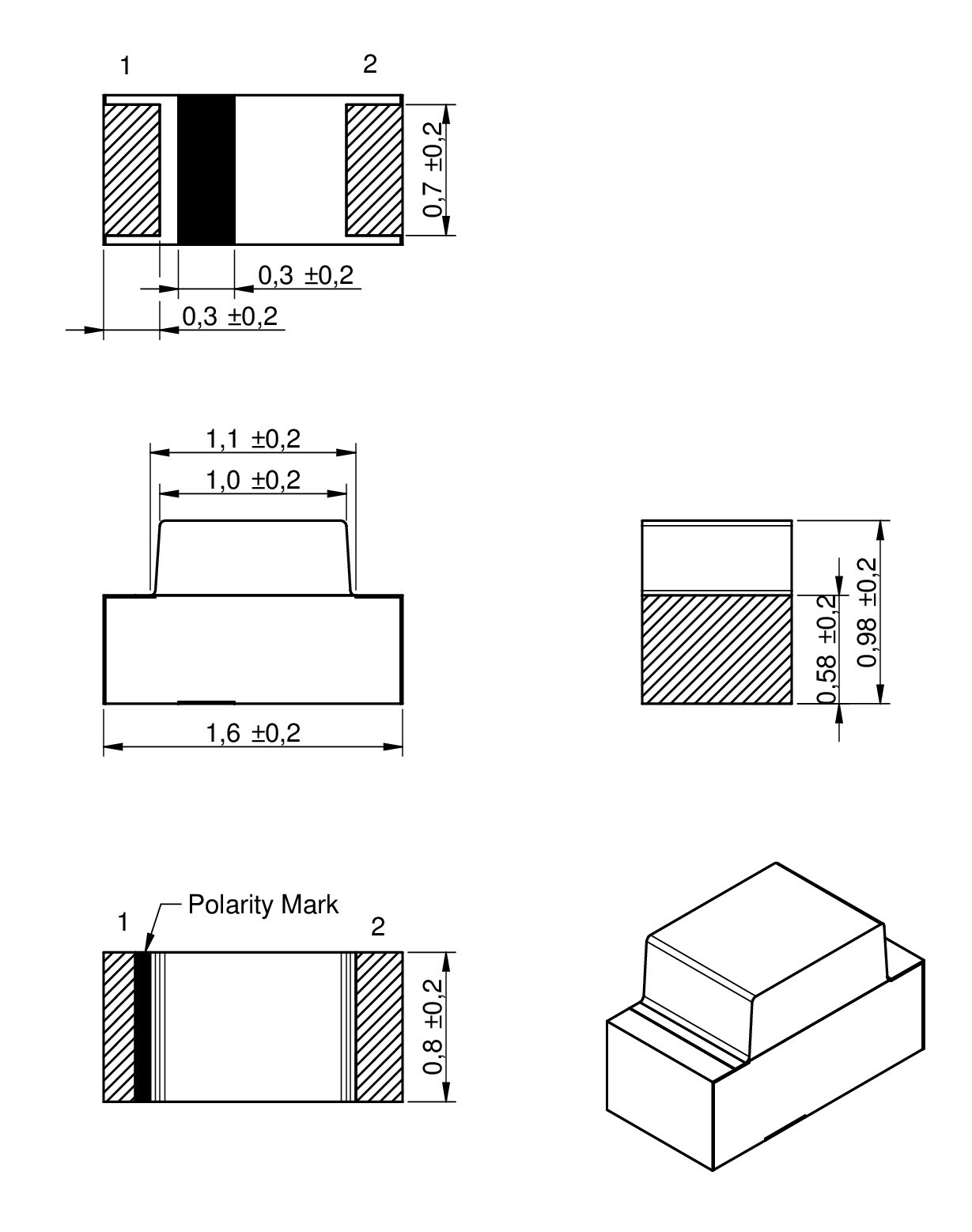

0603 Round	1.6	1	0.6	SMT

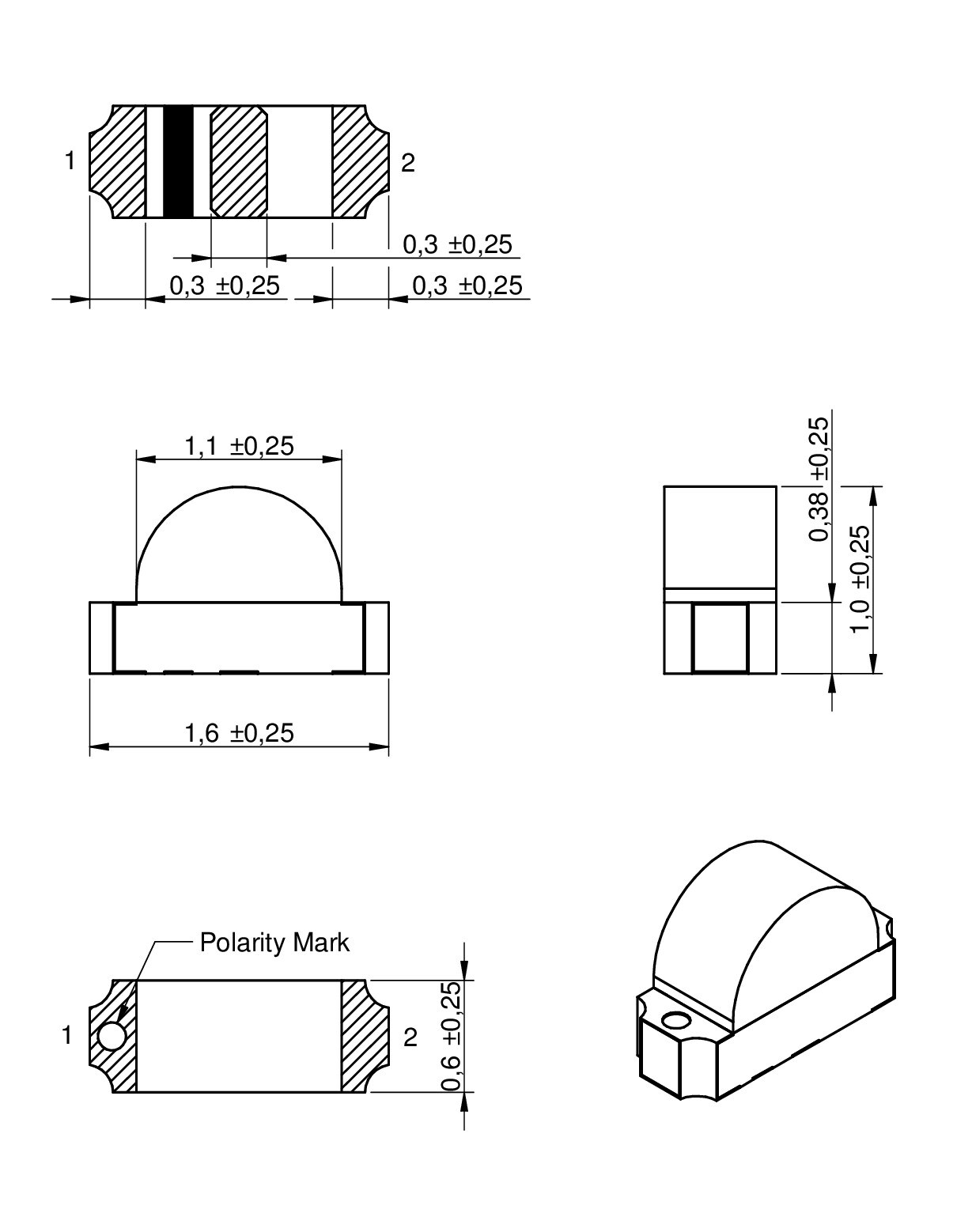

0603 Rectangular	1.6	0.98	0.8	SMT

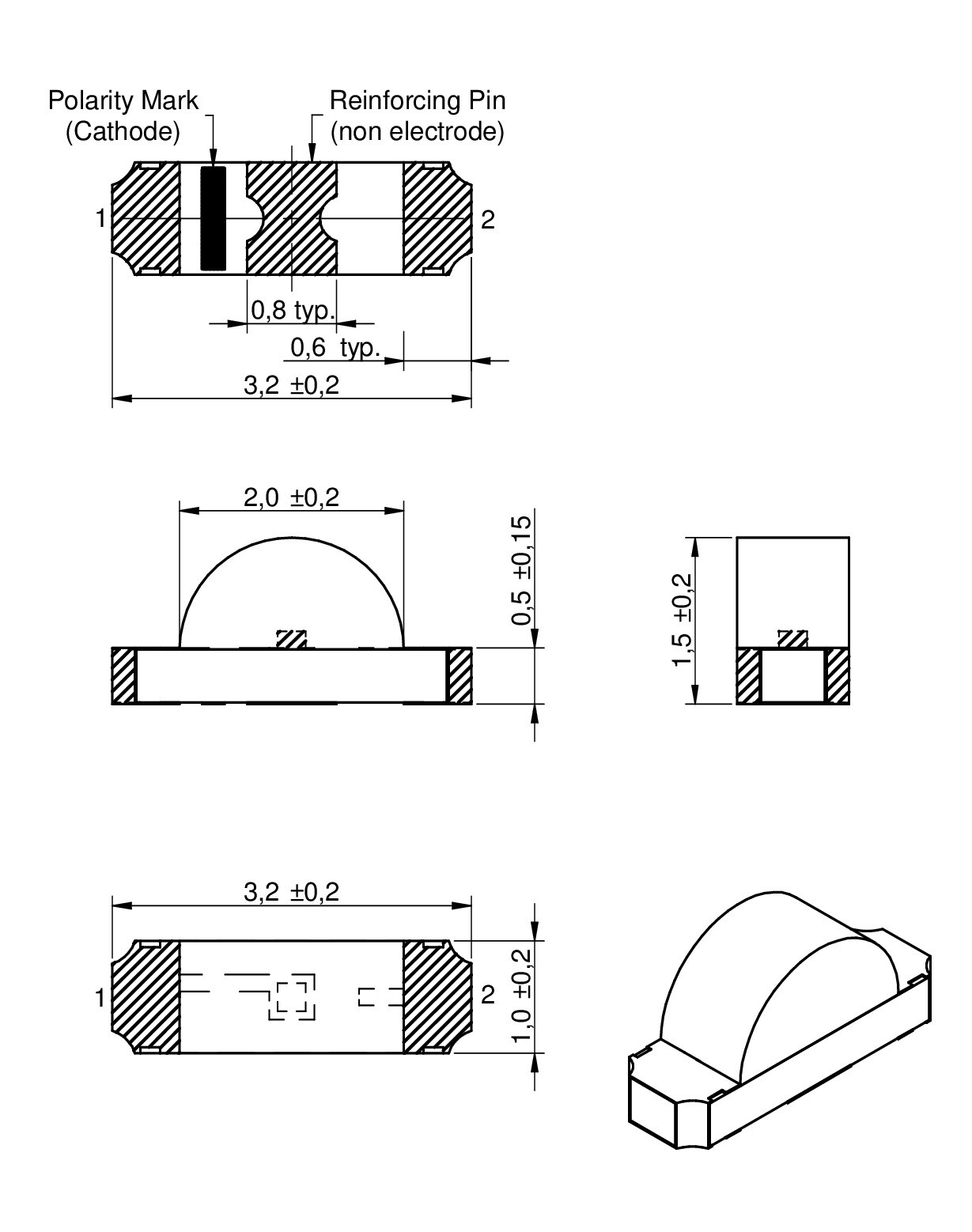

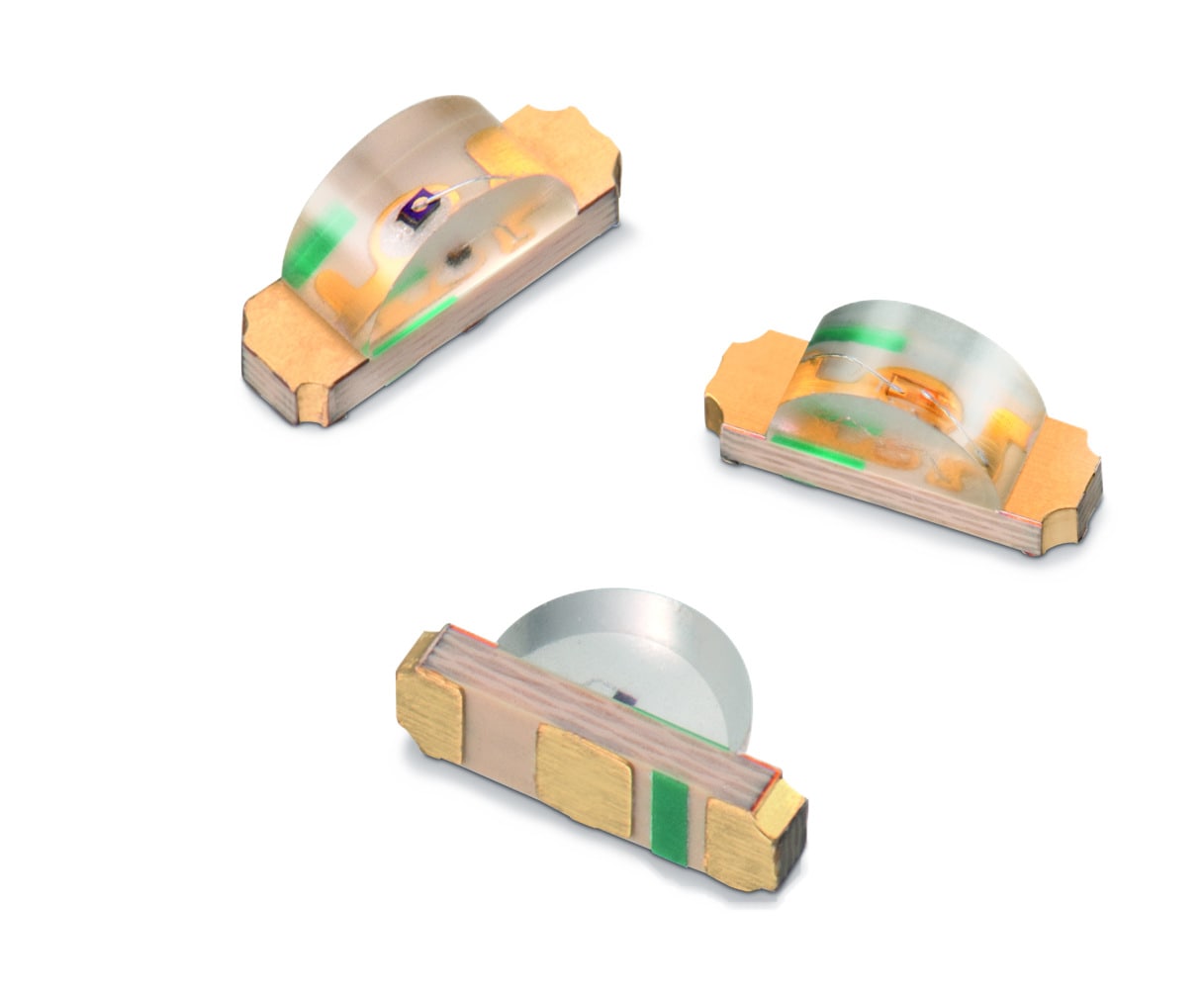

1204	3.2	1.5	1	SMT
3014	3	1.32	1.45	SMT

LTSpice files

LT
LTSpice_WL-SMSW (rev22a).zip
|
2.2 KB

Characteristics

High reliability
Low current requirement
No UV/IR radiation
Wide viewing angle
Excellent for edge lighting LED displays and backlighting indicators
Ideal for miniature applications
Compatible with automatic placement equipment

Applications

Backlighting for LCD
Side lighting applications
Indicator and backlighting for telecommunication
Backlighting for symbols, switches and dashboards
General LED lighting

Products

All

0603 Round

0603 Rectangular

1204

3014

Reset all

Filter article data

show article in 4 product lines

article in 4 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Dom typ.}(nm)	Emitting Color	λ_{Peak typ.}(nm)	I_{V typ.}(mcd)	V_{F typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Demoboard	Design Kit
155124BS73200	470 nm, Blue, 468 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW-1204 (rev1).igs \| 704.3 KB STP Download_STP_WL-SMSW-1204 (rev1).stp \| 164.3 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]470 nm	Emitting ColorBlue	Peak Wavelength [typ.]468 nm	Luminous Intensity [typ.]150 mcd	Forward Voltage [typ.]3.4 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit –
155124BS73200A	470 nm, Blue, 465 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW-155124xx73200A (rev1).igs \| 721 KB STP Download_STP_WL-SMSW-155124xx73200A (rev1).stp \| 310.6 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]470 nm	Emitting ColorBlue	Peak Wavelength [typ.]465 nm	Luminous Intensity [typ.]120 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155301BS73100	470 nm, Blue, 465 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW_3014 (rev1).igs \| 1.1 MB STP Download_STP_WL-SMSW_3014 (rev1).stp \| 295.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]470 nm	Emitting ColorBlue	Peak Wavelength [typ.]465 nm	Luminous Intensity [typ.]400 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060BS73200	470 nm, Blue, 465 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx73200 (rev1).igs \| 759.5 KB STP Download_STEP_155060xx73200 (rev1).stp \| 190.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-ROUND (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]470 nm	Emitting ColorBlue	Peak Wavelength [typ.]465 nm	Luminous Intensity [typ.]145 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060BS75300	470 nm, Blue, 465 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx75300 (rev1).igs \| 734.6 KB STP Download_STEP_155060xx75300 (rev1).stp \| 189 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LEd_certificate_WL-SMSW-0603-RECTANGULAR (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]470 nm	Emitting ColorBlue	Peak Wavelength [typ.]465 nm	Luminous Intensity [typ.]145 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]140 °	Demoboard –	Design Kit 150156
155124GS73200	525 nm, Green, 520 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW-1204 (rev1).igs \| 704.3 KB STP Download_STP_WL-SMSW-1204 (rev1).stp \| 164.3 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]525 nm	Emitting ColorGreen	Peak Wavelength [typ.]520 nm	Luminous Intensity [typ.]600 mcd	Forward Voltage [typ.]3.3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit –
155124GS73200A	525 nm, Green, 520 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW-155124xx73200A (rev1).igs \| 721 KB STP Download_STP_WL-SMSW-155124xx73200A (rev1).stp \| 310.6 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]525 nm	Emitting ColorGreen	Peak Wavelength [typ.]520 nm	Luminous Intensity [typ.]250 mcd	Forward Voltage [typ.]3.3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155301GS73100	525 nm, Green, 515 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW_3014 (rev1).igs \| 1.1 MB STP Download_STP_WL-SMSW_3014 (rev1).stp \| 295.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]525 nm	Emitting ColorGreen	Peak Wavelength [typ.]515 nm	Luminous Intensity [typ.]1500 mcd	Forward Voltage [typ.]3.1 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060GS73200	525 nm, Green, 520 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx73200 (rev1).igs \| 759.5 KB STP Download_STEP_155060xx73200 (rev1).stp \| 190.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-ROUND (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]525 nm	Emitting ColorGreen	Peak Wavelength [typ.]520 nm	Luminous Intensity [typ.]360 mcd	Forward Voltage [typ.]3.3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060GS75300	525 nm, Green, 515 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx75300 (rev1).igs \| 734.6 KB STP Download_STEP_155060xx75300 (rev1).stp \| 189 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-RECTANGULAR (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]525 nm	Emitting ColorGreen	Peak Wavelength [typ.]515 nm	Luminous Intensity [typ.]560 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]140 °	Demoboard –	Design Kit 150156
155301VS73100	570 nm, Bright Green, 572 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW_3014 (rev1).igs \| 1.1 MB STP Download_STP_WL-SMSW_3014 (rev1).stp \| 295.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]570 nm	Emitting ColorBright Green	Peak Wavelength [typ.]572 nm	Luminous Intensity [typ.]120 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060VS75300	570 nm, Bright Green, 572 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx75300 (rev1).igs \| 734.6 KB STP Download_STEP_155060xx75300 (rev1).stp \| 189 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-RECTANGULAR (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]570 nm	Emitting ColorBright Green	Peak Wavelength [typ.]572 nm	Luminous Intensity [typ.]60 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]140 °	Demoboard –	Design Kit 150156
155124VS73200	573 nm, Bright Green, 575 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW-1204 (rev1).igs \| 704.3 KB STP Download_STP_WL-SMSW-1204 (rev1).stp \| 164.3 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]573 nm	Emitting ColorBright Green	Peak Wavelength [typ.]575 nm	Luminous Intensity [typ.]50 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit –
155124VS73200A	573 nm, Bright Green, 575 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW-155124xx73200A (rev1).igs \| 721 KB STP Download_STP_WL-SMSW-155124xx73200A (rev1).stp \| 310.6 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]573 nm	Emitting ColorBright Green	Peak Wavelength [typ.]575 nm	Luminous Intensity [typ.]50 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060VS73200	573 nm, Bright Green, 575 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx73200 (rev1).igs \| 759.5 KB STP Download_STEP_155060xx73200 (rev1).stp \| 190.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-ROUND (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]573 nm	Emitting ColorBright Green	Peak Wavelength [typ.]575 nm	Luminous Intensity [typ.]70 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155124YS73200	589 nm, Yellow, 592 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW-1204 (rev1).igs \| 704.3 KB STP Download_STP_WL-SMSW-1204 (rev1).stp \| 164.3 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]589 nm	Emitting ColorYellow	Peak Wavelength [typ.]592 nm	Luminous Intensity [typ.]130 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit –
155124YS73200A	589 nm, Yellow, 591 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW-155124xx73200A (rev1).igs \| 721 KB STP Download_STP_WL-SMSW-155124xx73200A (rev1).stp \| 310.6 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]589 nm	Emitting ColorYellow	Peak Wavelength [typ.]591 nm	Luminous Intensity [typ.]80 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060YS73200	589 nm, Yellow, 591 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx73200 (rev1).igs \| 759.5 KB STP Download_STEP_155060xx73200 (rev1).stp \| 190.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-ROUND (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]589 nm	Emitting ColorYellow	Peak Wavelength [typ.]591 nm	Luminous Intensity [typ.]150 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155301YS73100	590 nm, Yellow, 592 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW_3014 (rev1).igs \| 1.1 MB STP Download_STP_WL-SMSW_3014 (rev1).stp \| 295.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]590 nm	Emitting ColorYellow	Peak Wavelength [typ.]592 nm	Luminous Intensity [typ.]300 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060YS75300	590 nm, Yellow, 595 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx75300 (rev1).igs \| 734.6 KB STP Download_STEP_155060xx75300 (rev1).stp \| 189 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-RECTANGULAR (rev1).pdf \| 964.2 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]590 nm	Emitting ColorYellow	Peak Wavelength [typ.]595 nm	Luminous Intensity [typ.]150 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]140 °	Demoboard –	Design Kit 150156
155060AS73200	605 nm, Amber, 609 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx73200 (rev1).igs \| 759.5 KB STP Download_STEP_155060xx73200 (rev1).stp \| 190.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-ROUND (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]605 nm	Emitting ColorAmber	Peak Wavelength [typ.]609 nm	Luminous Intensity [typ.]120 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060AS75300	605 nm, Amber, 610 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx75300 (rev1).igs \| 734.6 KB STP Download_STEP_155060xx75300 (rev1).stp \| 189 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certficate_WL-SMSW-0603-RECTANGULAR (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]605 nm	Emitting ColorAmber	Peak Wavelength [typ.]610 nm	Luminous Intensity [typ.]120 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]140 °	Demoboard –	Design Kit 150156
155124RS73200	624 nm, Red, 632 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW-1204 (rev1).igs \| 704.3 KB STP Download_STP_WL-SMSW-1204 (rev1).stp \| 164.3 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]624 nm	Emitting ColorRed	Peak Wavelength [typ.]632 nm	Luminous Intensity [typ.]130 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit –
155124RS73200A	624 nm, Red, 632 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW-155124xx73200A (rev1).igs \| 721 KB STP Download_STP_WL-SMSW-155124xx73200A (rev1).stp \| 310.6 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]624 nm	Emitting ColorRed	Peak Wavelength [typ.]632 nm	Luminous Intensity [typ.]70 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060RS73200	624 nm, Red, 632 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx73200 (rev1).igs \| 759.5 KB STP Download_STEP_155060xx73200 (rev1).stp \| 190.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-ROUND (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]624 nm	Emitting ColorRed	Peak Wavelength [typ.]632 nm	Luminous Intensity [typ.]150 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155301RS73100	625 nm, Red, 630 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_WL-SMSW_3014 (rev1).igs \| 1.1 MB STP Download_STP_WL-SMSW_3014 (rev1).stp \| 295.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]625 nm	Emitting ColorRed	Peak Wavelength [typ.]630 nm	Luminous Intensity [typ.]350 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060RS75300	625 nm, Red, 630 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx75300 (rev1).igs \| 734.6 KB STP Download_STEP_155060xx75300 (rev1).stp \| 189 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-RECTANGULAR (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]625 nm	Emitting ColorRed	Peak Wavelength [typ.]630 nm	Luminous Intensity [typ.]150 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]140 °	Demoboard –	Design Kit 150156
155060SS73200	630 nm, Super Red, 645 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx73200 (rev1).igs \| 759.5 KB STP Download_STEP_155060xx73200 (rev1).stp \| 190.8 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-ROUND (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]630 nm	Emitting ColorSuper Red	Peak Wavelength [typ.]645 nm	Luminous Intensity [typ.]80 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156
155060SS75300	630 nm, Super Red, 645 nm	Simulation	Downloads7 files EDA models: Components ZIP ALT WL-SMSW (rev22b).IntLib \| 195.5 KB CDS Cadence_WL-SMSW (rev22a).zip \| 1000.8 KB EAG Eagle_WL-SMSW (rev22b).lbr \| 46.4 KB CAD files ZIP IGS Download_IGS_155060xx75300 (rev1).igs \| 734.6 KB STP Download_STEP_155060xx75300 (rev1).stp \| 189 KB Electric models ZIP PSP PSpice_WL-SMSW (rev22a).zip \| 7 KB Certificates ZIP CER IR_LED_certificate_WL-SMSW-0603-RECTANGULAR (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]630 nm	Emitting ColorSuper Red	Peak Wavelength [typ.]645 nm	Luminous Intensity [typ.]80 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]140 °	Demoboard –	Design Kit 150156
