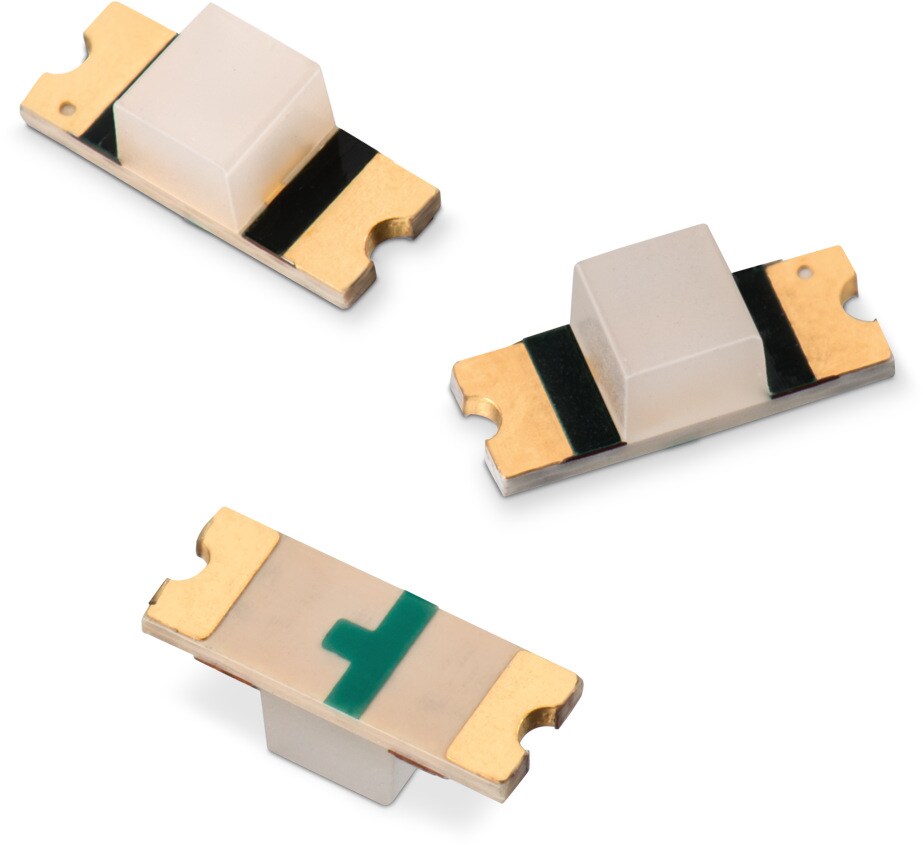

WL-SMRD SMT Mono-color Reverse Mount Diffused

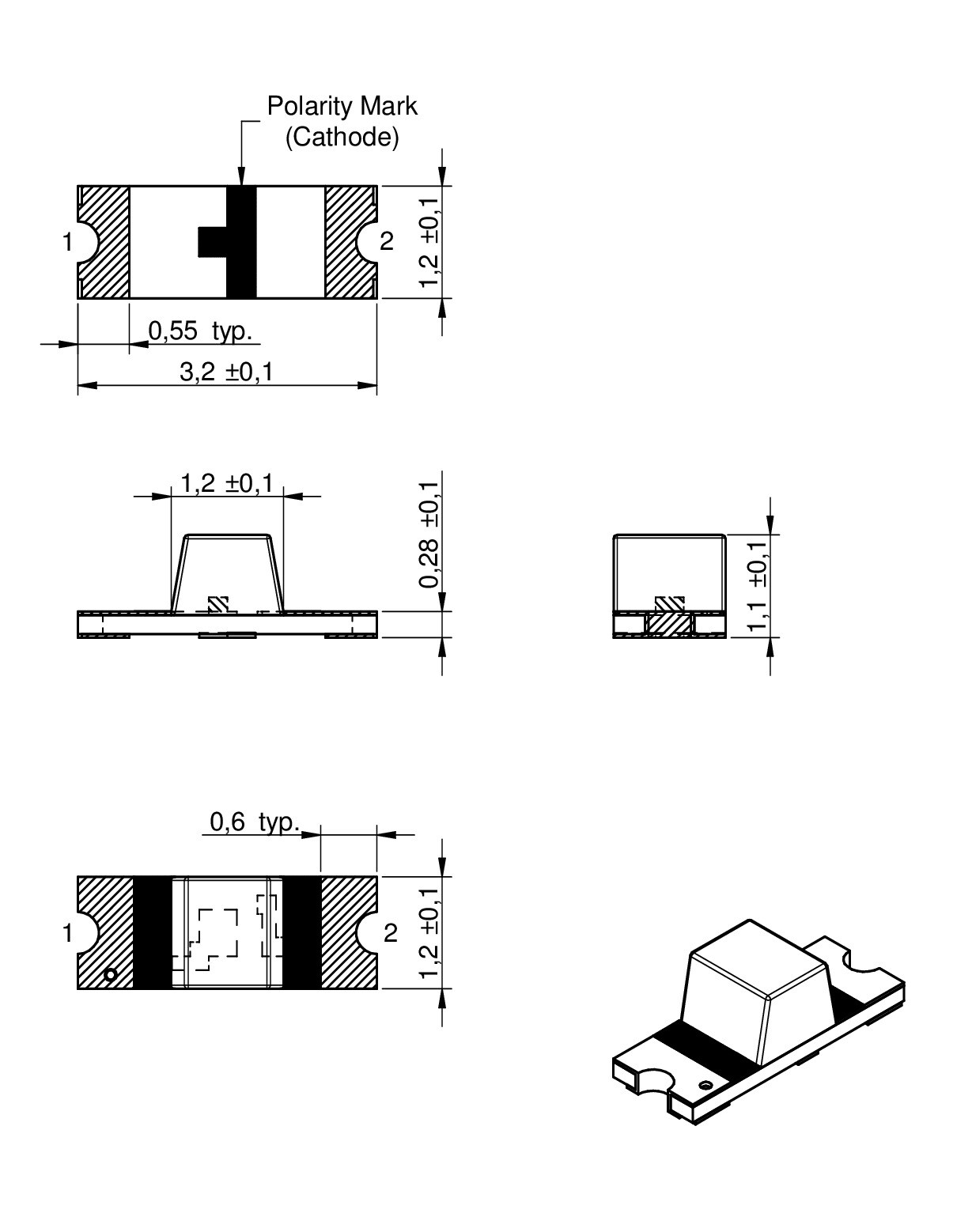

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
1205		3.2	1.2	1.1	SMT

LTSpice files

LT
LTSpice_WL-SMRD (rev22a).zip
|
1.9 KB

Characteristics

Small size & thin body for space saving
Ideal for narrow space applications
Wide viewing angle
Low power consumption
Industry standard footprint
Small package for exceptional brightness
Compatible with automatic placement machine
Diffused lens

Applications

Front panel indicators
LCD backlighting
Keypad backlighting
Push button backlighting
Symbol and switch backlighting
General lighting

Products

1205

Filter article data

show article in 1 product lines

article in 1 product lines

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Dom typ.}(nm)	Emitting Color	λ_{Peak typ.}(nm)	I_{V typ.}(mcd)	V_{F typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Demoboard	Design Kit	Samples
	156125BS57000	470 nm, Blue, 465 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SMRD (rev22b).IntLib \| 115.5 KB CDS CADENCE_WL-SMRD (rev25a).zip \| 295.5 KB EAG Eagle_WL-SMRD (rev22a).lbr \| 21.8 KB CAD files ZIP IGS Download_IGS_WL-SMRD-1205 (rev1).igs \| 769.1 KB STP Download_STP_WL-SMRD-1205 (rev1).stp \| 318.2 KB Electric models ZIP PSP PSpice_WL-SMRD (rev22a).zip \| 3.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]470 nm	Emitting ColorBlue	Peak Wavelength [typ.]465 nm	Luminous Intensity [typ.]80 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]160 °	Demoboard 9999003	Design Kit 150156
	156125GS57000	525 nm, Green, 520 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SMRD (rev22b).IntLib \| 115.5 KB CDS CADENCE_WL-SMRD (rev25a).zip \| 295.5 KB EAG Eagle_WL-SMRD (rev22a).lbr \| 21.8 KB CAD files ZIP IGS Download_IGS_WL-SMRD-1205 (rev1).igs \| 769.1 KB STP Download_STP_WL-SMRD-1205 (rev1).stp \| 318.2 KB Electric models ZIP PSP PSpice_WL-SMRD (rev22a).zip \| 3.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]525 nm	Emitting ColorGreen	Peak Wavelength [typ.]520 nm	Luminous Intensity [typ.]200 mcd	Forward Voltage [typ.]3.3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]160 °	Demoboard 9999003	Design Kit 150156
	156125VS57000	573 nm, Bright Green, 575 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SMRD (rev22b).IntLib \| 115.5 KB CDS CADENCE_WL-SMRD (rev25a).zip \| 295.5 KB EAG Eagle_WL-SMRD (rev22a).lbr \| 21.8 KB CAD files ZIP IGS Download_IGS_WL-SMRD-1205 (rev1).igs \| 769.1 KB STP Download_STP_WL-SMRD-1205 (rev1).stp \| 318.2 KB Electric models ZIP PSP PSpice_WL-SMRD (rev22a).zip \| 3.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]573 nm	Emitting ColorBright Green	Peak Wavelength [typ.]575 nm	Luminous Intensity [typ.]40 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]160 °	Demoboard 9999003	Design Kit 150156
	156125YS57000	589 nm, Yellow, 591 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SMRD (rev22b).IntLib \| 115.5 KB CDS CADENCE_WL-SMRD (rev25a).zip \| 295.5 KB EAG Eagle_WL-SMRD (rev22a).lbr \| 21.8 KB CAD files ZIP IGS Download_IGS_WL-SMRD-1205 (rev1).igs \| 769.1 KB STP Download_STP_WL-SMRD-1205 (rev1).stp \| 318.2 KB Electric models ZIP PSP PSpice_WL-SMRD (rev22a).zip \| 3.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]589 nm	Emitting ColorYellow	Peak Wavelength [typ.]591 nm	Luminous Intensity [typ.]70 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]160 °	Demoboard 9999003	Design Kit 150156
	156125RS57000	624 nm, Red, 632 nm	Simulation	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SMRD (rev22b).IntLib \| 115.5 KB CDS CADENCE_WL-SMRD (rev25a).zip \| 295.5 KB EAG Eagle_WL-SMRD (rev22a).lbr \| 21.8 KB CAD files ZIP IGS Download_IGS_WL-SMRD-1205 (rev1).igs \| 769.1 KB STP Download_STP_WL-SMRD-1205 (rev1).stp \| 318.2 KB Electric models ZIP PSP PSpice_WL-SMRD (rev22a).zip \| 3.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]624 nm	Emitting ColorRed	Peak Wavelength [typ.]632 nm	Luminous Intensity [typ.]110 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]160 °	Demoboard 9999003	Design Kit 150156

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED - Reverse Mount & Side View

Demoboard Visible LEDs

Videos

Würth Elektronik Webinar: SMT LED techniques from the professional - 'the reverse mount'

Learn more

LED Application Guide - Learn more about handling, storage and much more
PDF
