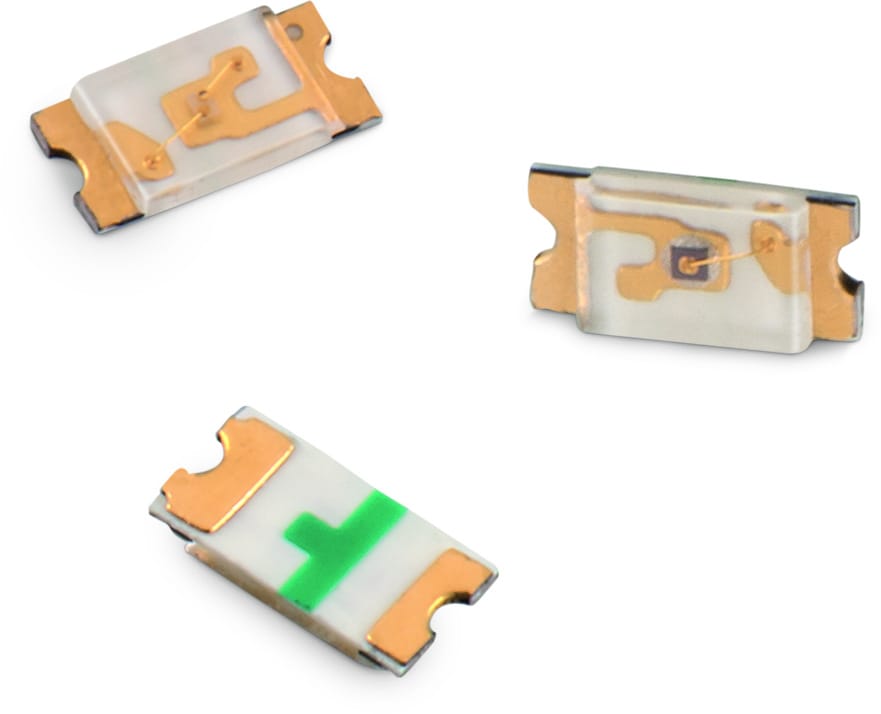

WL-SMCW SMT Mono-color Chip LED Waterclear

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount
0603 1.6 0.8 - SMT
0603 dome 1.6 0.8 0.95 SMT
0603 superflat 1.6 0.8 0.25 SMT
0603 Advance 1.6 0.8 0.7 SMT
0805 2 1.25 0.7 SMT
1206 3.2 1.6 0.68 SMT
1206 Innerlens 3.2 1.6 1.1 SMT

Characteristics

  • Low energy consumption
  • High reliability
  • Low current requirement
  • Fast switching
  • No UV/IR radiation
  • Smallest SMT LED package for exceptional brightness
  • Top view LED
  • Wide viewing angle
  • Better solder ability
  • Heat dissipation

Applications

  • Backlight for mobile and portable device keypads
  • Indoor and outdoor message boards
  • Flat backlight for LCDs, switches and symbols
  • Display for industrial control systems and traffic
  • Miniaturized color effects
  • Pedestrian mark
  • Optical indicators
  • Tabular backlight: LCD, telephone key-press, power-switch, display board
  • Indoor displays
  • Signals
  • Identifiers
  • Backlight for automobile DVD
  • LED General lighting
  • Toys

Products

All
0603
0603 dome
0603 superflat
0603 Advance
0805
1206
1206 Innerlens
Order Code Data­sheet Simu­lation DownloadsλDom typ.
(nm)
Emitting ColorλPeak typ.
(nm)
IV typ.
(mcd)
VF typ.
(V)
Chip Technology50% typ.
(°)
Design KitDemoboard Samples
150060BS75000SPEC
25 files 470 Blue 465 145 3.2 InGaN 140150155
9999003
150080BS75000SPEC
7 files 470 Blue 465 145 3.2 InGaN 140150155
9999003
150120BS75000SPEC
7 files 470 Blue 465 145 3.2 InGaN 140150155
9999003
150060BS75020SPEC
6 files 470 Blue 465 150 3.2 InGaN 140150155
150060BS84000SPEC
25 files 470 Blue 465 560 3.2 InGaN 40
150060BS75003SPEC
7 files 470 Blue 465 350 3.2 InGaN 140
150120BS87000SPEC
7 files 470 Blue 465 300 3.2 InGaN 70
150060GS75000SPEC
25 files 525 Green 515 430 3.2 InGaN 140150155
9999003
150080GS75000SPEC
7 files 525 Green 515 450 3.2 InGaN 140150155
9999003
150120GS75000SPEC
7 files 525 Green 515 450 3.2 InGaN 140150155
9999003
150060GS75020SPEC
6 files 525 Green 515 700 3.2 InGaN 140150155
150060GS84000SPEC
25 files 525 Green 520 3000 3.3 InGaN 40
150060GS75003SPEC
7 files 525 Green 515 1600 3.2 InGaN 140
150120GS87000SPEC
7 files 525 Green 520 700 3.3 InGaN 70
150060VS75000SPEC
6 files 570 Bright Green 572 40 2 AlInGaP 140150155
9999003
150080VS75000SPEC
7 files 570 Bright Green 572 40 2 AlInGaP 140150155
9999003
150120VS75000SPEC
7 files 570 Bright Green 572 40 2 AlInGaP 140150155
9999003
150060VS75020SPEC
6 files 570 Bright Green 572 50 2 AlInGaP 140150155
150060VS75003SPEC
7 files 570 Bright Green 572 100 2 AlInGaP 140
150060VS86000SPEC
25 files 573 Bright Green 575 300 2 AlInGaP 60
150120VS87000SPEC
7 files 573 Bright Green 575 150 2 AlInGaP 70
150060YS86000SPEC
25 files 589 Yellow 591 450 2 AlInGaP 60
150120YS87000SPEC
7 files 589 Yellow 591 350 2 AlInGaP 70
150060YS75000SPEC
25 files 590 Yellow 595 120 2 AlInGaP 140150155
9999003
150080YS75000SPEC
6 files 590 Yellow 595 120 2 AlInGaP 140150155
9999003
150120YS75000SPEC
7 files 590 Yellow 595 120 2 AlInGaP 140150155
9999003
150060YS75020SPEC
6 files 590 Yellow 595 130 2 AlInGaP 140150155
150060YS75003SPEC
6 files 590 Yellow 595 550 2 AlInGaP 140
150120AS75000SPEC
7 files 605 Amber 610 140 2 AlInGaP 140150155
9999003
150060AS75000SPEC
25 files 605 Amber 610 130 2 AlInGaP 140150155
9999003
150080AS75000SPEC
7 files 605 Amber 610 130 2 AlInGaP 140150155
9999003
150060AS75020SPEC
6 files 605 Amber 610 140 2 AlInGaP 140150155
150060AS75003SPEC
7 files 605 Amber 610 350 2 AlInGaP 140
150060RS86000SPEC
25 files 624 Red 632 800 2 AlInGaP 60
150120RS87000SPEC
7 files 624 Red 632 300 2 AlInGaP 70
150060RS75000SPEC
25 files 625 Red 630 250 2 AlInGaP 140150155
9999003
150080RS75000SPEC
7 files 625 Red 630 150 2 AlInGaP 140150155
9999003
150120RS75000SPEC
7 files 625 Red 630 150 2 AlInGaP 140150155
9999003
150060RS75020SPEC
6 files 625 Red 630 100 2 AlInGaP 140150155
150060RS75003SPEC
6 files 625 Red 630 530 2 AlInGaP 140
150060SS75000SPEC
25 files 630 Super Red 645 60 1.9 AlInGaP 140150155
9999003
150080SS75000SPEC
7 files 630 Super Red 645 60 1.9 AlInGaP 140150155
9999003
150120SS75000SPEC
7 files 630 Super Red 645 60 1.9 AlInGaP 140150155
9999003
150060SS75020SPEC
6 files 630 Super Red 645 70 1.9 AlInGaP 140150155
150060SS75003SPEC
7 files 630 Super Red 645 320 1.9 AlInGaP 140
Order Code Data­sheet Simu­lation
150060BS75000SPEC
150080BS75000SPEC
150120BS75000SPEC
150060BS75020SPEC
150060BS84000SPEC
150060BS75003SPEC
150120BS87000SPEC
150060GS75000SPEC
150080GS75000SPEC
150120GS75000SPEC
150060GS75020SPEC
150060GS84000SPEC
150060GS75003SPEC
150120GS87000SPEC
150060VS75000SPEC
150080VS75000SPEC
150120VS75000SPEC
150060VS75020SPEC
150060VS75003SPEC
150060VS86000SPEC
150120VS87000SPEC
150060YS86000SPEC
150120YS87000SPEC
150060YS75000SPEC
150080YS75000SPEC
150120YS75000SPEC
150060YS75020SPEC
150060YS75003SPEC
150120AS75000SPEC
150060AS75000SPEC
150080AS75000SPEC
150060AS75020SPEC
150060AS75003SPEC
150060RS86000SPEC
150120RS87000SPEC
150060RS75000SPEC
150080RS75000SPEC
150120RS75000SPEC
150060RS75020SPEC
150060RS75003SPEC
150060SS75000SPEC
150080SS75000SPEC
150120SS75000SPEC
150060SS75020SPEC
150060SS75003SPEC
