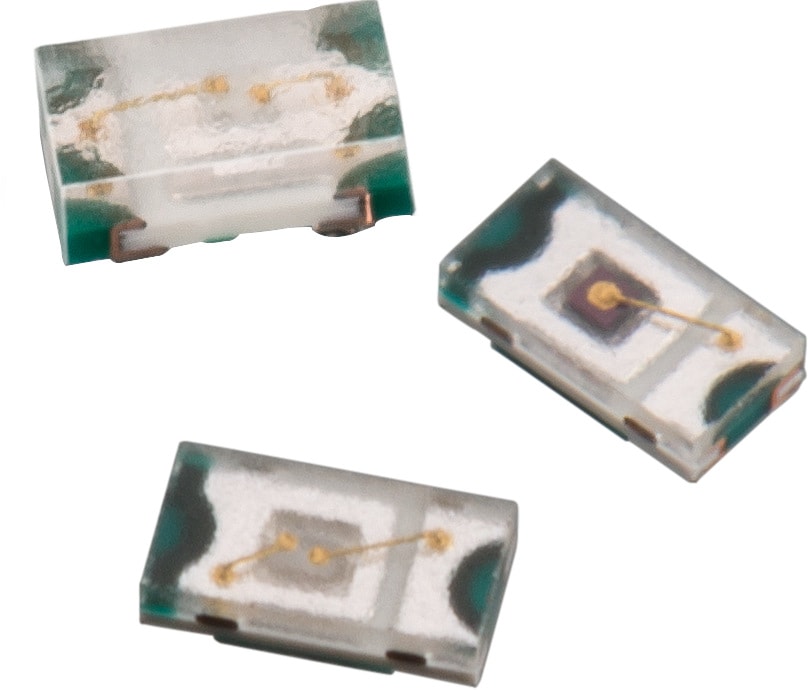

WL-SMCC SMT Mono-color Chip LED Compact

Size	L (mm)	W (mm)	H (mm)	Mount

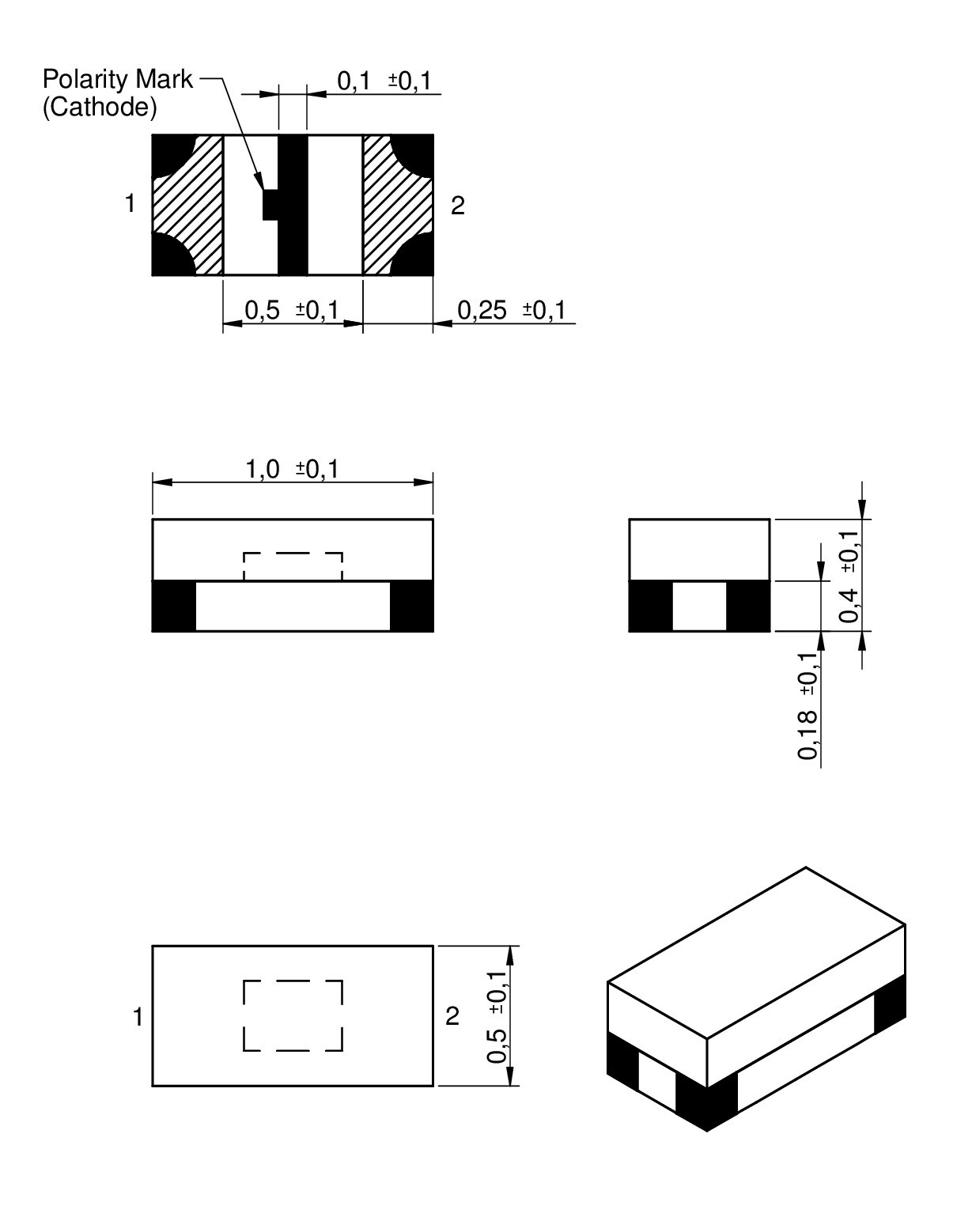

0402	1	0.5	0.4	SMT

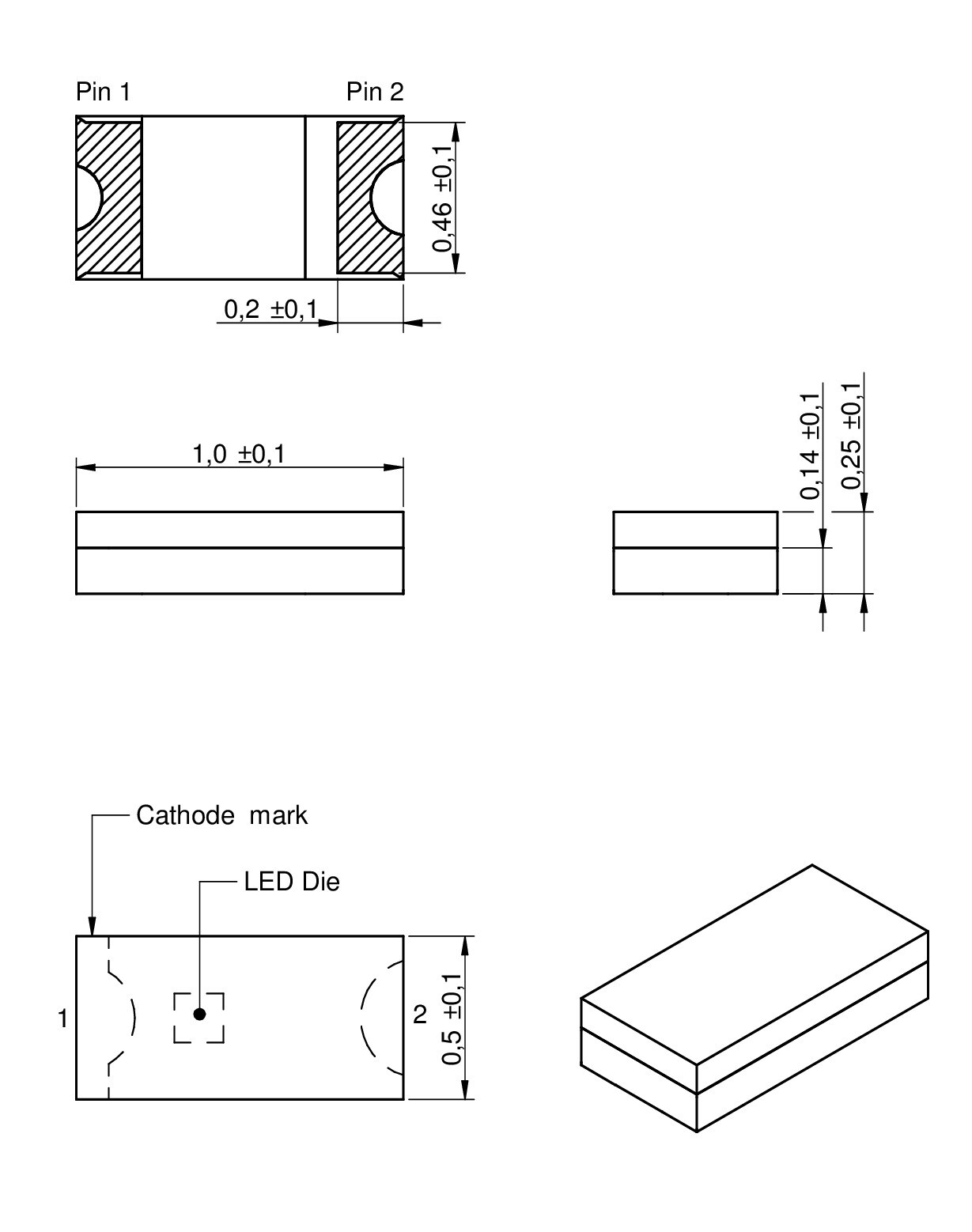

0402 super flat 0.25 mm	1	0.5	0.25	SMT

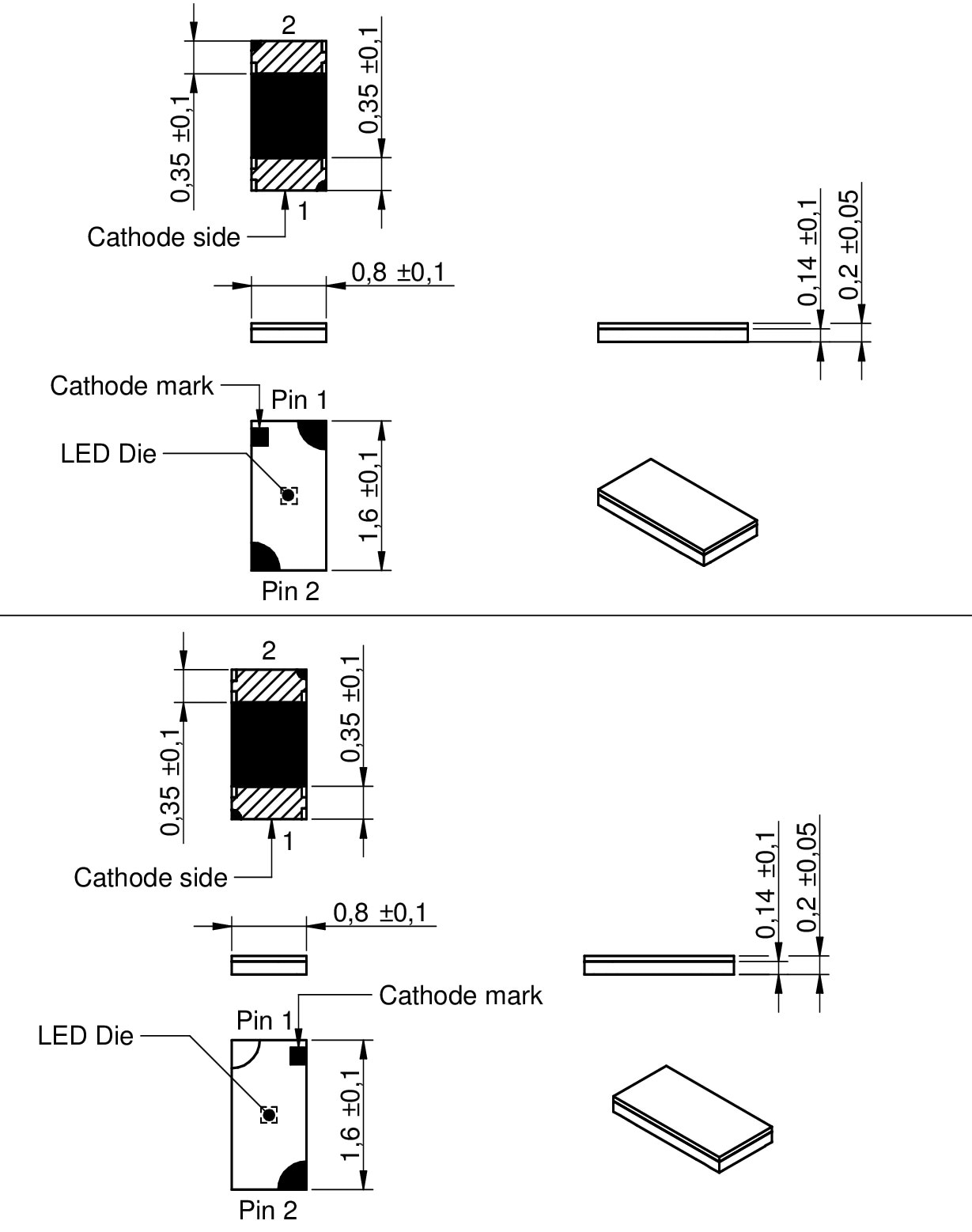

0603	1.6	0.8	0.2	SMT

LTSpice files

LT
LTSpice_WL-SMCC (rev24a).zip
|
2.3 KB

Characteristics

Small LED package for exceptional brightness
0402 industry standard footprint
High reliability PCB based
Compatible to IR reflow soldering
Miniaturized color effects
Waterclear lens

Applications

LED Front panel indicator
Navigation systems
Cellphone display
Display for industrial control systems
Traffic display
LCD backlighting for LCD, push button, symbol and keypad

Products

All

0402

0402 super flat 0.25 mm

0603

Reset all

Filter article data

show articles in 3 product lines

articles in 3 product lines

Reset all

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Dom typ.}(nm)	Emitting Color	λ_{Peak typ.}(nm)	I_{V typ.}(mcd)	V_{F typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Design Kit	Demoboard	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	150040BS73240	SPEC470 nm, Blue, 465 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC-0402 (rev1).pdf \| 56.7 KB IGS Download_IGS_WL-SMCC-0402 (rev1).igs \| 618.3 KB STP Download_STP_WL-SMCC-0402 (rev1).stp \| 558.8 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]470 nm	Emitting ColorBlue	Peak Wavelength [typ.]465 nm	Luminous Intensity [typ.]150 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003	–Check availability
	150060BS73220	SPEC470 nm, Blue, 465 nm	Simulation	Availability –	Downloads7 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB IGS Download_IGS_WL-SMCC-150060BS73220 (rev1).igs \| 707.8 KB STP Download_STP_WL-SMCC-150060BS73220 (rev1).stp \| 417.6 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]470 nm	Emitting ColorBlue	Peak Wavelength [typ.]465 nm	Luminous Intensity [typ.]170 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003	–Check availability
	150040BS73220	SPEC470 nm, Blue, 465 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC_0402_compact_BS (rev1).pdf \| 51.6 KB IGS Download_IGS_WL-SMCC_0402_compact (rev1).igs \| 517 KB STP Download_STP_WL-SMCC_0402_compact (rev1).stp \| 326.5 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]470 nm	Emitting ColorBlue	Peak Wavelength [typ.]465 nm	Luminous Intensity [typ.]140 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard –	–Check availability
	150040GS73240	SPEC525 nm, Green, 515 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC-0402 (rev1).pdf \| 56.7 KB IGS Download_IGS_WL-SMCC-0402 (rev1).igs \| 618.3 KB STP Download_STP_WL-SMCC-0402 (rev1).stp \| 558.8 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]525 nm	Emitting ColorGreen	Peak Wavelength [typ.]515 nm	Luminous Intensity [typ.]800 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003	–Check availability
	150060GS73220	SPEC525 nm, Green, 520 nm	Simulation	Availability –	Downloads7 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB IGS Download_IGS_WL-SMCC-150060GS73220 (rev1).igs \| 707.8 KB STP Download_STP_WL-SMCC-150060GS73220 (rev1).stp \| 417.6 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]525 nm	Emitting ColorGreen	Peak Wavelength [typ.]520 nm	Luminous Intensity [typ.]700 mcd	Forward Voltage [typ.]3.2 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003	–Check availability
	150040GS73220	SPEC525 nm, Green, 520 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC_0402_compact_GS (rev1).pdf \| 51.6 KB IGS Download_IGS_WL-SMCC_0402_compact (rev1).igs \| 517 KB STP Download_STP_WL-SMCC_0402_compact (rev1).stp \| 326.5 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]525 nm	Emitting ColorGreen	Peak Wavelength [typ.]520 nm	Luminous Intensity [typ.]750 mcd	Forward Voltage [typ.]3.3 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard –	–Check availability
	150040VS73240	SPEC570 nm, Bright Green, 572 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC-0402 (rev1).pdf \| 56.7 KB IGS Download_IGS_WL-SMCC-0402 (rev1).igs \| 618.3 KB STP Download_STP_WL-SMCC-0402 (rev1).stp \| 558.8 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]570 nm	Emitting ColorBright Green	Peak Wavelength [typ.]572 nm	Luminous Intensity [typ.]50 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard –	–Check availability
	150060VS73220	SPEC573 nm, Bright Green, 575 nm	Simulation	Availability –	Downloads7 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB IGS Download_IGS_WL-SMCC-150060xx73220_RS_VS_YS (rev1).igs \| 610.3 KB STP Download_STP_WL-SMCC-150060xx73220_RS_VS_YS (rev1).stp \| 413.5 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]573 nm	Emitting ColorBright Green	Peak Wavelength [typ.]575 nm	Luminous Intensity [typ.]60 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003	–Check availability
	150040VS73220	SPEC573 nm, Bright Green, 575 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC_0402_compact_RS_VS_YS (rev1).pdf \| 49.7 KB IGS Download_IGS_WL-SMCC_0402_compact (rev1).igs \| 517 KB STP Download_STP_WL-SMCC_0402_compact (rev1).stp \| 326.5 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]573 nm	Emitting ColorBright Green	Peak Wavelength [typ.]575 nm	Luminous Intensity [typ.]60 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard –	–Check availability
	150060YS73220	SPEC589 nm, Yellow, 591 nm	Simulation	Availability –	Downloads7 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB IGS Download_IGS_WL-SMCC-150060xx73220_RS_VS_YS (rev1).igs \| 610.3 KB STP Download_STP_WL-SMCC-150060xx73220_RS_VS_YS (rev1).stp \| 413.5 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]589 nm	Emitting ColorYellow	Peak Wavelength [typ.]591 nm	Luminous Intensity [typ.]100 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003	–Check availability
	150040YS73220	SPEC589 nm, Yellow, 591 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC_0402_compact_RS_VS_YS (rev1).pdf \| 49.7 KB IGS Download_IGS_WL-SMCC_0402_compact (rev1).igs \| 517 KB STP Download_STP_WL-SMCC_0402_compact (rev1).stp \| 326.5 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]589 nm	Emitting ColorYellow	Peak Wavelength [typ.]591 nm	Luminous Intensity [typ.]70 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard –	–Check availability
	150040YS73240	SPEC590 nm, Yellow, 595 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC-0402 (rev1).pdf \| 56.7 KB IGS Download_IGS_WL-SMCC-0402 (rev1).igs \| 618.3 KB STP Download_STP_WL-SMCC-0402 (rev1).stp \| 558.8 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]590 nm	Emitting ColorYellow	Peak Wavelength [typ.]595 nm	Luminous Intensity [typ.]70 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003	–Check availability
	150040AS73220	SPEC605 nm, Amber, 609 nm	Simulation	Availability –	Downloads7 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB IGS Download_IGS_WL-SMCC_0402_compact (rev1).igs \| 517 KB STP Download_STP_WL-SMCC_0402_compact (rev1).stp \| 326.5 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]605 nm	Emitting ColorAmber	Peak Wavelength [typ.]609 nm	Luminous Intensity [typ.]80 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard –	–Check availability
	150040AS73240	SPEC605 nm, Amber, 610 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC-0402 (rev1).pdf \| 56.7 KB IGS Download_IGS_WL-SMCC-0402 (rev1).igs \| 618.3 KB STP Download_STP_WL-SMCC-0402 (rev1).stp \| 558.8 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]605 nm	Emitting ColorAmber	Peak Wavelength [typ.]610 nm	Luminous Intensity [typ.]110 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit –	Demoboard –	–Check availability
	150060AS73220	SPEC605 nm, Amber, 609 nm	Simulation–	Availability –	Downloads5 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]605 nm	Emitting ColorAmber	Peak Wavelength [typ.]609 nm	Luminous Intensity [typ.]80 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit –	Demoboard –	–Check availability
	150060RS73220	SPEC624 nm, Red, 632 nm	Simulation	Availability –	Downloads7 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB IGS Download_IGS_WL-SMCC-150060xx73220_RS_VS_YS (rev1).igs \| 610.3 KB STP Download_STP_WL-SMCC-150060xx73220_RS_VS_YS (rev1).stp \| 413.5 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]624 nm	Emitting ColorRed	Peak Wavelength [typ.]632 nm	Luminous Intensity [typ.]90 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003	–Check availability
	150040RS73220	SPEC624 nm, Red, 632 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC_0402_compact_RS_VS_YS (rev1).pdf \| 49.7 KB IGS Download_IGS_WL-SMCC_0402_compact (rev1).igs \| 517 KB STP Download_STP_WL-SMCC_0402_compact (rev1).stp \| 326.5 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]624 nm	Emitting ColorRed	Peak Wavelength [typ.]632 nm	Luminous Intensity [typ.]110 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard –	–Check availability
	150040RS73240	SPEC625 nm, Red, 630 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC-0402 (rev1).pdf \| 56.7 KB IGS Download_IGS_WL-SMCC-0402 (rev1).igs \| 618.3 KB STP Download_STP_WL-SMCC-0402 (rev1).stp \| 558.8 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]625 nm	Emitting ColorRed	Peak Wavelength [typ.]630 nm	Luminous Intensity [typ.]100 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003	–Check availability
	150040SS73220	SPEC630 nm, Super Red, 645 nm	Simulation	Availability –	Downloads7 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB IGS Download_IGS_WL-SMCC_0402_compact (rev1).igs \| 517 KB STP Download_STP_WL-SMCC_0402_compact (rev1).stp \| 326.5 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]630 nm	Emitting ColorSuper Red	Peak Wavelength [typ.]645 nm	Luminous Intensity [typ.]90 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard –	–Check availability
	150040SS73240	SPEC630 nm, Super Red, 645 nm	Simulation	Availability –	Downloads8 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC-0402 (rev1).pdf \| 56.7 KB IGS Download_IGS_WL-SMCC-0402 (rev1).igs \| 618.3 KB STP Download_STP_WL-SMCC-0402 (rev1).stp \| 558.8 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Dominant Wavelength [typ.]630 nm	Emitting ColorSuper Red	Peak Wavelength [typ.]645 nm	Luminous Intensity [typ.]75 mcd	Forward Voltage [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Design Kit –	Demoboard –	–Check availability
	150040WS73240	SPEC–, White, –	Simulation	Availability –	Downloads9 files ALT Altium_WL-SMCC (rev24a).IntLib \| 774 KB CDS Cadence_WL-SMCC (rev24a).zip \| 1 MB EAG Eagle_WL-SMCC (rev24a).lbr \| 42.2 KB KIC KiCad_WL-SMCC (rev26b).zip \| 284.4 KB 3D 3D_WL-SMCC-0402 (rev1).pdf \| 56.7 KB 3D 3D_WL-SMCC_150040WS73240 (rev1).pdf \| 56.7 KB IGS IGS_WL-SMCC_150040WS73240 (rev1).igs \| 618.3 KB STP STP_WL-SMCC_150040WS73240 (rev1).stp \| 558.8 KB PSP PSpice_WL-SMCC (rev24a).zip \| 6.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	–	Emitting ColorWhite	–	Luminous Intensity [typ.]300 mcd	Forward Voltage [typ.]2.8 V	Chip TechnologyInGaN	Viewing Angle Phi 0° [typ.]140 °	Design Kit –	Demoboard –	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–
