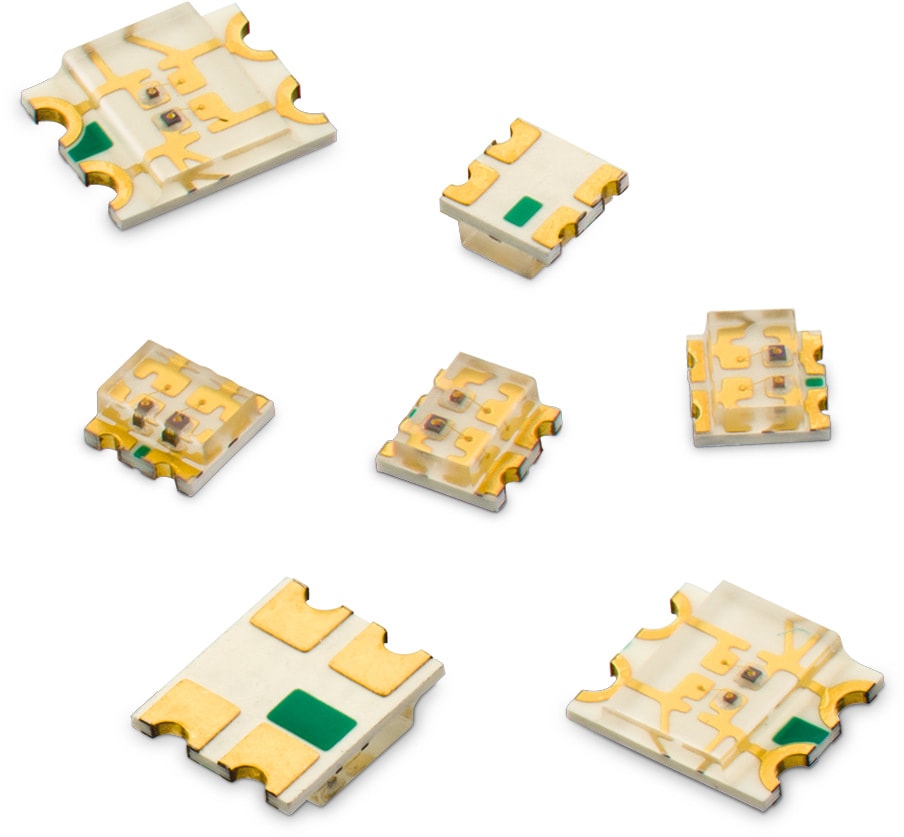

WL-SBCW SMT Bi-color Chip LED Waterclear

WL-SBCW SMT Bi-color Chip LED Waterclear

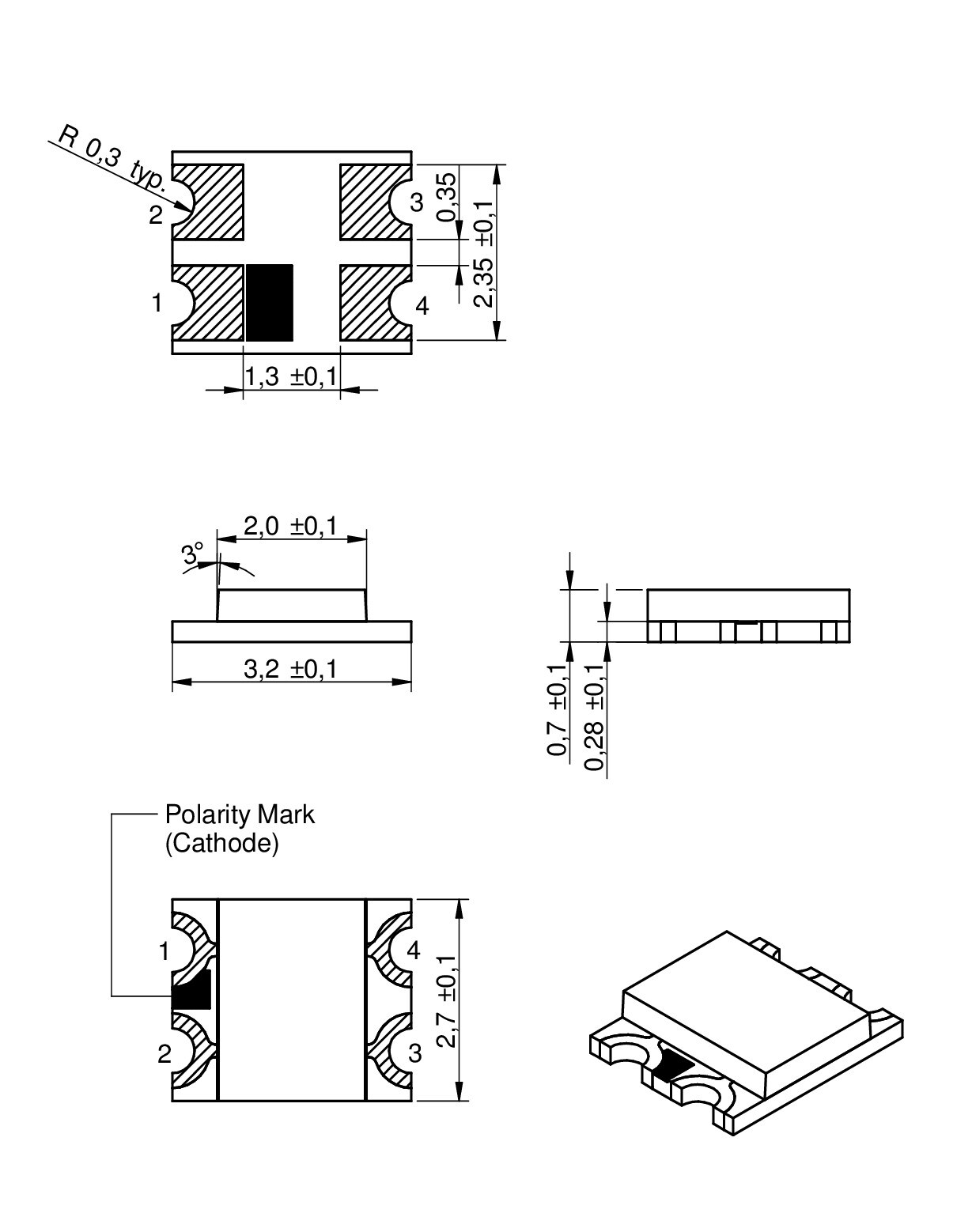

SizeDimen­sionsL
(mm)		W
(mm)		H
(mm)		Mount
0606
 1.6 - 0.7 SMT
1210
 3.2 2.7 0.7 SMT

LTSpice files

Characteristics

  • Two chips in one package
  • Small size
  • Industry standard footprint
  • High efficiency
  • Low power consumption
  • Wide viewing angle
  • Small LED package for exceptional brightness
  • Packaged in standard tape and reel 7"
  • Compatible with automatic placement machine

Applications

  • Backlighting applications
  • Status indicator
  • Front panel indicators
  • Push button backlighting
  • Symbol and switch backlighting

Products

All
0606
1210
Reset all
Filter article data
Filter by
Delete all
 show  articles in 2 product lines
 articles in 2 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
Emitting Color
λPeak G typ.(nm)
λPeak R typ.(nm)
λPeak S typ.(nm)
λPeak V typ.(nm)
λPeak Y typ.(nm)
λDom G typ.(nm)
λDom R typ.(nm)
λDom S typ.(nm)
λDom V typ.(nm)
λDom Y typ.(nm)
IV G typ.(mcd)
IV R typ.(mcd)
IV S typ.(mcd)
IV V typ.(mcd)
IV Y typ.(mcd)
VF G typ.(V)
VF R typ.(V)
VF S typ.(V)
VF V typ.(V)
VF Y typ.(V)
Chip Technology
2θ50% typ.(°)
Demoboard
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
WL-SBCW SMT Bi-color Chip LED Waterclear
150066YV74000
SPECYellow & Bright Green, –, –
Availability
–
Downloads7 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Emitting ColorYellow & Bright Green
–
–
–
Peak Wavelength (Bright Green) [typ.]572 nm
Peak Wavelength (Yellow) [typ.]595 nm
–
–
–
Dominant Wavelength (Bright Green) [typ.]570 nm
Dominant Wavelength (Yellow) [typ.]590 nm
–
–
–
Luminous Intensity (Bright Green) [typ.]30 mcd
Luminous Intensity (Yellow) [typ.]120 mcd
–
–
–
Forward Voltage (Bright Green) [typ.]2 V
Forward Voltage (Yellow) [typ.]2 V
Chip TechnologyAlInGaP
Viewing Angle Phi 0° [typ.]130 °
Demoboard
9999003
Design Kit
150155
–Check availability
WL-SBCW SMT Bi-color Chip LED Waterclear
150121YV74000
SPECYellow & Bright Green, –, –
Availability
–
Downloads7 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Emitting ColorYellow & Bright Green
–
–
–
Peak Wavelength (Bright Green) [typ.]572 nm
Peak Wavelength (Yellow) [typ.]595 nm
–
–
–
Dominant Wavelength (Bright Green) [typ.]570 nm
Dominant Wavelength (Yellow) [typ.]590 nm
–
–
–
Luminous Intensity (Bright Green) [typ.]40 mcd
Luminous Intensity (Yellow) [typ.]120 mcd
–
–
–
Forward Voltage (Bright Green) [typ.]2 V
Forward Voltage (Yellow) [typ.]2 V
Chip TechnologyAlInGaP
Viewing Angle Phi 0° [typ.]130 °
Demoboard
9999003
Design Kit
150155
–Check availability
WL-SBCW SMT Bi-color Chip LED Waterclear
150066RG74000
SPECRed & Green, 515 nm, 630 nm
Availability
–
Downloads7 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Emitting ColorRed & Green
Peak Wavelength (Green) [typ.]515 nm
Peak Wavelength (Red) [typ.]630 nm
–
–
–
Dominant Wavelength (Green) [typ.]520 nm
Dominant Wavelength (Red) [typ.]625 nm
–
–
–
Luminous Intensity (Green) [typ.]560 mcd
Luminous Intensity (Red) [typ.]300 mcd
–
–
–
Forward Voltage (Green) [typ.]3.2 V
Forward Voltage (Red) [typ.]2 V
–
–
–
Chip TechnologyAlInGaP + InGaN
Viewing Angle Phi 0° [typ.]130 °
Demoboard –
Design Kit –
–Check availability
WL-SBCW SMT Bi-color Chip LED Waterclear
150066SV74000
SPECSuper Red & Bright Green, –, –
Availability
–
Downloads7 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Emitting ColorSuper Red & Bright Green
–
–
Peak Wavelength (Super Red) [typ.]645 nm
Peak Wavelength (Bright Green) [typ.]572 nm
–
–
–
Dominant Wavelength (Super Red) [typ.]630 nm
Dominant Wavelength (Bright Green) [typ.]570 nm
–
–
–
Luminous Intensity (Super Red) [typ.]55 mcd
Luminous Intensity (Bright Green) [typ.]30 mcd
–
–
–
Forward Voltage (Super Red) [typ.]2 V
Forward Voltage (Bright Green) [typ.]2 V
–
Chip TechnologyAlInGaP
Viewing Angle Phi 0° [typ.]130 °
Demoboard
9999003
Design Kit
150155
–Check availability
WL-SBCW SMT Bi-color Chip LED Waterclear
150121SV74000
SPECSuper Red & Bright Green, –, –
Availability
–
Downloads7 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Emitting ColorSuper Red & Bright Green
–
–
Peak Wavelength (Super Red) [typ.]645 nm
Peak Wavelength (Bright Green) [typ.]572 nm
–
–
–
Dominant Wavelength (Super Red) [typ.]630 nm
Dominant Wavelength (Bright Green) [typ.]570 nm
–
–
–
Luminous Intensity (Super Red) [typ.]55 mcd
Luminous Intensity (Bright Green) [typ.]30 mcd
–
–
–
Forward Voltage (Super Red) [typ.]2 V
Forward Voltage (Bright Green) [typ.]2 V
–
Chip TechnologyAlInGaP
Viewing Angle Phi 0° [typ.]130 °
Demoboard
9999003
Design Kit
150155
–Check availability
