WL-SBCD SMT Bi-color Chip LED Diffused

Size	Dimensions	L (mm)	W (mm)	H (mm)

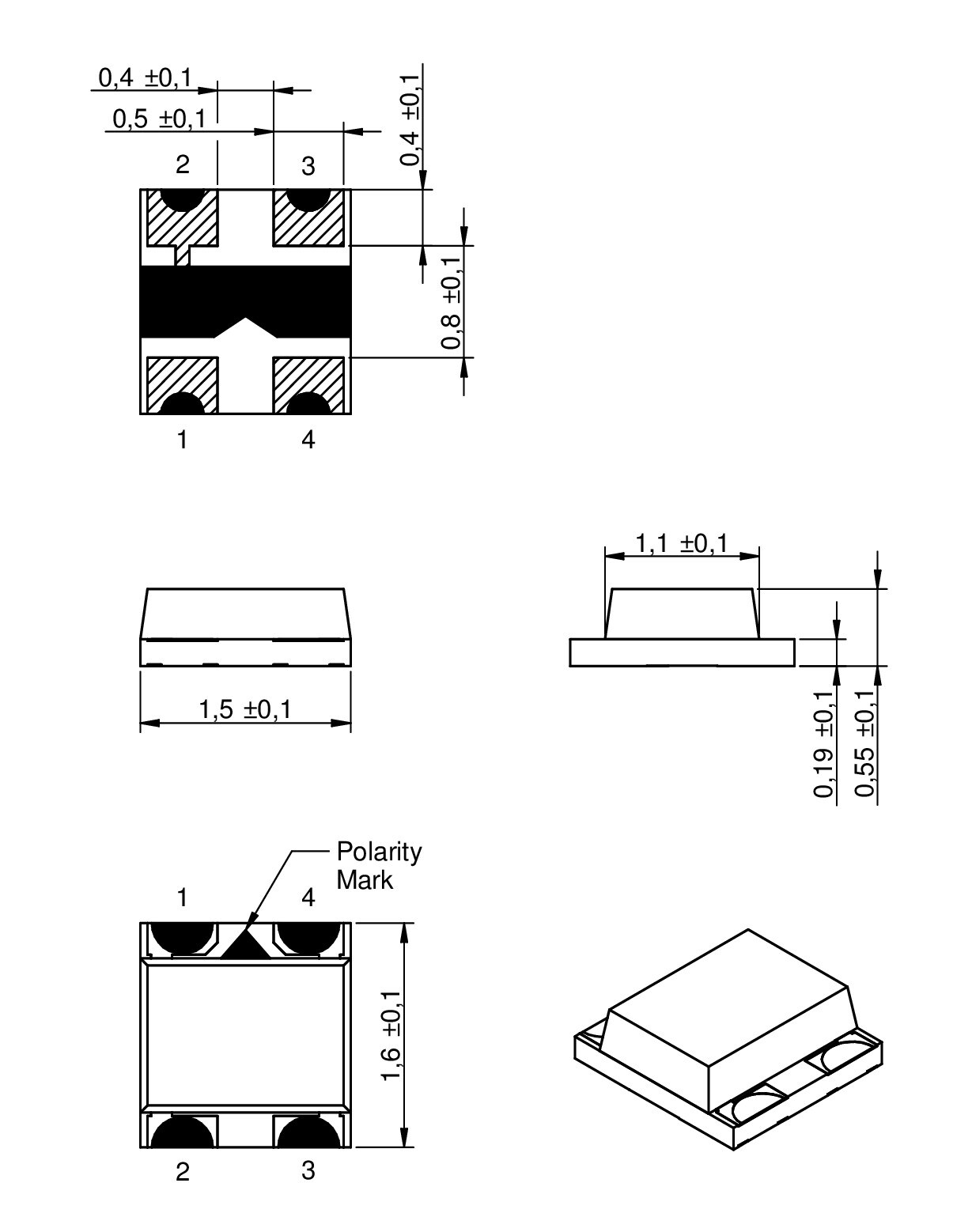

0606		1.6	1.5	0.55

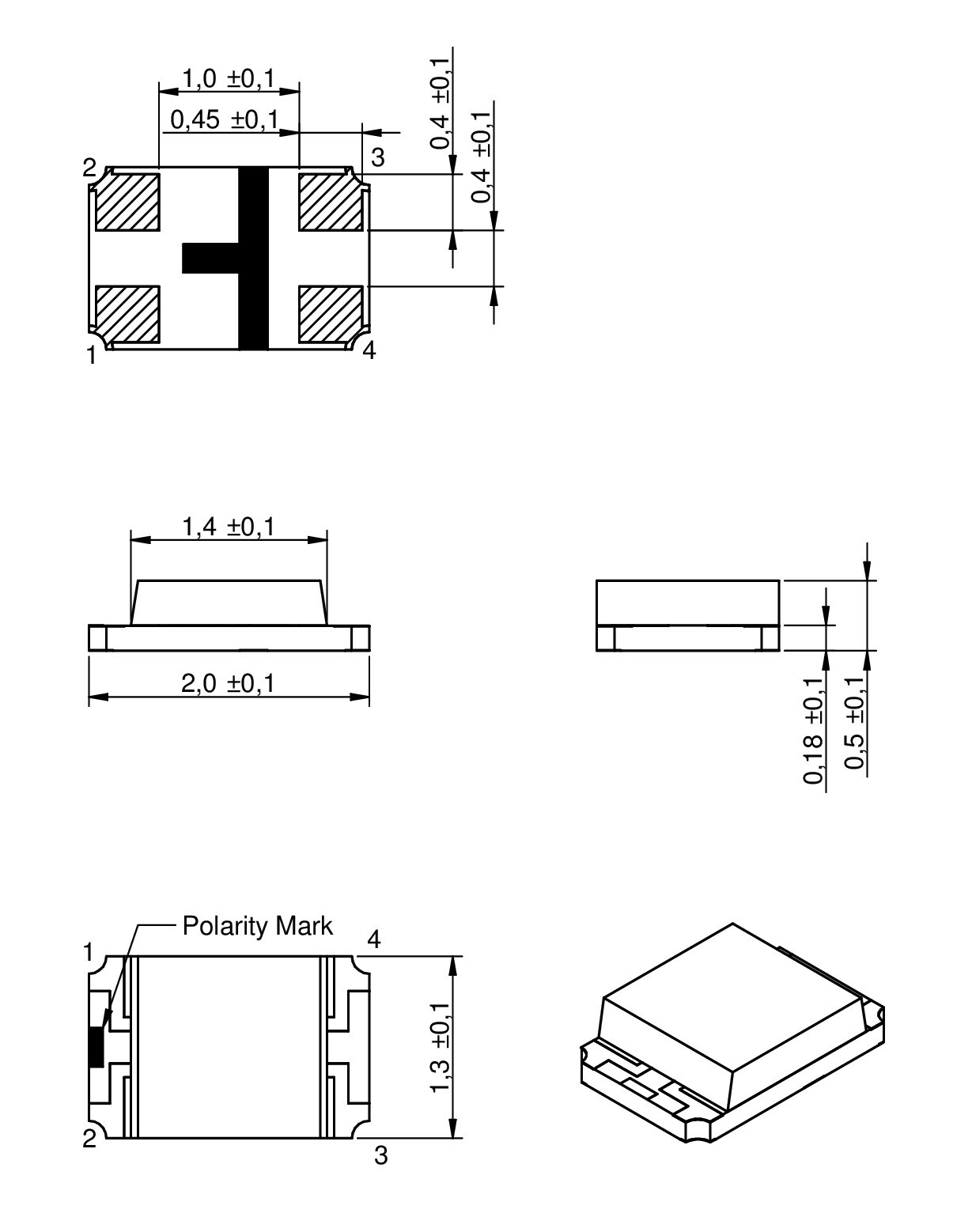

0805		2	1.3	0.5

LTSpice files

LT
LTSpice_WL-SBCD (rev22a).zip
|
5.2 KB

Characteristics

Two chips in one package
Diffused lens
Industry standard footprint
High efficiency
Low power consumption
Wide viewing angle
Thin, 0.5 mm height
Packaged in standard tape and reel 7"
Compatible with automatic placement machine

Applications

Backlighting applications
Status indicator
Front panel indicators
Push button backlighting
Symbol and switch backlighting

Products

All

0606

0805

	Order Code	Datasheet	Downloads	λ_{Peak V typ.} (nm)	λ_{Peak R typ.} (nm)	λ_{Dom V typ.} (nm)	λ_{Dom R typ.} (nm)	V_{F V typ.} (V)	V_{F R typ.} (V)	Chip Technology	2θ_{50% typ.} (°)	Samples
	150080RV54050	SPEC	6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150080xx54050 (rev1).igs \| 1.4 MB STP Download_STEP_150080xx54050 (rev1).stp \| 379.8 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	575	632	573	624	2	2	AlInGaP	130
	150080YV54050	SPEC	6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150080xx54050 (rev1).igs \| 1.4 MB STP Download_STEP_150080xx54050 (rev1).stp \| 379.8 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	575	–	573	–	2	–	AlInGaP	130
	150066RV54050	SPEC	6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150066xx54050 (rev1).igs \| 1.1 MB STP Download_STEP_150066xx54050 (rev1).stp \| 354.2 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	575	632	573	624	2	2	AlInGaP	130
	150066YV54050	SPEC	6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150066xx54050 (rev1).igs \| 1.1 MB STP Download_STEP_150066xx54050 (rev1).stp \| 354.2 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	575	–	573	–	2	–	AlInGaP	130
	150080SG54050	SPEC	6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150080xx54050 (rev1).igs \| 1.4 MB STP Download_STEP_150080xx54050 (rev1).stp \| 379.8 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	–	–	–	–	–	–	AlInGaP + GaN	130
	150066RG54050	SPEC	6 files EDA models: Components ZIP ALT Altium_WL-SBCD (rev22c).IntLib \| 135.5 KB CDS Cadence_WL-SBCD (rev20a).zip \| 511.6 KB EAG Eagle_WL-SBCD (rev22a).lbr \| 23.7 KB CAD files ZIP IGS Download_IGS_150066xx54050 (rev1).igs \| 1.1 MB STP Download_STEP_150066xx54050 (rev1).stp \| 354.2 KB Electric models ZIP PSP PSpice_WL-SBCD (rev22a).zip \| 4.3 KB Download all 6 files as zip archive ZIP	–	–	–	624	–	2	AlInGaP + InGaN	130

	Order Code	Datasheet
	150080RV54050	SPEC
	150080YV54050	SPEC
	150066RV54050	SPEC
	150066YV54050	SPEC
	150080SG54050	SPEC
	150066RG54050	SPEC
