| Size | L
(mm) |
W
(mm) |
H
(mm) |
Mount | ||
|---|---|---|---|---|---|---|
| 2811 | 2.78 | - | 1.1 | - |
|
|
| 2813 | 2.78 | 2.78 | 1.35 | - |
|
|
| 2828 | 2.8 | 2.8 | 2.8 | - |
|
|
| 3510 | 3.3 | 3.5 | 0.95 | - |
|
|
| 3816 | 3.8 | 3.8 | 1.65 | - |
|
|
| 4818 | 4.8 | 4.8 | 1.8 | - |
|
|
| 4828 | 4.8 | 4.8 | 2.8 | - |
|
|
| 5818 | 5.8 | 5.8 | 1.8 | SMT |
|
|
| 5828 | 5.8 | 5.8 | 2.8 | - |
|
|
| 6823 | 6.8 | 6.8 | 2.3 | - |
|
|
| 8012 | 8 | 8 | 1.1 | - |
|
|
| 8015 | 8 | 8 | 1.35 | - |
|
|
| 8020 | 8 | 8 | 1.8 | - |
|
|
| 8043 | 8 | 8 | 4.3 | - |
|
|
| 1028 | 10 | 10 | 2.8 | - |
|
|
| 1038 | 10 | 10 | 3.8 | - |
|

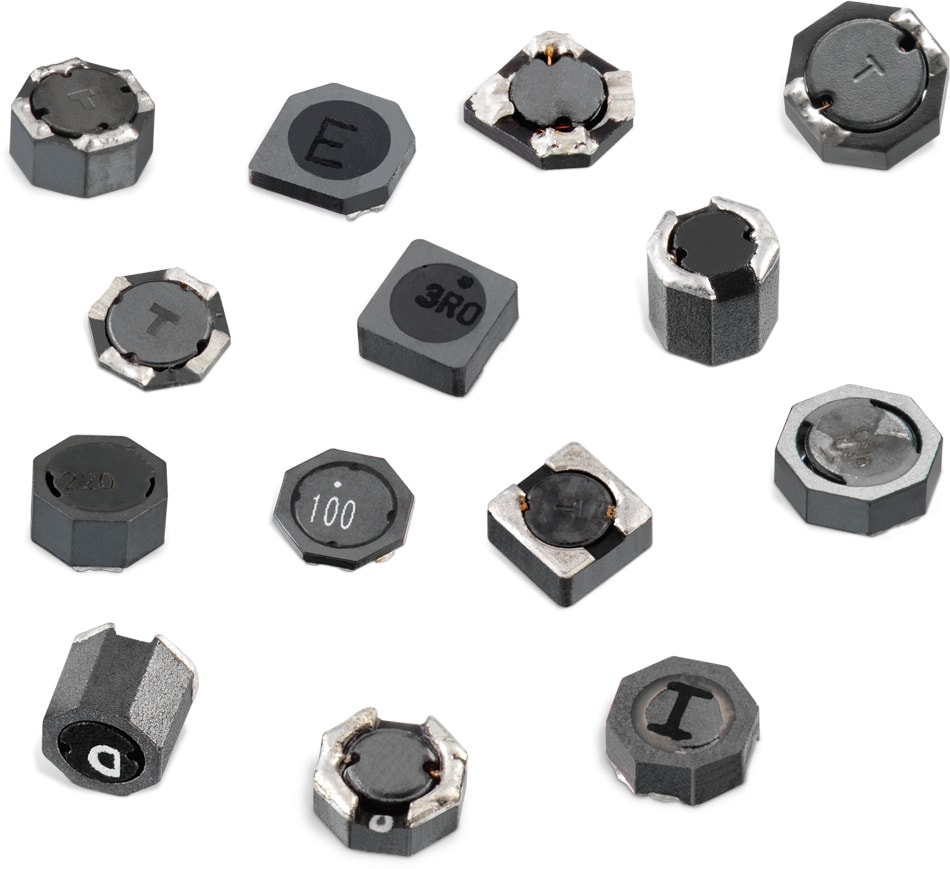

Characteristics
- Extremely flat power inductor
- High current capability
- Magnetically shielded which results in a low leakage field
- Recommended solder profile: Reflow
- Operating temperature: –40 °C to +125 °C
Applications
- Portable power like PDA, digital camera, PCMCIA cards and displays
- DC/DC converter
- Embedded PC
- Mobile data gathering, telemetric
Products
All
2811
2813
2828
3510
3816
4818
4828
5818
5828
6823
8012
8015
8020
8043
1028
1038
| Order Code | Datasheet | Simulation | Downloads | L1
(µH) |
IR 1
(A) |
ISAT 1
(A) |
RDC1 typ
(mΩ) |
fres 1
(MHz) |
Mount | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 744028000056 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.056 | 4.5 | 6 | 11.5 | 2000 | – | – | ||
| 744029000068 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.068 | 4.5 | 5.5 | 10.5 | 1000 | – | – | ||
| 74402800015 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.15 | 3 | 3.6 | 18 | 800 | – | – | ||
| 74402900016 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.16 | 3.8 | 3.9 | 16 | 800 | – | – | ||
| 74407000018 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.18 | 8.5 | 9 | 3.51 | 600 | – |
744070
|
||
| 74406900022 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.22 | 5.5 | 7.5 | 9 | 400 | – | – | ||
| 74406800024 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.24 | 4.1 | 5.8 | 15 | 200 | – | – | ||
| 74402500030 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.3 | 3.9 | 5.7 | 15 | 440 | – | – | ||
| 74402800033 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.33 | 2.8 | 2.4 | 27 | 550 | – | – | ||
| 74402900033 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.33 | 3.1 | 2.7 | 23 | 500 | – | – | ||
| 74404300033 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.33 | 4 | 6 | 8 | 400 | – | – | ||
| 74402800047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.47 | 2.5 | 2 | 36 | 350 | – |
744028
|
||
| 74402900047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.47 | 2.8 | 2.2 | 29 | 350 | – | – | ||
| 74402500047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.47 | 3.3 | 4.7 | 19 | 290 | – | – | ||
| 7440300047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.47 | 1.45 | 1.8 | 48 | 270 | – | – | ||
| 7440310047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.47 | 3 | 2 | 16 | 208 | – | – | ||
| 74404300047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.47 | 3 | 5 | 10 | 200 | – | – | ||
| 74407000047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.47 | 7 | 6.5 | 5.8 | 300 | – |
744070
|
||
| 74406900052 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.52 | 4.3 | 5.8 | 15 | 100 | – | – | ||
| 74404200056 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.56 | 3.1 | 3 | 19 | 190 | – | – | ||
| 74406800056 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.56 | 3.4 | 4 | 22 | 150 | – | – | ||
| 7440300068 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.68 | 1.3 | 1.5 | 60 | 230 | – | – | ||
| 74402500072 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.72 | 3 | 4 | 23.5 | 210 | – |
744028
|
||
| 74402800082 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.82 | 2 | 1.6 | 53 | 180 | – |
744028
744728 |
||
| 74402900082 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.82 | 2.4 | 1.8 | 36 | 200 | – |
744028
|
||
| 74404300082 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.82 | 3.5 | 3.7 | 14 | 170 | – | – | ||
| 74407000082 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.82 | 6.2 | 5.5 | 8.5 | 200 | – |
744070
|
||
| 7440710082 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 0.82 | 7.3 | 8 | 7 | 130 | – | – | ||
| 744028001 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1 | 1.75 | 1.5 | 65 | 150 | – |
744028
|
||
| 744029001 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1 | 2.2 | 1.6 | 45 | 150 | – |
744028
|
||
| 744031010 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1 | 2 | 2 | 26 | 144 | – | – | ||
| 744042001 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1 | 2.7 | 2.6 | 20 | 177 | – |
744028
|
||
| 744062001 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1 | 4.8 | 4.6 | 10 | 110 | – |
744062
|
||
| 7440680010 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1 | 2.8 | 3.3 | 32 | 110 | – |
744070
|
||
| 7440690010 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1 | 3.6 | 3.8 | 21 | 90 | – |
744070
|
||
| 744065001 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1 | 8 | 9.5 | 4.9 | 100 | – |
744062
|
||
| 744025001 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.2 | 2.6 | 3 | 36 | 180 | – |
744028
|
||
| 744030001 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.2 | 1 | 1.1 | 95 | 210 | – | – | ||
| 7440430012 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.2 | 3.1 | 2.8 | 17 | 150 | – |
744043
|
||
| 7440520012 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.2 | 3 | 3.5 | 20 | 120 | – |
744043
|
||
| 7440700012 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.2 | 4.8 | 4.2 | 12.5 | 150 | – |
744070
|
||
| 744031001 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.5 | 1.75 | 1.55 | 40 | 125 | – |
744028
|
||
| 7440620015 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.5 | 4.3 | 4 | 10 | 100 | – |
744062
|
||
| 7440650015 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.5 | 7.2 | 7.5 | 7.3 | 80 | – |
744062
|
||
| 7440660015 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.5 | 7.2 | 10 | 5.2 | 65 | – |
744062
|
||
| 7440690016 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.6 | 3.1 | 3.3 | 29 | 85 | – | – | ||
| 7440680017 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.7 | 2.5 | 2.4 | 41 | 100 | – | – | ||
| 7440420018 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.8 | 2.35 | 2.4 | 40 | 100 | – | – | ||
| 7440430018 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.8 | 2.7 | 2.45 | 20 | 120 | – |
744043
|
||
| 7440520018 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1.8 | 2.6 | 3 | 24 | 100 | – |
744043
|
||
| 744028002 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.2 | 1.3 | 1 | 125 | 100 | – |
744028
744728 |
||
| 744029002 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.2 | 1.5 | 1.15 | 88 | 90 | – |
744028
|
||
| 744025002 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.2 | 1.8 | 2.4 | 57 | 130 | – |
744028
|
||
| 744030002 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.2 | 0.74 | 0.8 | 140 | 140 | – | – | ||
| 7440430022 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.2 | 2.5 | 2.35 | 27 | 100 | – |
744043
744728 |
||
| 744062002 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.2 | 3.4 | 2.7 | 10 | 70 | – |
744062
|
||
| 7440690022 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.2 | 2.8 | 2.85 | 35 | 50 | – |
744070
|
||
| 7440700022 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.2 | 4.6 | 3.2 | 17 | 115 | – |
744070
|
||
| 744071022 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.2 | 5.4 | 6.3 | 10 | 62 | – | – | ||
| 7440650022 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.2 | 6.2 | 5.9 | 11 | 65 | – |
744062
|
||
| 7440660022 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.2 | 6.7 | 6.8 | 7.7 | 55 | – |
744062
|
||
| 744031002 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.5 | 1.45 | 1.25 | 50 | 120 | – |
744028
|
||
| 744052002 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.5 | 2.4 | 2.7 | 30 | 85 | – |
744043
|
||
| 744053002 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.6 | 3 | 2.7 | 20 | 55 | – |
744043
|
||
| 7440420027 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.7 | 2.03 | 2.2 | 47 | 90 | – |
744028
|
||
| 7440430027 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.7 | 2.35 | 1.95 | 25 | 80 | – |
744043
|
||
| 7440680027 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 2.7 | 2.2 | 1.9 | 52 | 80 | – |
744070
|
||
| 744052003 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3 | 2.2 | 2.4 | 35 | 70 | – |
744043
|
||
| 744053003 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3 | 2.8 | 2.5 | 20 | 70 | – |
744043
|
||
| 744028003 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.3 | 1 | 0.85 | 185 | 80 | – |
744028
|
||
| 744029003 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.3 | 1.25 | 0.95 | 110 | 70 | – |
744028
|
||
| 744025003 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.3 | 1.5 | 1.8 | 85 | 100 | – |
744028
|
||
| 744030003 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.3 | 0.65 | 0.72 | 198 | 130 | – | – | ||
| 744042003 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.3 | 1.95 | 1.8 | 50 | 80 | – |
744028
|
||
| 744043003 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.3 | 2.15 | 1.8 | 30 | 80 | – |
744043
744728 |
||
| 744062003 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.3 | 2.8 | 2.5 | 20 | 55 | – |
744062
|
||
| 7440680033 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.3 | 2 | 1.8 | 61 | 65 | – |
744070
|
||
| 7440690033 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.3 | 2.55 | 2.3 | 42 | 40 | – |
744070
|
||
| 7440700033 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.3 | 3.2 | 2.55 | 30 | 80 | – |
744070
|
||
| 7440650033 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.3 | 5.3 | 4.7 | 15 | 55 | – |
744062
|
||
| 7440660035 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.5 | 5.8 | 6.4 | 11.5 | 35 | – |
744062
|
||
| 744031003 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.6 | 1.38 | 1.1 | 66 | 80 | – |
744028
|
||
| 7440420039 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.9 | 1.82 | 1.7 | 60 | 70 | – | – | ||
| 7440430039 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.9 | 1.72 | 1.65 | 50 | 55 | – |
744043
|
||
| 7440520039 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.9 | 2 | 2.1 | 50 | 60 | – |
744043
|
||
| 744071039 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 3.9 | 4.9 | 4.5 | 13 | 40 | – | – | ||
| 744053004 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 4.2 | 2.5 | 2.2 | 30 | 45 | – |
744043
|
||
| 744028004 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 4.7 | 0.85 | 0.7 | 265 | 70 | – |
744028
|
||
| 744029004 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 4.7 | 1 | 0.8 | 170 | 65 | – |
744028
744728 |
||
| 744025004 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 4.7 | 1.35 | 1.7 | 100 | 84 | – |
744028
|
||
| 744030004 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 4.7 | 0.48 | 0.5 | 252 | 100 | – | – | ||
| 744031004 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 4.7 | 1.2 | 0.9 | 90 | 75 | – |
744028
744728 |
||
| 744042004 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 4.7 | 1.72 | 1.65 | 70 | 70 | – |
744028
|
||
| 744043004 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 4.7 | 1.55 | 1.7 | 50 | 60 | – |
744043
|
||
| 7440530047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 4.7 | 2.4 | 1.95 | 30 | 40 | – |
744043
|
||
| 7440680047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 4.7 | 1.85 | 1.55 | 72 | 55 | – |
744070
|
||
| 7440690047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 4.7 | 2.2 | 1.8 | 56 | 30 | – |
744070
|
||
| 7440700047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD |
