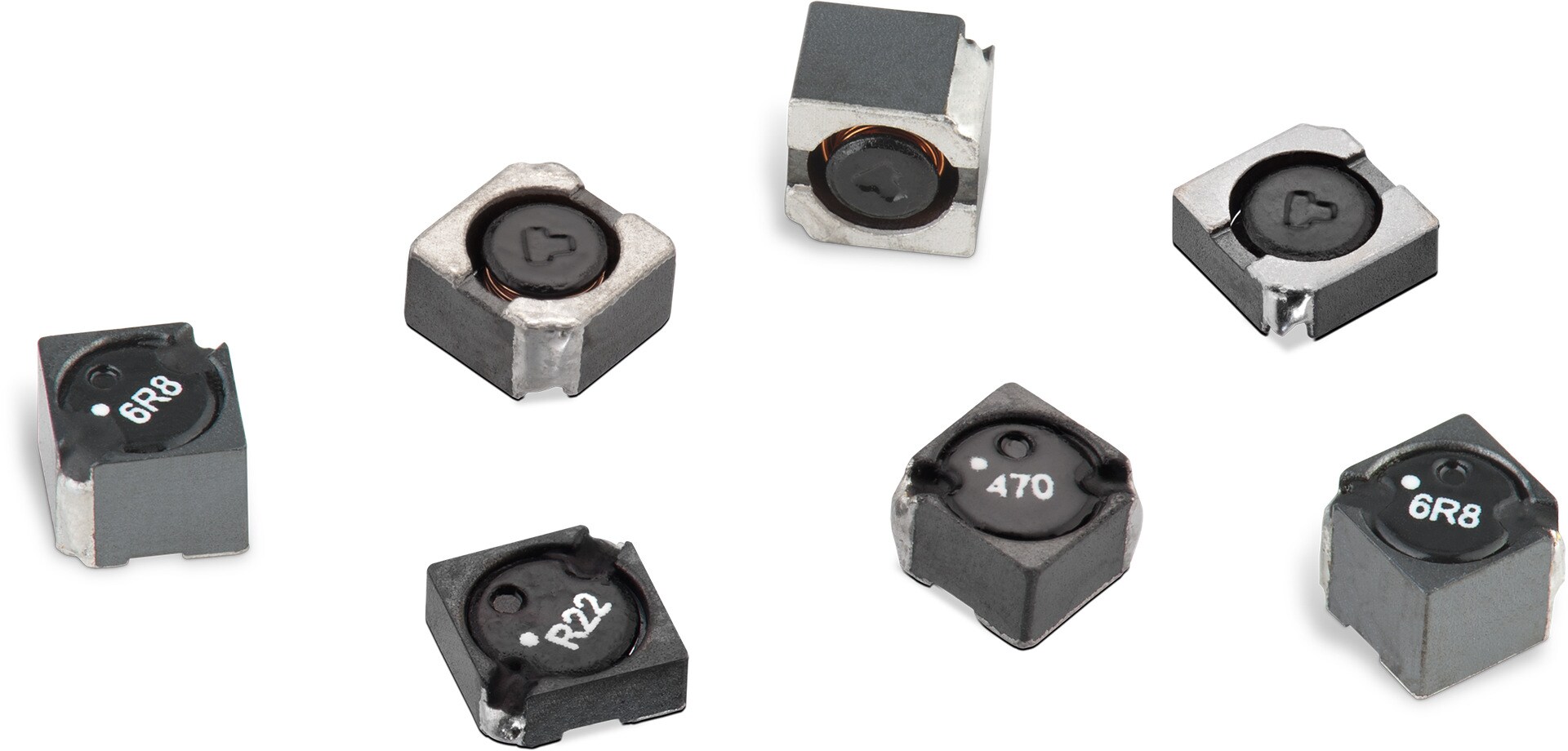

WE-SPC SMT Power Inductor

Shielded

Size L
(mm)
W
(mm)
H
(mm)
Mount

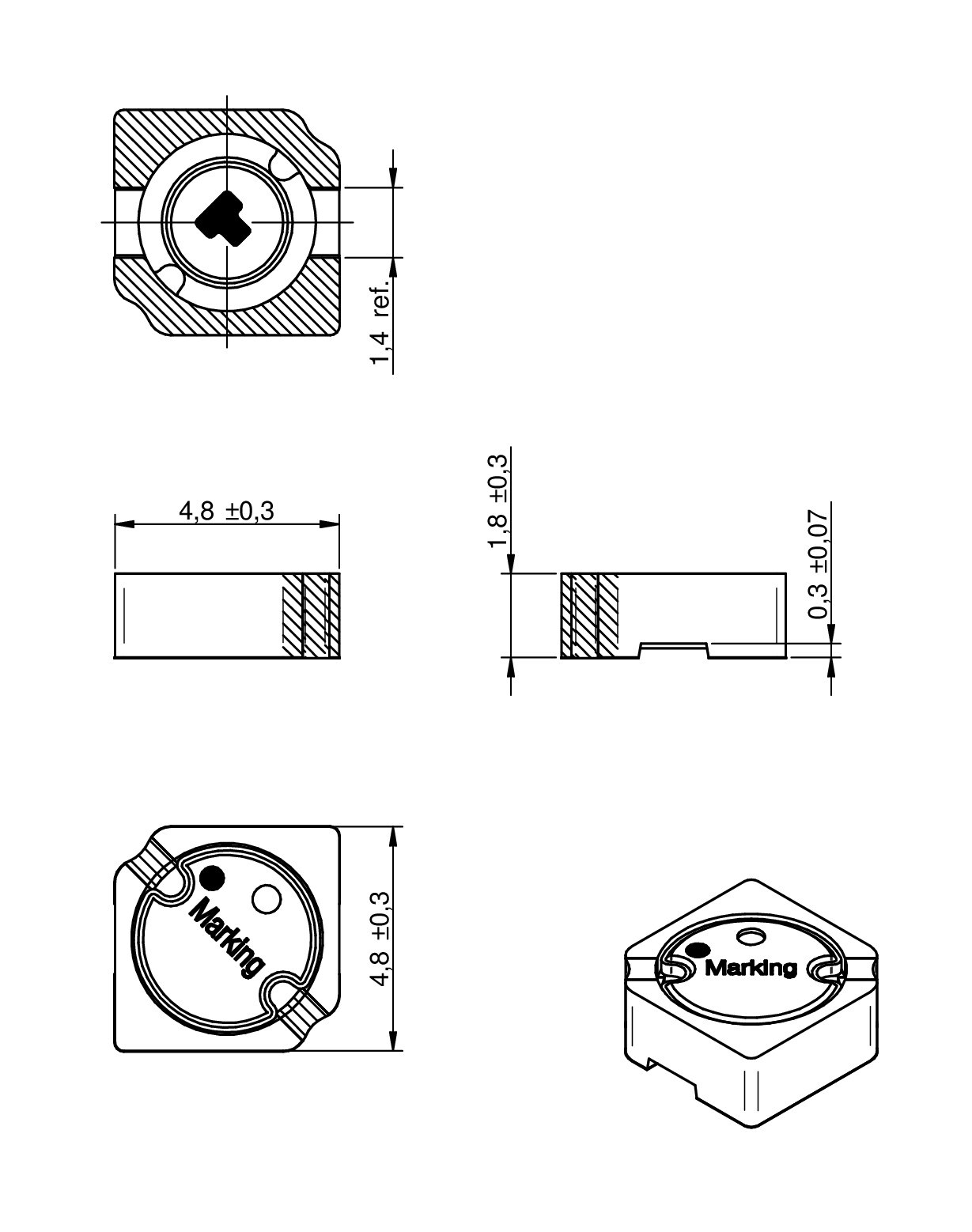

4818 4.8 4.8 1.8 SMT

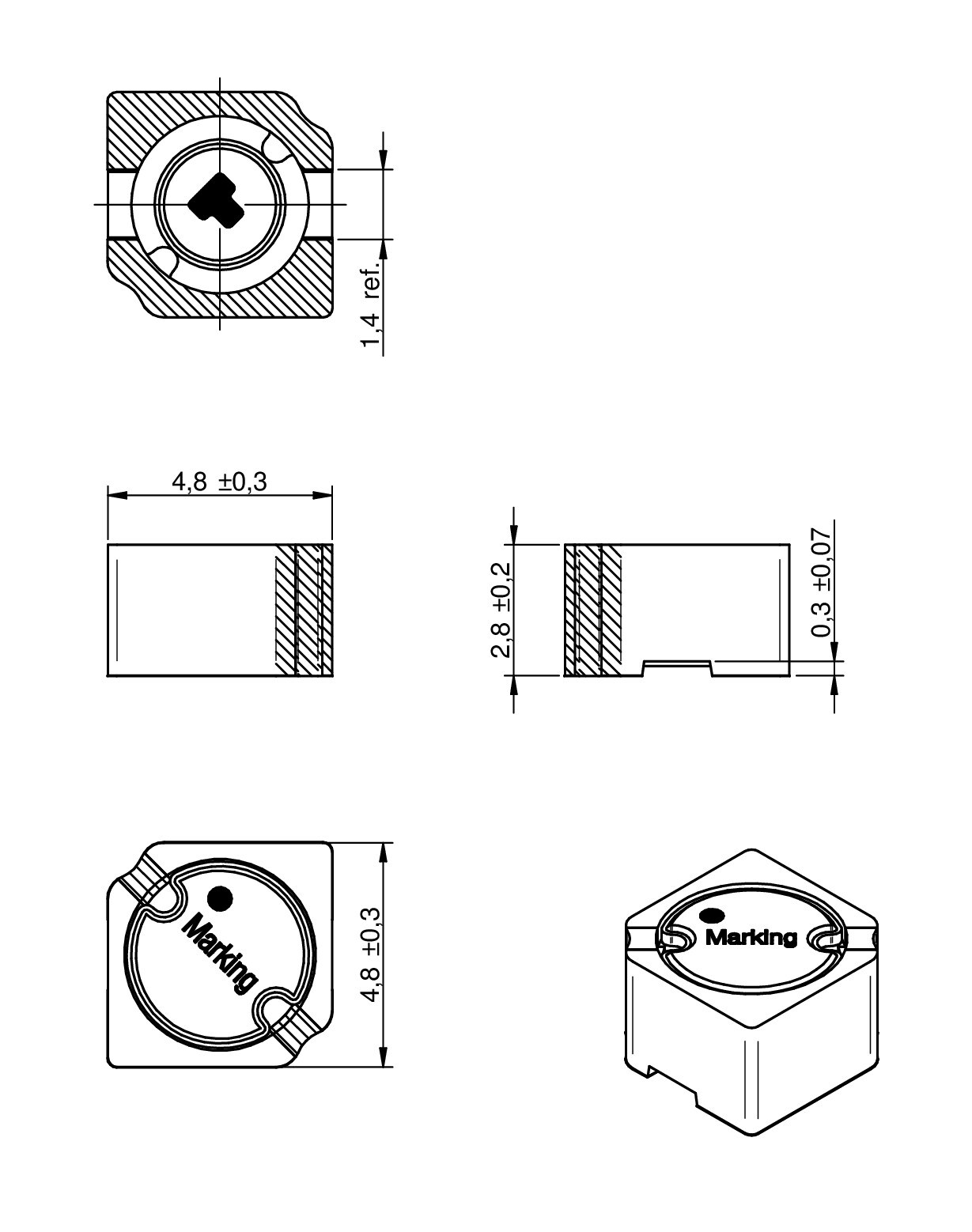

4828 4.8 4.8 2.8 SMT

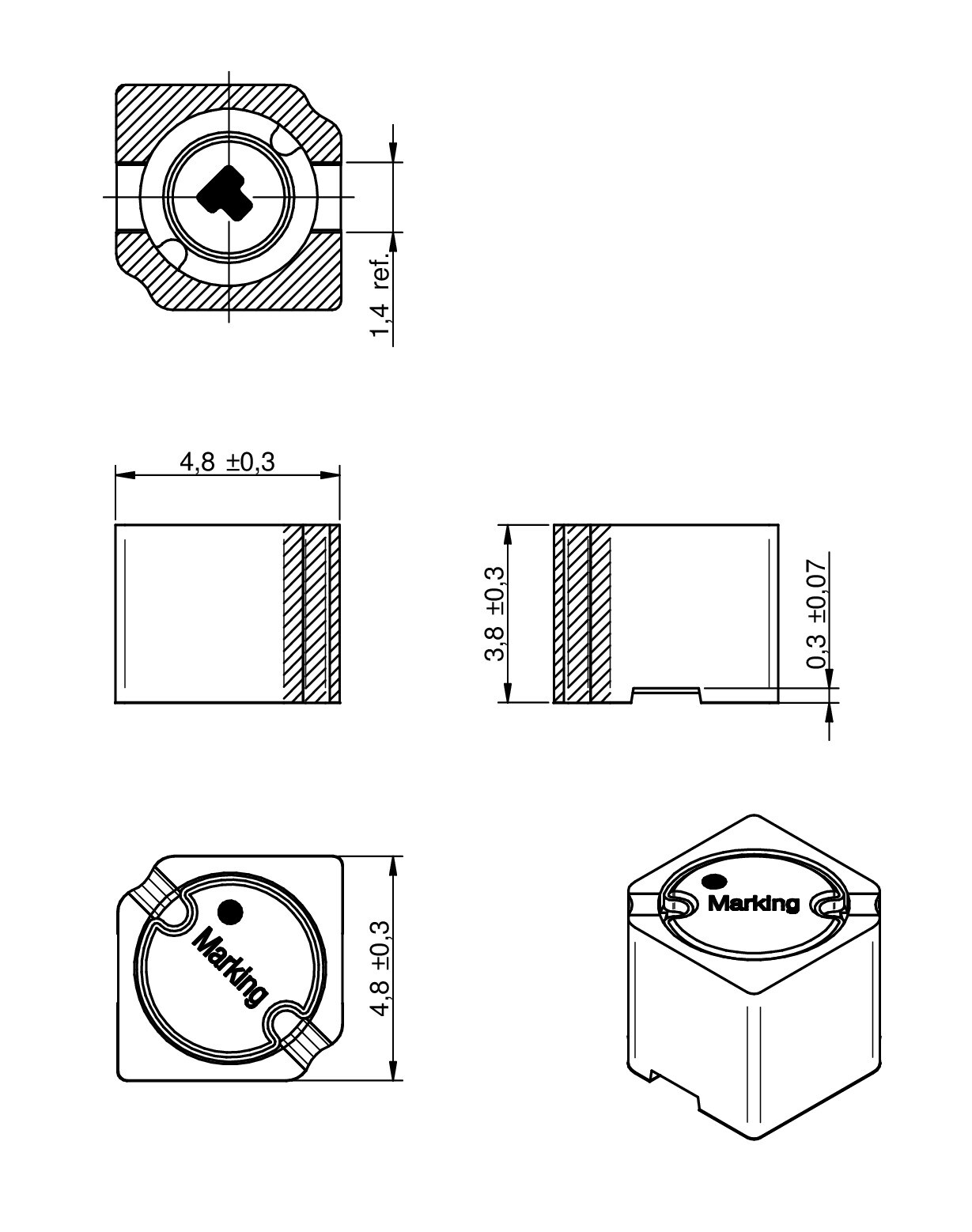

4838 4.8 4.8 3.8 SMT

Characteristics

  • Extremely small size
  • High saturation current, up to 13 A
  • Magnetic shielded, which results in a low leakage field
  • High self resonance frequency
  • Low self-losses
  • Optimize solderability characteristics
  • Constant saturation characteristics
  • Recommended solder profile: Reflow
  • Operating temperature: –40 °C up to +125 °C

Applications

  • Portable power devices
  • DC/DC converter
  • PCMCIA card
  • Smart phone
  • PDA
  • Digital camera

Products

All
4818
4828
4838
Order Code Data­sheet Simu­lation Downloads L
(µH)
IR
(A)
ISAT
(A)
RDC typ.
(Ω)
RDC max.
(Ω)
fres
(MHz)
Version Design Kit Samples
744089410022
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.22 4.5 9.5 0.0127 0.015 230 SMT 7440894
744089420022
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.22 5.3 13.5 0.0122 0.0144 220 SMT 7440894
744089430022
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.22 5 13 0.012 0.014 250 SMT 7440894
744089420039
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.39 4.2 10.3 0.015 0.0177 160 SMT
744089430039
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.39 4.2 9.3 0.0135 0.016 160 SMT
744089410043
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.43 3.8 8 0.015 0.0176 160 SMT
744089420056
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.56 4.1 8.3 0.0156 0.0184 120 SMT 7440894
744089430056
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.56 3.8 8.1 0.015 0.017 130 SMT 7440894
744089410068
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.68 3.4 6.5 0.0187 0.0221 120 SMT 7440894
744728
744089420082
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.82 3.5 6.7 0.021 0.0248 100 SMT
744089430082
STE ALT EAG CAD LTS PSP SPE IGS CAD 0.82 3.4 7.1 0.017 0.02 108 SMT
74408941010
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 3 5.4 0.025 0.0295 100 SMT 7440894
749020
74408943010
STE ALT EAG CAD LTS PSP SPE IGS CAD 1 3.3 6.5 0.019 0.022 90 SMT 7440894
74408942012
STE ALT EAG CAD LTS PSP SPE IGS CAD 1.2 3.2 5.5 0.022 0.026 82 SMT 7440894
74408941022
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 2.1 3.6 0.056 0.066 65 SMT 7440894
74408942022
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 2.5 4 0.038 0.045 54 SMT 7440894
74408943022
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.2 3 4.6 0.026 0.03 85 SMT 7440894
74408941029
STE ALT EAG CAD LTS PSP SPE IGS CAD 2.9 1.55 3 0.085 0.101 55 SMT
74408942033
STE ALT EAG CAD LTS PSP SPE IGS CAD 3.3 2.1 3.5 0.0483 0.057 44 SMT 7440894
74408943033
STE ALT EAG CAD LTS PSP SPE IGS CAD 3.3 2.6 3.6 0.031 0.036 64 SMT 7440894
74408941035
STE ALT EAG CAD LTS PSP SPE IGS CAD 3.5 1.5 2.8 0.095 0.113 52 SMT 7440894
74408942047
STE ALT EAG CAD LTS PSP SPE IGS CAD 4.7 1.55 2.9 0.0868 0.103 38 SMT 7440894
74408943047
STE ALT EAG CAD LTS PSP SPE IGS CAD 4.7 2.2 3.2 0.045 0.052 44 SMT 7440894
74408941050
STE ALT EAG CAD LTS PSP SPE IGS CAD 5 1.4 2.5 0.117 0.14 43 SMT 744728
74408941068
STE ALT EAG CAD LTS PSP SPE IGS CAD 6.8 1.1 2.1 0.16 0.19 40 SMT 7440894
74408942068
STE ALT EAG CAD LTS PSP SPE IGS CAD 6.8 1.45 2.4 0.11 0.13 30 SMT
74408943068
STE ALT EAG CAD LTS PSP SPE IGS CAD 6.8 2 2.7 0.051 0.059 34 SMT
74408941078
STE ALT EAG CAD LTS PSP SPE IGS CAD 7.8 1.05 1.9 0.195 0.23 35 SMT
74408942082
STE ALT EAG CAD LTS PSP SPE IGS CAD 8.2 1.4 2.2 0.113 0.134 26 SMT
74408943082
STE ALT EAG CAD LTS PSP SPE IGS CAD 8.2 1.75 2.2 0.07 0.081 32 SMT
74408941089
STE ALT EAG CAD LTS PSP SPE IGS CAD 8.9 0.95 1.7 0.203 0.24 33 SMT
74408941100
STE ALT EAG CAD LTS PSP SPE IGS CAD 10 0.9 1.6 0.21 0.248 33 SMT 7440894
74408942100
STE ALT EAG CAD LTS PSP SPE IGS CAD 10 1.38 2.1 0.125 0.148 25 SMT 7440894
74408943100
STE ALT EAG CAD LTS PSP SPE IGS CAD 10 1.65 2.1 0.082 0.094 28 SMT 7440894
744728
74408941150
STE ALT EAG CAD LTS PSP SPE IGS CAD 15 0.75 1.35 0.365 0.43 24 SMT
74408942150
STE ALT EAG CAD LTS PSP SPE IGS CAD 15 1.1 1.6 0.207 0.245 19 SMT 7440894
74408943150
STE ALT EAG CAD LTS PSP SPE IGS CAD 15 1.4 1.7 0.118 0.136 22 SMT
74408941220
STE ALT EAG CAD LTS PSP SPE IGS CAD 22 0.65 1.1 0.465 0.549 20 SMT 7440894
74408942220
STE ALT EAG CAD LTS PSP SPE IGS CAD 22 0.85 1.3 0.3 0.354 14 SMT 7440894
74408943220
STE ALT EAG CAD LTS PSP SPE IGS CAD 22 1.1 1.4 0.185 0.213 19 SMT 7440894
744728
74408941330
STE ALT EAG CAD LTS PSP SPE IGS CAD 33 0.45 0.9 0.86 1.015 15 SMT 7440894
74408942330
STE ALT EAG CAD LTS PSP SPE IGS CAD 33 0.75 1.1 0.424 0.5 12 SMT 7440894
74408943330
STE ALT EAG CAD LTS PSP SPE IGS CAD 33 0.9 1.2 0.259 0.298 14 SMT 7440894
74408941470
STE ALT EAG CAD LTS PSP SPE IGS CAD 47 0.4 0.75 0.96 1.133 14 SMT 7440894
74408942470
STE ALT EAG CAD LTS PSP SPE IGS CAD 47 0.66 1 0.515 0.608 10 SMT 7440894
74408943470
STE ALT EAG CAD LTS PSP SPE IGS CAD 47 0.8 1.05 0.305 0.351 12 SMT 7440894
74408942560
STE ALT EAG CAD LTS PSP SPE IGS CAD 56 0.51 0.82 0.78 0.92 9.5 SMT
74408943560
STE ALT EAG CAD LTS PSP SPE IGS CAD 56 0.7 0.9 0.418 0.481 11 SMT
74408942680
STE ALT EAG CAD LTS PSP SPE IGS CAD 68 0.49 0.75 0.864 1.02 8 SMT
74408943680
STE ALT EAG CAD LTS PSP SPE IGS CAD 68 0.6 0.85 0.608 0.7 9.5 SMT 7440894
74408942820
STE ALT EAG CAD LTS PSP SPE IGS CAD 82 0.46 0.68 0.94 1.11 7 SMT 7440894
74408943820
STE ALT EAG CAD LTS PSP SPE IGS CAD 82 0.58 0.8 0.689 0.75 8 SMT
74408943101
STE ALT EAG CAD LTS PSP SPE IGS CAD 100 0.52 0.68 0.77 0.85 7.8 SMT 7440894
744728
