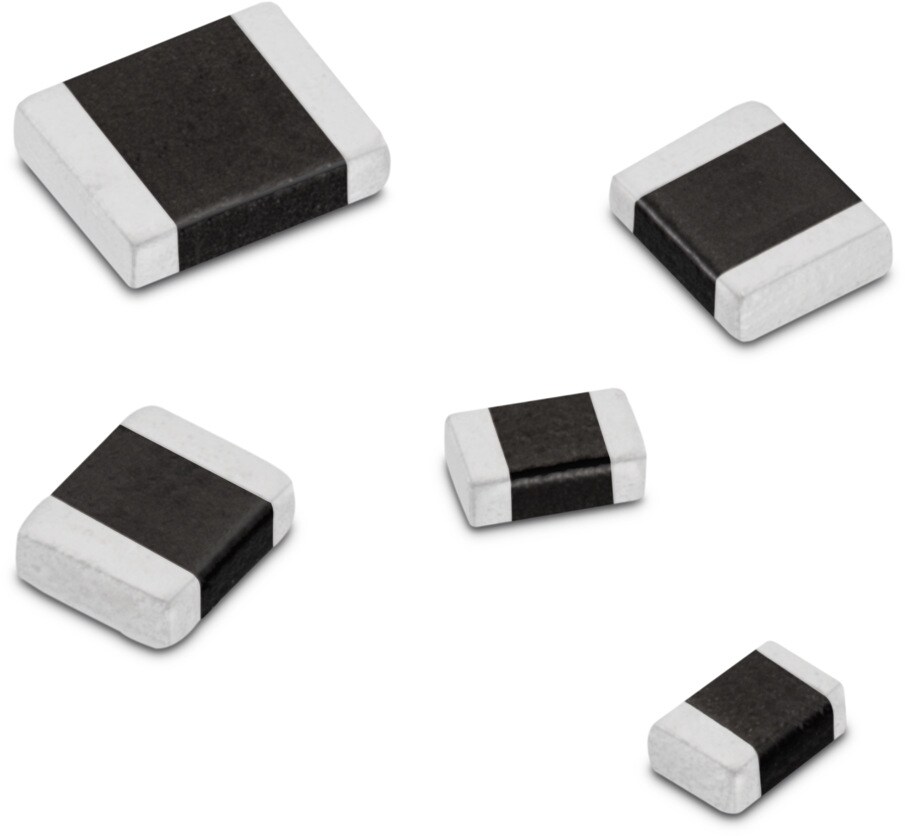

WE-PMCI Power Molded Chip Inductor

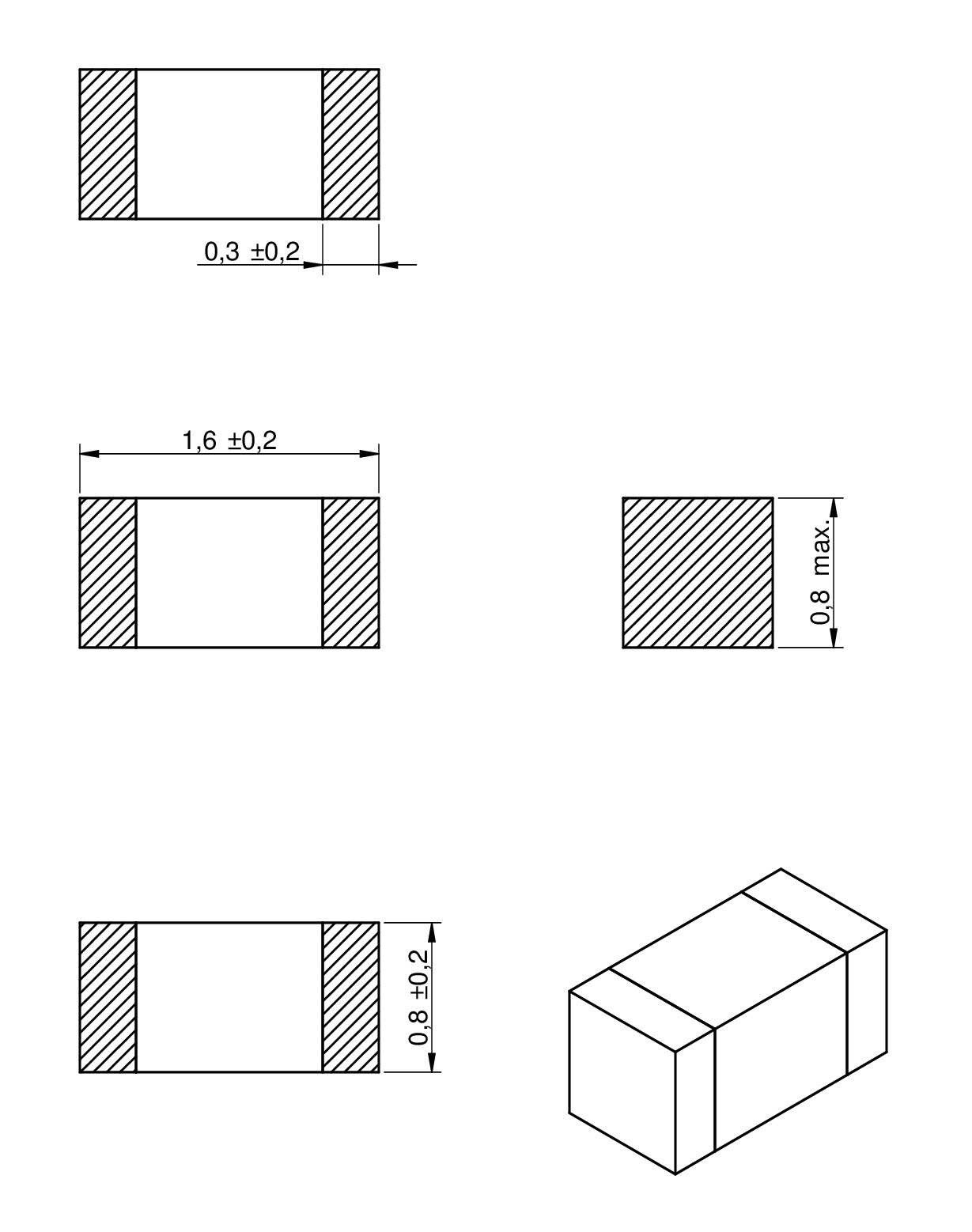

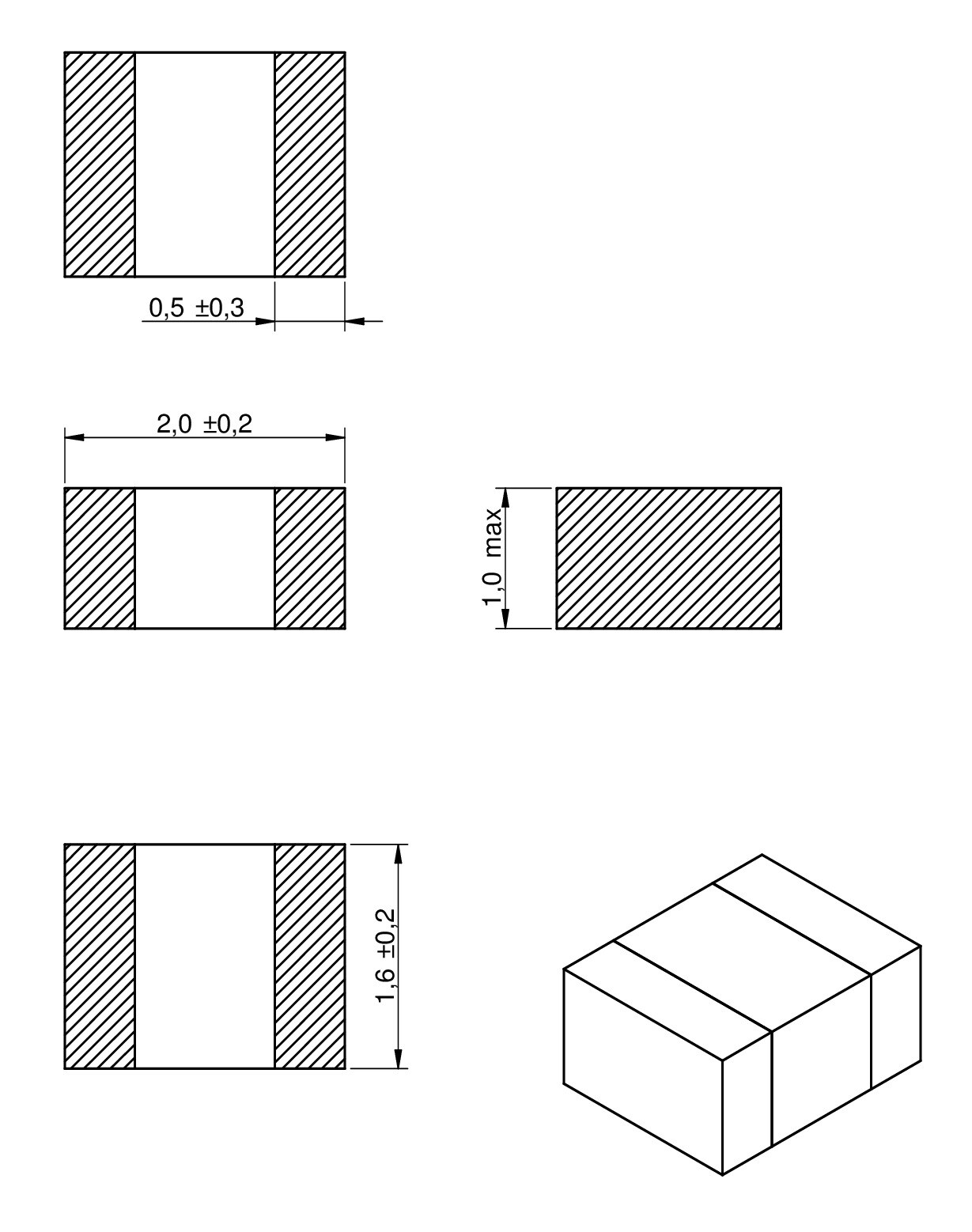

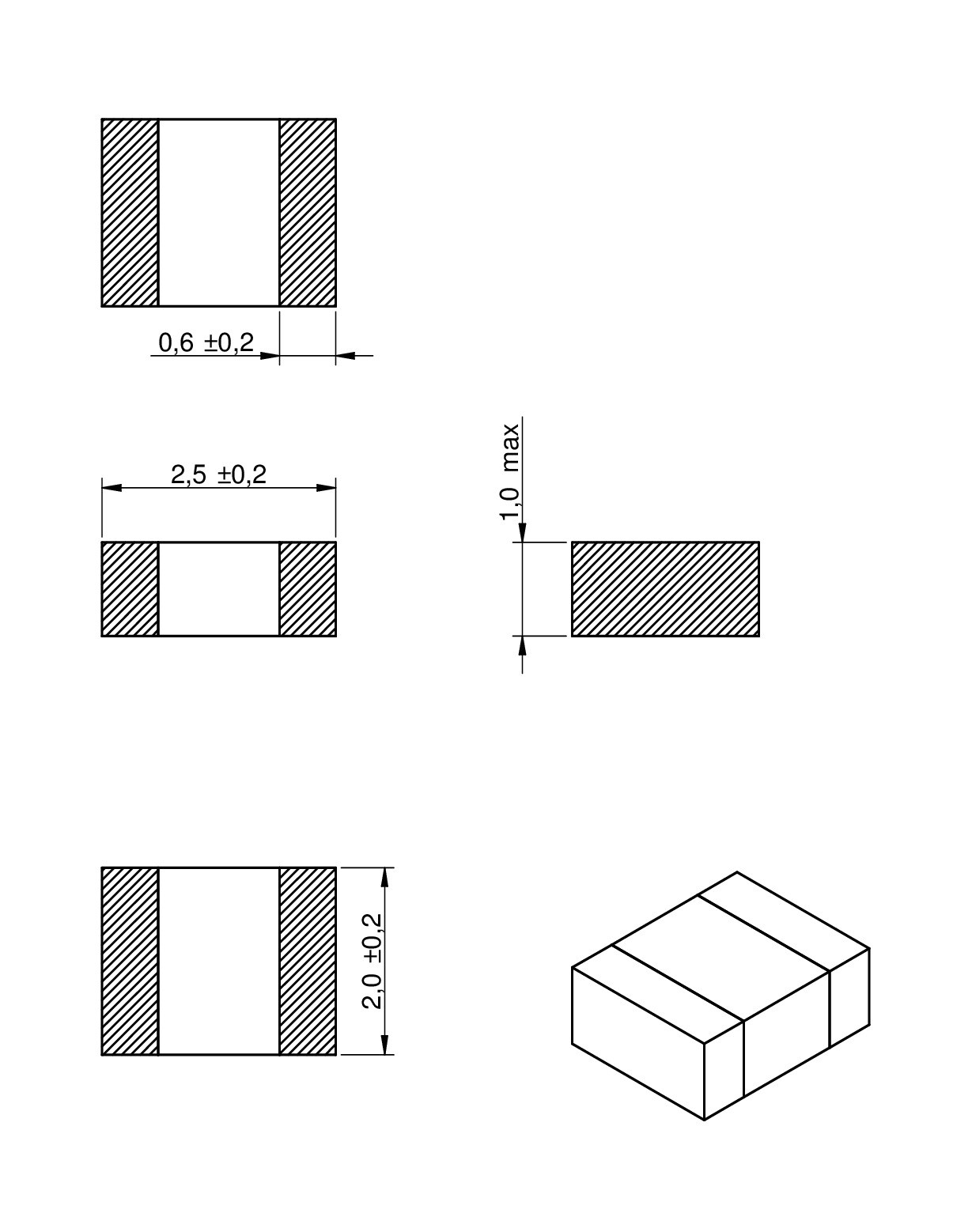

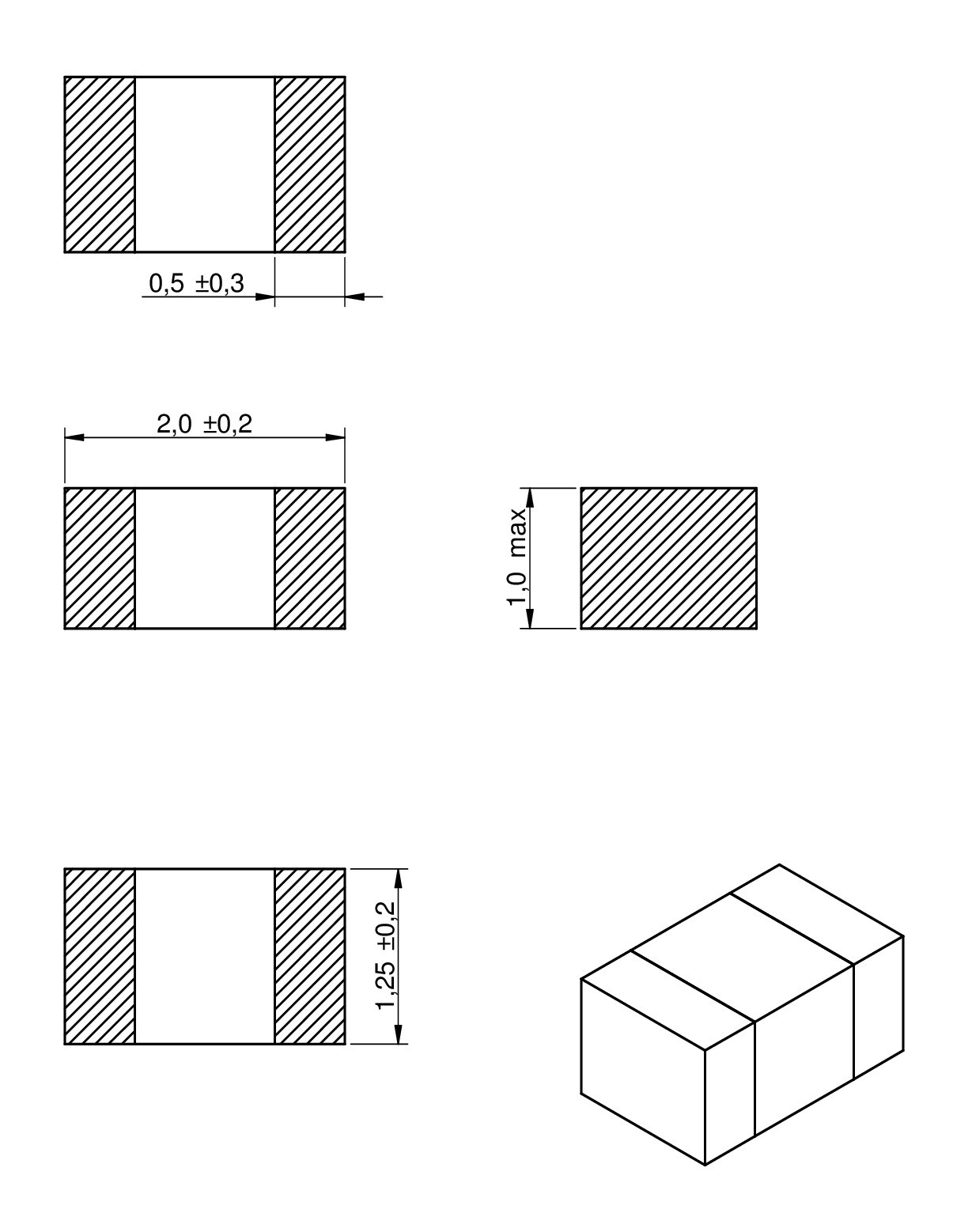

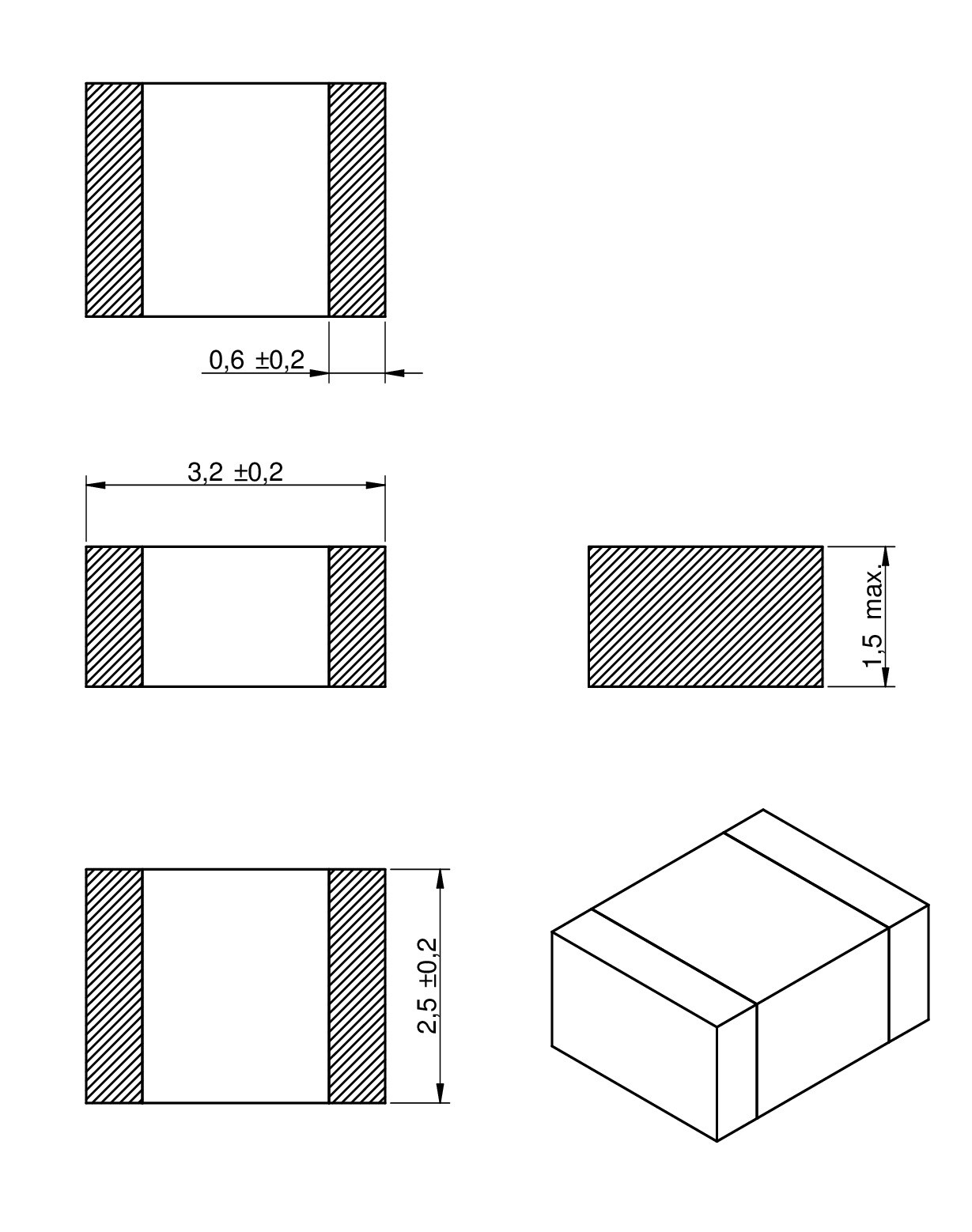

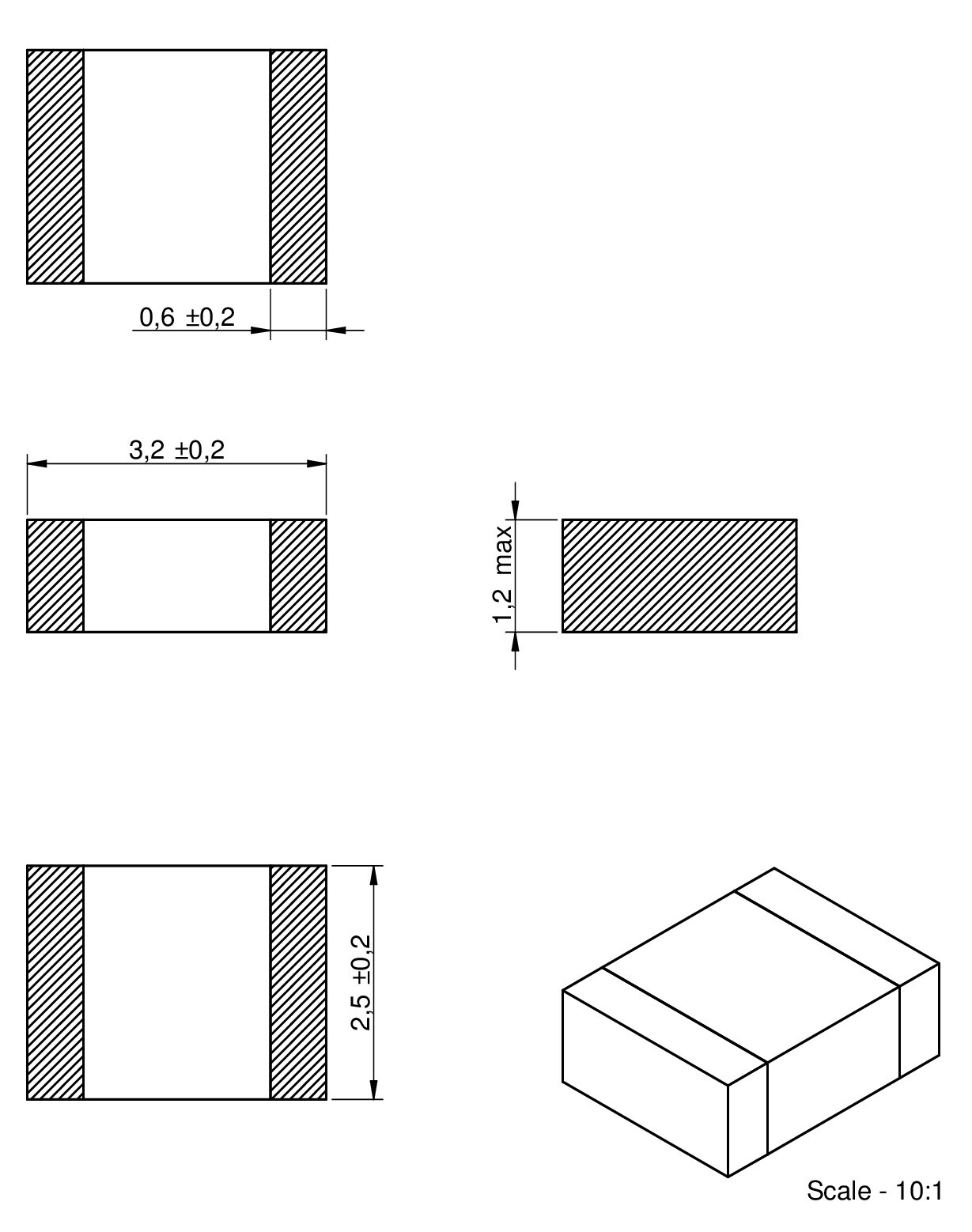

Size	L (mm)	W (mm)	H (mm)	Fl (mm)	Mount
0603 LP	1.6	0.8	0.8	0.3	SMT
0805	2	1.25	1	0.5	SMT
0806	2	1.6	1	0.5	SMT
0806 LR	2	1.6	1	0.5	SMT
1008	2.5	2	1	0.6	SMT
1008 HS	2.5	2	1.2	0.6	SMT
1210	3.2	2.5	1	0.6	SMT
1210 HS	3.2	2.5	-	0.6	SMT

LTSpice files

LT
LTSpice_WE-PMCI (rev22a).zip
|
2.1 KB

Characteristics

Compact inductor chip type
High efficiency
Suitable for applications with high currents up to 11,05 A. Very high DC-Bias current
Very small electrical resistance, smallest RDC-Values starting at 21 mΩ
Magnetically shielded construction: No crosstalk
Operating temperature: –40 °C to +125 °C
Available in five sizes and three different types (Low Profile, Standard and High Saturation Current)
Recommended soldering profile: Reflow

Applications

DC/DC converters especially at high switching frequencies > 1 MHz
High current power supply, Battery powered devices
Powerable electronic devices with very low profile
Portable devices like Smart Phones, Tablets, Notebooks and Digital Cameras

Application Notes
