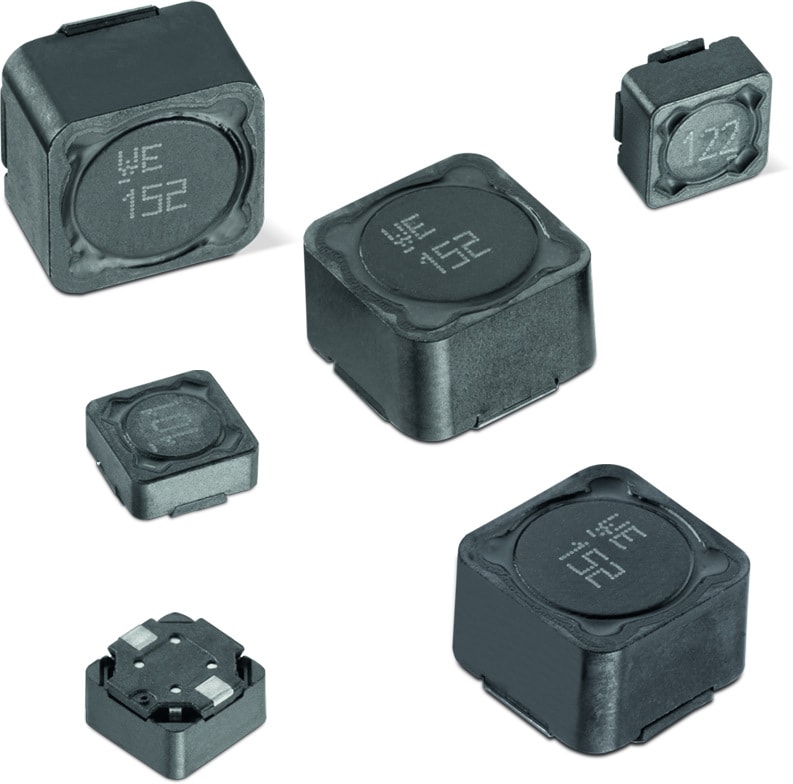

| Size | Series Datasheet | Dimensions | L (mm) | W (mm) | H (mm) | Mount | |
|---|---|---|---|---|---|---|---|
| 7332 | SPEC | 7.3 | 7.3 | 3.2 | SMT | ||

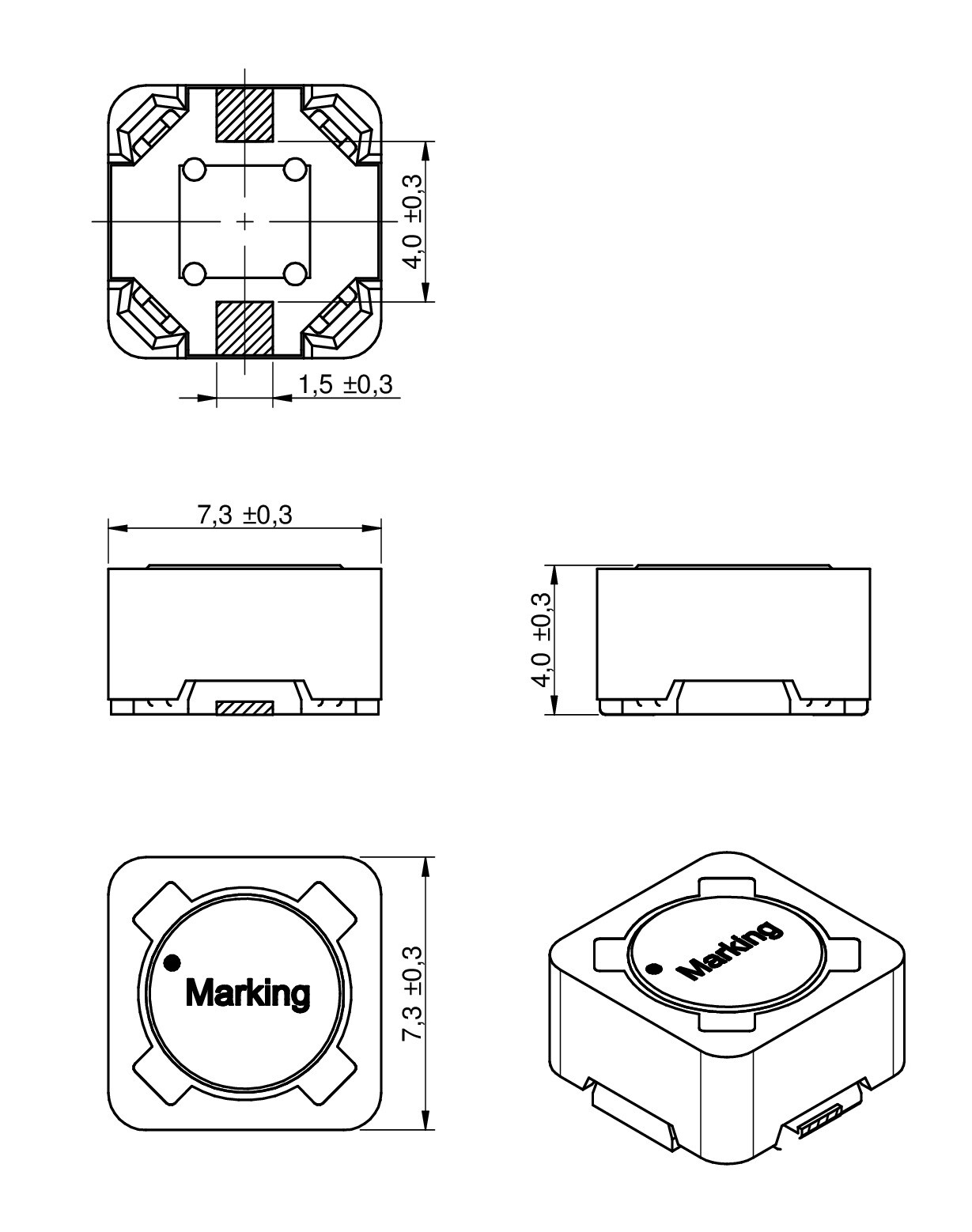

| 7345 | SPEC | 7.3 | 7.3 | 4 | SMT | ||

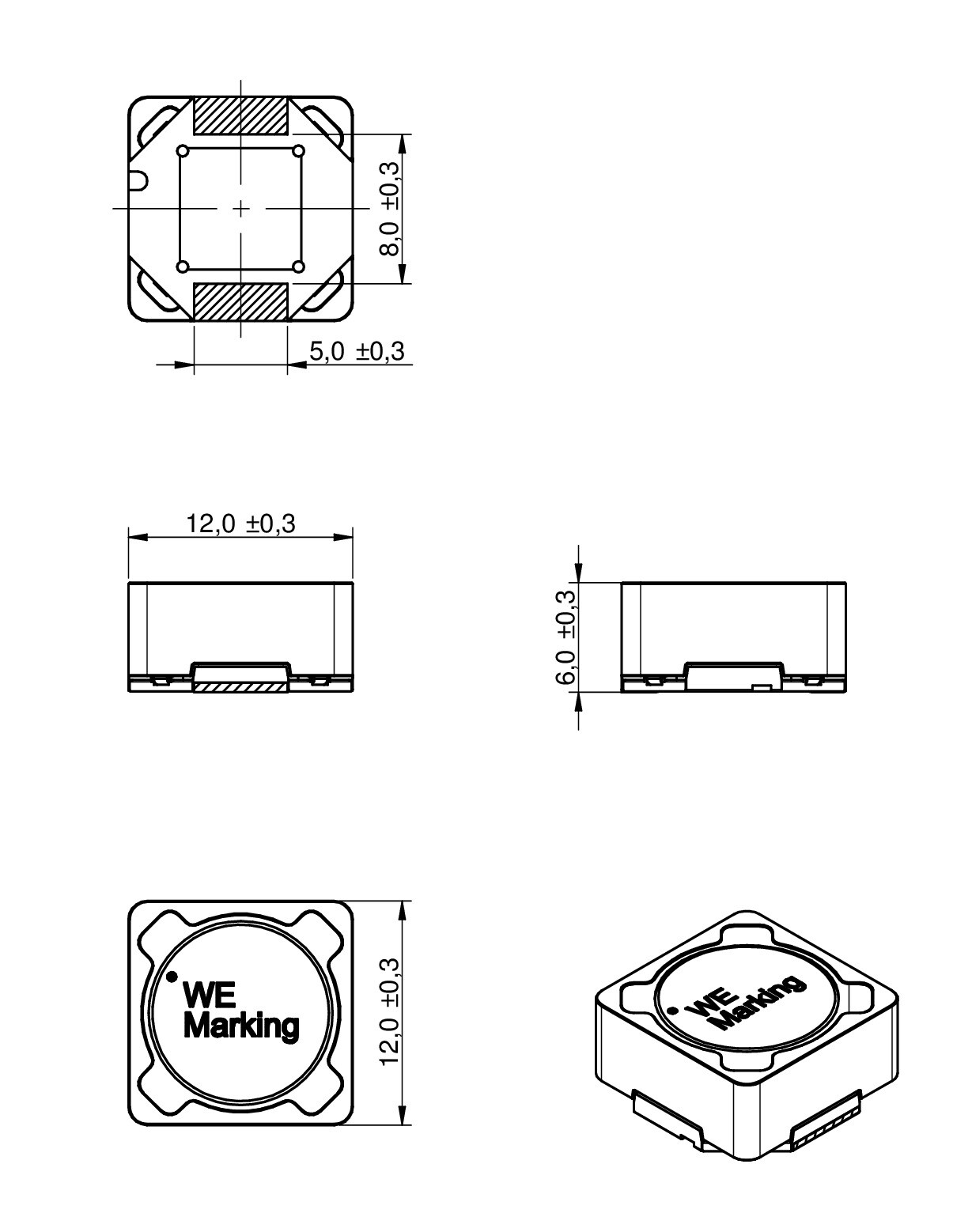

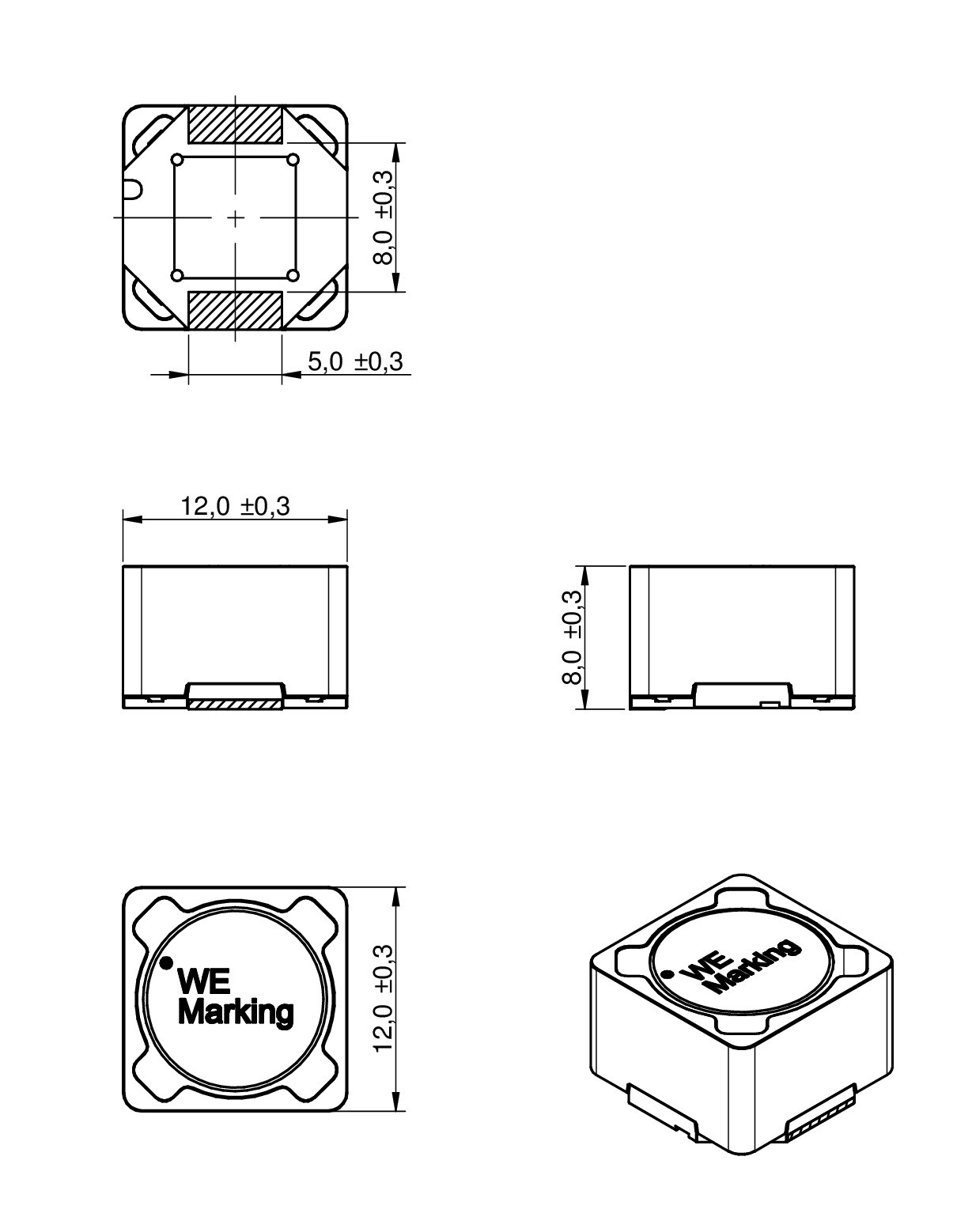

| 1260 | SPEC | 12 | 12 | 6 | SMT | ||
| 1050 | SPEC | 10 | 10 | 5 | SMT |
LTSpice files
Characteristics
- Magnetically shielded version which results in a low leakage field High storage capacity
- Very low self-losses at high switching frequency's
- Wide inductance spectrum available at all sizes
- Core Material: NiZn
- Wire connection: welding technology
- Automotive approved
- Size 1050: Operating temperature -50°C up to +150°C
- Size 7332, 7345, 1260: Operating temperature -40°C up to +125°C
Applications
- Multimedia applications
- Switching regulators with low operating voltages
- Integrated DC/DC-converter
- Perfect suitable for switching regulators with extremely high efficiency
- Plastic base: Because of the one piece construction these are more suitable for high vibration or shock applications
Products
| Order Code | Datasheet | Simulation | Downloads | Status | L (µH) | IR (A) | ISAT (A) | RDC max. (mΩ) | fres (MHz) | Mount | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 784778010 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 1 | 3.5 | 7 | 36 | 183.7 | SMT | – | ||
| 784777010 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 1 | 3.7 | 8 | 38.5 | 195 | SMT | – | ||
| 784771010 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 1 | 9 | 16.5 | 8.5 | 139.4 | SMT | 78477101 | ||
| 784778022 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 2.2 | 3.1 | 5 | 50 | 110.5 | SMT | – | ||
| 784777022 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 2.2 | 2.7 | 5.25 | 61 | 95.2 | SMT | – | ||
| 784771022 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 2.2 | 7.2 | 10.5 | 12.5 | 82.7 | SMT | – | ||
| 784778033 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 3.3 | 2.65 | 3.7 | 65 | 71.3 | SMT | – | ||
| 784777033 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 3.3 | 2.5 | 4.7 | 70 | 87.5 | SMT | – | ||
| 784771033 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 3.3 | 6.5 | 9 | 14.5 | 68.1 | SMT | – | ||
| 7847714033 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 3.3 | 7.11 | 9.4 | 15 | 29 | SMT | 78477101 | ||
| 784778047 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 4.7 | 2.4 | 3.1 | 79 | 52 | SMT | – | ||
| 784777047 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 4.7 | 2.35 | 3.7 | 84 | 64.7 | SMT | – | ||
| 784771047 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 4.7 | 6.2 | 8 | 17.5 | 49.8 | SMT | – | ||
| 7847714047 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 4.7 | 6.81 | 8.2 | 17 | 25 | SMT | – | ||
| 784778068 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 6.8 | 2.3 | 2.5 | 94 | 40.7 | SMT | – | ||
| 784777068 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 6.8 | 2.2 | 3.2 | 98 | 47.3 | SMT | – | ||
| 784771068 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 6.8 | 5.5 | 6 | 21.5 | 25.5 | SMT | 78477101 | ||
| 784778082 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 8.2 | 2.2 | 2.4 | 103 | 36.9 | SMT | – | ||
| 784777082 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 8.2 | 2 | 2.8 | 117 | 36.7 | SMT | – | ||
| 784771082 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 8.2 | 5.05 | 5.5 | 24 | 25.2 | SMT | – | ||
| 784778100 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 10 | 1.85 | 2.2 | 126 | 34.1 | SMT | – | ||
| 784777100 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 10 | 1.9 | 2.6 | 126 | 32.5 | SMT | – | ||
| 784771100 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 10 | 5 | 5.25 | 26.5 | 22.3 | SMT | 78477101 | ||
| 7847714100 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 10 | 5.12 | 5.6 | 32 | 16.75 | SMT | 78477101 | ||
| 784778220 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 22 | 1.55 | 1.6 | 187 | 17.2 | SMT | – | ||
| 784777220 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 22 | 1.4 | 1.8 | 215 | 18.5 | SMT | – | ||
| 784771220 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 22 | 3.2 | 3.5 | 40 | 14.9 | SMT | 78477101 | ||
| 7847714220 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 22 | 3.13 | 3.7 | 75 | 9.6 | SMT | 78477101 | ||
| 784771330 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 33 | 2.8 | 2.9 | 62.5 | 11.5 | SMT | – | ||
| 7847714330 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 33 | 2.92 | 3 | 95 | 8.4 | SMT | 78477101 | ||
| 784778470 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 47 | 1.1 | 1.05 | 348 | 13.5 | SMT | – | ||
| 784777470 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 47 | 1.15 | 1.25 | 300 | 10 | SMT | – | ||
| 784771470 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 47 | 2.3 | 2.5 | 77 | 10.1 | SMT | 78477101 | ||
| 7847714470 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 47 | 2.26 | 2.45 | 148 | 6.4 | SMT | 78477101 | ||
| 784771680 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 68 | 1.8 | 2 | 138 | 8 | SMT | – | ||
| 7847714680 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 68 | 1.85 | 1.9 | 176.4 | 5.53 | SMT | 78477101 | ||
| 784778101 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 100 | 0.72 | 0.75 | 720 | 9.7 | SMT | – | ||
| 784777101 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 100 | 0.72 | 0.8 | 470 | 7.5 | SMT | – | ||
| 784771101 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 100 | 1.5 | 1.7 | 174 | 6.5 | SMT | 78477101 | ||
| 7847714101 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 100 | 1.43 | 1.6 | 294 | 4.4 | SMT | 78477101 | ||
| 784778221 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 220 | 0.48 | 0.5 | 1620 | 6.1 | SMT | – | ||
| 784777221 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 220 | 0.5 | 0.55 | 1135 | 3.9 | SMT | – | ||
| 784771221 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 220 | 0.99 | 1.1 | 348 | 3.9 | SMT | – | ||
| 7847714221 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 220 | 1.05 | 1.2 | 708 | 2.9 | SMT | 78477101 | ||
| 784771331 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 330 | 0.8 | 0.9 | 594 | 3.3 | SMT | 78477101 | ||
| 784777331 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 330 | 0.4 | 0.45 | 1872 | 4.2 | SMT | – | ||
| 7847714331 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 330 | 0.9 | 1 | 900 | 2.4 | SMT | – | ||
| 784778471 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 470 | 0.3 | 0.35 | 3300 | 3.9 | SMT | – | ||
| 784777471 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 470 | 0.35 | 0.38 | 2720 | 2.9 | SMT | – | ||
| 784771471 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 470 | 0.65 | 0.75 | 706 | 2.9 | SMT | – | ||
| 784778102 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 0.23 | 0.25 | 7200 | 2.5 | SMT | – | ||
| 784777102 | SPEC | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 0.25 | 0.28 | 5750 | 2 | SMT | – | ||
| 784771102 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | 9 files | Active i| Production is active. Expected lifetime: >10 years. | 1000 | 0.48 | 0.53 | 1705 | 1.9 | SMT | – |
| Order Code | Datasheet | Simulation |
|---|---|---|
| 784778010 | SPEC | |
| 784777010 | SPEC | |
| 784771010 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778022 | SPEC | |
| 784777022 | SPEC | |
| 784771022 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778033 | SPEC | |
| 784777033 | SPEC | |
| 784771033 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 7847714033 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778047 | SPEC | |
| 784777047 | SPEC | |
| 784771047 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 7847714047 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778068 | SPEC | |
| 784777068 | SPEC | |
| 784771068 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778082 | SPEC | |
| 784777082 | SPEC | |
| 784771082 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778100 | SPEC | |
| 784777100 | SPEC | |
| 784771100 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 7847714100 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778220 | SPEC | |
| 784777220 | SPEC | |
| 784771220 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 7847714220 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784771330 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 7847714330 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778470 | SPEC | |
| 784777470 | SPEC | |
| 784771470 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 7847714470 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784771680 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 7847714680 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778101 | SPEC | |
| 784777101 | SPEC | |
| 784771101 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 7847714101 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778221 | SPEC | |
| 784777221 | SPEC | |
| 784771221 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 7847714221 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784771331 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784777331 | SPEC | |
| 7847714331 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778471 | SPEC | |
| 784777471 | SPEC | |
| 784771471 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. | |
| 784778102 | SPEC | |
| 784777102 | SPEC | |
| 784771102 | SPEC PCN pendingDue to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. |
| Samples |
|---|
| Order Code | Datasheet | Simulation | Downloads | Status | L (µH) | IR (A) | ISAT (A) | RDC max. (mΩ) | fres (MHz) | Mount | Design Kit | Samples |
|---|
Sizes
WE- PDA 7332, 7345
AEC-Q200-40 up to +125 °C
WE-PDA 1260
AEC-Q200-40 up to +125 °C
WE-PDA 1050
AEC-Q200-50 up to +150 °C
