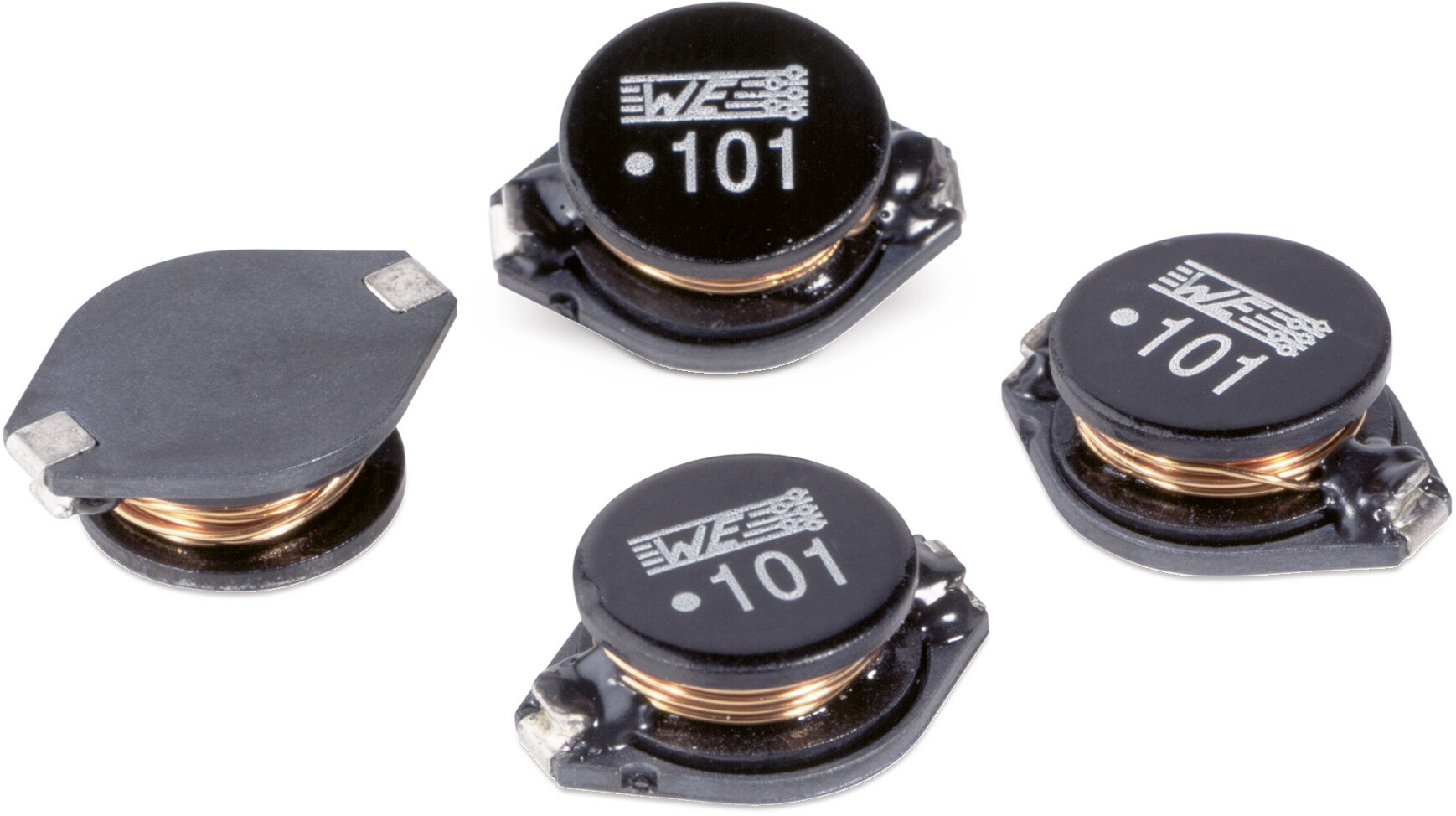

| Size | L
(mm) |
W
(mm) |
H
(mm) |
Mount | ||
|---|---|---|---|---|---|---|

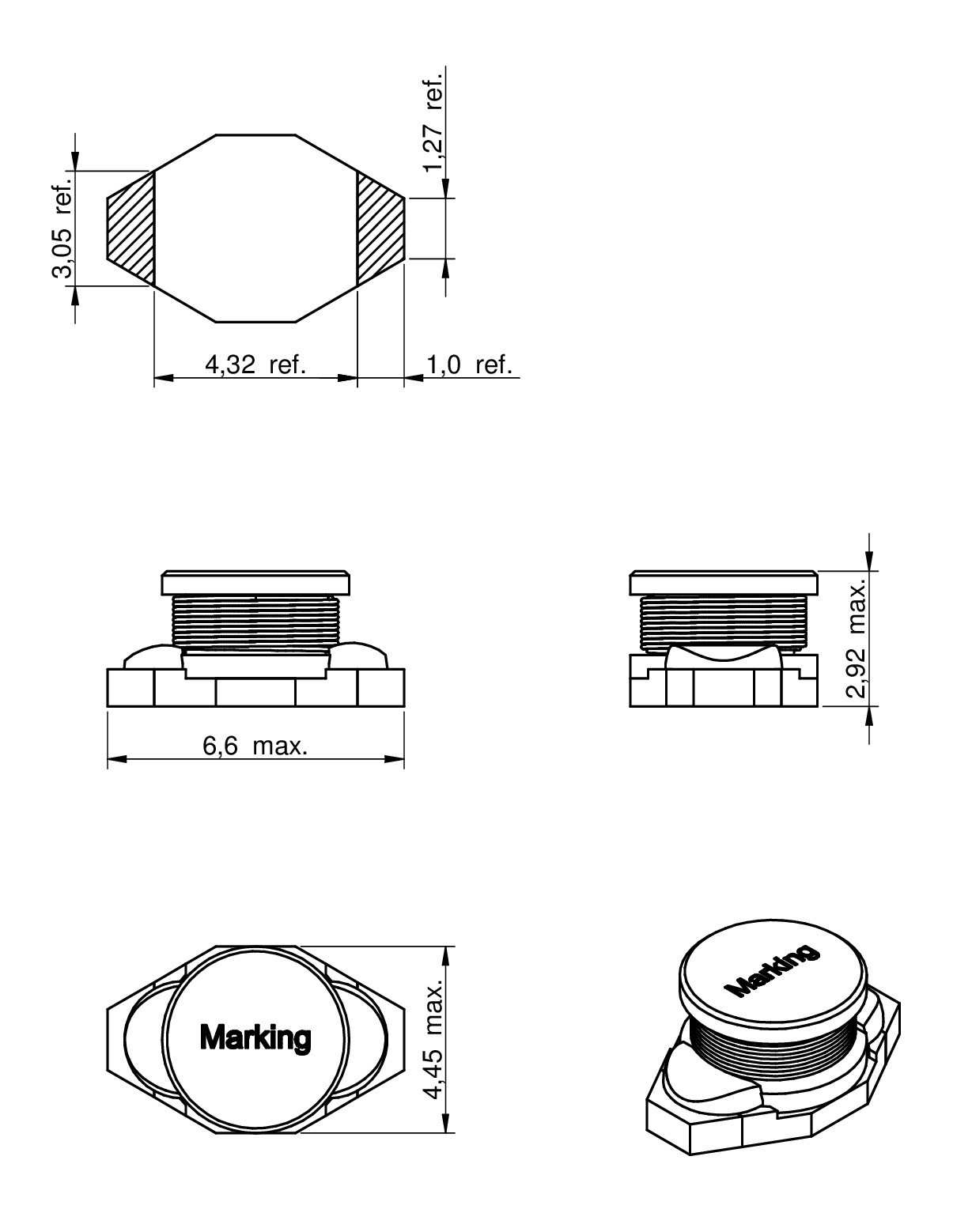

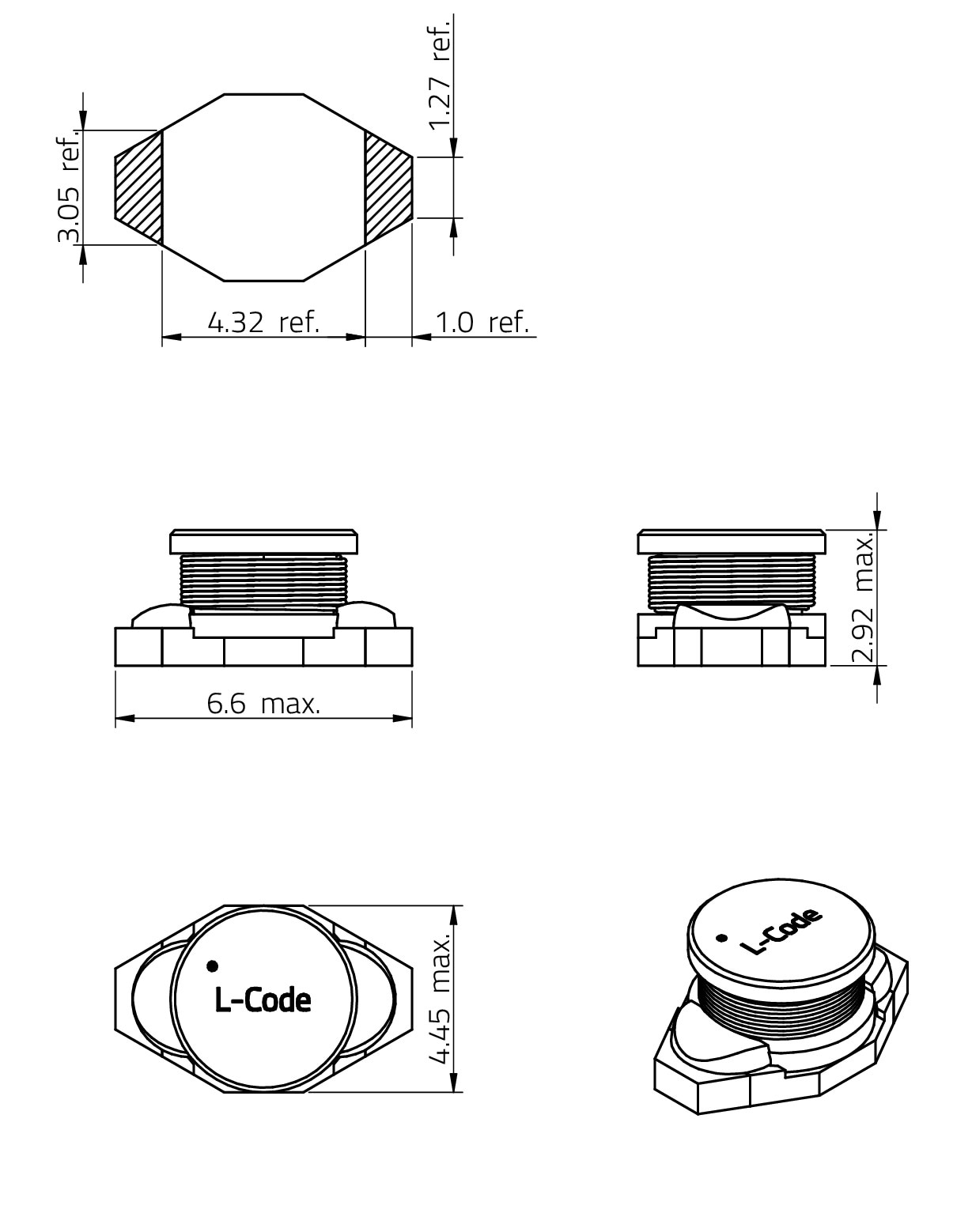

| Type S | 6.6 | 4.45 | 2.92 | SMT |
|
|

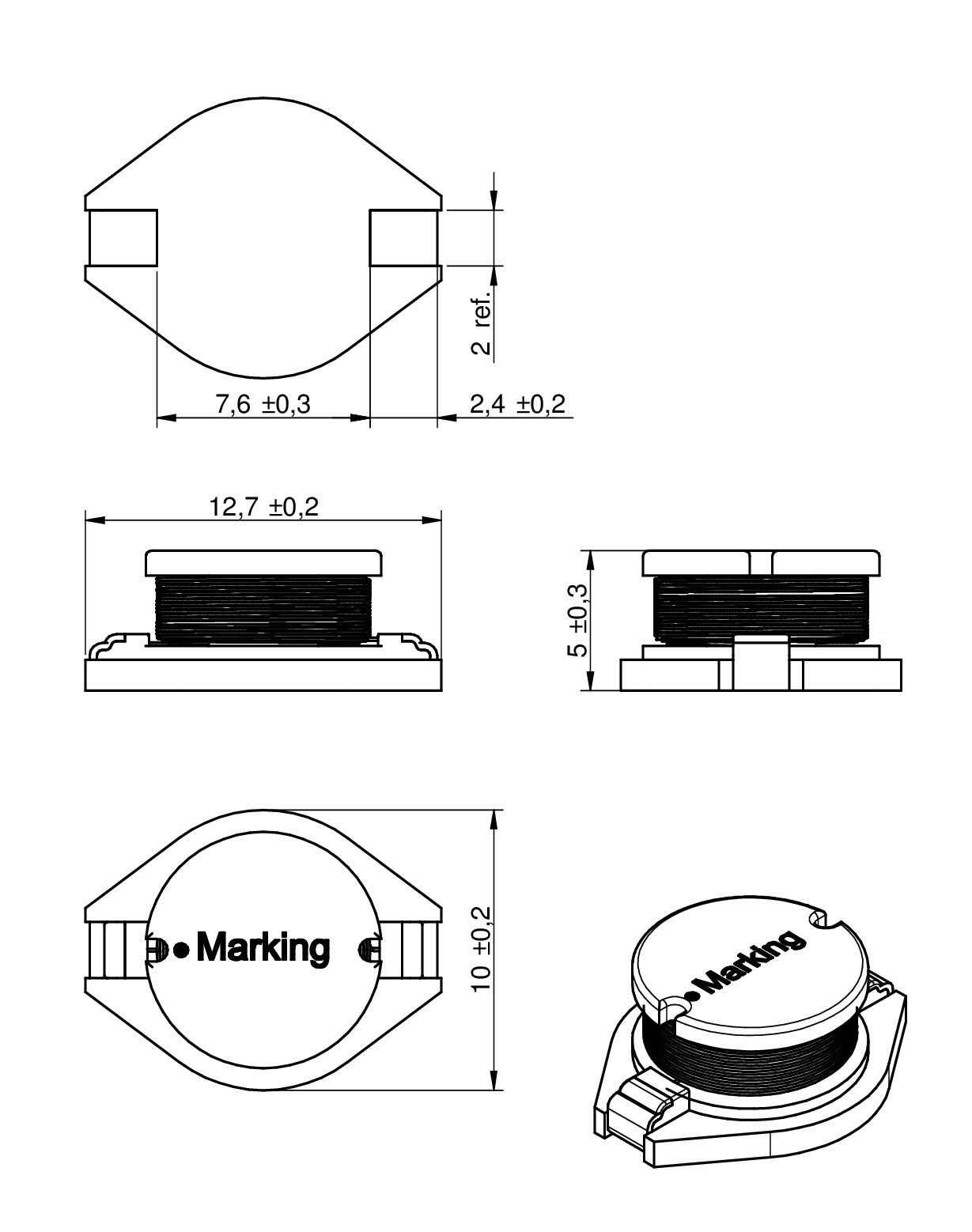

| Type L | 12.7 | 10 | 5 | SMT |
|
|

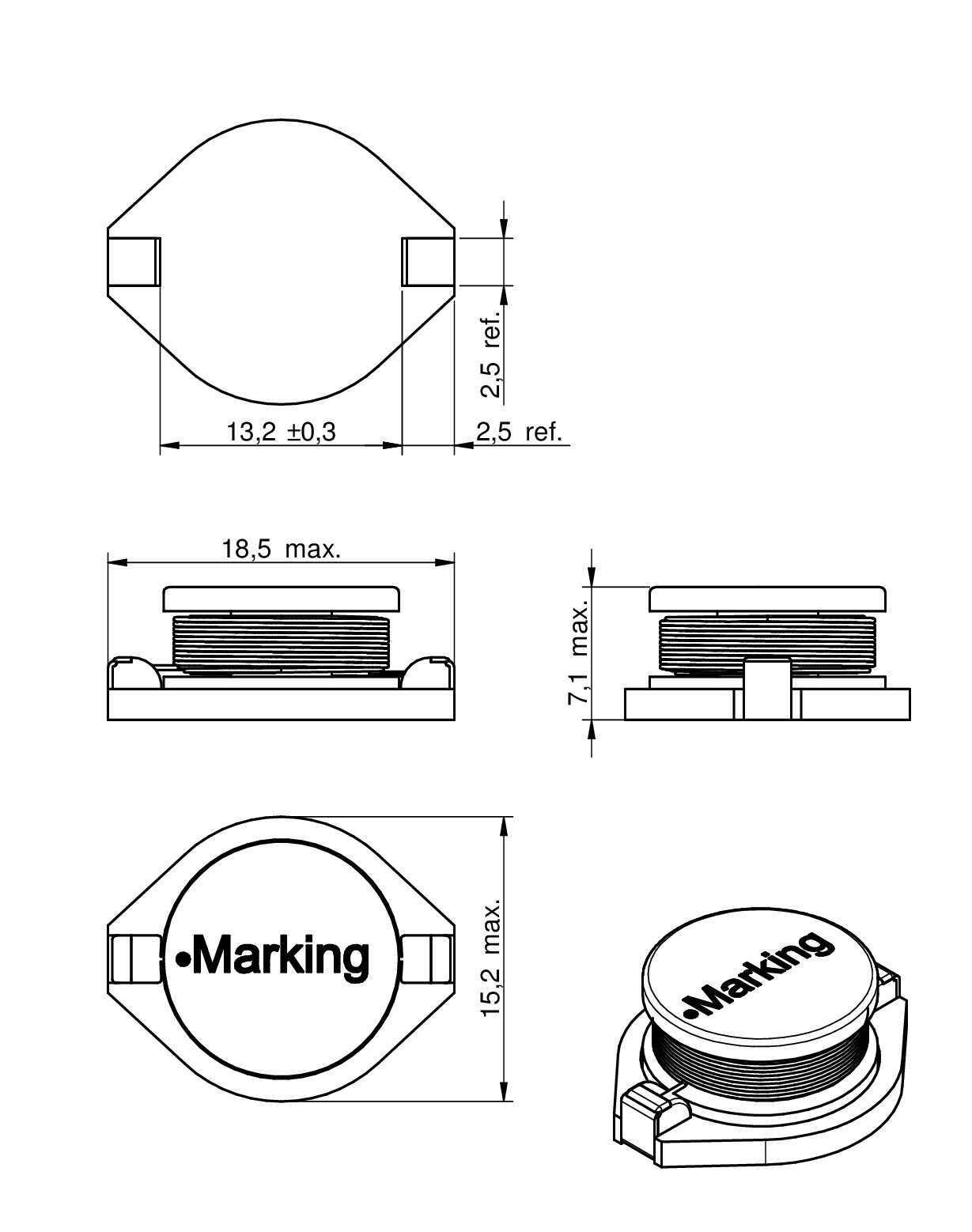

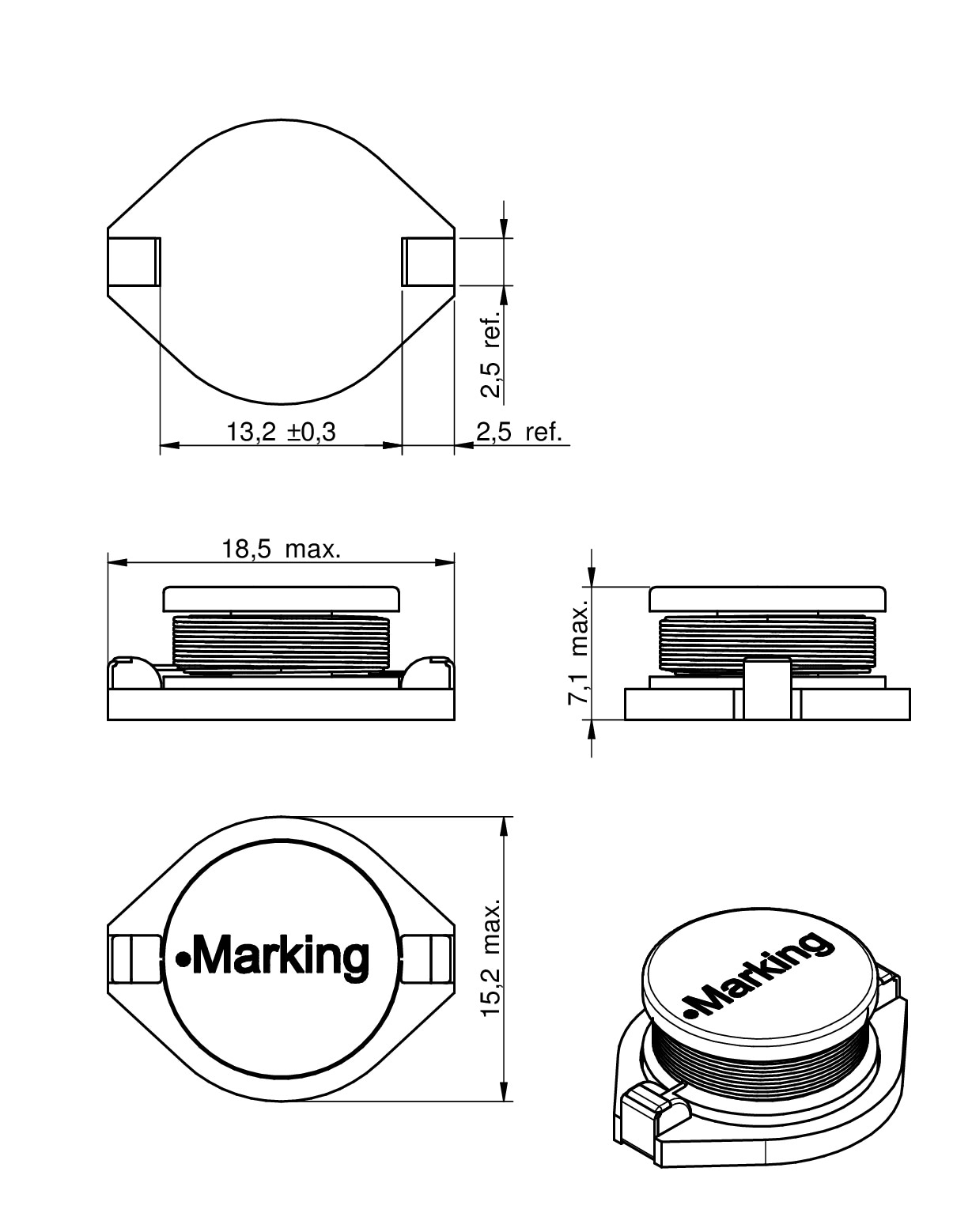

| Type X | 18.54 | 15.24 | 7.11 | SMT |
|
|

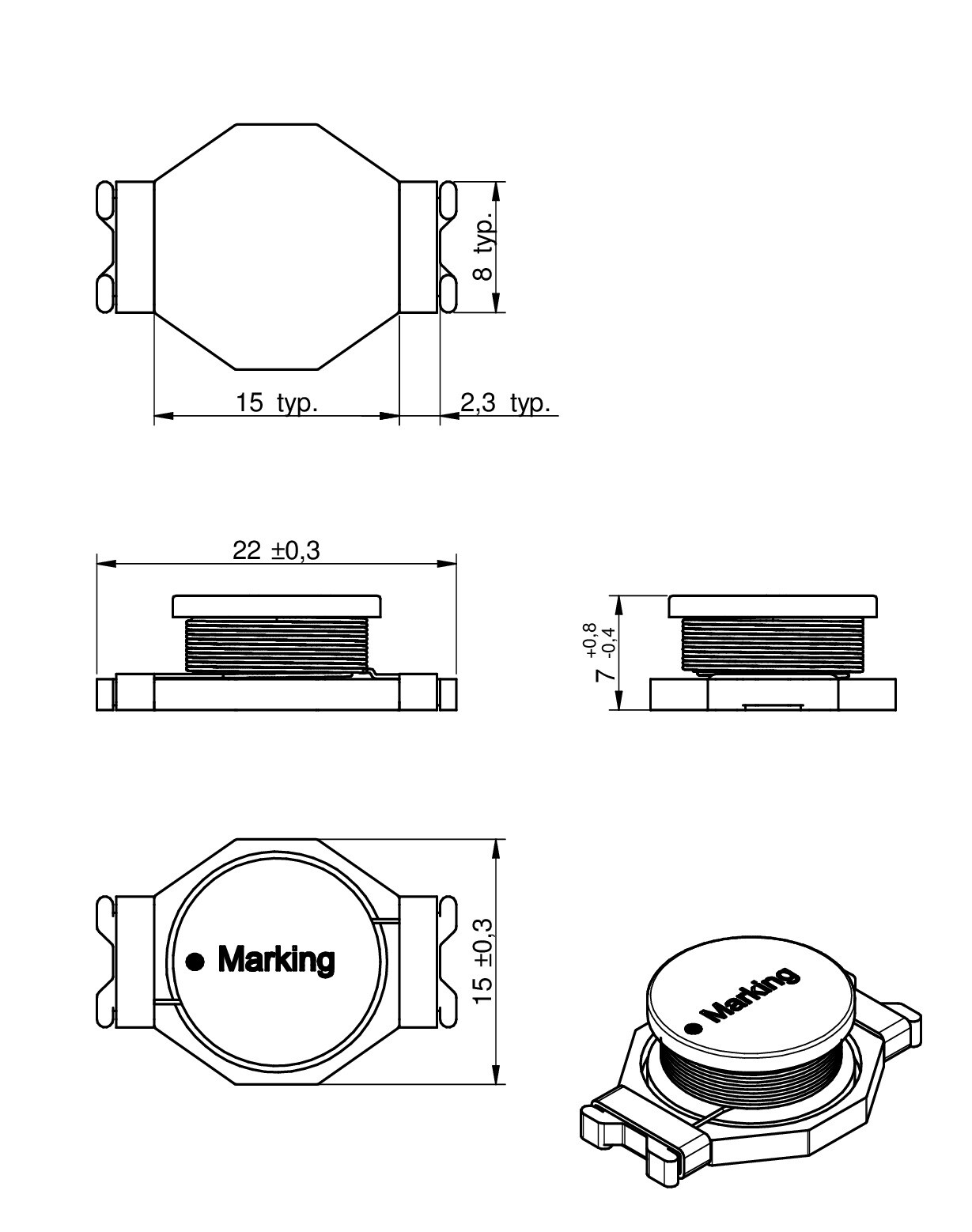

| Type XL | 22 | 15 | 7 | SMT |
|
Characteristics
- Current loading up to 38 A
- Compact size
- Low-loss ferrite core
- Application frequency range up to 10 MHz
- Operating temperature: –40°C to +125°C
- Recommended solder profile: Reflow
- Now with impedance graph in datasheets
Applications
- Noise suppression, EMI Filter
- Perfectly suitable for switching regulators e.g. National Semiconductor, Linear Technology, Maxim, Semtech, Texas Instruments, Fairchild Semiconductor, Cologne Chip, ON Semiconductor, STMicroelectronics, MPS, Exar, Analogic Tech and Diodes
Products
All
Type S
Type L
Type X
Type XL
| Order Code | SPEC | Downloads | L
(µH) |
L1
(µH) |
IR
(A) |
IR 1
(A) |
ISAT
(A) |
ISAT 1
(A) |
RDC typ.
(Ω) |
RDC max.
(Ω) |
RDC1 typ
(Ω) |
RDC1 max.
(Ω) |
fres
(MHz) |
fres 1
(MHz) |
Mount | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7445601 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | 1 | – | 8.6 | – | 14.25 | – | 0.004 | 0.007 | – | – | 95 | – | SMT | |
| 7445501 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 1 | – | 2.9 | – | 2.9 | – | – | 0.017 | 0.05 | – | 80 | SMT | |
| 74455015 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 1.5 | – | 2.8 | – | 2.6 | – | – | 0.02 | 0.05 | – | 62 | SMT | |
| 74455022 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 2.2 | – | 2.4 | – | 2.3 | – | – | 0.028 | 0.07 | – | 50 | SMT | |
| 74455033 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 3.3 | – | 2 | – | 2 | – | – | 0.044 | 0.08 | – | 39 | SMT | |
| 74455047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 4.7 | – | 1.5 | – | 1.5 | – | – | 0.063 | 0.09 | – | 37 | SMT | |
| 74455068 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 6.8 | – | 1.4 | – | 1.2 | – | – | 0.092 | 0.13 | – | 29 | SMT | |
| 7445510 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 10 | – | 1.2 | – | 1.1 | – | – | 0.121 | 0.16 | – | 26 | SMT | |
| 74455115 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 15 | – | 1.1 | – | 0.9 | – | – | 0.176 | 0.23 | – | 19 | SMT | |
| 74455122 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 22 | – | 0.8 | – | 0.7 | – | – | 0.255 | 0.37 | – | 16 | SMT | |
| 74455133 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 33 | – | 0.6 | – | 0.58 | – | – | 0.362 | 0.51 | – | 13 | SMT | |
| 74455147 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 47 | – | 0.5 | – | 0.5 | – | – | 0.556 | 0.64 | – | 12 | SMT | |
| 74455168 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 68 | – | 0.4 | – | 0.4 | – | – | 0.79 | 0.86 | – | 9.5 | SMT | |
| 7445520 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 100 | – | 0.3 | – | 0.31 | – | – | 1.08 | 1.27 | – | 8 | SMT | |
| 74455215 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 150 | – | 0.25 | – | 0.27 | – | – | 1.45 | 2 | – | 6 | SMT | |
| 74455222 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 220 | – | 0.2 | – | 0.22 | – | – | 2.58 | 3.11 | – | 4.8 | SMT | |
| 74455233 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 330 | – | 0.16 | – | 0.18 | – | – | 4.15 | 5 | – | 4 | SMT | |
| 74455247 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 470 | – | 0.16 | – | 0.15 | – | – | 5.58 | 6.8 | – | 3 | SMT | |
| 7445530 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 1000 | – | 0.07 | – | 0.1 | – | – | 11.5 | 13.8 | – | 2.2 | SMT | |
| 74456015 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 1.5 | – | 7.2 | – | 10.7 | – | – | 0.006 | 0.009 | – | 73 | SMT | |
| 74456022 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 2.2 | – | 6.5 | – | 10.2 | – | – | 0.007 | 0.011 | – | 63 | SMT | |
| 74456025 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 2.5 | – | 5.8 | – | 10 | – | – | 0.009 | 0.012 | – | 50 | SMT | |
| 74456033 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 3.3 | – | 5.3 | – | 7 | – | – | 0.011 | 0.015 | – | 41 | SMT | |
| 74456047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 4.7 | – | 5 | – | 6 | – | – | 0.015 | 0.019 | – | 38 | SMT | |
| 74456056 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 5.6 | – | 4 | – | 6 | – | – | 0.024 | 0.032 | – | 31 | SMT | |
| 74456068 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 6.8 | – | 3.8 | – | 5.1 | – | – | 0.026 | 0.034 | – | 30 | SMT | |
| 74456082 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 8.2 | – | 3.2 | – | 4.2 | – | – | 0.034 | 0.04 | – | 26 | SMT | |
| 7445610 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 10 | – | 3.3 | – | 5 | – | – | 0.035 | 0.045 | – | 23 | SMT | |
| 74456115 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 15 | – | 2.9 | – | 3.6 | – | – | 0.043 | 0.06 | – | 17 | SMT | |
| 74456122 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 22 | – | 2.6 | – | 3.1 | – | – | 0.071 | 0.095 | – | 14 | SMT | |
| 74456133 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 33 | – | 2.3 | – | 2.6 | – | – | 0.094 | 0.12 | – | 13 | SMT | |
| 74456147 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 47 | – | 1.8 | – | 2.14 | – | – | 0.142 | 0.19 | – | 10 | SMT | |
| 74456168 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 68 | – | 1.6 | – | 1.7 | – | – | 0.187 | 0.24 | – | 8.5 | SMT | |
| 7445620 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 100 | – | 1.4 | – | 1.5 | – | – | 0.253 | 0.33 | – | 6.5 | SMT | |
| 74456215 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 150 | – | 1 | – | 1.2 | – | – | 0.448 | 0.59 | – | 5.3 | SMT | |
| 74456222 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 220 | – | 0.9 | – | 1.1 | – | – | 0.601 | 0.78 | – | 4.7 | SMT | |
| 74456233 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 330 | – | 0.7 | – | 0.8 | – | – | 0.893 | 1.15 | – | 3.7 | SMT | |
| 74456247 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 470 | – | 0.6 | – | 0.65 | – | – | 1.315 | 1.7 | – | 3.1 | SMT | |
| 74456268 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 680 | – | 0.5 | – | 0.55 | – | – | 1.942 | 2.6 | – | 2.3 | SMT | |
| 7445630 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 1000 | – | 0.4 | – | 0.52 | – | – | 2.94 | 3.9 | – | 1.9 | SMT | |
| 74456322 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 2200 | – | 0.25 | – | 0.26 | – | – | 6.26 | 8.2 | – | 1.2 | SMT | |
| 74456347 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 4700 | – | 0.2 | – | 0.2 | – | – | 13.3 | 17 | – | 0.9 | SMT | |
| 74456382 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 8200 | – | 0.11 | – | 0.17 | – | – | 28 | 35 | – | 0.7 | SMT | |
| 7445640 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 10000 | – | 0.1 | – | 0.15 | – | – | 29.9 | 39 | – | 0.6 | SMT | |
| 74458001 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 1 | – | 8.6 | – | 25 | – | – | 0.005 | 0.009 | – | 70 | SMT | |
| 74458002 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 2.2 | – | 7.1 | – | 20.3 | – | – | 0.008 | 0.014 | – | 42 | SMT | |
| 74458003 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 3.3 | – | 6.2 | – | 15.8 | – | – | 0.01 | 0.018 | – | 34 | SMT | |
| 74458005 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 5.6 | – | 5.3 | – | 13.1 | – | – | 0.012 | 0.02 | – | 26 | SMT | |
| 74458010 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 10 | – | 4.3 | – | 10 | – | – | 0.021 | 0.031 | – | 20 | SMT | |
| 74458115 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 15 | – | 4 | – | 8 | – | – | 0.03 | 0.036 | – | 15 | SMT | |
| 74458122 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 22 | – | 3.5 | – | 7 | – | – | 0.043 | 0.047 | – | 13 | SMT | |
| 74458133 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 33 | – | 3 | – | 5.5 | – | – | 0.06 | 0.066 | – | 10 | SMT | |
| 74458147 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 47 | – | 2.6 | – | 4.5 | – | – | 0.076 | 0.086 | – | 8.4 | SMT | |
| 74458168 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 68 | – | 2.3 | – | 3.6 | – | – | 0.11 | 0.13 | – | 7.2 | SMT | |
| 7445820 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 100 | – | 1.8 | – | 3.4 | – | – | 0.141 | 0.19 | – | 6 | SMT | |
| 74458215 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 150 | – | 1.5 | – | 2.7 | – | – | 0.21 | 0.25 | – | 4.6 | SMT | |
| 74458220 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 220 | – | 1.2 | – | 2.4 | – | – | 0.326 | 0.38 | – | 3.5 | SMT | |
| 74458233 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 330 | – | 1 | – | 1.9 | – | – | 0.431 | 0.56 | – | 2.8 | SMT | |
| 74458247 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 470 | – | 0.82 | – | 1.6 | – | – | 0.633 | 0.85 | – | 2.3 | SMT | |
| 74458268 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 680 | – | 0.72 | – | 1.3 | – | – | 0.954 | 1.1 | – | 1.8 | SMT | |
| 7445830 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 1000 | – | 0.56 | – | 1.1 | – | – | 1.37 | 1.8 | – | 1.5 | SMT | |
| 74457006 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 0.47 | – | 18 | – | 38 | – | – | 0.001 | 0.002 | – | 120 | SMT | |
| 74457008 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 0.8 | – | 16 | – | 35 | – | – | 0.002 | 0.003 | – | 92 | SMT | |
| 74457010 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 1 | – | 15 | – | 32 | – | – | 0.003 | 0.004 | – | 88 | SMT | |
| 74457012 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 1.2 | – | 15 | – | 30 | – | – | 0.003 | 0.004 | – | 64 | SMT | |
| 74457018 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 1.8 | – | 13 | – | 25 | – | – | 0.005 | 0.005 | – | 50 | SMT | |
| 74457027 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 2.7 | – | 10 | – | 20 | – | – | 0.007 | 0.008 | – | 44 | SMT | |
| 74457033 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 3.3 | – | 9 | – | 17 | – | – | 0.008 | 0.009 | – | 39 | SMT | |
| 74457047 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 4.7 | – | 8.5 | – | 15 | – | – | 0.009 | 0.011 | – | 33 | SMT | |
| 74457056 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 5.6 | – | 7.8 | – | 14 | – | – | 0.012 | 0.015 | – | 27 | SMT | |
| 74457068 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 6.8 | – | 7.5 | – | 12 | – | – | 0.014 | 0.017 | – | 26 | SMT | |
| 74457082 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 8.2 | – | 7 | – | 11 | – | – | 0.016 | 0.019 | – | 23 | SMT | |
| 7445710 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 10 | – | 6.5 | – | 10 | – | – | 0.017 | 0.021 | – | 22 | SMT | |
| 74457112 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 12 | – | 5.5 | – | 9.5 | – | – | 0.024 | 0.028 | – | 18 | SMT | |
| 74457115 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 15 | – | 5 | – | 9 | – | – | 0.029 | 0.035 | – | 15 | SMT | |
| 74457118 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 18 | – | 4.6 | – | 8 | – | – | 0.033 | 0.04 | – | 14.5 | SMT | |
| 74457122 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 22 | – | 4 | – | 6.5 | – | – | 0.039 | 0.047 | – | 14 | SMT | |
| 74457127 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 27 | – | 3.8 | – | 6 | – | – | 0.044 | 0.052 | – | 12.5 | SMT | |
| 74457133 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 33 | – | 3.4 | – | 5.5 | – | – | 0.058 | 0.07 | – | 11.5 | SMT | |
| 74457139 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 39 | – | 3.2 | – | 5.2 | – | – | 0.065 | 0.078 | – | 10.5 | SMT | |
| 74457147 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 47 | – | 2.8 | – | 5 | – | – | 0.091 | 0.109 | – | 9.2 | SMT | |
| 74457156 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 56 | – | 2.6 | – | 4.5 | – | – | 0.097 | 0.116 | – | 8.8 | SMT | |
| 74457168 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 68 | – | 2.4 | – | 4 | – | – | 0.112 | 0.134 | – | 7.6 | SMT | |
| 74457182 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 82 | – | 2.2 | – | 3.5 | – | – | 0.144 | 0.173 | – | 7.2 | SMT | |
| 7445720 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 100 | – | 2 | – | 3 | – | – | 0.168 | 0.202 | – | 6.5 | SMT | |
| 74457212 |
|
STE ALT EAG CAD LTS PSP SPE IGS CAD | – | 120 | – | 1.6 | – | 3 | – | – | 0.196 |
