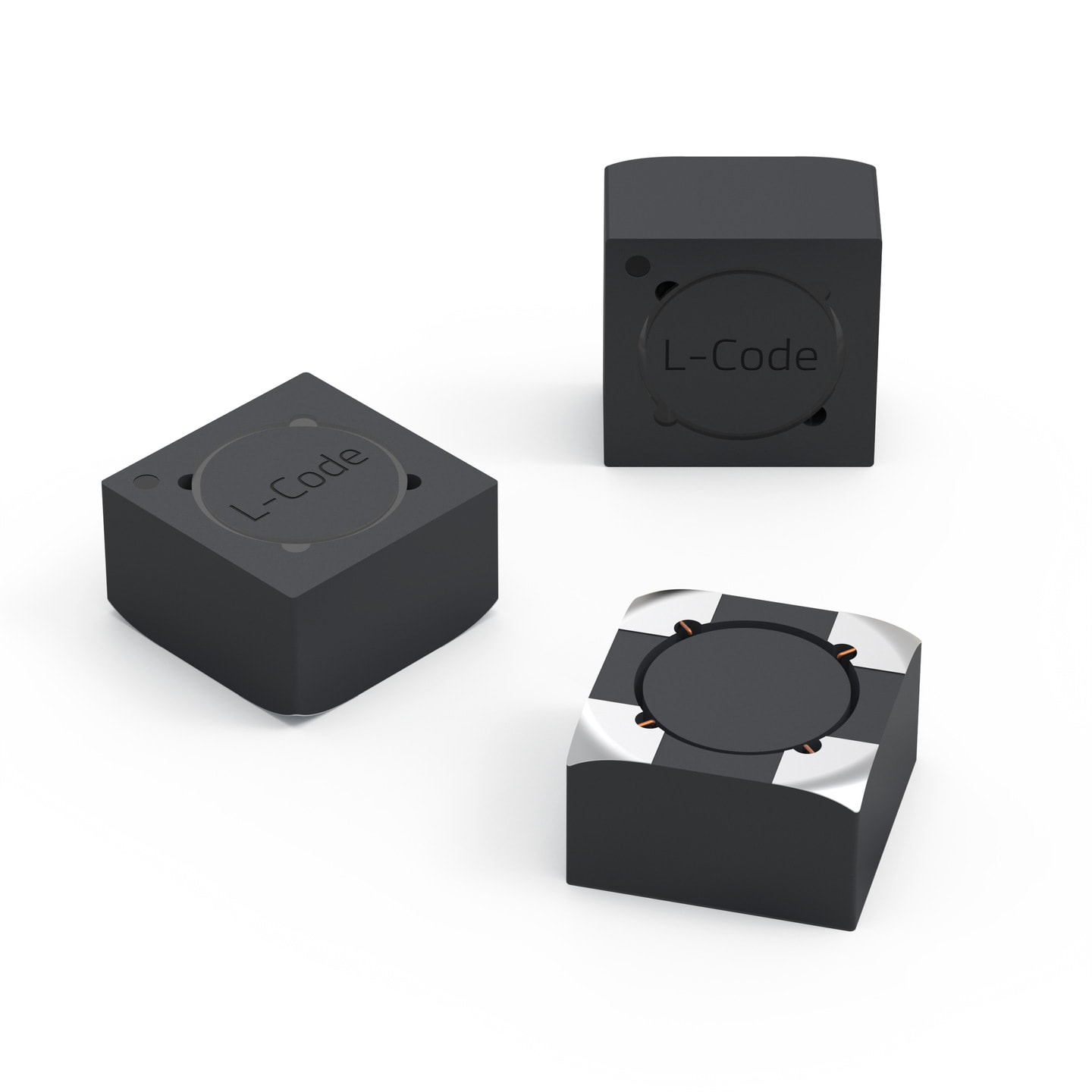

WE-MTCI SMT Multi-Turn Ratio coupled Inductor

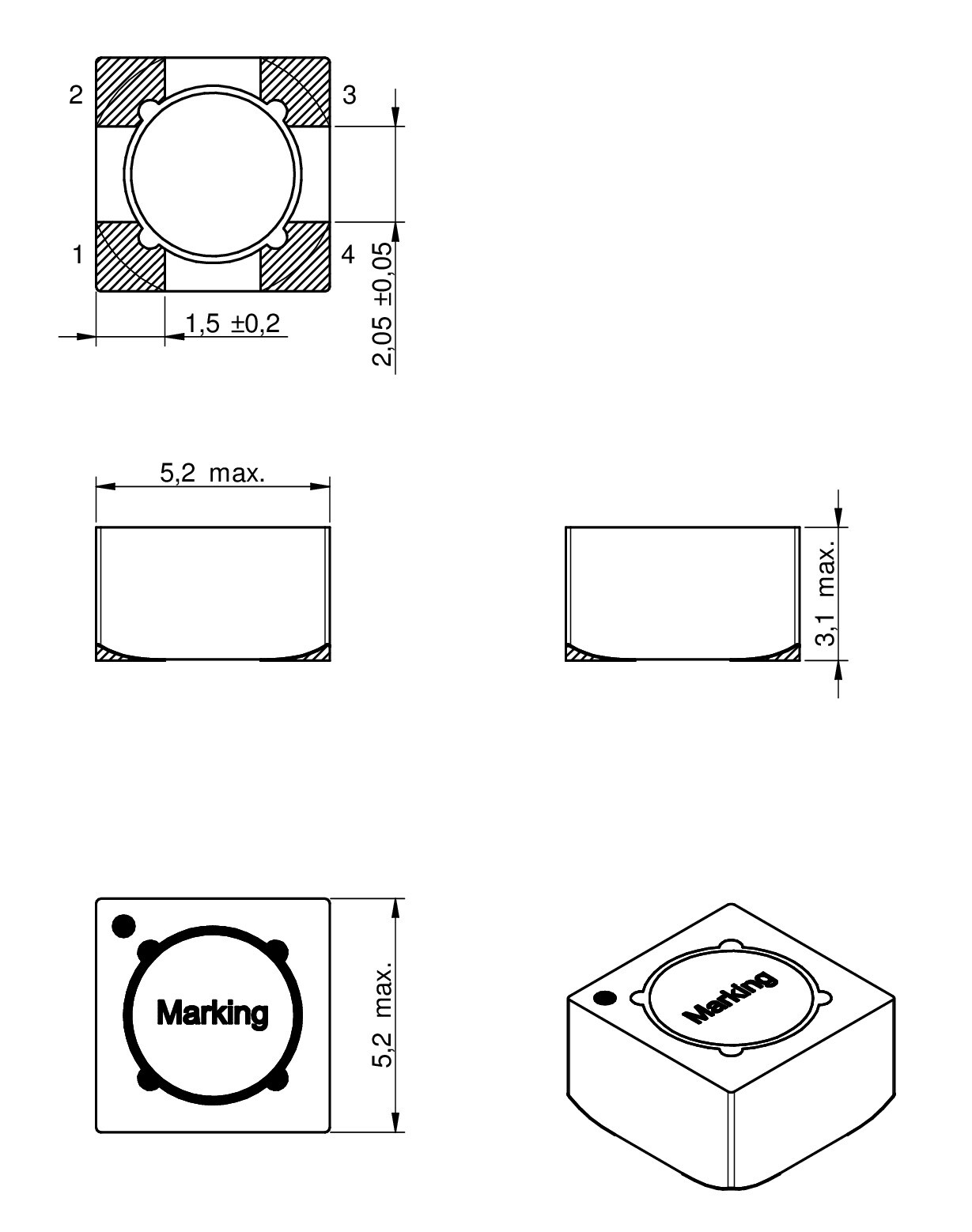

Size	Dimensions	L (mm)	W (mm)	H (mm)
5030		5.2	5.2	3.1

LTSpice files

LT
LTSpice_WE-MTCI (rev22a).zip
|
2.3 KB

Characteristics

Smallest Coupled Inductor with different Turn Ratio and 500 V isolation
Magnetically Shielded
1:N Transformer
Operation temperature: -40 °C to +125 °C

Applications

Ideal solution for buck/boost converter with regulated and unregulated output voltage
High density Isolated converter application (e.g. Flyback converter)
Step-up or Step-Down Converter with Auxiliary winding
Can be use in Auto-transformer application

Application Notes

An Excellent Duet!

The WE-MCRI is an innovative molded coupled inductor with fully automated bifilar winding process. It offers an almost ideal coupling coefficient up to 0.995.

Product video and more

Products

5030

Reset all

Filter article data

show article in 1 product lines

article in 1 product lines

Reset all

Order Code	Datasheet	Downloads	Status	L₁(µH)	L₂(µH)	n	I_R(A)	I_SAT(A)	R_{DC1 typ}(mΩ)	R_{DC2 typ}(mΩ)	R_{DC1 max}(mΩ)	R_{DC2 max}(mΩ)	f_{res 1}(MHz)
744889015100	10 µH, 22.5 µH, 1:1.5	Downloads8 files EDA models: Components ZIP ALT Altium_WE-MTCI (rev22b).IntLib \| 638.5 KB CDS Cadence_WE-MTCI (rev22a).zip \| 380 KB EAG Eagle_WE-MTCI (rev19a).lbr \| 21.8 KB KIC KiCad_WE-MTCI (rev25b).zip \| 77.3 KB ZUK Download_Cadstar_WE-MTCI (rev19a).zip \| 9.1 KB CAD files ZIP IGS Download_IGS_WE-MTCI-5030 (rev1).igs \| 1.4 MB STP Download_STP_WE-MTCI-5030 (rev1).stp \| 486.4 KB Electric models ZIP PSP PSpice_WE-MTCI (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 110 µH	Inductance 222.5 µH	Turns Ratio1:1.5	Rated Current0.95 A	Saturation Current1.5 A	DC Resistance 1349 mΩ	DC Resistance 2408 mΩ	DC Resistance 1500 mΩ	DC Resistance 2600 mΩ	Self Resonant Frequency [1]13 MHz
744889020100	10 µH, 40 µH, 1:2	Downloads8 files EDA models: Components ZIP ALT Altium_WE-MTCI (rev22b).IntLib \| 638.5 KB CDS Cadence_WE-MTCI (rev22a).zip \| 380 KB EAG Eagle_WE-MTCI (rev19a).lbr \| 21.8 KB KIC KiCad_WE-MTCI (rev25b).zip \| 77.3 KB ZUK Download_Cadstar_WE-MTCI (rev19a).zip \| 9.1 KB CAD files ZIP IGS Download_IGS_WE-MTCI-5030 (rev1).igs \| 1.4 MB STP Download_STP_WE-MTCI-5030 (rev1).stp \| 486.4 KB Electric models ZIP PSP PSpice_WE-MTCI (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 110 µH	Inductance 240 µH	Turns Ratio1:2	Rated Current0.95 A	Saturation Current1.5 A	DC Resistance 1358 mΩ	DC Resistance 2552 mΩ	DC Resistance 1500 mΩ	DC Resistance 2750 mΩ	Self Resonant Frequency [1]11.5 MHz
744889030100	10 µH, 90 µH, 1:3	Downloads8 files EDA models: Components ZIP ALT Altium_WE-MTCI (rev22b).IntLib \| 638.5 KB CDS Cadence_WE-MTCI (rev22a).zip \| 380 KB EAG Eagle_WE-MTCI (rev19a).lbr \| 21.8 KB KIC KiCad_WE-MTCI (rev25b).zip \| 77.3 KB ZUK Download_Cadstar_WE-MTCI (rev19a).zip \| 9.1 KB CAD files ZIP IGS Download_IGS_WE-MTCI-5030 (rev1).igs \| 1.4 MB STP Download_STP_WE-MTCI-5030 (rev1).stp \| 486.4 KB Electric models ZIP PSP PSpice_WE-MTCI (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 110 µH	Inductance 290 µH	Turns Ratio1:3	Rated Current0.95 A	Saturation Current1.5 A	DC Resistance 1363 mΩ	DC Resistance 2846 mΩ	DC Resistance 1500 mΩ	DC Resistance 21100 mΩ	Self Resonant Frequency [1]8 MHz
744889015220	22 µH, 49.5 µH, 1:1.5	Downloads8 files EDA models: Components ZIP ALT Altium_WE-MTCI (rev22b).IntLib \| 638.5 KB CDS Cadence_WE-MTCI (rev22a).zip \| 380 KB EAG Eagle_WE-MTCI (rev19a).lbr \| 21.8 KB KIC KiCad_WE-MTCI (rev25b).zip \| 77.3 KB ZUK Download_Cadstar_WE-MTCI (rev19a).zip \| 9.1 KB CAD files ZIP IGS Download_IGS_WE-MTCI-5030 (rev1).igs \| 1.4 MB STP Download_STP_WE-MTCI-5030 (rev1).stp \| 486.4 KB Electric models ZIP PSP PSpice_WE-MTCI (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 122 µH	Inductance 249.5 µH	Turns Ratio1:1.5	Rated Current0.6 A	Saturation Current1 A	DC Resistance 1662 mΩ	DC Resistance 2874 mΩ	DC Resistance 11000 mΩ	DC Resistance 21200 mΩ	Self Resonant Frequency [1]9.5 MHz
744889020220	22 µH, 88 µH, 1:2	Downloads8 files EDA models: Components ZIP ALT Altium_WE-MTCI (rev22b).IntLib \| 638.5 KB CDS Cadence_WE-MTCI (rev22a).zip \| 380 KB EAG Eagle_WE-MTCI (rev19a).lbr \| 21.8 KB KIC KiCad_WE-MTCI (rev25b).zip \| 77.3 KB ZUK Download_Cadstar_WE-MTCI (rev19a).zip \| 9.1 KB CAD files ZIP IGS Download_IGS_WE-MTCI-5030 (rev1).igs \| 1.4 MB STP Download_STP_WE-MTCI-5030 (rev1).stp \| 486.4 KB Electric models ZIP PSP PSpice_WE-MTCI (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 122 µH	Inductance 288 µH	Turns Ratio1:2	Rated Current0.6 A	Saturation Current1 A	DC Resistance 1712 mΩ	DC Resistance 21208 mΩ	DC Resistance 11000 mΩ	DC Resistance 21600 mΩ	Self Resonant Frequency [1]7 MHz
744889030220	22 µH, 198 µH, 1:3	Downloads8 files EDA models: Components ZIP ALT Altium_WE-MTCI (rev22b).IntLib \| 638.5 KB CDS Cadence_WE-MTCI (rev22a).zip \| 380 KB EAG Eagle_WE-MTCI (rev19a).lbr \| 21.8 KB KIC KiCad_WE-MTCI (rev25b).zip \| 77.3 KB ZUK Download_Cadstar_WE-MTCI (rev19a).zip \| 9.1 KB CAD files ZIP IGS Download_IGS_WE-MTCI-5030 (rev1).igs \| 1.4 MB STP Download_STP_WE-MTCI-5030 (rev1).stp \| 486.4 KB Electric models ZIP PSP PSpice_WE-MTCI (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 122 µH	Inductance 2198 µH	Turns Ratio1:3	Rated Current0.6 A	Saturation Current1 A	DC Resistance 1732 mΩ	DC Resistance 21872 mΩ	DC Resistance 11000 mΩ	DC Resistance 22500 mΩ	Self Resonant Frequency [1]5 MHz
744889015330	33 µH, 74.25 µH, 1:1.5	Downloads8 files EDA models: Components ZIP ALT Altium_WE-MTCI (rev22b).IntLib \| 638.5 KB CDS Cadence_WE-MTCI (rev22a).zip \| 380 KB EAG Eagle_WE-MTCI (rev19a).lbr \| 21.8 KB KIC KiCad_WE-MTCI (rev25b).zip \| 77.3 KB ZUK Download_Cadstar_WE-MTCI (rev19a).zip \| 9.1 KB CAD files ZIP IGS Download_IGS_WE-MTCI-5030 (rev1).igs \| 1.4 MB STP Download_STP_WE-MTCI-5030 (rev1).stp \| 486.4 KB Electric models ZIP PSP PSpice_WE-MTCI (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 133 µH	Inductance 274.25 µH	Turns Ratio1:1.5	Rated Current0.45 A	Saturation Current0.75 A	DC Resistance 11338 mΩ	DC Resistance 21782 mΩ	DC Resistance 11900 mΩ	DC Resistance 22400 mΩ	Self Resonant Frequency [1]7 MHz
744889020330	33 µH, 132 µH, 1:2	Downloads8 files EDA models: Components ZIP ALT Altium_WE-MTCI (rev22b).IntLib \| 638.5 KB CDS Cadence_WE-MTCI (rev22a).zip \| 380 KB EAG Eagle_WE-MTCI (rev19a).lbr \| 21.8 KB KIC KiCad_WE-MTCI (rev25b).zip \| 77.3 KB ZUK Download_Cadstar_WE-MTCI (rev19a).zip \| 9.1 KB CAD files ZIP IGS Download_IGS_WE-MTCI-5030 (rev1).igs \| 1.4 MB STP Download_STP_WE-MTCI-5030 (rev1).stp \| 486.4 KB Electric models ZIP PSP PSpice_WE-MTCI (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 133 µH	Inductance 2132 µH	Turns Ratio1:2	Rated Current0.45 A	Saturation Current0.75 A	DC Resistance 11383 mΩ	DC Resistance 22418 mΩ	DC Resistance 11900 mΩ	DC Resistance 23200 mΩ	Self Resonant Frequency [1]5.8 MHz
744889030330	33 µH, 297 µH, 1:3	Downloads8 files EDA models: Components ZIP ALT Altium_WE-MTCI (rev22b).IntLib \| 638.5 KB CDS Cadence_WE-MTCI (rev22a).zip \| 380 KB EAG Eagle_WE-MTCI (rev19a).lbr \| 21.8 KB KIC KiCad_WE-MTCI (rev25b).zip \| 77.3 KB ZUK Download_Cadstar_WE-MTCI (rev19a).zip \| 9.1 KB CAD files ZIP IGS Download_IGS_WE-MTCI-5030 (rev1).igs \| 1.4 MB STP Download_STP_WE-MTCI-5030 (rev1).stp \| 486.4 KB Electric models ZIP PSP PSpice_WE-MTCI (rev22a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 133 µH	Inductance 2297 µH	Turns Ratio1:3	Rated Current0.45 A	Saturation Current0.75 A	DC Resistance 11466 mΩ	DC Resistance 23758 mΩ	DC Resistance 11900 mΩ	DC Resistance 25200 mΩ	Self Resonant Frequency [1]4 MHz

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.

Learn more

Schematic representations of the REDEXPERT loss simulator
