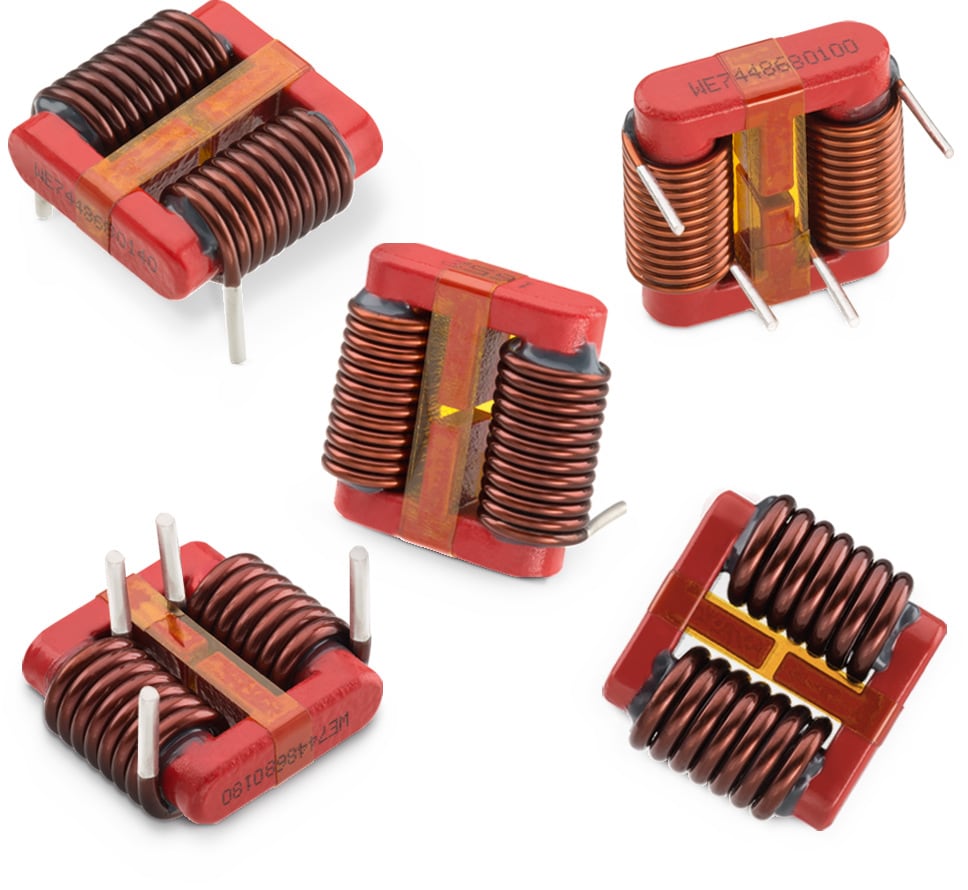

WE-LPCC Common Mode Power Line Choke

LTSpice files

LT
LTSpice_WE-LPCC (rev22b).zip
|
3 KB

Characteristics

Stable stray inductance for differential mode filtering
High current carrying capacity
Low profile
Flammability corresponding to UL 94 V-0
Climatic category 40/115/21

Applications

AC/DC converter
High frequency DC/DC converter
Mains operated LED drivers
Switched mode power supplies

Products

Filter article data

show article in 0 product lines

article in 0 product lines

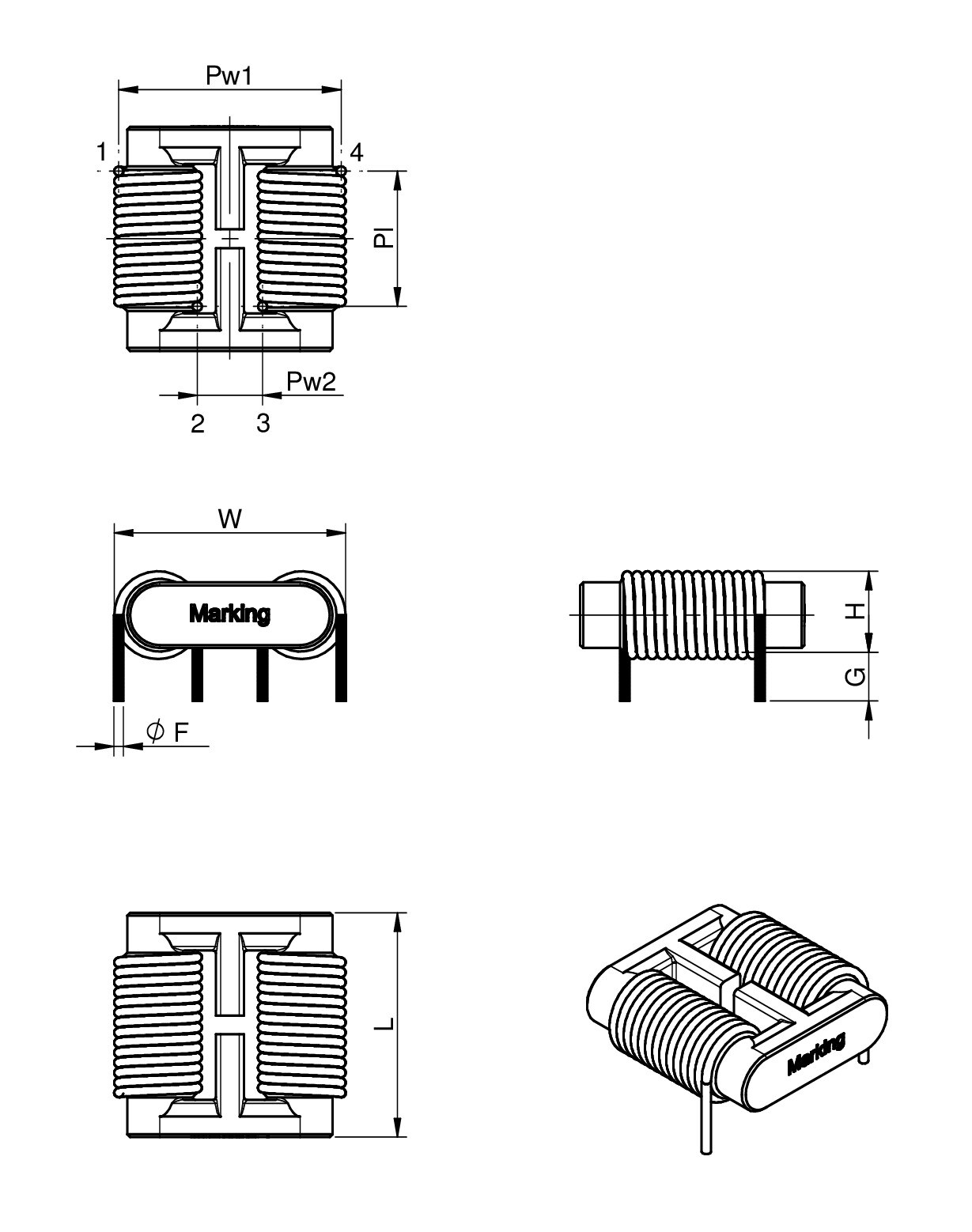

Order Code	Datasheet	Simulation	Downloads	Status	I_R(A)	L(µH)	R_{DC max.}(mΩ)	V_R(V (AC))	V_T(V (AC))	Material	L(mm)	W(mm)	H(mm)	Mount	Samples
7448680100	9.5 A, 450 µH, 9.6 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LPCC (rev22a).IntLib \| 536.5 KB CDS Cadence_WE-LPCC (rev24a).zip \| 10 MB EAG Eagle_WE-LPCC (rev19a).lbr \| 23.3 KB KIC KiCad_WE-LPCC (rev25b).zip \| 31.5 MB ZUK Cadstar_WE-LPCC (rev19a).zip \| 7.5 KB CAD files ZIP IGS Download_IGS_WE-LPCC-7448680100 (rev1).igs \| 2.9 MB STP Download_STP_WE-LPCC-7448680100 (rev1).stp \| 633.8 KB Electric models ZIP ADS ADS_WE-LPCC (rev24a).zip \| 1.6 MB PSP PSpice_WE-LPCC (rev24a).zip \| 4.8 KB S S-Parameter_7448680100 (rev20c).s4p \| 312 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current9.5 A	Inductance450 µH	DC Resistance9.6 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length25 mm	Width27.5 mm	Height9.7 mm	MountTHT
7448680120	12 A, 330 µH, 6 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LPCC (rev22a).IntLib \| 536.5 KB CDS Cadence_WE-LPCC (rev24a).zip \| 10 MB EAG Eagle_WE-LPCC (rev19a).lbr \| 23.3 KB KIC KiCad_WE-LPCC (rev25b).zip \| 31.5 MB ZUK Cadstar_WE-LPCC (rev19a).zip \| 7.5 KB CAD files ZIP IGS Download_IGS_WE-LPCC-7448680120 (rev1).igs \| 1.4 MB STP Download_STP_WE-LPCC-7448680120 (rev1).stp \| 491.3 KB Electric models ZIP ADS ADS_WE-LPCC (rev24a).zip \| 1.6 MB PSP PSpice_WE-LPCC (rev24a).zip \| 4.8 KB S S-Parameter_7448680120 (rev20c).s4p \| 303 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current12 A	Inductance330 µH	DC Resistance6 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length25 mm	Width27.5 mm	Height10 mm	MountTHT
7448680140	16 A, 230 µH, 3.6 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LPCC (rev22a).IntLib \| 536.5 KB CDS Cadence_WE-LPCC (rev24a).zip \| 10 MB EAG Eagle_WE-LPCC (rev19a).lbr \| 23.3 KB KIC KiCad_WE-LPCC (rev25b).zip \| 31.5 MB ZUK Cadstar_WE-LPCC (rev19a).zip \| 7.5 KB CAD files ZIP IGS Download_IGS_WE-LPCC-7448680140 (rev1).igs \| 1.3 MB STP Download_STP_WE-LPCC-7448680140 (rev1).stp \| 823.3 KB Electric models ZIP ADS ADS_WE-LPCC (rev24a).zip \| 1.6 MB PSP PSpice_WE-LPCC (rev24a).zip \| 4.8 KB S S-Parameter_7448680140 (rev20c).s4p \| 311.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current16 A	Inductance230 µH	DC Resistance3.6 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length25 mm	Width27.5 mm	Height10.4 mm	MountTHT
7448680180	20 A, 150 µH, 1.9 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LPCC (rev22a).IntLib \| 536.5 KB CDS Cadence_WE-LPCC (rev24a).zip \| 10 MB EAG Eagle_WE-LPCC (rev19a).lbr \| 23.3 KB KIC KiCad_WE-LPCC (rev25b).zip \| 31.5 MB ZUK Cadstar_WE-LPCC (rev19a).zip \| 7.5 KB CAD files ZIP IGS Download_IGS_WE-LPCC-7448680180 (rev1).igs \| 1.3 MB STP Download_STP_WE-LPCC-7448680180 (rev1).stp \| 438 KB Electric models ZIP ADS ADS_WE-LPCC (rev24a).zip \| 1.6 MB PSP PSpice_WE-LPCC (rev24a).zip \| 4.8 KB S S-Parameter_7448680180 (rev20c).s4p \| 311.9 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current20 A	Inductance150 µH	DC Resistance1.9 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length25 mm	Width27.5 mm	Height11.3 mm	MountTHT
7448680200	23.5 A, 120 µH, 1.4 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LPCC (rev22a).IntLib \| 536.5 KB CDS Cadence_WE-LPCC (rev24a).zip \| 10 MB EAG Eagle_WE-LPCC (rev19a).lbr \| 23.3 KB KIC KiCad_WE-LPCC (rev25b).zip \| 31.5 MB ZUK Cadstar_WE-LPCC (rev19a).zip \| 7.5 KB CAD files ZIP IGS Download_IGS_WE-LPCC-7448680200 (rev1).igs \| 1.2 MB STP Download_STP_WE-LPCC-7448680200 (rev1).stp \| 757.7 KB Electric models ZIP ADS ADS_WE-LPCC (rev24a).zip \| 1.6 MB PSP PSpice_WE-LPCC (rev24a).zip \| 4.8 KB S S-Parameter_7448680200 (rev20c).s4p \| 304.5 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current23.5 A	Inductance120 µH	DC Resistance1.4 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length25 mm	Width27.5 mm	Height11.7 mm	MountTHT
