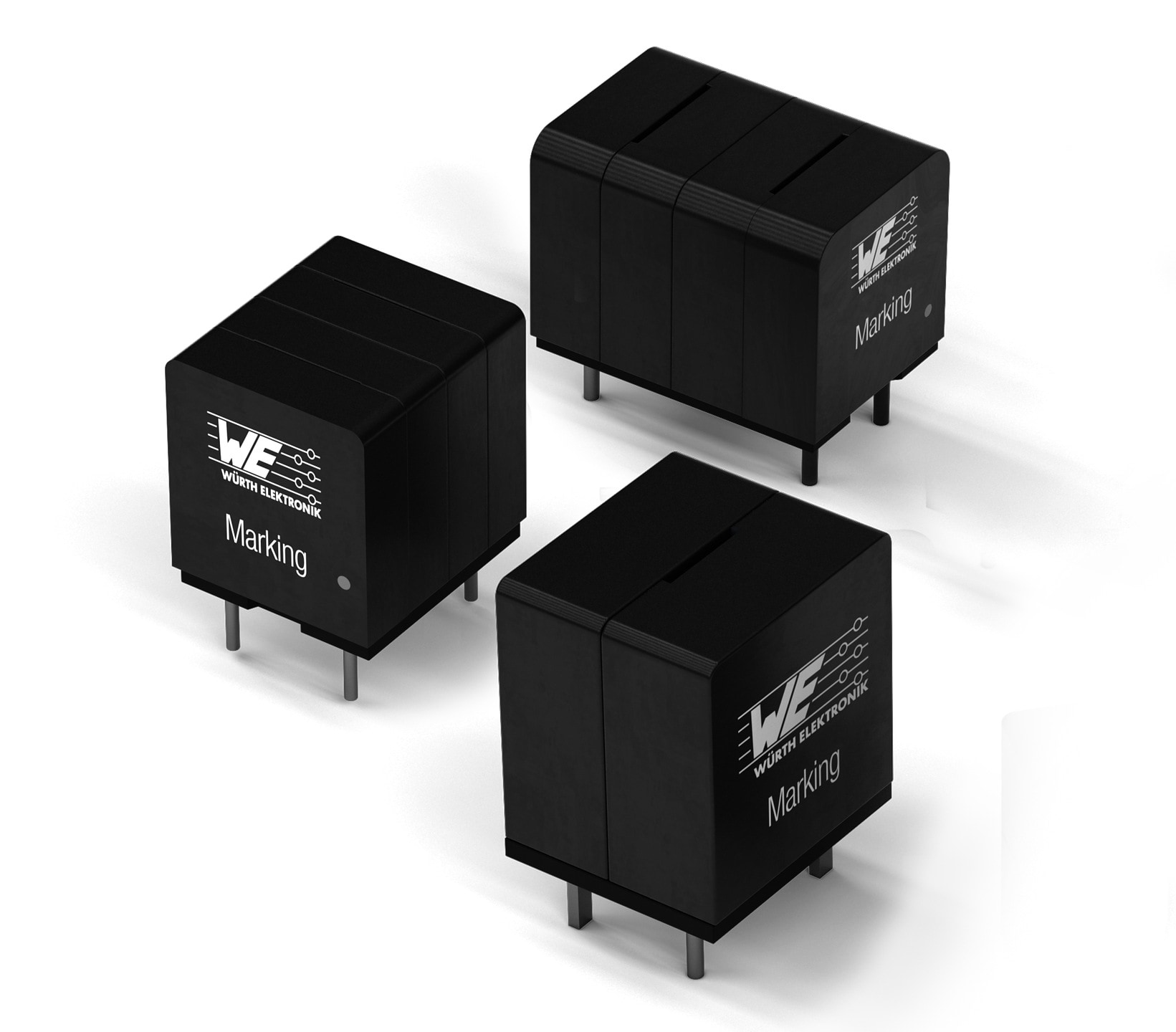

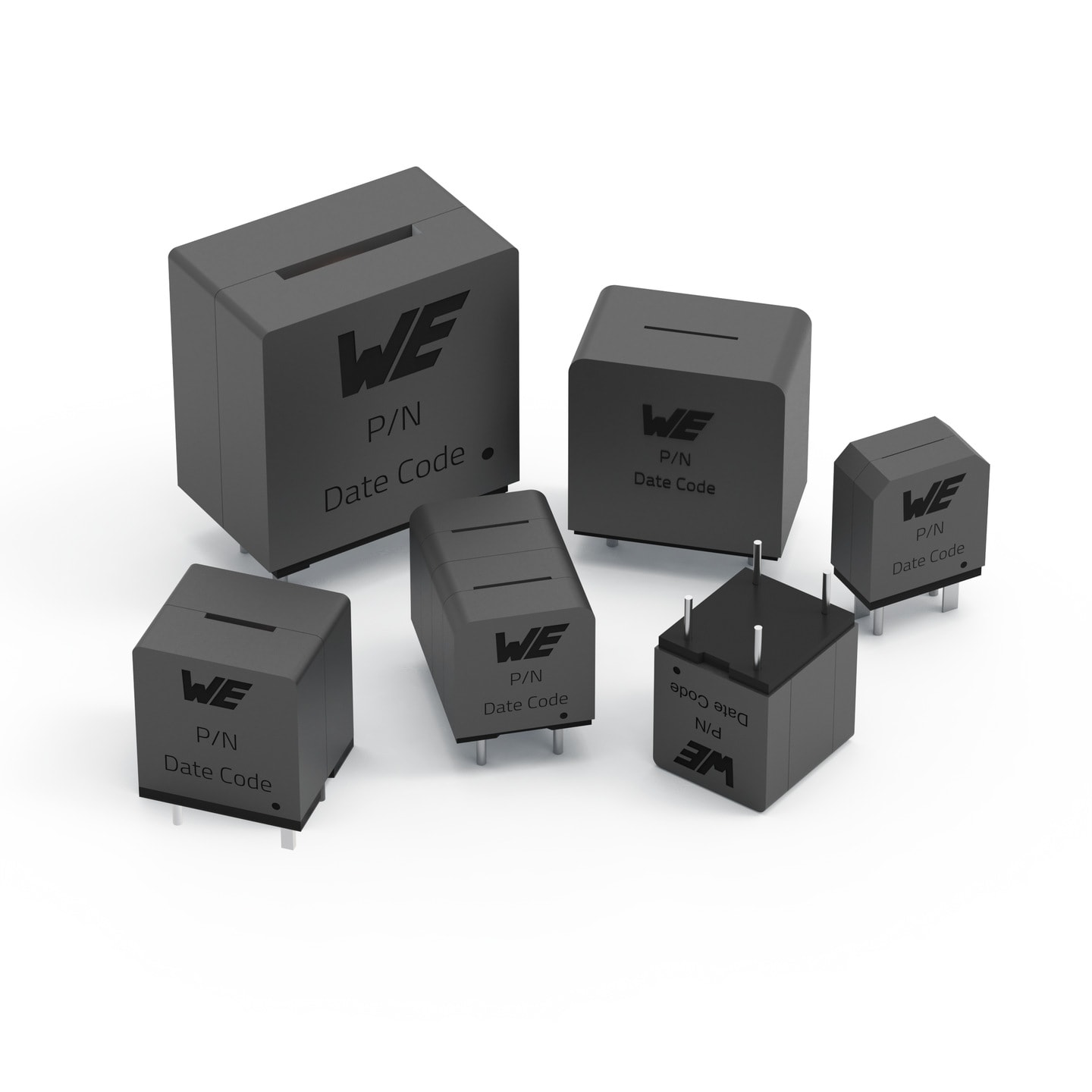

WE-HIDA THT High Current Inductor

Digital Audio

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
1415 14 15.5 16
1480 14 8 16
1521 14.5 21 15.2
1715 17.5 15 19.5
3119 31 19 35

Characteristics

  • 2-in-1 designs with low magnetic coupling
  • Low core losses
  • Very low RDC
  • High saturation currents
  • Operating temperature: -40°C to +125°C

Applications

  • Class D audio amplifiers
  • Digital amplifiers

Products

All
1415
1480
1521
1715
3119
Order Code Data­sheet Simu­lation DownloadsL
(µH)
Tol. LIR
(A)
ISAT
(A)
fres
(MHz)
RDC
(mΩ)
Samples
74441521082SPEC
9 files 8.2 ±20% 10 17.5 16 6.2
7444011715082SPEC
8 files 8.2 ±20% 10 34 21 7
7444013119082SPEC
8 files 8.2 ±20% 19 52 16 2.5
7444211415082SPEC
9 files 8.2 ±20% 6.7 16 20 9.2
7444011480082SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

8 files 8.2 ±20% 8.5 16 19 9
74441521100SPEC
9 files 10 ±20% 9 13.5 14 6.3
7444011715100SPEC
8 files 10 ±20% 10 28 19 7
7444013119100SPEC
8 files 10 ±20% 11 58 13 4.8
7444211415100SPEC
9 files 10 ±20% 6.7 12.5 18 9.2
7444011480100SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

8 files 10 ±20% 8.5 13.5 18 9
74441521150SPEC
9 files 15 ±20% 8 10 13 8.5
7444011715150SPEC
8 files 15 ±20% 10 18 14 7
7444013119150SPEC
8 files 15 ±20% 11 41 11 4.8
7444211415150SPEC
9 files 15 ±20% 5.8 9.5 13 14.6
7444011480150SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

8 files 15 ±20% 8 9.5 13 10
74441521220SPEC
9 files 22 ±20% 7 7 9 13.6
7444011715220SPEC
8 files 22 ±20% 10 12 11 7
7444013119220SPEC
8 files 22 ±20% 10 33 9 5.3
7444211415220SPEC
9 files 22 ±20% 5.7 7 10 14.8
7444011480220SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

8 files 22 ±20% 8 6.5 9 10
Order Code Data­sheet Simu­lation
74441521082SPEC
7444011715082SPEC
7444013119082SPEC
7444211415082SPEC
7444011480082SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

74441521100SPEC
7444011715100SPEC
7444013119100SPEC
7444211415100SPEC
7444011480100SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

74441521150SPEC
7444011715150SPEC
7444013119150SPEC
7444211415150SPEC
7444011480150SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

74441521220SPEC
7444011715220SPEC
7444013119220SPEC
7444211415220SPEC
7444011480220SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

Samples
Order Code Data­sheet Simu­lation DownloadsL
(µH)
Tol. LIR
(A)
ISAT
(A)
fres
(MHz)
RDC
(mΩ)
Samples

Videos

Würth Elektronik Webinar: ClassD inductors - difference to normal power / filter inductors?
