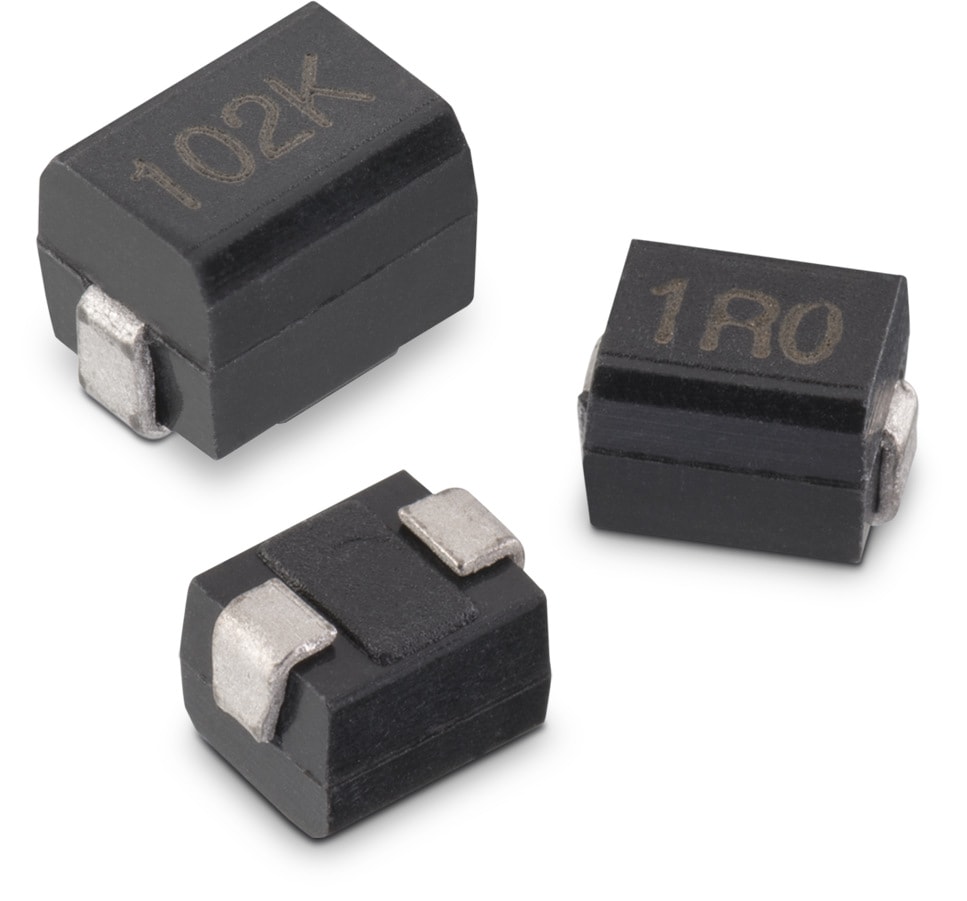

WE-GF SMT Wire Wound Inductor

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

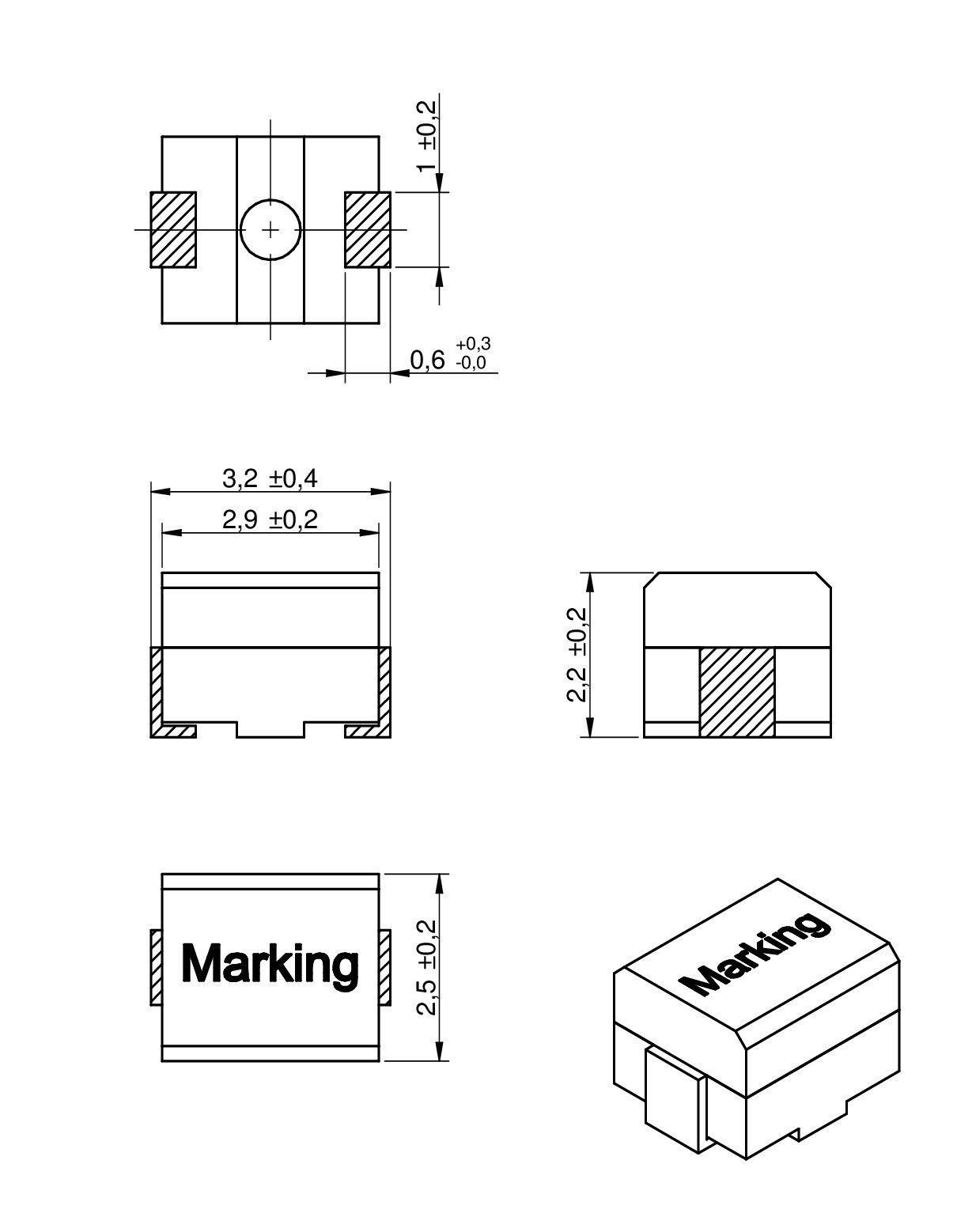

3225		3.2	2.5	2.2	SMT

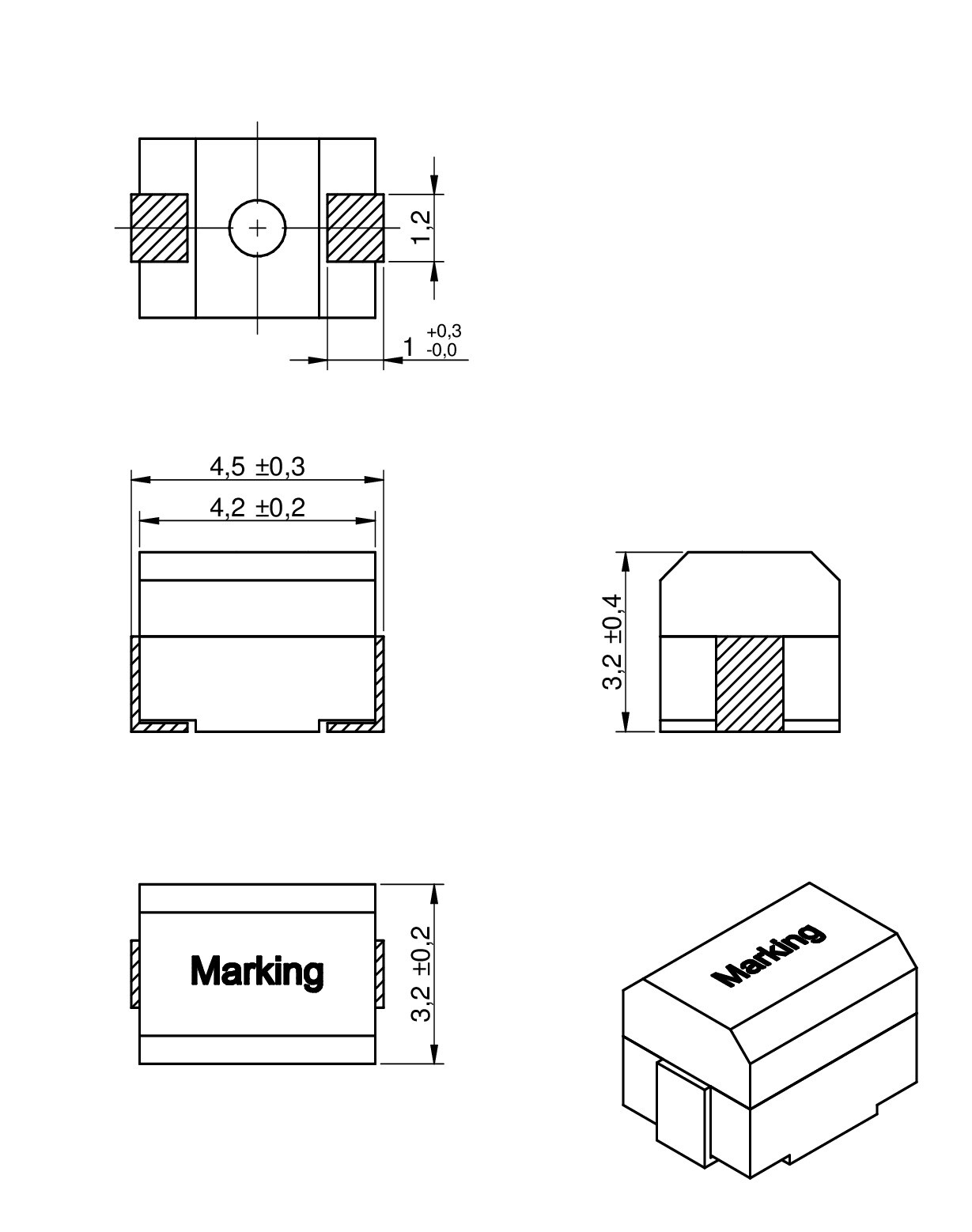

4532		4.5	3.2	3.2	SMT

LTSpice files

LT
LTSpice_WE-GF (rev22a).zip
|
3 KB

Characteristics

Wire wound on ferrite
Operating temperature: –40°C to +105°C
Recommended soldering profile: Reflow
5% tolerance is available on request

Applications

RF circuits like tuner, transponder etc.
RF amplifier circuits like antennas amplifier
Oscillators
Filter circuits
Amplification circuits
