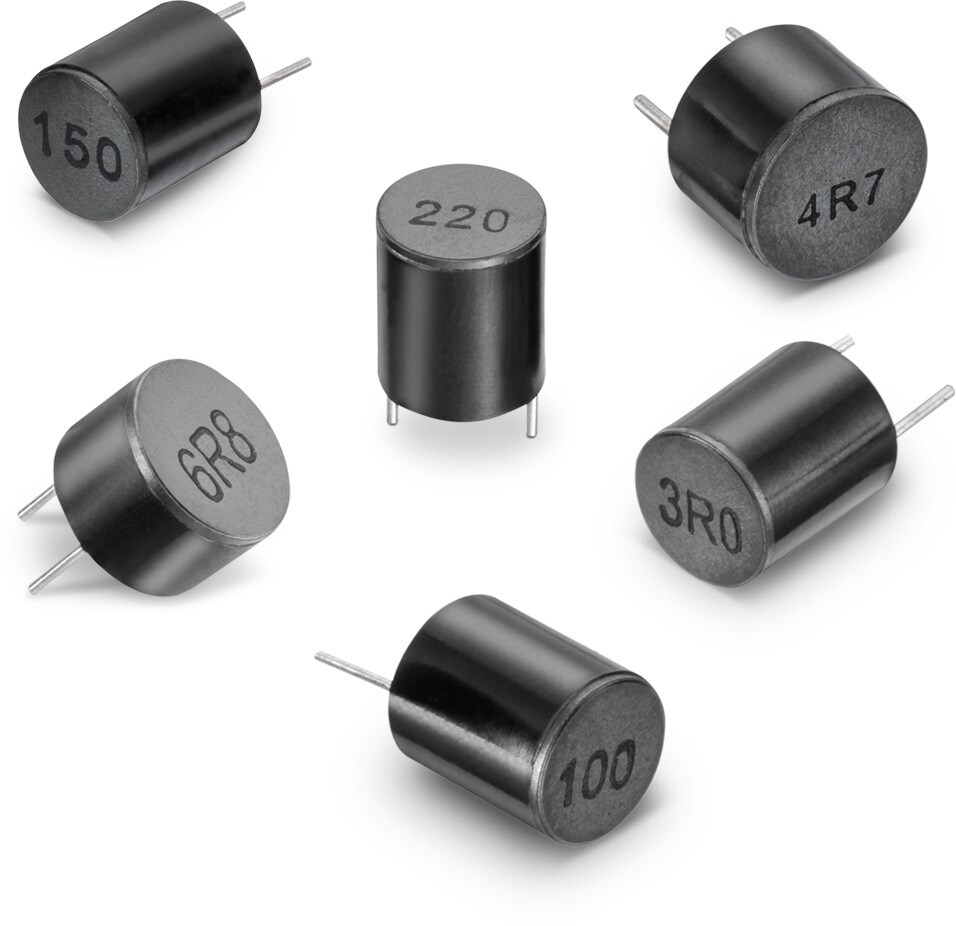

WE-FAMI THT Power Inductor

Size	L (mm)	W (mm)	H (mm)	Mount

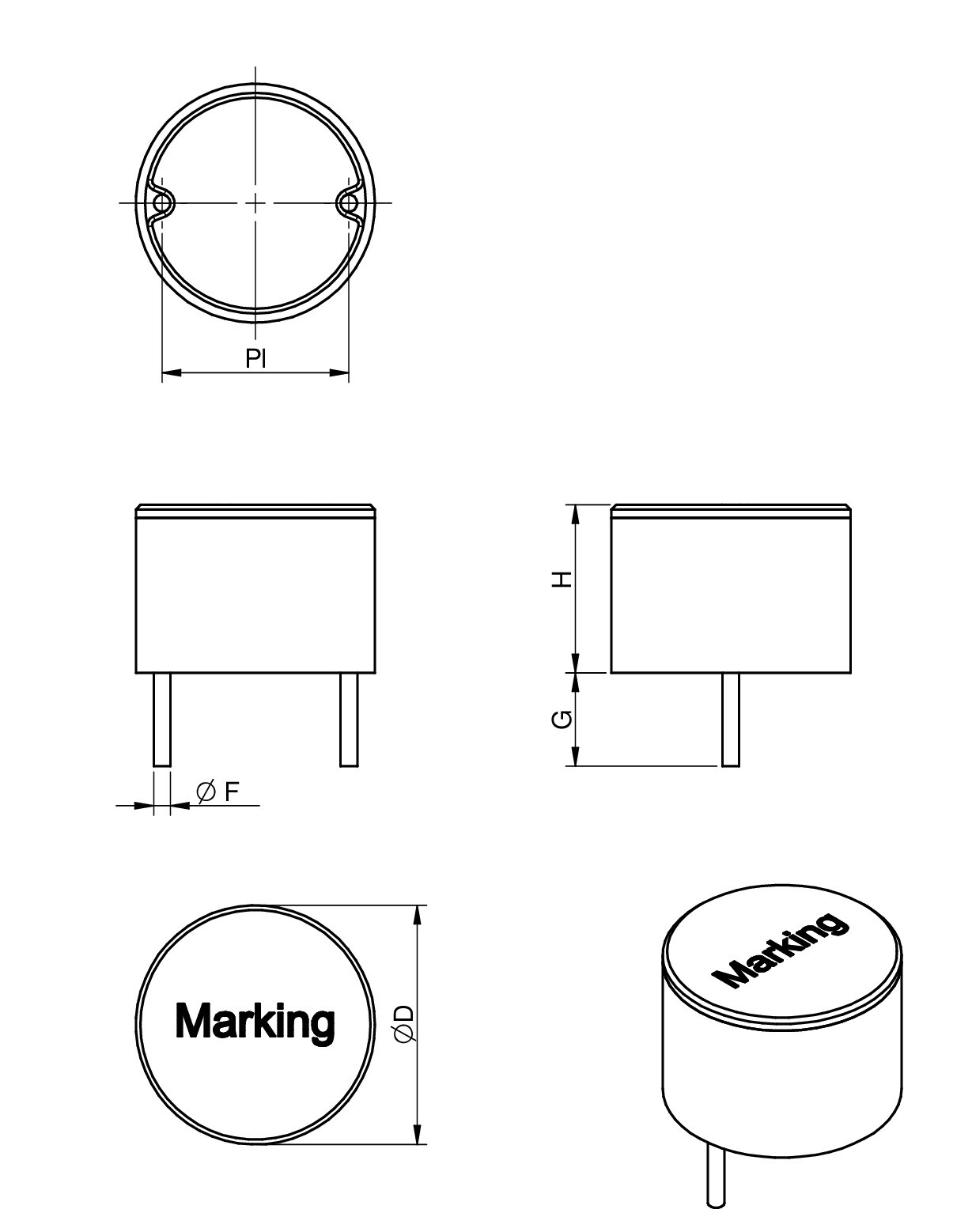

8010	8.8	8.8	11	THT

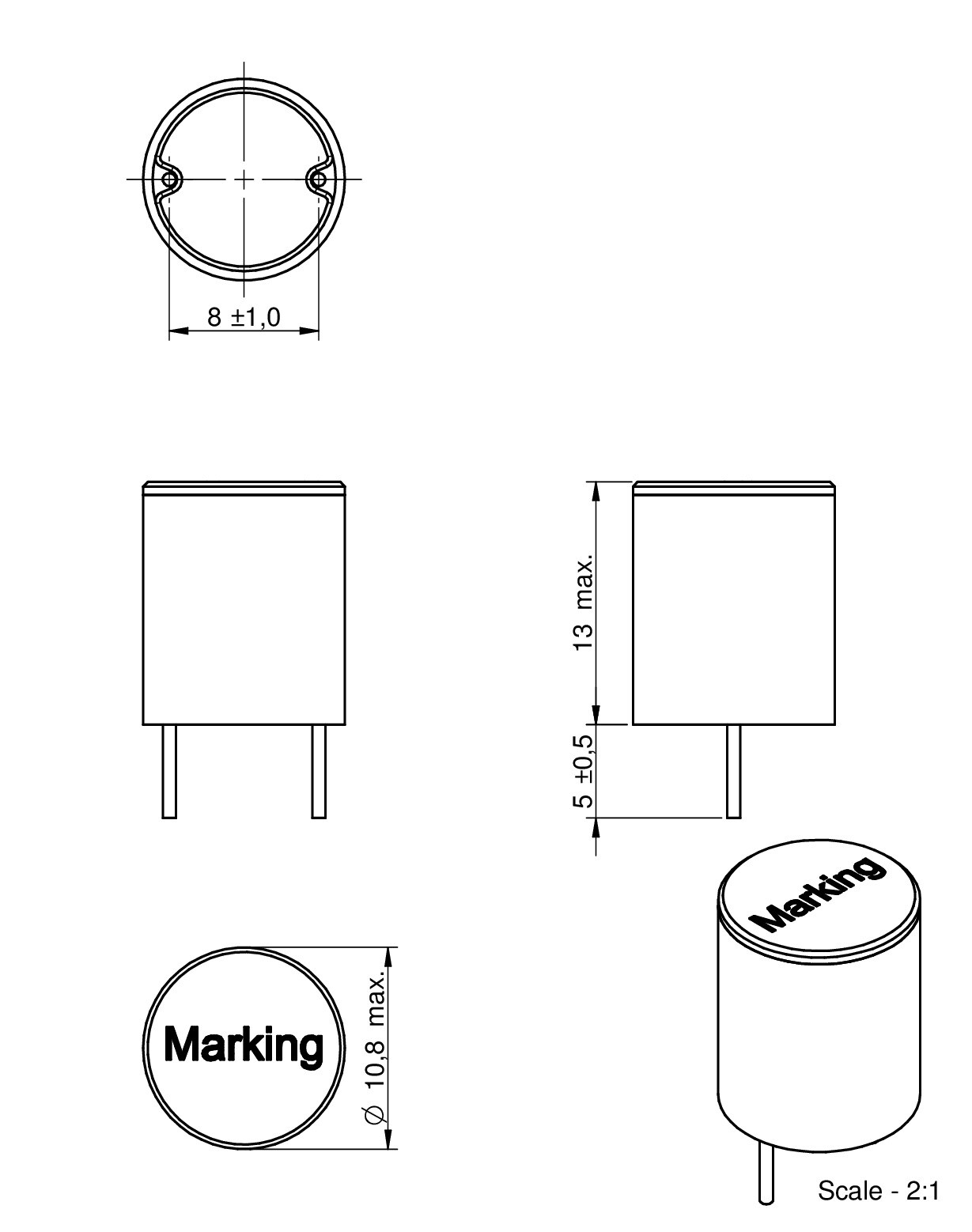

1012	10.8	10.8	13	THT

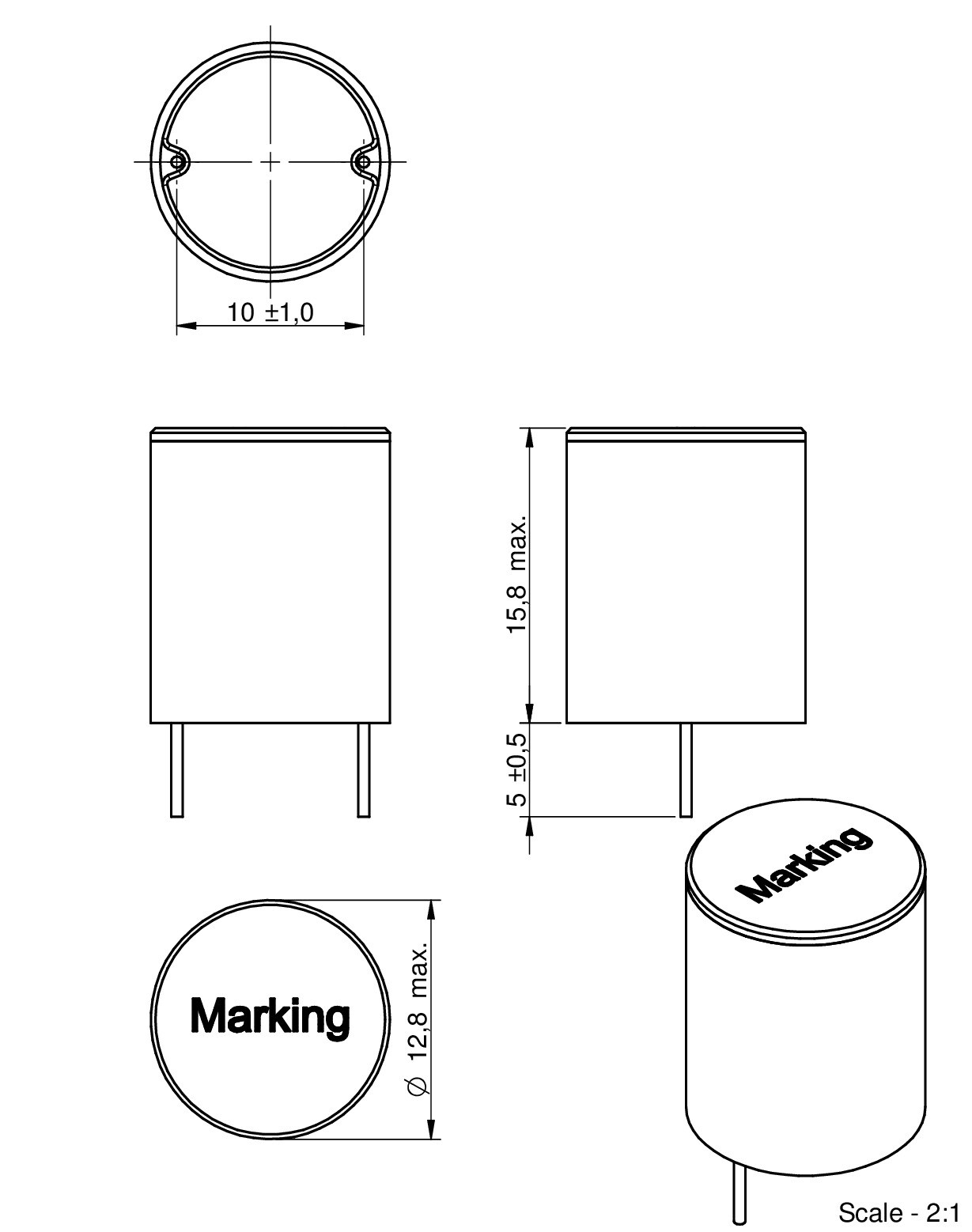

1215	12.8	12.8	15.8	THT

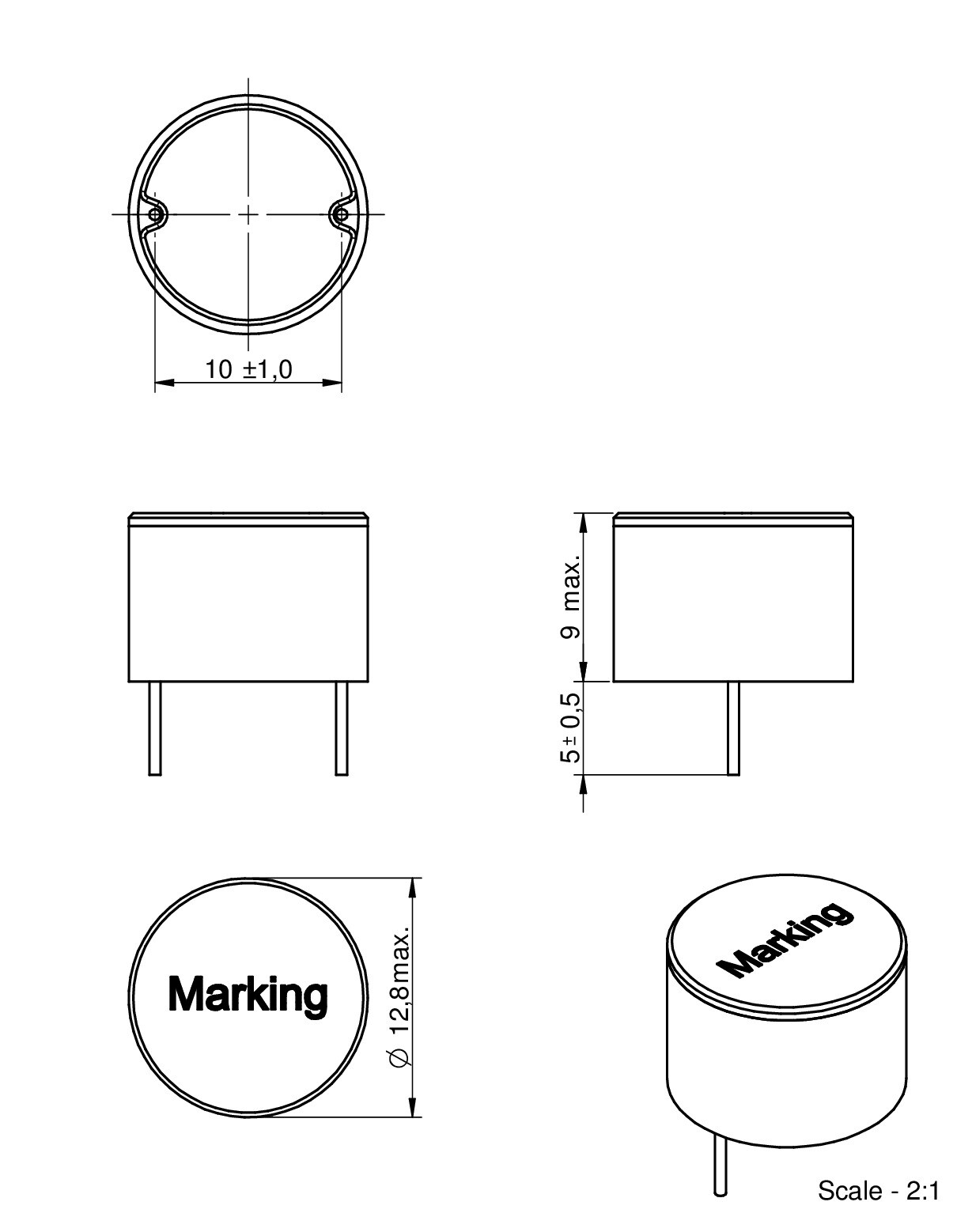

1280	12.8	12.8	9	THT

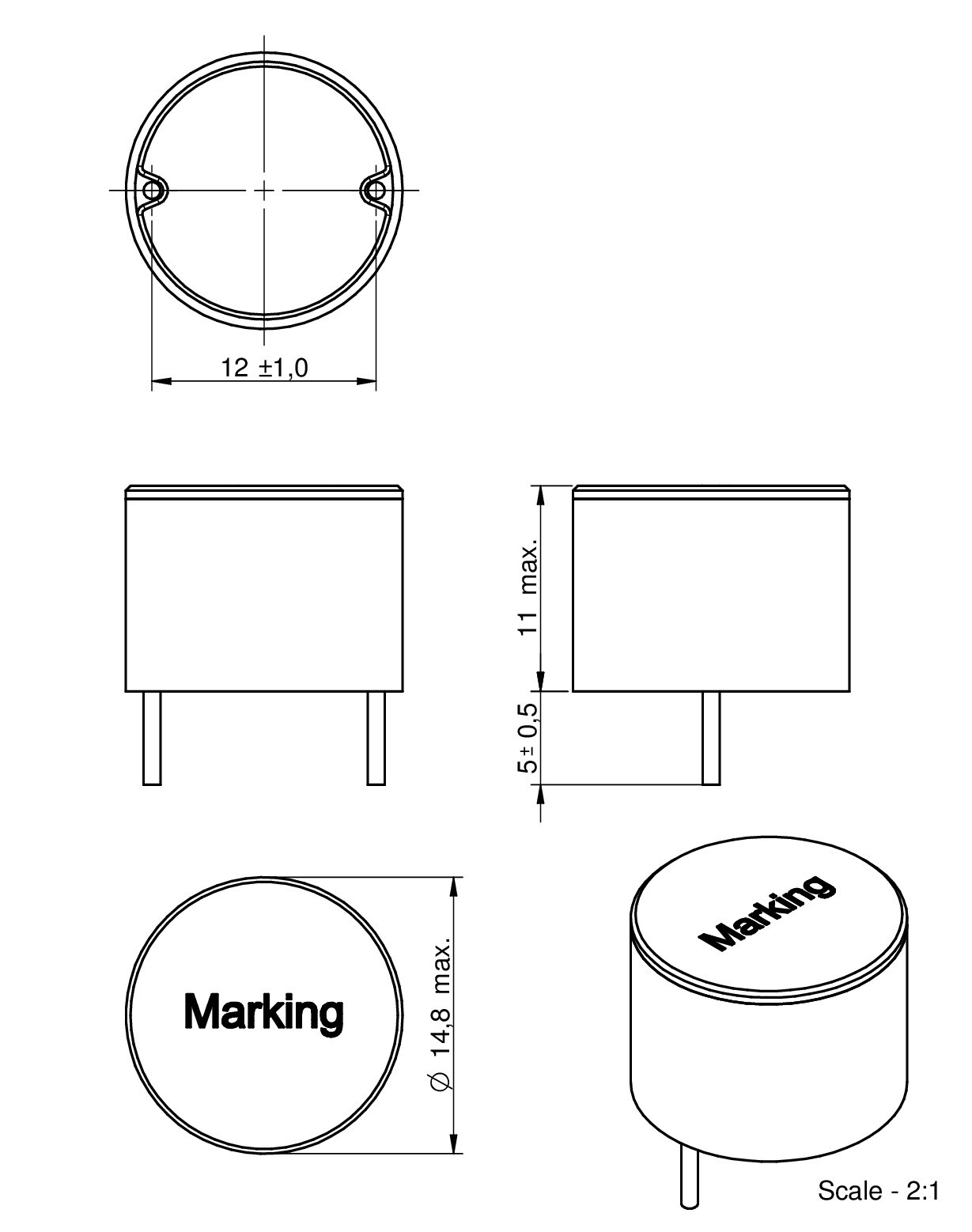

1410	14.8	14.8	11	THT

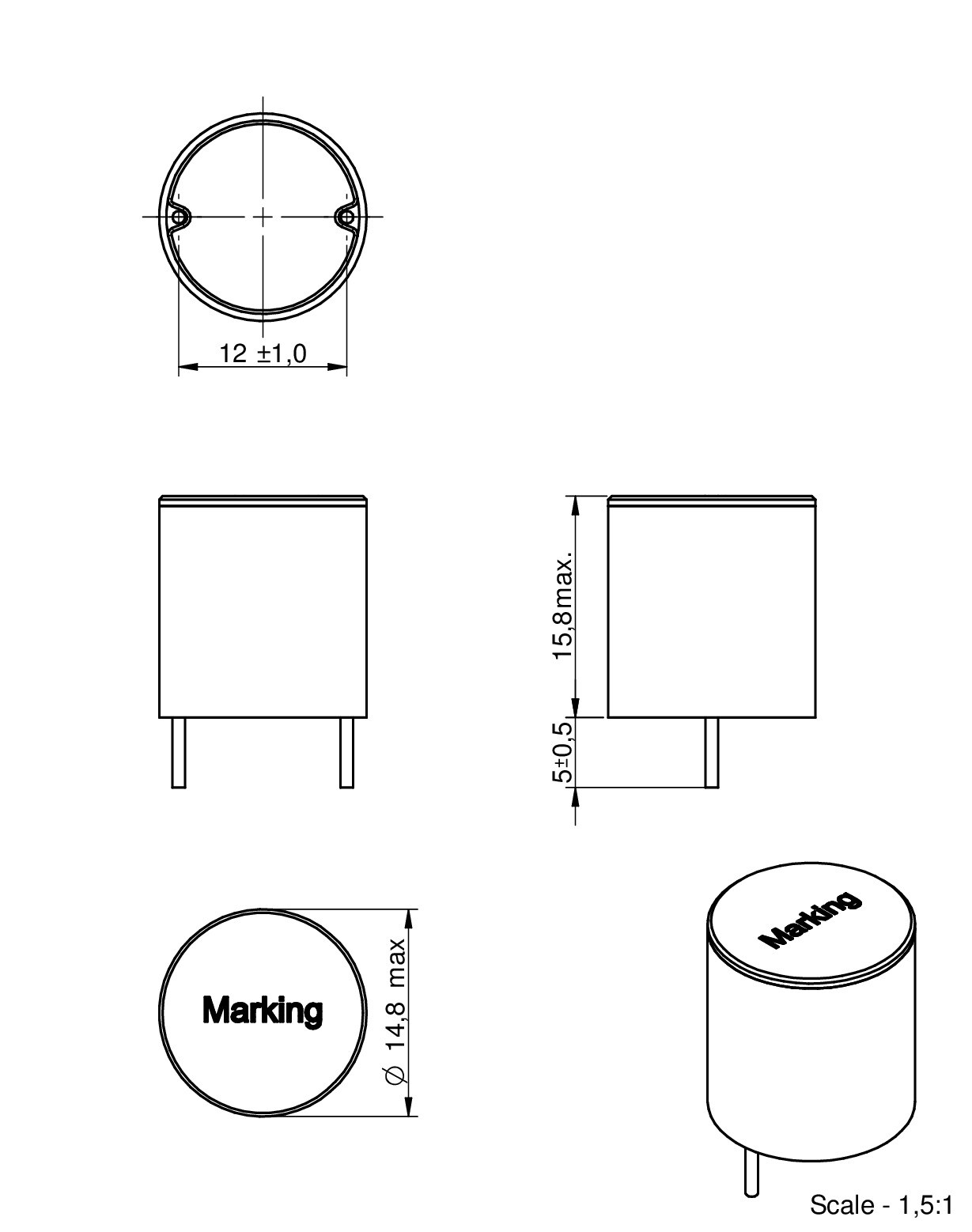

1415	14.8	14.8	15.8	THT

LTSpice files

LT
LTSpice_WE-FAMI (rev22a).zip
|
2.1 KB

Characteristics

Optimization of material composition causes high performance
Up to 19.7 A Saturation Current
RDC values starting at 3.8 mΩ
Shielded design
Low stray field
Operating temperature: -40 °C to +125 °C

Applications

DC/DC converters
Power supplies and battery chargers
Home Entertainment Systems
Portable devices like notebooks

Products

All

8010

1012

1215

1280

1410

1415

Order Code	Datasheet	Downloads	L (µH)	I_R (A)	I_SAT (A)	R_{DC max.} (mΩ)	Mount
744750230030	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB CAD files ZIP STP 744750230xxx_0,55 (rev1).stp \| 350.4 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 7 files as zip archive ZIP	3	7.6	11.7	8.5	THT
744750230047	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB CAD files ZIP STP 744750230xxx_0,55 (rev1).stp \| 350.4 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 7 files as zip archive ZIP	4.7	6.5	9.6	12.5	THT
744750340047	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	4.7	9	14.4	8.5	THT
744750420047	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	4.7	8.7	13.5	8.5	THT
744750530047	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	4.7	11.8	18	4.8	THT
744750560047	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	4.7	14.5	19.7	3.8	THT
744750230068	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB CAD files ZIP STP 744750230xxx_0,55 (rev1).stp \| 350.4 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 7 files as zip archive ZIP	6.8	5.7	8.1	16	THT
744750420068	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	6.8	7.2	11.4	12	THT
744750530068	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	6.8	10.7	15	6.5	THT
744750230100	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB CAD files ZIP STP 744750230xxx_0,55 (rev1).stp \| 350.4 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 7 files as zip archive ZIP	10	4.6	6.8	23	THT
744750460100	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	10	9.2	11.3	8.6	THT
744750420100	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	10	6.2	9.6	15.5	THT
744750530100	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	10	8.9	12.4	9.5	THT
744750560100	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	10	11.4	13.4	6.8	THT
744750230150	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB CAD files ZIP STP 744750230xxx_0,55 (rev1).stp \| 350.4 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 7 files as zip archive ZIP	15	3.7	5.7	35	THT
744750340150	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	15	5.6	8.5	20	THT
744750460150	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	15	9	9.5	12	THT
744750420150	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	15	5.1	7.9	25	THT
744750460220	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	22	6.9	7.5	16	THT
744750420220	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	22	4.1	6.7	36	THT
744750560220	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-FAMI (rev22c).IntLib \| 925.5 KB ZUK Download_CadStar_WE-FAMI (rev19a).zip \| 9 KB CDS Cadence_WE-FAMI (rev22a).zip \| 5.7 MB EAG Eagle_WE-FAMI (rev20a).lbr \| 85.1 KB Electric models ZIP PSP PSpice_WE-FAMI (rev22a).zip \| 5.7 KB SCS Spectre_WE-FAMI (rev23a).mod \| 5.7 KB Download all 6 files as zip archive ZIP	22	7.7	8.9	14.5	THT

Order Code	Datasheet	Simulation
744750230030	SPEC
744750230047	SPEC
744750340047	SPEC
744750420047	SPEC
744750530047	SPEC
744750560047	SPEC
744750230068	SPEC
744750420068	SPEC
744750530068	SPEC
744750230100	SPEC
744750460100	SPEC
744750420100	SPEC
744750530100	SPEC
744750560100	SPEC
744750230150	SPEC
744750340150	SPEC
744750460150	SPEC
744750420150	SPEC
744750460220	SPEC
744750420220	SPEC
744750560220	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	L (µH)	I_R (A)	I_SAT (A)	R_{DC max.} (mΩ)	Mount	Samples

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.
