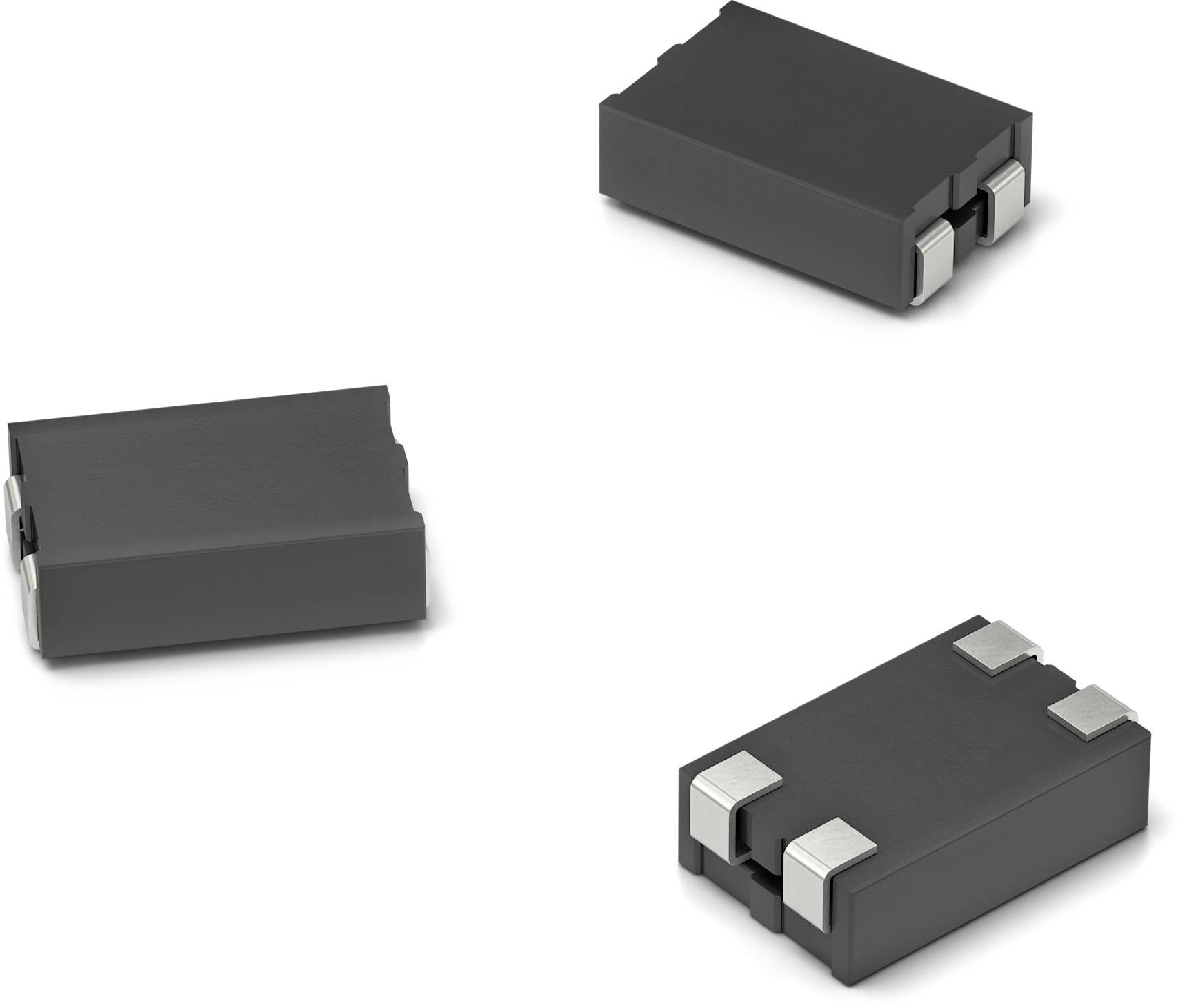

WE-CMS SMT Bead Array

Line Filter Array

SizeL
(mm)
W
(mm)
H
(mm)
Fl
(mm)

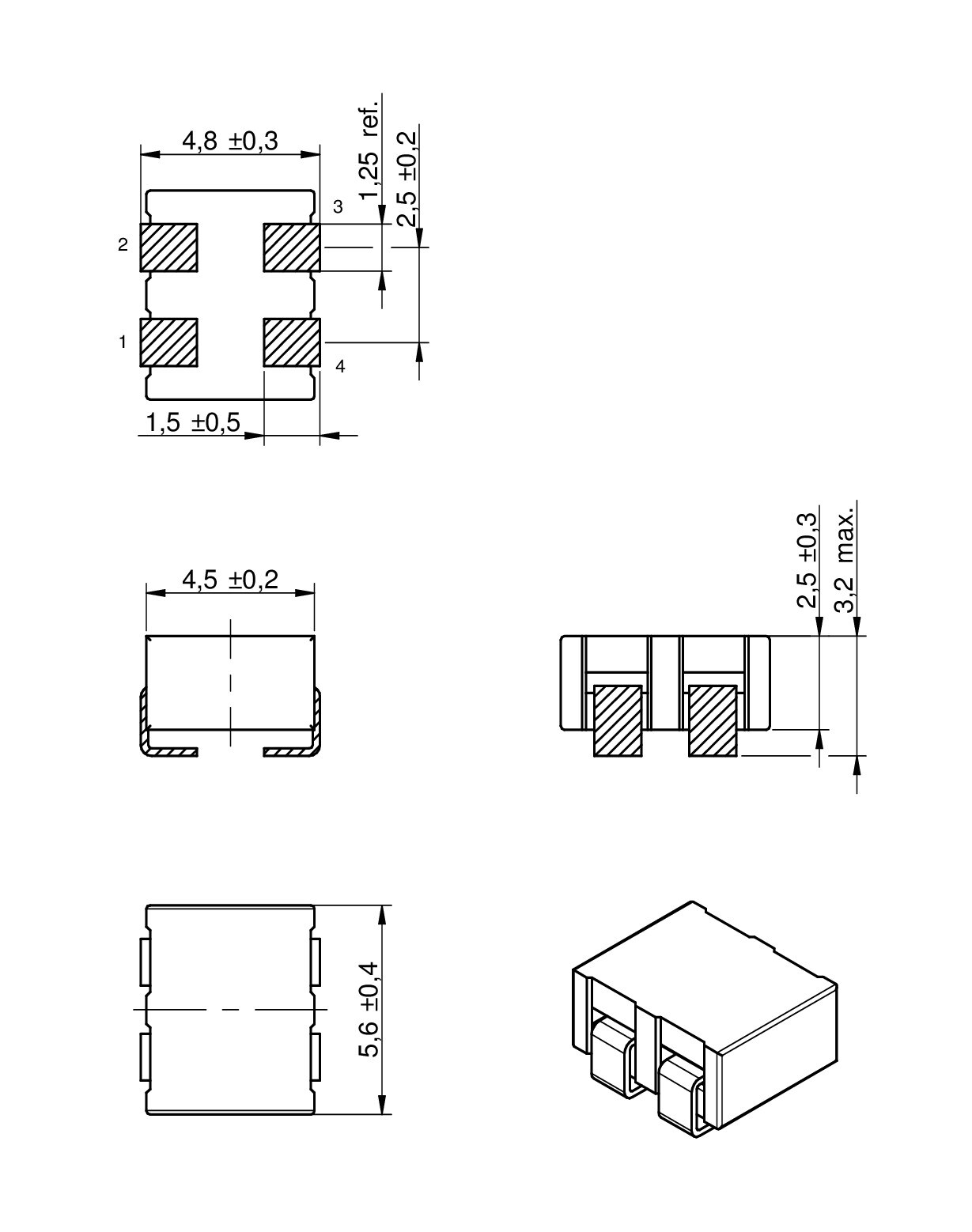

4856 5.6 4.8 3.2 1.5
9056 8.9 5.6 3.2 1.5

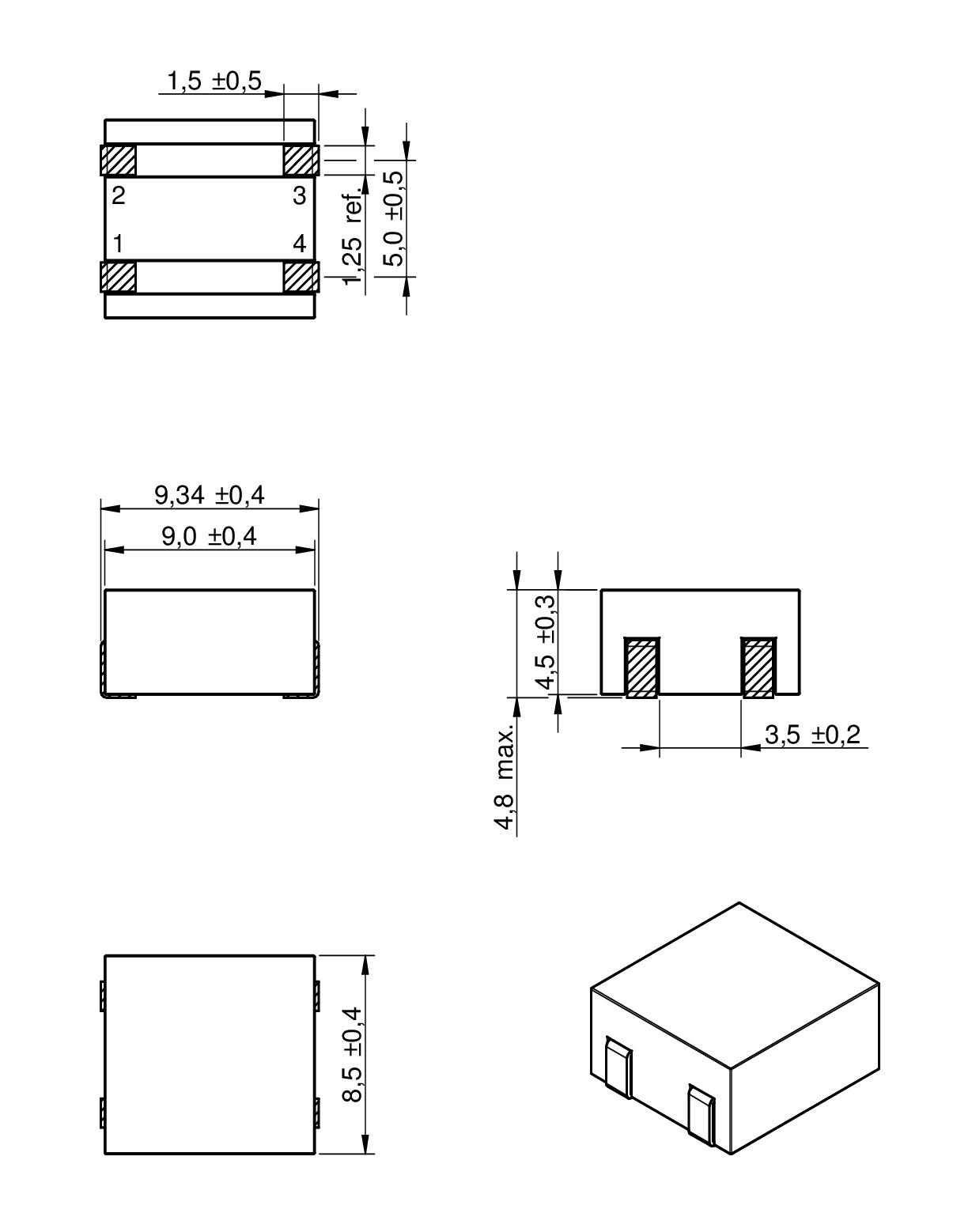

9085 9.3 8.5 4.8 1.5

Characteristics

  • Maximum current capability up to 5 A
  • Low DC resistance
  • Impedance up to 200 Ω
  • Operating temperature: –40 ºC to +125 ºC

Applications

  • Power supply systems
  • Symmetric data lines
  • Power electronics

Products

All
4856
9056
9085
Order Code Data­sheet Simu­lation DownloadsZ @ 100 MHz
(Ω)
IR
(A)
RDC max.
(mΩ)
Z @ 25 MHz
(Ω)
Design Kit Samples
7427520
STE ALT EAG CAD LTS PSP IGS CAD 30 17 3 20742793
7427521
STE ALT EAG CAD LTS PSP IGS CAD 52 19 3 34742791
742793
7427523
STE ALT EAG CAD LTS PSP CAD IGS 83 21 3 54
Order Code Data­sheet Simu­lation
7427520
7427521
7427523
Samples
Order Code Data­sheet Simu­lation DownloadsZ @ 100 MHz
(Ω)
IR
(A)
RDC max.
(mΩ)
Z @ 25 MHz
(Ω)
Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
