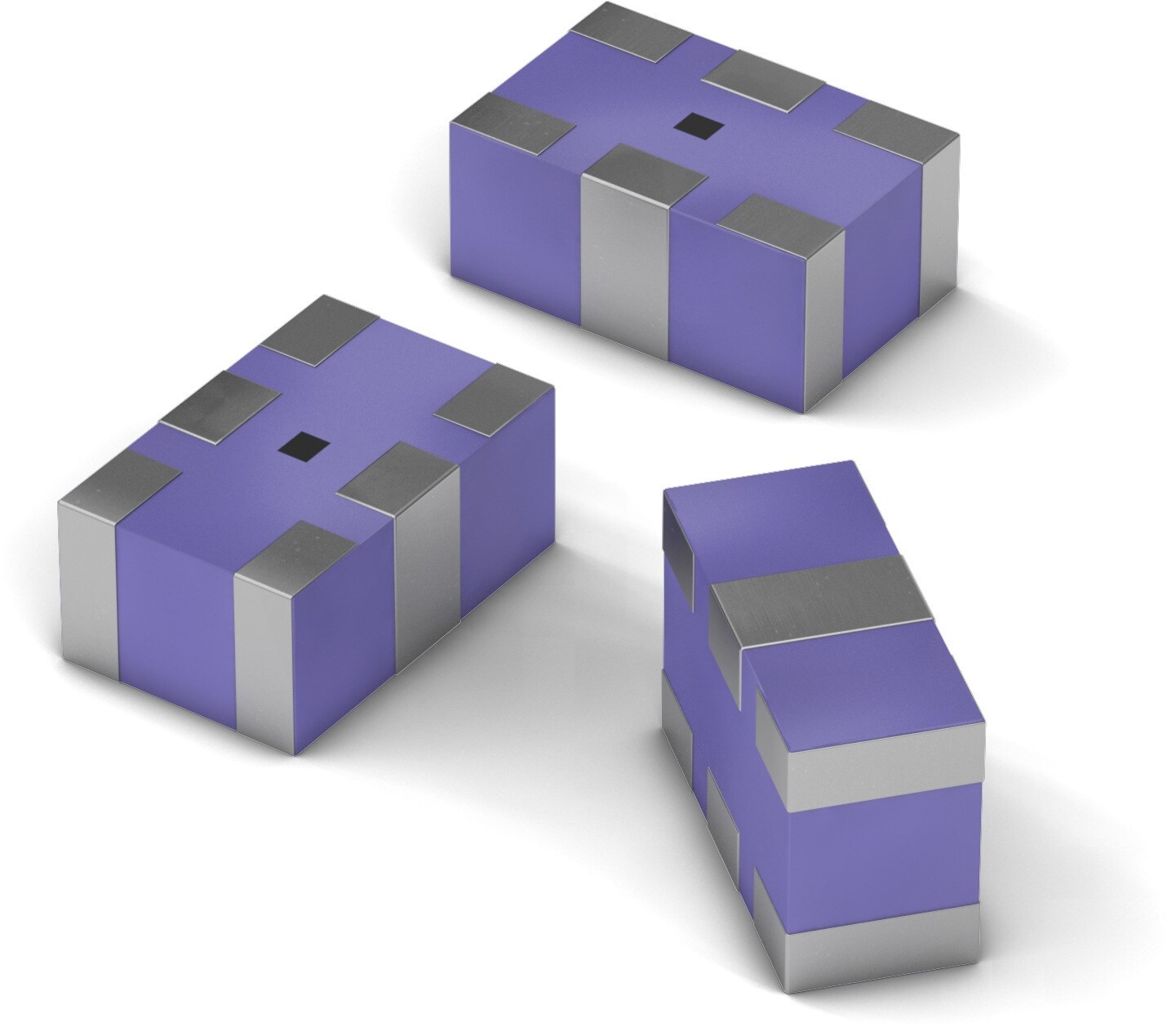

WE-CCMF Ceramic Common Mode Filter

Size	Dimensions	L (mm)	W (mm)	H (mm)
0504		1.25	1	0.8

LTSpice files

LT
LTSpice_WE-CCMF (rev22a).zip
|
13.5 KB

Characteristics

Compact multilayer common mode choke/filter
High common mode attenuation on WiFi frequencies (> 30 dB @ bandwidth)
Ultra-high-speed differential signal transmission
12 GHz differential mode cutoff frequency
LTCC based low-loss and highly reliable structure
High thermal stability
Recommended soldering: Reflow
Operating temperature: -40 °C up to +85 °C

Applications

High speed differential datalines
USB 3/4
Thunderbolt 2/3
Sata 3.X
Display Port
PCIe 3.0
eDP

Products

0504

Filter article data

show article in 1 product lines

article in 1 product lines

Order Code	Datasheet	Simulation	Downloads	Status	IL_{(SCC 2,1)}(dB)	Test Condition IL_{(SCC 2,1)}	f_c(GHz)	V_R(V (DC))	R_{DC max.}(Ω)	I_R(mA)	R_ISO	Samples
748020024	30 dB, 2450 MHz, 8 GHz	Simulation	Downloads11 files EDA models: Components ZIP ALT Altium_WE-CCMF (rev22b).IntLib \| 40.5 KB CDS Cadence_WE-CCMF (rev21a).zip \| 188.5 KB EAG Eagle_WE-CCMF (rev20b).lbr \| 15.2 KB KIC KiCad_WE-CCMF (rev25b).zip \| 22.8 KB ZUK Cadstar_WE-CCMF (rev20a).zip \| 5.1 KB CAD files ZIP 3D 3D_WE-CCMF_7480xxxxx (rev1).pdf \| 70.4 KB IGS Download_IGS-WE-CCMF-748020024 (rev1).igs \| 292.4 KB STP Download_STP-WE-CCMF-748020024 (rev1).stp \| 84.4 KB Electric models ZIP ADS ADS_WE-CCMF (rev24a).zip \| 1.9 MB PSP PSpice_WE-CCMF (rev22a).zip \| 15 KB S S-Parameter_748020024 (rev20a).s4p \| 351.5 KB Download all 11 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Common Mode Attenuation30 dB	Common Mode Attenuation2450 MHz	Cut-Off Frequency8 GHz	Rated Voltage5 V (DC)	DC Resistance2.5 Ω	Rated Current300 mA	Insulation Resistance100 MΩ
748030024	30 dB, 2450 MHz, 12 GHz	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-CCMF (rev22b).IntLib \| 40.5 KB CDS Cadence_WE-CCMF (rev21a).zip \| 188.5 KB EAG Eagle_WE-CCMF (rev20b).lbr \| 15.2 KB KIC KiCad_WE-CCMF (rev25b).zip \| 22.8 KB ZUK Cadstar_WE-CCMF (rev20a).zip \| 5.1 KB CAD files ZIP 3D 3D-WE-CCMF (rev1).pdf \| 70.4 KB IGS IGS_WE-CCMF (rev1).igs \| 878.4 KB STP STP-WE-CCMF (rev1).stp \| 269.7 KB Electric models ZIP ADS ADS_WE-CCMF (rev24a).zip \| 1.9 MB S S-Parameter_748030024 (rev20a).s4p \| 761.4 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Common Mode Attenuation30 dB	Common Mode Attenuation2450 MHz	Cut-Off Frequency12 GHz	Rated Voltage5 V (DC)	DC Resistance2.5 Ω	Rated Current300 mA	Insulation Resistance100 MΩ
748032455	20 dB, 2450 & 5500 MHz, 12 GHz	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-CCMF (rev22b).IntLib \| 40.5 KB CDS Cadence_WE-CCMF (rev21a).zip \| 188.5 KB EAG Eagle_WE-CCMF (rev20b).lbr \| 15.2 KB KIC KiCad_WE-CCMF (rev25b).zip \| 22.8 KB ZUK Cadstar_WE-CCMF (rev20a).zip \| 5.1 KB CAD files ZIP 3D 3D-WE-CCMF (rev1).pdf \| 70.4 KB IGS IGS_WE-CCMF (rev1).igs \| 878.4 KB STP STP_WE-CCMF (rev1).stp \| 269.7 KB Electric models ZIP ADS ADS_WE-CCMF (rev24a).zip \| 1.9 MB S S-Parameter_748032455 (rev20a).s4p \| 701.9 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Common Mode Attenuation20 dB	Common Mode Attenuation2450 & 5500 MHz	Cut-Off Frequency12 GHz	Rated Voltage5 V (DC)	DC Resistance2.5 Ω	Rated Current300 mA	Insulation Resistance100 MΩ
