WCAP-PTG5 Aluminum Polymer Capacitors

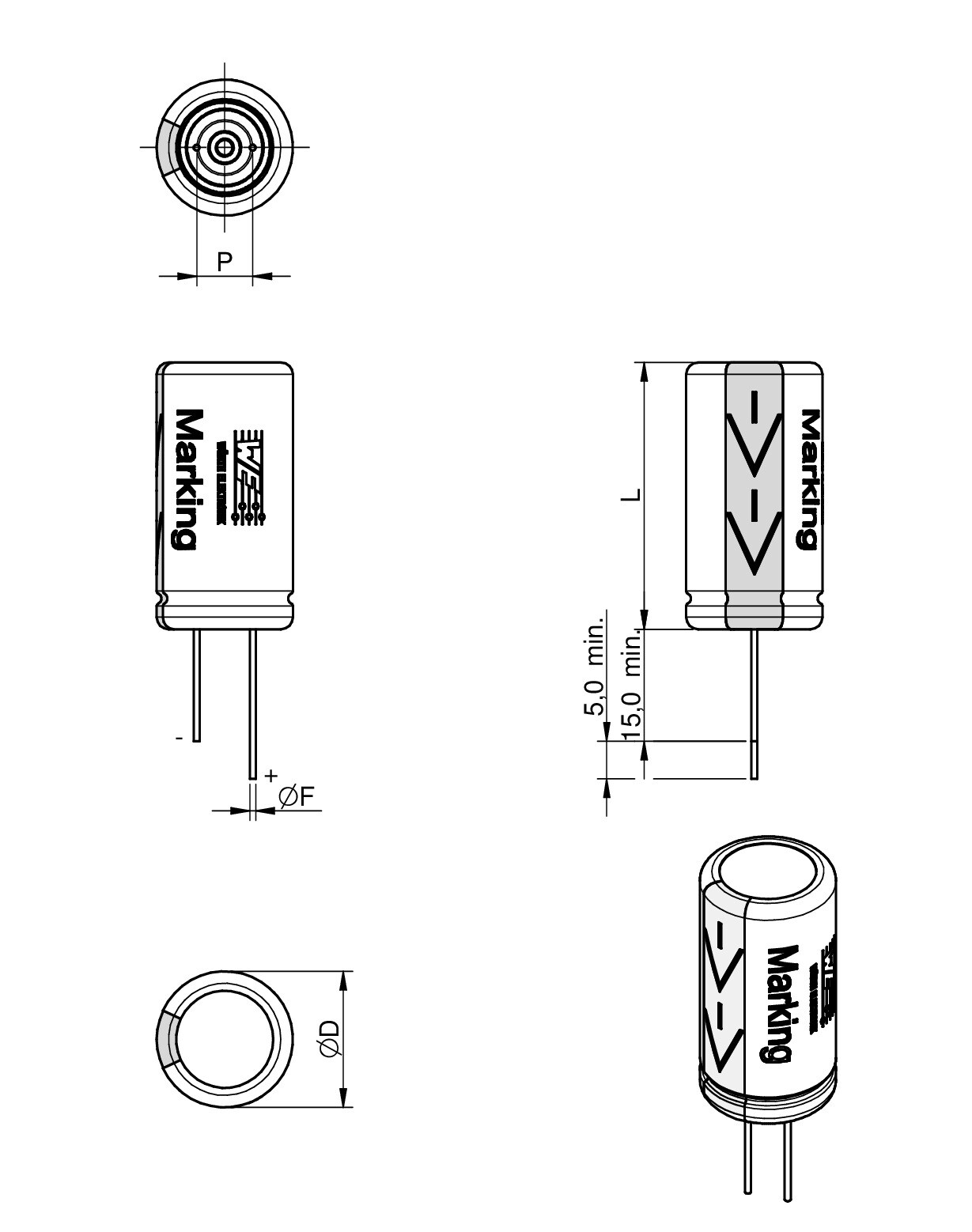

Size	Dimensions	L (mm)	Mount
⌀ 8 mm		-	Radial THT
⌀ 10 mm		12.5	Radial THT

LTSpice files

LT
LTSpice_WCAP-PTG5 (rev22a).zip
|
2.7 KB

Characteristics

General purpose product series with max. operating temperature of +105 °C
Low ESR over high frequency range
High permissible ripple current
Mounting style: THT Radial
Capacitance range: 39 µF ‒ 2000 µF
Capacitance tolerance: ±20 %
Voltage range (UR): 6.3 ‒ 25 V(DC)
Operating temperature: -55 °C up to +105 °C
Endurance: 2000h @ +105 °C
Dimensions (DxL) in mm: 8.0 x 8.0 up to 10.0 x 12.5
Recommended soldering: Wave soldering

Applications

Low ripple voltage at the switching converter
Filtering
Smoothing
Coupling
e.g. High-end power supply, industrial computer, VGA card, charger, digital set-top box

Application Notes

Products

All

⌀ 8 mm

⌀ 10 mm

Order Code	Datasheet	Downloads	C	V_R (V (DC))	Endurance (h)	Operating Temperature	I_RIPPLE (mA)	I_Leak (µA)	DF (%)	Pitch (mm)	Ø D (mm)	L (mm)	Packaging	Design Kit
870025574001	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	39 µF	25	2000	-55 °C up to +105 °C	4500	195	8	3.5	8	8	Ammopack	870025
870025574002	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	47 µF	25	2000	-55 °C up to +105 °C	4500	235	8	3.5	8	8	Ammopack	870025
870025574003	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	68 µF	25	2000	-55 °C up to +105 °C	4500	340	8	3.5	8	8	Ammopack	870025
870025574004	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	82 µF	25	2000	-55 °C up to +105 °C	4500	410	8	3.5	8	8	Ammopack	870025
870025574005	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	100 µF	25	2000	-55 °C up to +105 °C	4500	500	8	3.5	8	8	Ammopack	870025
870025374001	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x11.5x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x740xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	100 µF	16	2000	-55 °C up to +105 °C	4800	160	8	3.5	8	11.5	Ammopack	870025
870025174001	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	180 µF	6.3	2000	-55 °C up to +105 °C	5100	226.8	7	3.5	8	8	Ammopack	870025
870025374002	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	180 µF	16	2000	-55 °C up to +105 °C	4500	288	8	3.5	8	8	Ammopack	870025
870025575006	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_10x12.5x5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x750xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	180 µF	25	2000	-55 °C up to +105 °C	4900	900	8	5	10	12.5	Ammopack	870025
870025174002	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	220 µF	6.3	2000	-55 °C up to +105 °C	5100	277	7	3.5	8	8	Ammopack	870025
870025374003	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	220 µF	16	2000	-55 °C up to +105 °C	4500	352	8	3.5	8	8	Ammopack	870025
870025575007	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_10x12.5x5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x750xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	220 µF	25	2000	-55 °C up to +105 °C	4900	1100	8	5	10	12.5	Ammopack	870025
870025174003	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	270 µF	6.3	2000	-55 °C up to +105 °C	5100	340.2	7	3.5	8	8	Ammopack	870025
870025374004	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	270 µF	16	2000	-55 °C up to +105 °C	4500	432	8	3.5	8	8	Ammopack	870025
870025575008	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_10x12.5x5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x750xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	270 µF	25	2000	-55 °C up to +105 °C	4900	1350	8	5	10	12.5	Ammopack	870025
870025174004	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	330 µF	6.3	2000	-55 °C up to +105 °C	5100	416	7	3.5	8	8	Ammopack	870025
870025374005	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	330 µF	16	2000	-55 °C up to +105 °C	4500	528	8	3.5	8	8	Ammopack	870025
870025575009	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_10x12.5x5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x750xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	330 µF	25	2000	-55 °C up to +105 °C	4900	1650	8	5	10	12.5	Ammopack	870025
870025174005	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	390 µF	6.3	2000	-55 °C up to +105 °C	5100	491	8	3.5	8	8	Ammopack	870025
870025374006	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x11.5x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x740xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	390 µF	16	2000	-55 °C up to +105 °C	5000	624	8	3.5	8	11.5	Ammopack	870025
870025174006	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	470 µF	6.3	2000	-55 °C up to +105 °C	5100	592	8	3.5	8	8	Ammopack	870025
870025374007	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x11.5x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x740xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	470 µF	16	2000	-55 °C up to +105 °C	5000	752	10	3.5	8	11.5	Ammopack	870025
870025174007	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	560 µF	6.3	2000	-55 °C up to +105 °C	5100	705.6	8	3.5	8	8	Ammopack	870025
870025375008	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_10x12.5x5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x750xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	560 µF	16	2000	-55 °C up to +105 °C	5500	896	10	5	10	12.5	Ammopack	870025
870025174008	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	680 µF	6.3	2000	-55 °C up to +105 °C	5100	428	8	3.5	8	8	Ammopack	870025
870025375009	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_10x12.5x5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x750xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	680 µF	16	2000	-55 °C up to +105 °C	5500	1000	10	5	10	12.5	Ammopack	870025
870025174009	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x8x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x7400x (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	820 µF	6.3	2000	-55 °C up to +105 °C	5100	516.6	10	3.5	8	8	Ammopack	870025
870025375010	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_10x12.5x5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x750xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	820 µF	16	2000	-55 °C up to +105 °C	5500	1000	10	5	10	12.5	Ammopack	870025
870025175010	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_10x12.5x5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x750xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	1000 µF	6.3	2000	-55 °C up to +105 °C	5900	630	10	5	10	12.5	Ammopack	870025
870025174011	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_8x11.5x3.5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x740xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	1200 µF	6.3	2000	-55 °C up to +105 °C	5500	756	10	3.5	8	11.5	Ammopack	870025
870025175012	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_10x12.5x5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x750xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	1500 µF	6.3	2000	-55 °C up to +105 °C	5900	945	10	5	10	12.5	Ammopack	870025
870025175013	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-PTG5 (rev22c).IntLib \| 1.2 MB ZUK CadStar_WCAP-PTG5 (rev19a).zip \| 6.4 KB CDS Cadence_WCAP-PTG5 (rev22a).zip \| 4.3 MB EAG Eagle_WCAP-PTG5 (rev20a).lbr \| 45.4 KB CAD files ZIP IGS IGS_PTG5_10x12.5x5x0 (rev1).igs \| 4.7 MB STP Download_STP_870025x750xx (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WCAP-PTG5 (rev22a).zip \| 7.9 KB Download all 7 files as zip archive ZIP	2000 µF	6.3	2000	-55 °C up to +105 °C	5900	1260	10	5	10	12.5	Ammopack	870025

Order Code	Datasheet	Simulation
870025574001	SPEC
870025574002	SPEC
870025574003	SPEC
870025574004	SPEC
870025574005	SPEC
870025374001	SPEC
870025174001	SPEC
870025374002	SPEC
870025575006	SPEC
870025174002	SPEC
870025374003	SPEC
870025575007	SPEC
870025174003	SPEC
870025374004	SPEC
870025575008	SPEC
870025174004	SPEC
870025374005	SPEC
870025575009	SPEC
870025174005	SPEC
870025374006	SPEC
870025174006	SPEC
870025374007	SPEC
870025174007	SPEC
870025375008	SPEC
870025174008	SPEC
870025375009	SPEC
870025174009	SPEC
870025375010	SPEC
870025175010	SPEC
870025174011	SPEC
870025175012	SPEC
870025175013	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	C	V_R (V (DC))	Endurance (h)	Operating Temperature	I_RIPPLE (mA)	I_Leak (µA)	DF (%)	Pitch (mm)	Ø D (mm)	L (mm)	Packaging	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WCAP-PTG5 Aluminum Polymer Capacitors

Videos

#askLorandt explains: DC/DC Converter Voltage Ripple vs. ESR of Different Capacitor Technologies

Videos

How to choose the right capacitor type for a circuit?! || Film vs. Ceramic vs. Electrolytic

Videos

Webinar: Introduction to the capacitor technologies and how to use them
