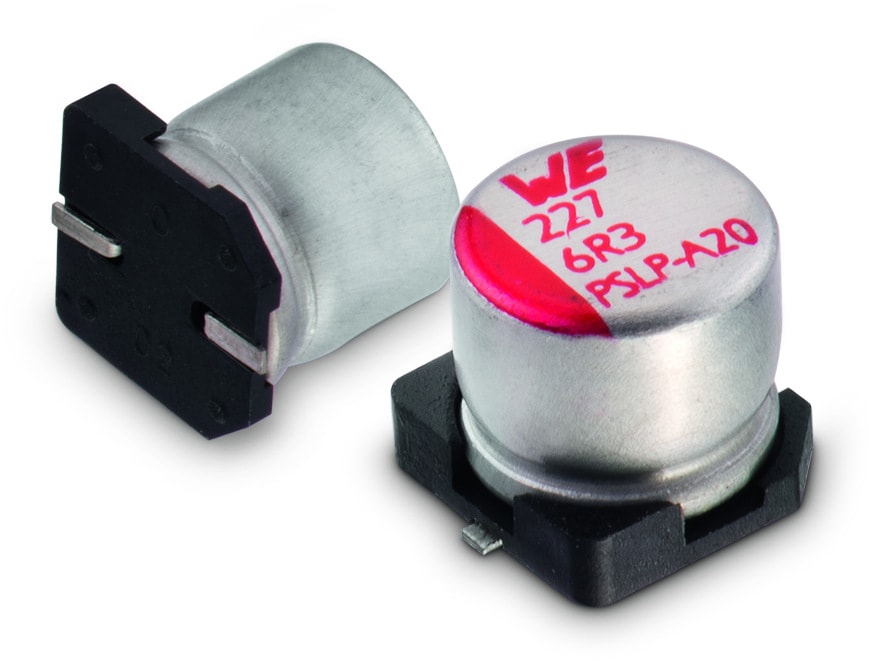

WCAP-PSLP Aluminum Polymer Capacitors

Low Profile

Characteristics

  • Low profile product series
  • Low ESR over high frequency range
  • High permissible ripple current
  • Mounting style: V-Chip SMT
  • Capacitance range: 4.7 µF ‒ 390 µF
  • Capacitance tolerance: ±20 %
  • Voltage range (UR): 6.3 ‒ 100 V(DC)
  • Operating temperature: -55 °C up to +105 °C
  • Endurance: 2000h @ +105 °C
  • Dimensions (DxL) in mm: 4.0 x 5.5 up to 6.3 x 7.7
  • Recommended soldering: Reflow soldering

Applications

  • Low ripple voltage at the switching converter
  • Filtering
  • Smoothing
  • Coupling
  • e.g. High-end power supply, industrial computer, VGA card, charger, digital set-top box

Products

Order Code Data­sheet Simu­lation DownloadsCVR
(V (DC))
Endurance
(h)
Operating TemperatureIRIPPLE
(mA)
RESR
(mΩ)
ILeak
(µA)
DF
(%)
Ø D
(mm)
L
(mm)
Technical ReferenceDesign Kit Samples
875105945001SPEC
7 files 4.7 µF 100 2000 -55 °C up to +105 °C 1060 100 600 12 6.3 7.7 PSED0774R7M100DVCTCB000
875105844001SPEC
7 files 5.6 µF 63 2000 -55 °C up to +105 °C 700 100 600 12 6.3 5.8 PSED0585R6M063DVCTBB000
875105744001SPEC
7 files 8.2 µF 50 2000 -55 °C up to +105 °C 800 80 600 12 6.3 5.8 PSED0588R2M050DVCTBB000
875105844002SPEC
7 files 8.2 µF 63 2000 -55 °C up to +105 °C 700 100 600 12 6.3 5.8 PSED0588R2M063DVCTBB000
875105240001SPEC
7 files 10 µF 10 2000 -55 °C up to +105 °C 1200 45 300 8 4 5.5 PSEB055100M010DVCTAB000875105
875105359001SPEC
7 files 10 µF 16 2000 -55 °C up to +105 °C 2200 30 400 8 5 5.8 PSEC058100M016DVCTBB000875105
875105444001SPEC
7 files 10 µF 20 2000 -55 °C up to +105 °C 2200 30 600 8 6.3 5.8 PSED058100M020DVCTBB000
875105544001SPEC
7 files 10 µF 25 2000 -55 °C up to +105 °C 2200 30 600 8 6.3 5.8 PSED058100M025DVCTBB000875105
875105744002SPEC
7 files 12 µF 50 2000 -55 °C up to +105 °C 800 80 600 12 6.3 5.8 PSED058120M050DVCTBB000
875105240002SPEC
7 files 15 µF 10 2000 -55 °C up to +105 °C 1200 45 300 8 4 5.5 PSEB055150M010DVCTAB000875105
875105359002SPEC
7 files 15 µF 16 2000 -55 °C up to +105 °C 2200 30 400 8 5 5.8 PSEC058150M016DVCTBB000875105
875105444002SPEC
7 files 15 µF 20 2000 -55 °C up to +105 °C 2200 30 600 8 6.3 5.8 PSED058150M020DVCTBB000
875105544002SPEC
7 files 15 µF 25 2000 -55 °C up to +105 °C 2200 30 600 8 6.3 5.8 PSED058150M025DVCTBB000875105
875105744003SPEC
7 files 15 µF 50 2000 -55 °C up to +105 °C 800 80 600 12 6.3 5.8 PSED058150M050DVCTBB000
875105644004SPEC
7 files 18 µF 35 2000 -55 °C up to +105 °C 900 64 600 12 6.3 5.8 PSED058180M035DVCTBB000
875105240003SPEC
7 files 22 µF 10 2000 -55 °C up to +105 °C 1200 45 300 8 4 5.5 PSEB055220M010DVCTAB000875105
875105359003SPEC
7 files 22 µF 16 2000 -55 °C up to +105 °C 2200 30 400 8 5 5.8 PSEC058220M016DVCTBB000875105
875105444003SPEC
7 files 22 µF 20 2000 -55 °C up to +105 °C 2200 30 600 8 6.3 5.8 PSED058220M020DVCTBB000
875105544003SPEC
7 files 22 µF 25 2000 -55 °C up to +105 °C 2200 30 600 8 6.3 5.8 PSED058220M025DVCTBB000875105
875105242004SPEC
7 files 33 µF 10 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055330M010DVCTBB000875105
875105359004SPEC
7 files 33 µF 16 2000 -55 °C up to +105 °C 2200 30 400 8 5 5.8 PSEC058330M016DVCTBB000875105
875105444004SPEC
7 files 33 µF 20 2000 -55 °C up to +105 °C 2200 30 600 8 6.3 5.8 PSED058330M020DVCTBB000
875105545004SPEC
7 files 33 µF 25 2000 -55 °C up to +105 °C 2670 25 600 8 6.3 7.7 PSED077330M025DVCTCB000875105
875105242005SPEC
7 files 39 µF 10 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055390M010DVCTBB000
875105359005SPEC
7 files 39 µF 16 2000 -55 °C up to +105 °C 2200 30 400 8 5 5.8 PSEC058390M016DVCTBB000875105
875105445005SPEC
7 files 39 µF 20 2000 -55 °C up to +105 °C 2670 25 600 8 6.3 7.7 PSED077390M020DVCTCB000
875105545005SPEC
7 files 39 µF 25 2000 -55 °C up to +105 °C 2670 25 600 8 6.3 7.7 PSED077390M025DVCTCB000875105
875105142001SPEC
7 files 47 µF 6.3 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055470M6R3DVCTBB000
875105242006SPEC
7 files 47 µF 10 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055470M010DVCTBB000875105
875105344006SPEC
7 files 47 µF 16 2000 -55 °C up to +105 °C 2200 30 400 8 6.3 5.8 PSED058470M016DVCTBB000875105
875105445006SPEC
7 files 47 µF 20 2000 -55 °C up to +105 °C 2670 25 600 8 6.3 7.7 PSED077470M020DVCTCB000875105
875105645005SPEC
7 files 47 µF 35 2000 -55 °C up to +105 °C 1600 50 600 12 6.3 7.7 PSED077470M035DVCTCB000
875105142002SPEC
7 files 56 µF 6.3 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055560M6R3DVCTBB000
875105242007SPEC
7 files 56 µF 10 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055560M010DVCTBB000875105
875105344007SPEC
7 files 56 µF 16 2000 -55 °C up to +105 °C 2200 30 400 8 6.3 5.8 PSED058560M016DVCTBB000875105
875105445007SPEC
7 files 56 µF 20 2000 -55 °C up to +105 °C 2670 25 600 8 6.3 7.7 PSED077560M020DVCTCB000875105
875105142003SPEC
7 files 68 µF 6.3 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055680M6R3DVCTBB000
875105242008SPEC
7 files 68 µF 10 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055680M010DVCTBB000875105
875105344008SPEC
7 files 68 µF 16 2000 -55 °C up to +105 °C 2200 30 400 8 6.3 5.8 PSED058680M016DVCTBB000875105
875105142004SPEC
7 files 82 µF 6.3 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055820M6R3DVCTBB000
875105242009SPEC
7 files 82 µF 10 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055820M010DVCTBB000875105
875105344009SPEC
7 files 82 µF 16 2000 -55 °C up to +105 °C 2200 30 400 8 6.3 5.8 PSED058820M016DVCTBB000875105
875105142005SPEC
7 files 100 µF 6.3 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055101M6R3DVCTBB000
875105242010SPEC
7 files 100 µF 10 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055101M010DVCTBB000875105
875105344010SPEC
7 files 100 µF 16 2000 -55 °C up to +105 °C 2690 20 400 8 6.3 5.8 PSED058101M016DVCTBB000875105
875105142006SPEC
7 files 150 µF 6.3 2000 -55 °C up to +105 °C 1970 30 300 8 5 5.5 PSEC055151M6R3DVCTBB000875105
875105244011SPEC
7 files 150 µF 10 2000 -55 °C up to +105 °C 2200 30 300 8 6.3 5.8 PSED058151M010DVCTBB000875105
875105345011SPEC
7 files 150 µF 16 2000 -55 °C up to +105 °C 2690 20 400 8 6.3 7.7 PSED077151M016DVCTCB000875105
875105144007SPEC
7 files 180 µF 6.3 2000 -55 °C up to +105 °C 2390 20 300 8 6.3 5.8 PSED058181M6R3DVCTBB000
875105244012SPEC
7 files 180 µF 10 2000 -55 °C up to +105 °C 1970 30 300 8 6.3 5.8 PSED058181M010DVCTBB000875105
875105144008SPEC
7 files 220 µF 6.3 2000 -55 °C up to +105 °C 3000 20 300 8 6.3 5.8 PSED058221M6R3DVCTBB000875105
875105244013SPEC
7 files 220 µF 10 2000 -55 °C up to +105 °C 1970 30 300 8 6.3 5.8 PSED058221M010DVCTBB000875105
875105144009SPEC
7 files 270 µF 6.3 2000 -55 °C up to +105 °C 3000 20 300 8 6.3 5.8 PSED058271M6R3DVCTBB000
875105245014SPEC
7 files 270 µF 10 2000 -55 °C up to +105 °C 2690 20 300 8 6.3 7.7 PSED077271M010DVCTCB000875105
875105144010SPEC
7 files 330 µF 6.3 2000 -55 °C up to +105 °C 3100 20 300 8 6.3 5.8 PSED058331M6R3DVCTBB000
875105245015SPEC
7 files 330 µF 10 2000 -55 °C up to +105 °C 2690 20 300 8 6.3 7.7 PSED077331M010DVCTCB000875105
875105145011SPEC
7 files 390 µF 6.3 2000 -55 °C up to +105 °C 3400 15 300 8 6.3 7.7 PSED077391M6R3DVCTCB000875105
