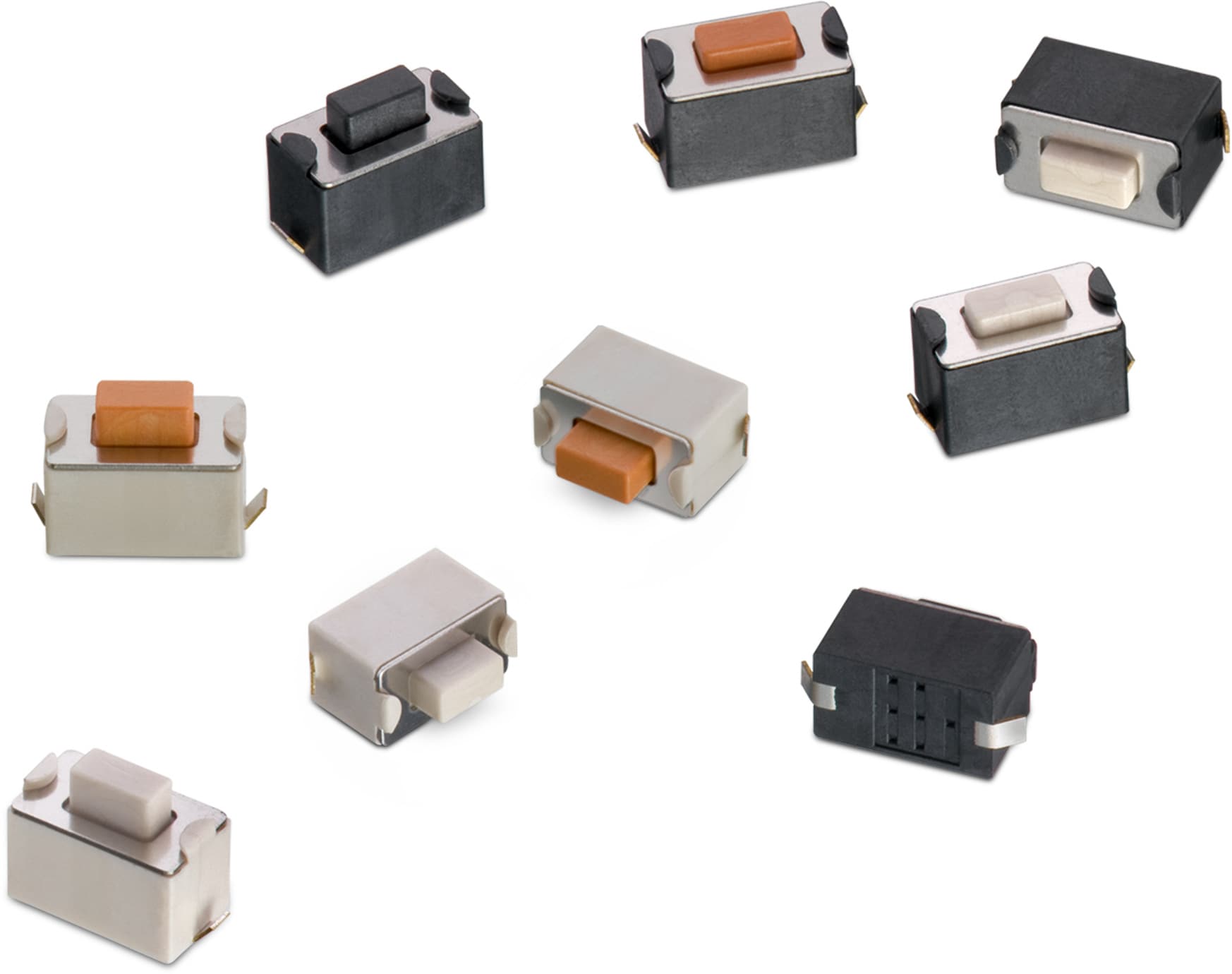

WS-TASV J-Bend SMT Tact Switch 6.0x3.5 mm

WS-TASV J-Bend SMT Tact Switch 6.0x3.5 mm
General Information
Operating Temperature-40 °C up to +85 °C
WashableNo
Ingress Protection CodeNone
Material Properties
Actuator MaterialLCP
Actuator Flammability RatingUL94 V-0
Frame MaterialLCP
Frame Flammability RatingUL94 V-0
Contact PlatingSilver
Terminal PlatingSilver
Electrical Properties
IR50 mA
VR12 V (DC)
Contact Resistance Initial100 mΩ
RISO100 MΩ
Withstanding Voltage250 V (AC)
Mechanical Properties
Operation Force (Value)160 g; 260 g; 360 g
Electrical Life30000 Cycles; 50000 Cycles
Packaging Properties
PackagingTape and Reel

Products

Order Code Data­sheet DownloadsH
(mm)
Operation Force (Value)
(g)
Electrical Life
(Cycles)
Actuator ColorVaporphase process Samples
434123043816SPEC
5 files 4.3 160 50000 Black not specified
434113043826SPEC
5 files 4.3 260 30000 White not specified
434123043836SPEC
5 files 4.3 360 50000 Salmon not specified
434123050816SPEC
5 files 5 160 50000 Black not specified
434113050826SPEC
5 files 5 260 30000 White not specified
434123050836SPEC
5 files 5 360 50000 Salmon not specified
Order Code Data­sheet
434123043816SPEC
434113043826SPEC
434123043836SPEC
434123050816SPEC
434113050826SPEC
434123050836SPEC
Samples
Order Code Data­sheet DownloadsH
(mm)
Operation Force (Value)
(g)
Electrical Life
(Cycles)
Actuator ColorVaporphase process Samples

Tact Switches from Würth Elektronik eiSos

#TimetoSwitch

Tact Switches

The Tact Switches from Würth Elektronik are characterized by performance stability and long lifetime. All metal elements are corrosion resistant proven by a 48 hours salt spray test. Polyimide tape or silicone rubber protect the switch even in tough environments. The switch range includes various high quality solutions like dip, rotary, detector, micro, slide, rocker switches and encoder. Available from stock. Samples free of charge.

Product Benefits:

  • IP67
  • Long lifetime
  • High durability
  • Corrosion resistant metal elements
  • Full load life cycle test
  • Tight tolerance due to automated production

The corrosion resistance of all metallic components was tested by a 48-hour salt-spray test.

The snap dome is made of stainless steel to ensure high reliability and reduced friction. The indicated switching cycles have been tested under full load.

Polyimide film provides protection against environmental influences and silicone inserts are used for harsh industrial environments.

The plastic material withstands five times reflow and has been tested for flammability according to UL.

Automated production reduces mechanical deviations and ensures high consistency of mechanical parameters.
